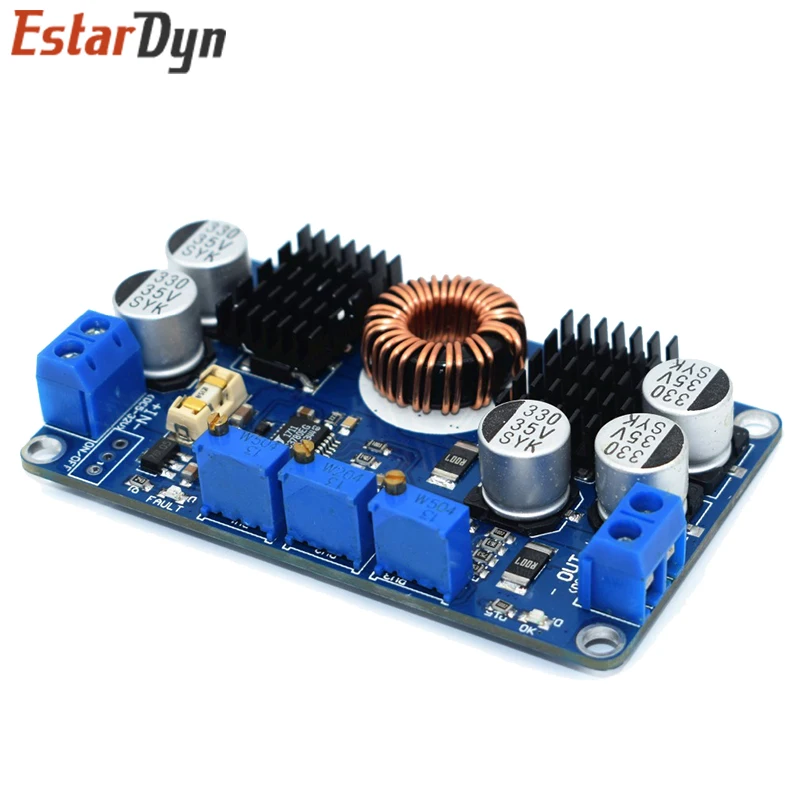

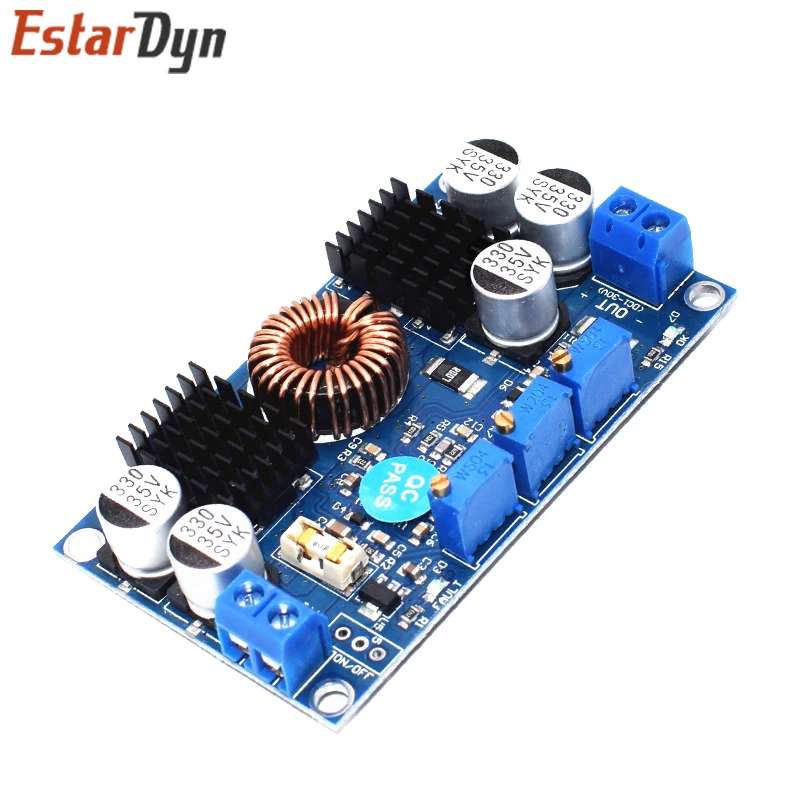

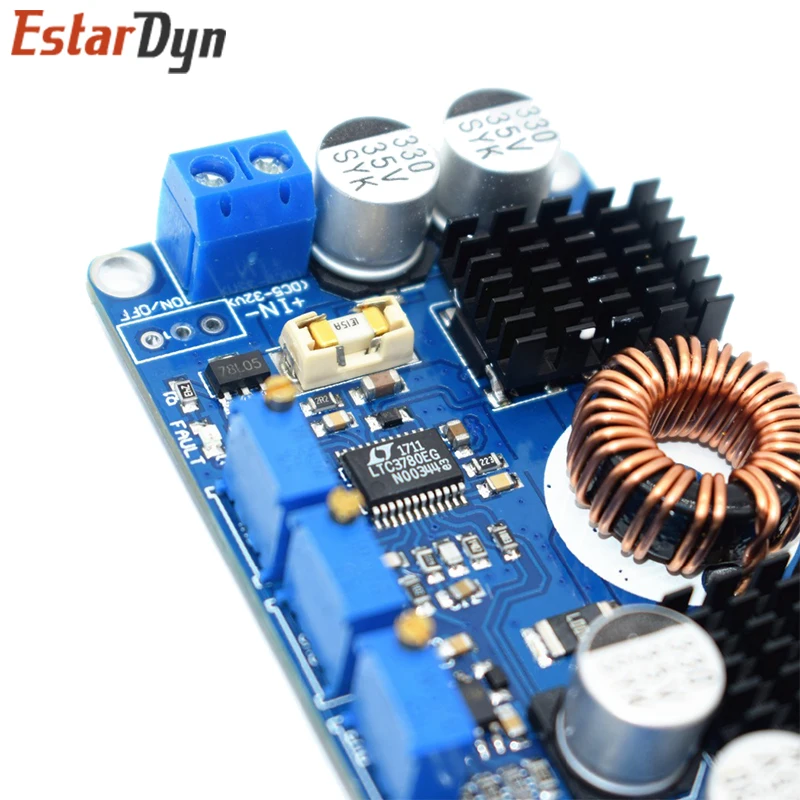

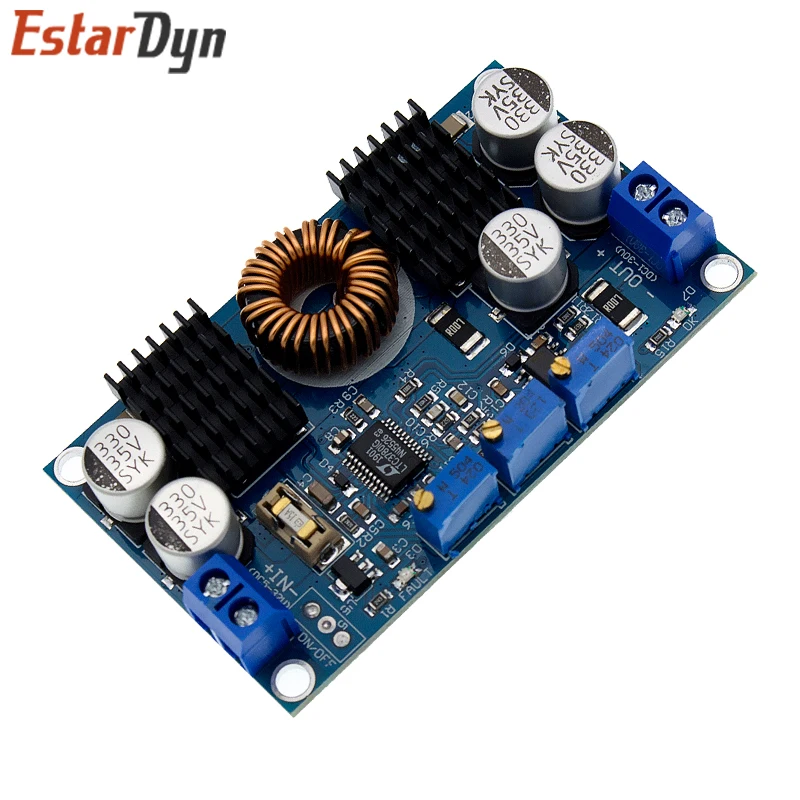

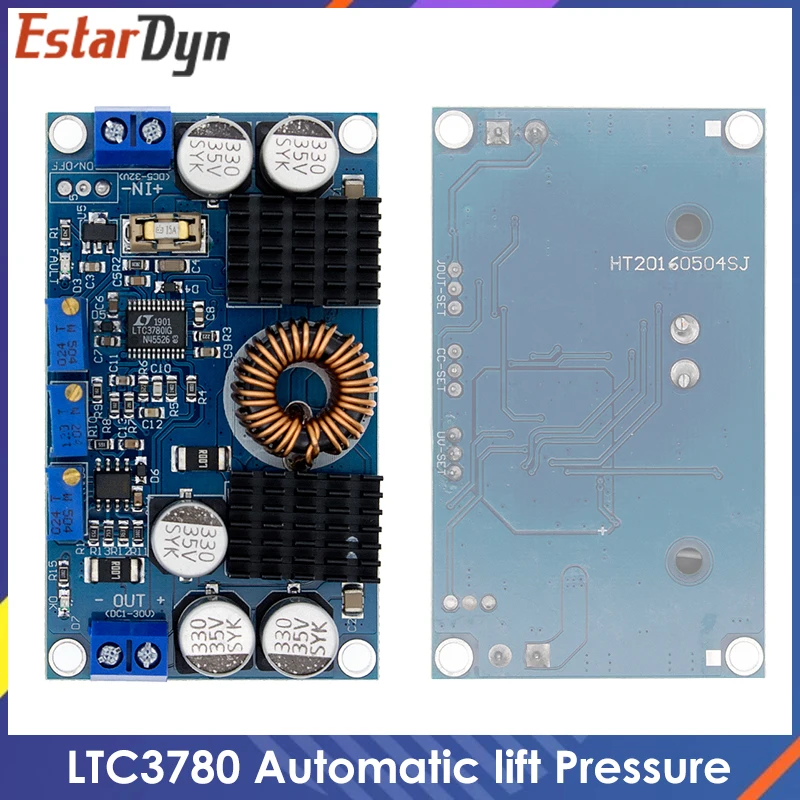

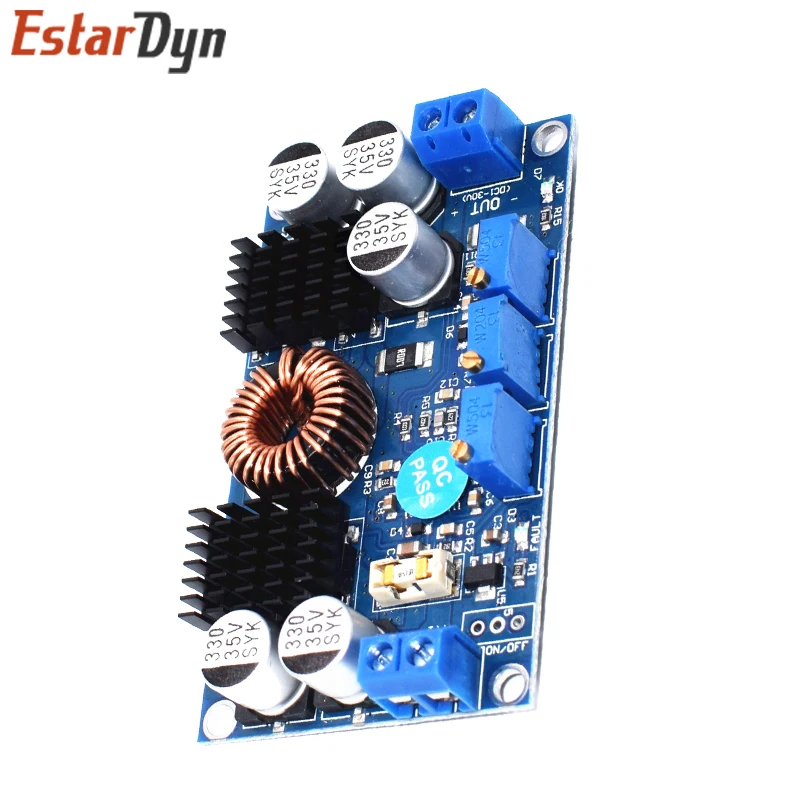

• The power supply is a kind of high-efficiency voltage automatically regulator.

• Whatever is the input voltage value,the output voltage can be maintained constant.

• For example,set the output to 12V, then the variation of the input voltage in the range of 5-32V,

• the output voltage in the 12V invariant.

• This module has a perfect protection function, and can be widely used in notebook power,

• vehicle power supply, solar charge etc..

• Advantages:

• The input uses replaceable fuse to protect power supply and equipment;

• The whole electrolysis use patch, low resistance, high frequency capacitor

• ,to make the ripple down to the freezing point;

• Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging)

• The output has error indicating lamp,it will light when the output voltage drift too serious,

• short circuit and other fault;

• Inductor use iron silicon aluminum, 0.8 double winding, generate less heat.

• Parameters:

• Input voltage: DC5-32V;

• Output voltage: DC1V-30V continuously adjustable; the default 12V shipment

• Output current: 10A (MAX) ,long term within 8A

• Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation

• Output ripple: 50mV (12V turn to 12V, 5A measured)

• Short circuit protection:YES

• Input reverse connection protection: No

• Output prevent reverse connection protection: No

• Operating temperature range: -45 ~ +85 centigrade
