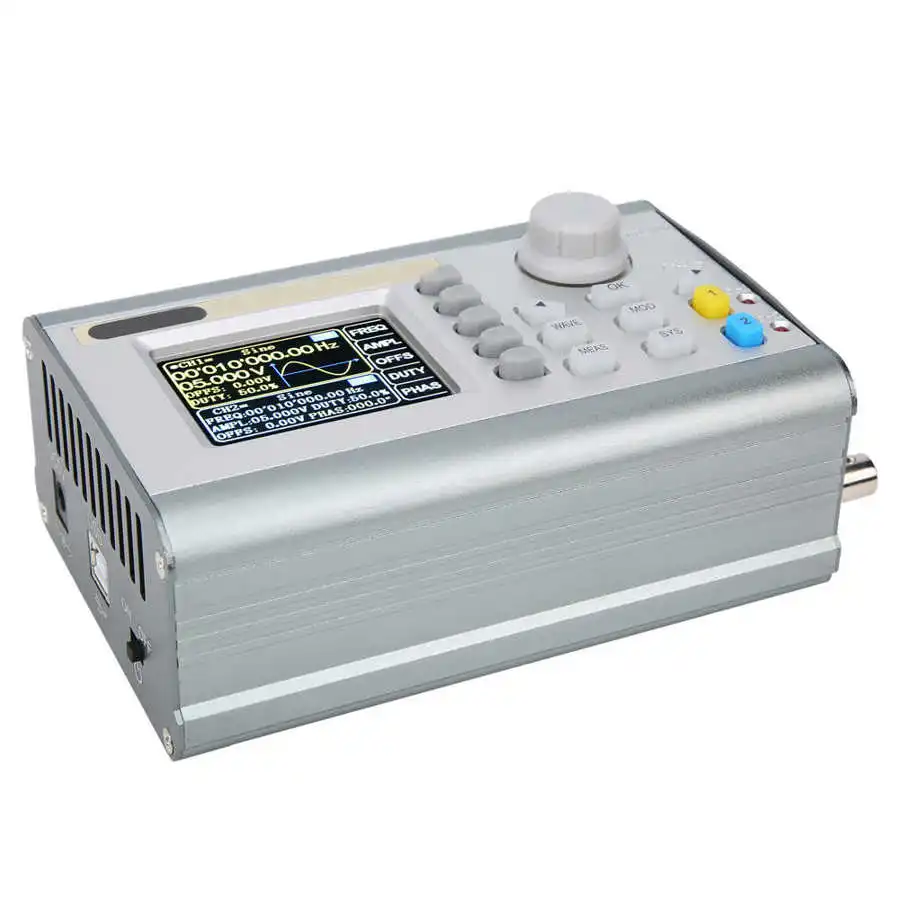

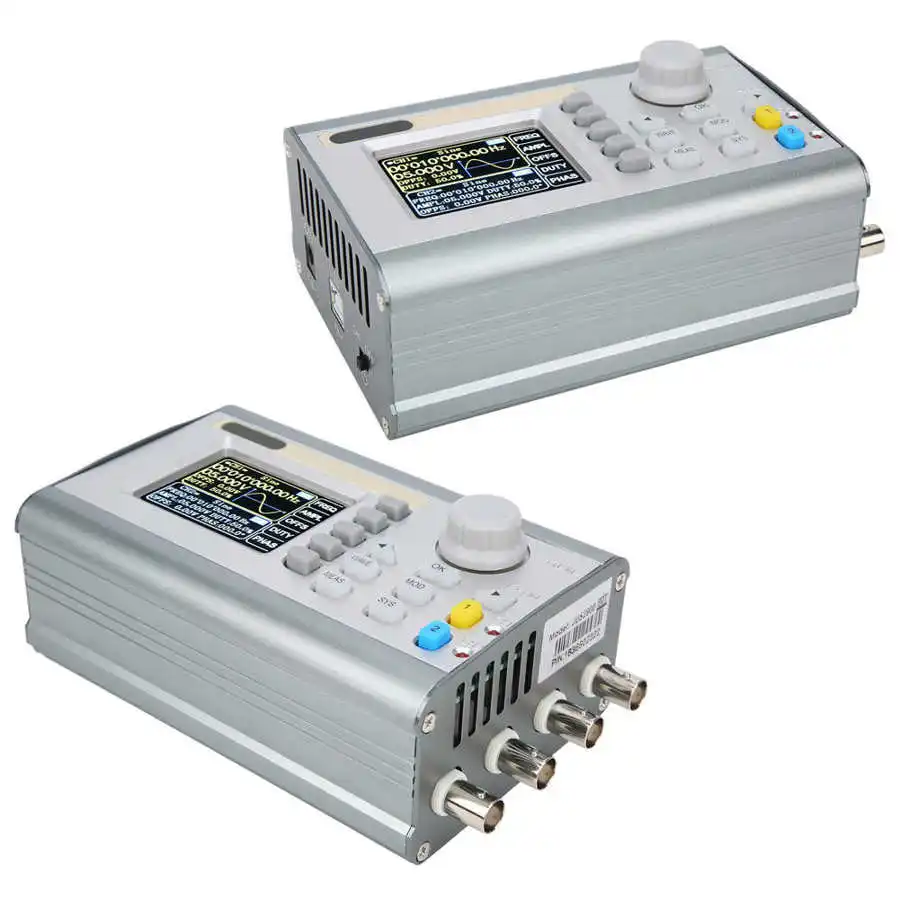

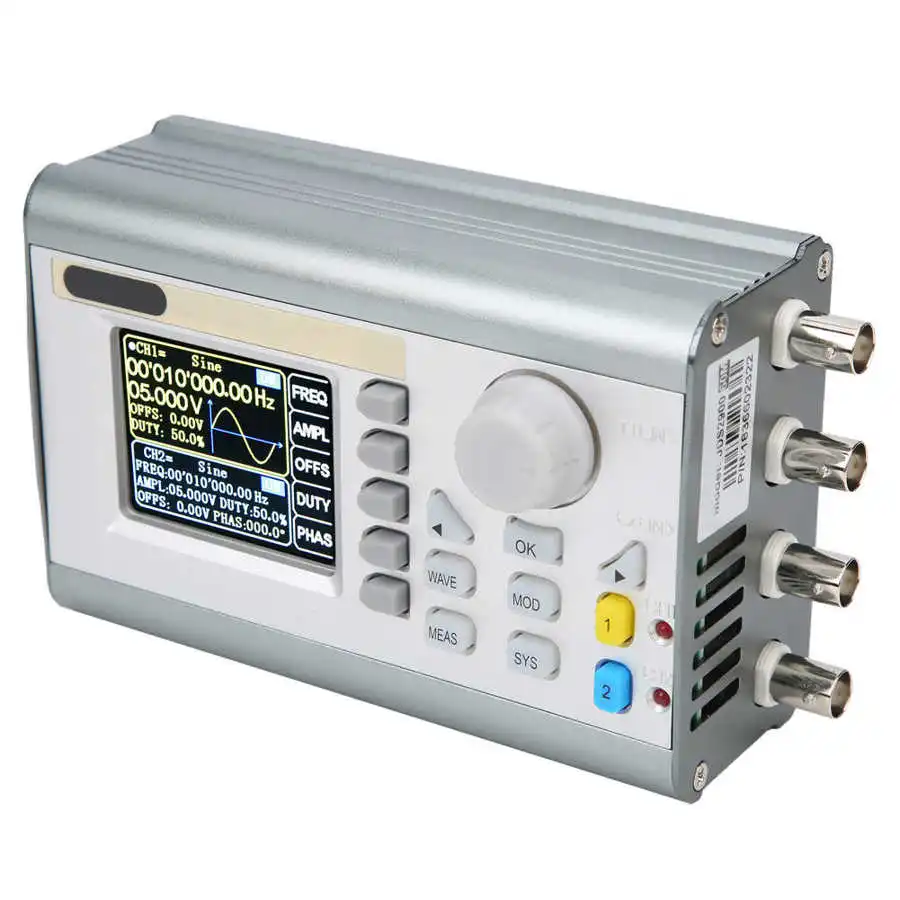

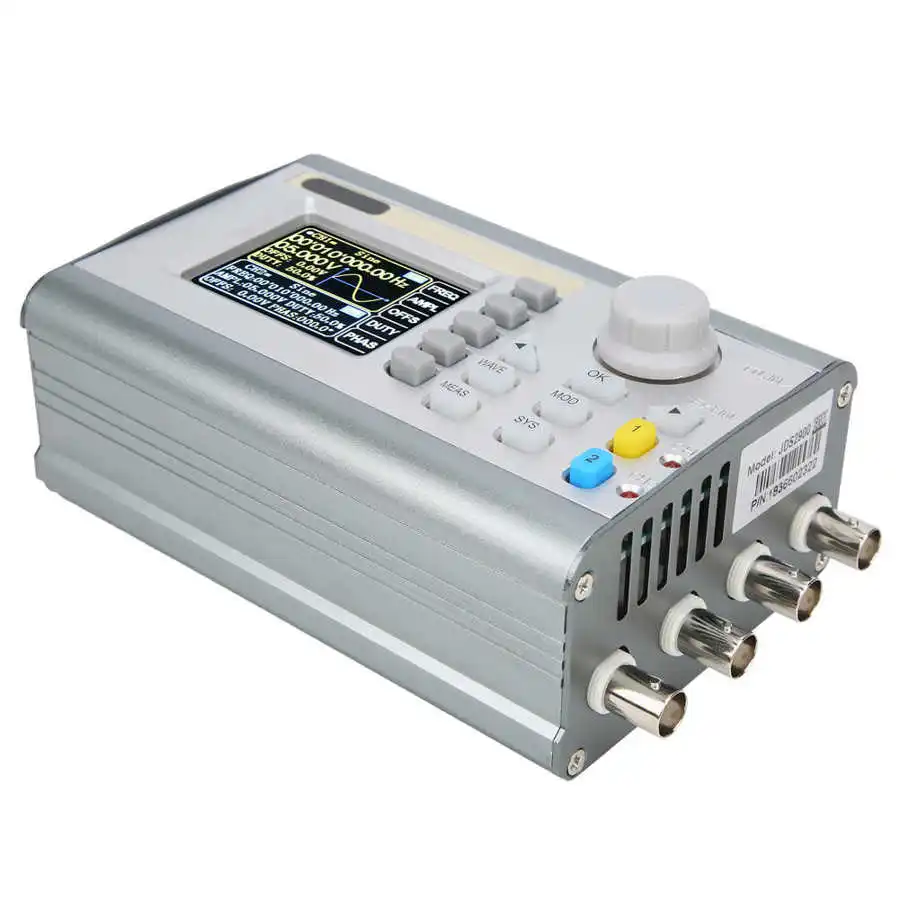

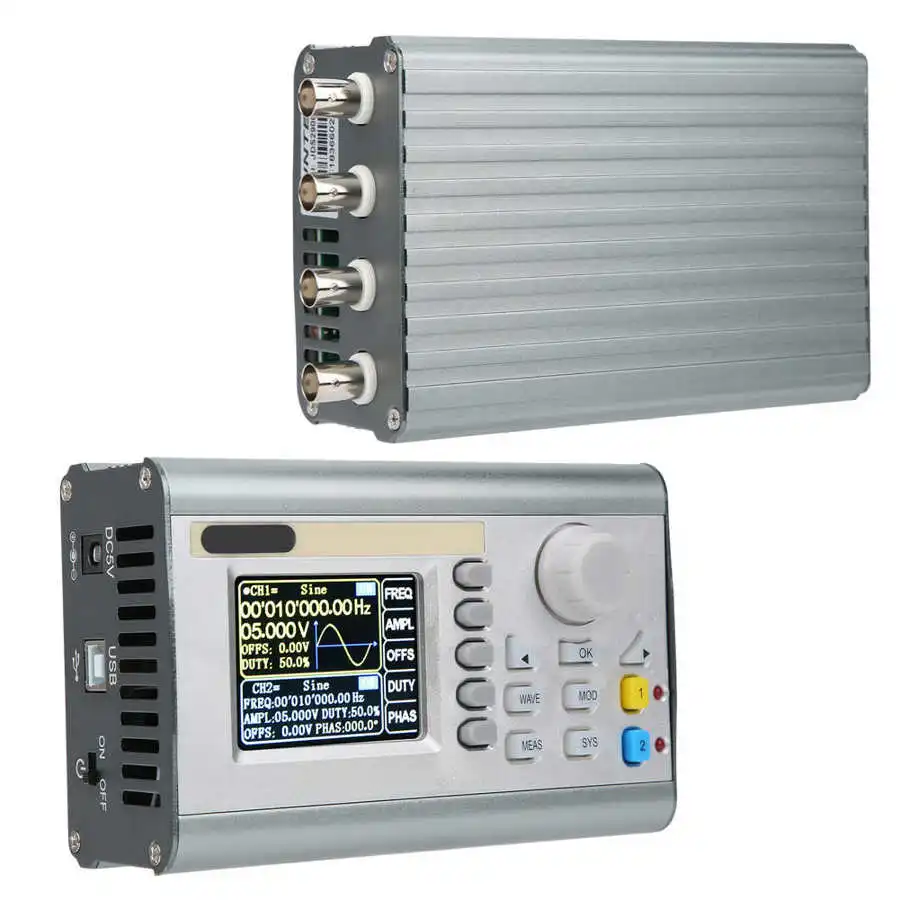

Генератор сигналов JDS2900 60M 2CH Функция произвольной формы DDS генератор импульсных

JDS2900-60M 2CH Function Arbitrary Waveform Signal Generator DDS Pulse Signal Sources AC100-240V

Feature:

1. Use DDS direct synthesis technology to produce accurate and low‑distortion output signals.
2. Surface mount technology, large-scale integrated circuit, high reliability and long service life.
3. High-quality flame-retardant shell, silicone shortcut keys, beautiful and generous, after erecting the bracket, it is more convenient to operate and view data.
4. High accuracy, with output short-circuit protection capability, all signal output terminals can work for 60S under load short-circuit conditions.
5. Clear operation interface, with independent control switches, widely used in electronics enthusiasts, scientific research institutions and high-tech enterprises.
6. Portable dual‑channel DDS function/arbitrary waveform generator, dual‑channel equal performance, 360‑degree continuously adjustable phase difference.
7. Use sine waves, square waves, sawtooth waves, or arbitrary waves to generate pulse train, and the number of pulse period is continuously adjustable between 0-1048575.
8. It integrates the functions of function signal generator, arbitrary wavesform generator, pulse signal generator, noise generator, signal measurement, counter and frequency sweep.

Specification:

Condition: 100% Brand New
Item Type: Signal Generator
Material: Silicone, ABS (Flame Retardant)
Model: JDS6600-60M

Frequency Characteristics:
Sine Waves Frequency Range: 0-60MHz
Square Waves Frequency Range: 0-25MHz
Triangular Waves Frequency Range: 0-25MHz
Pulse Waves Frequency Range: 0-6MHz
TTL Digital Waves Frequency Range: 0-6MHz
Arbitrary Waves Frequency Range: 0-6MHz
Pulse Width Adjustment Range: 25nS-4000S
Square Waves Rise Time: ≤10ns
Minimum Frequency Resolution: 0.01μHz (0.00000001)
Frequency Accuracy: ±20ppm
Frequency Stability: ±1ppm/3 Hours

Waves Characteristics:
Waveform Types: Sine waves, square waves, pulse waves (adjustable duty cycle, pulse width and cycle time can be accurately adjusted), triangular waves, partial sine waves, CMOS waves, DC level (set the DC amplitude by adjusting the offset), half waves, full waves, positive staircase waves, inverse staircase waves, noise waves, exponential rise, exponential fall, multi-sonic waves, Sinker pulse, Lorentz pulse, and 60 user-defined waveforms.
Waves Length: 2048 Points
Waveform Sampling Rate: 266MSa/S
Waveform Vertical Resolution: 14 Bits
Sine Waves: Harmonic Suppression: 245dBc (<1 MHz); 240dBc (1 MHz-20MHz)
Total Harmonic Distortion: <0.8% (20Hz-20kHz, 0dBm)
Square Waves and Pulse Waves: Overshoot≤5%
Pulse Waves Duty Cycle Adjustment Range: 0.1%-99.9%
Partial Sine Waves Duty Cycle Adjustment Range: 0.1%-99.9%
Sawtooth Waves Linearity: ≥98% (0.01Hz-10kHz)

Output Characteristics:
Sine Waves Amplitude Range: Frequency ≤10MHz, 2mVpp-20Vpp
Square Waves/Triangular Waves Amplitude Range: Frequency ≤10MHz, 2mVpp-20Vpp
Amplitude Resolution: 1mV
Amplitude Stability: ±0.5%/5 Hours
Amplitude Flatness: ±5% (<10MHz); ±10% (>10MHz)

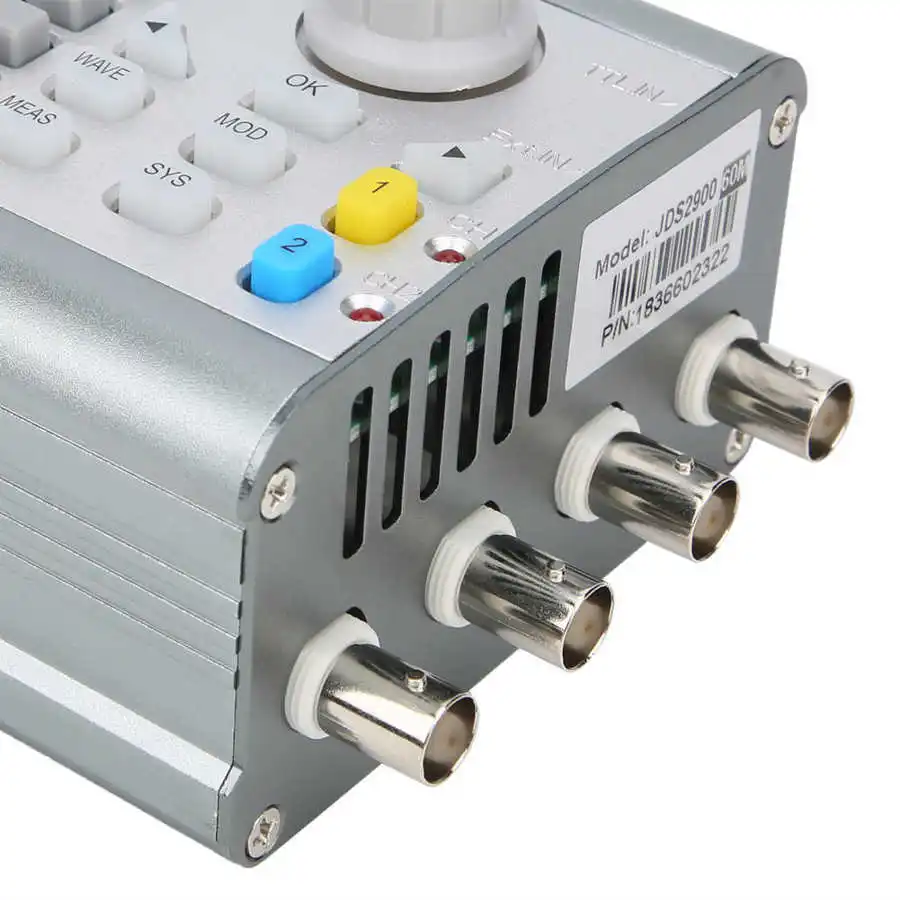

Waves Output:
Output Impedance: 50Ω± 10% (Typical)
Protection: All signal output terminals can work within 60 under load short-circuit conditions

DC Offset:
Offset Adjustment Range: Offset≤10-Amplitude/2
Offset Resolution: 0.01 V

Phase Characteristics:
Phase Adjustment Range: 0-359.9°
Phase Resolution: 0.1°
TTL/CMOS Output: Low Level: <0.3V
High Level: 1V-10V
Level Rise/Fall Time: <20ns

External Measurement Function:
Frequency Counter Function: Frequency Measurement Range: 1Hz-100MHz
Measurement Accuracy: Continuous Adjustment of Gate Time 0.01s-10s

Counter Function: Counting Range 0-4294967295
Coupling Mode: DC and AC Coupling Modes
Counting Method: Manual
Input Signal Voltage Range: 2Vpp-20Vpp
Pulse Width Measurement: 0.01us Resolution, Maximum Measurable 20s
Period Measurement: 0.01us Resolution, Maximum Measurable 20s

Sweep Function:
Sweep Channel: CH1 Or CH2
Frequency Sweep Type: Linear Sweep, Logarithmic Sweep
Sweep Time: 0.1s-999.9s
Setting Range: Arbitrarily set between the starting point (0.01Hz) and the maximum output frequency of the corresponding model at the end point
Sweep direction: forward, reverse and round trip

Burst Function:
Number of Pulses: 1-1048575
Burst Mode: Manual Trigger, CH2 Trigger, External Trigger (AC), External Trigger (DC)

General Technical Specifications:

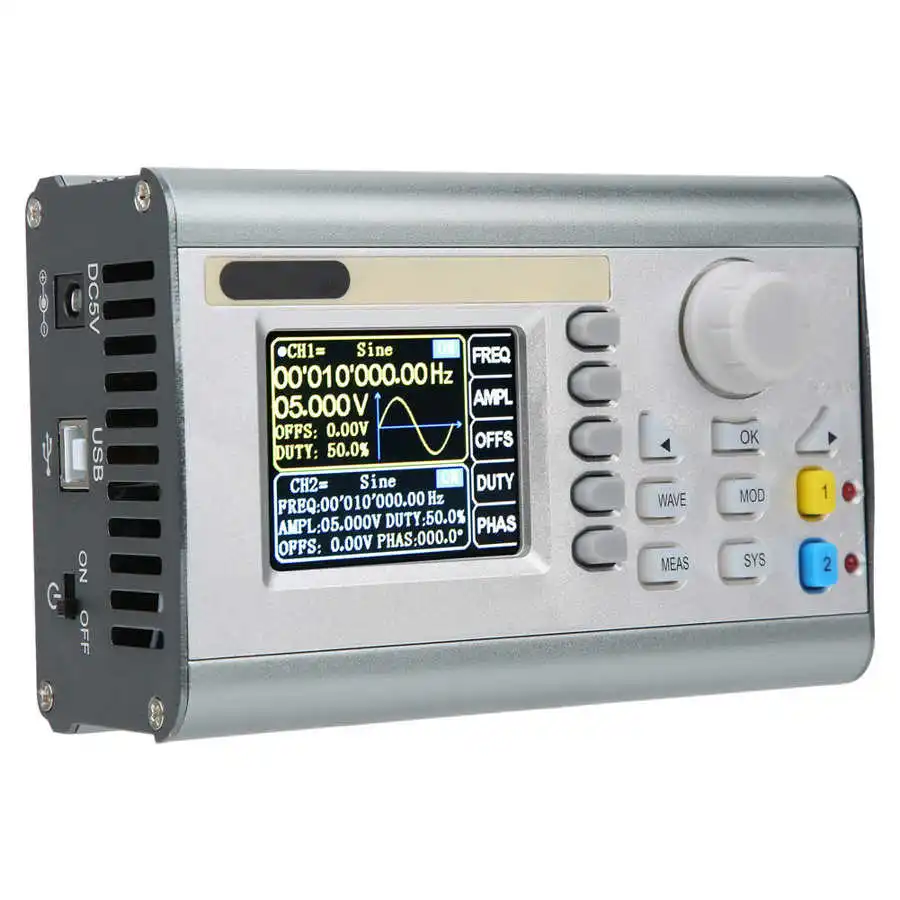

Display Type: 2.4in TFT Color LCD Display
Storage and Loading: Quantity: 100 Groups
Location: 00 - 99 (the default storage location parameter of 00 is called when the machine is turned on)
Number of Arbitrary Waveforms: 60 groups from 1 to 60 (15 groups by default)

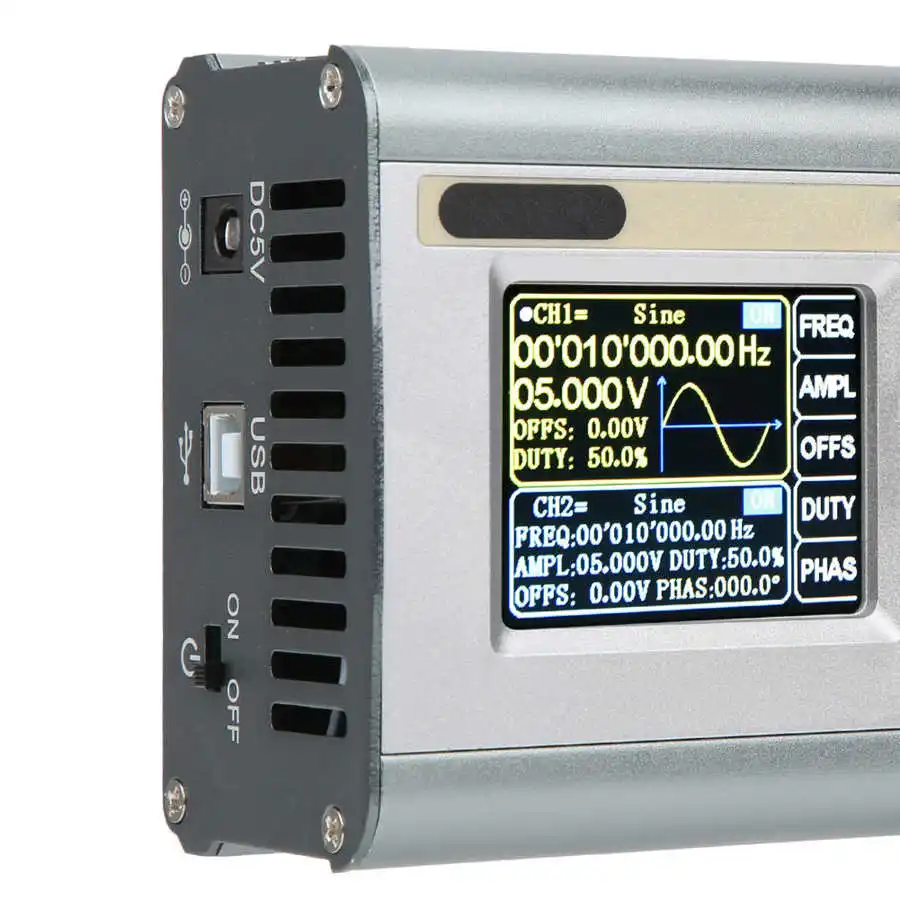

Interface Mode: Using USB to serial interface
Expansion Interface: Serial port with TTL level mode, convenient for users to develop
Communication Rate: Using standard 115200bps
Communication Protocol: Using commands line mode, the protocol is open
Power Supply Voltage: Input: AC100-240V (50/60Hz)
Output: DC5V±0.5V
Environmental Conditions: Temperature: 0-40℃; Humidity: <80%

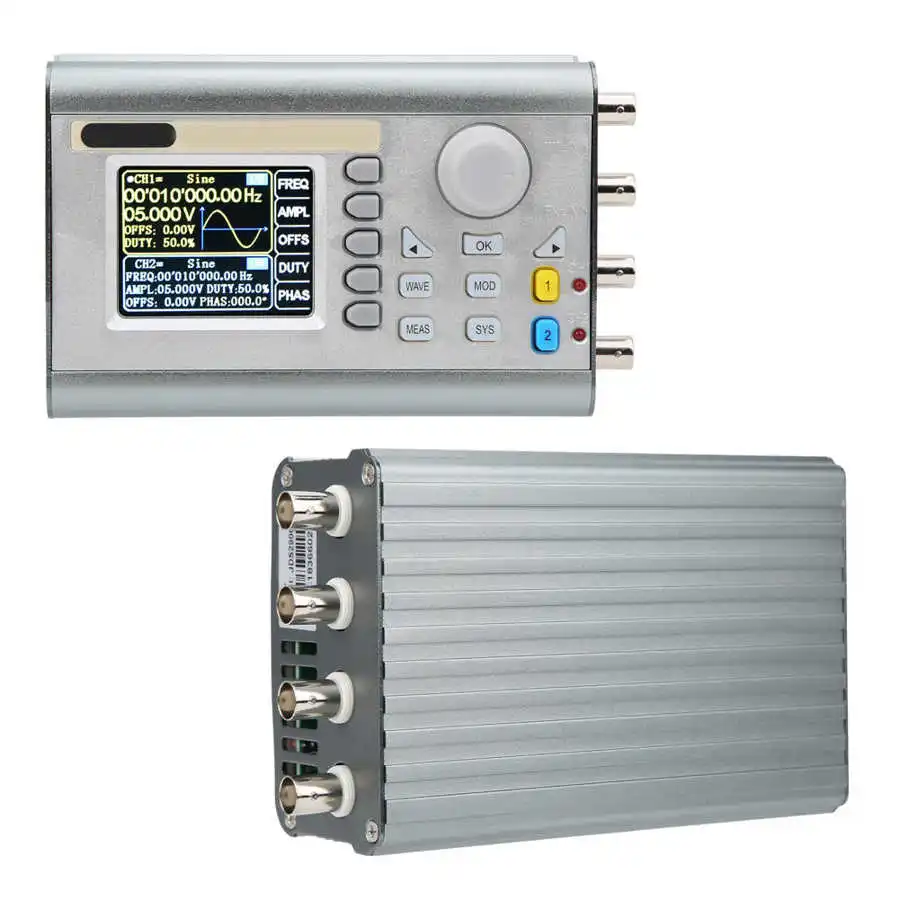

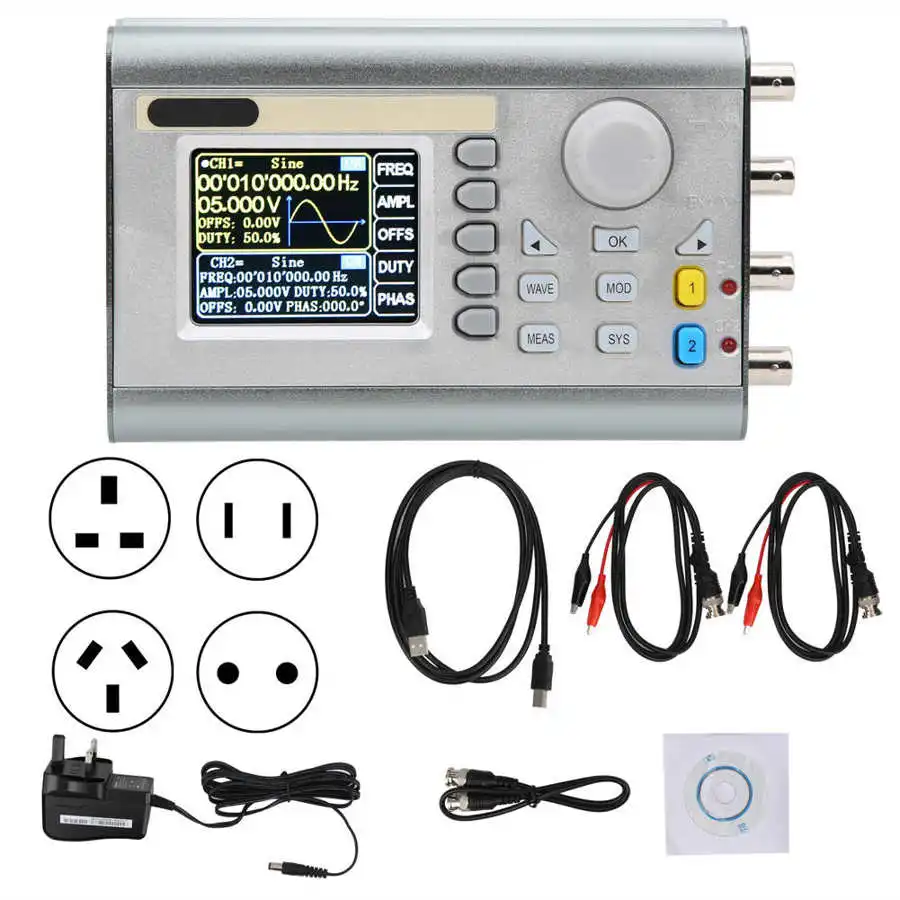

Package List:

1 x Signal Generator

1 x Power Adapter

1 x USB Cable

2 x Signal Connection Cable

1 x English Manual

1 x CD

1 x BNC Cable
