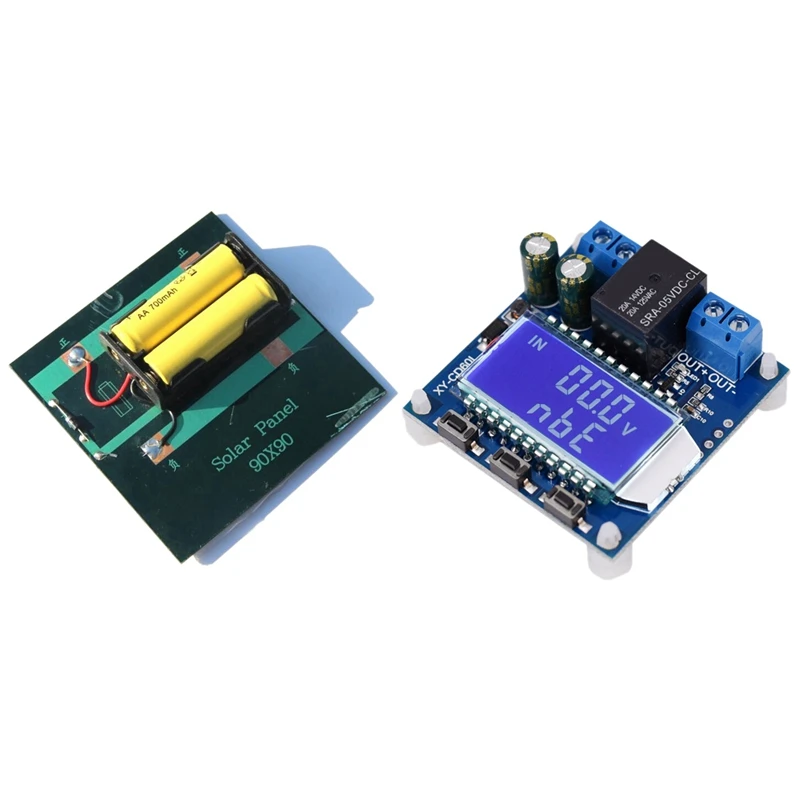

HOT-1W 4V Rechargeable AA Battery Solar Cell Charger With Controller 6V-60V Charging Discharge Control Module | Электроника

---

Support Dropshipping and Wholesaling.

100% Original and Good Quality with Free After-sale Warranty.

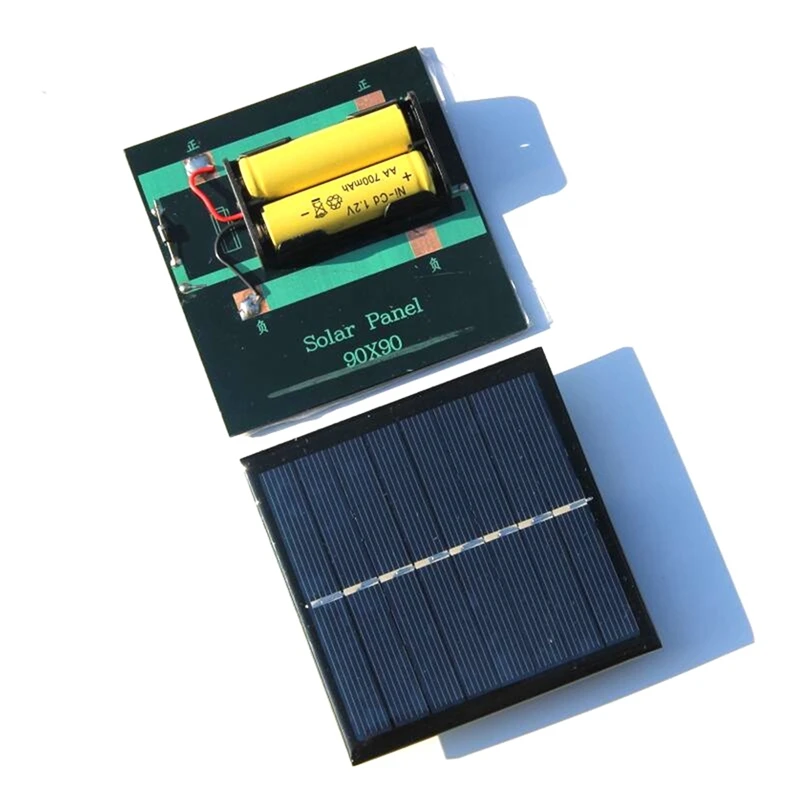

2 pcs Electronic Accessories:1 x Module & 1 x Solar panel charger(Battery excluded)

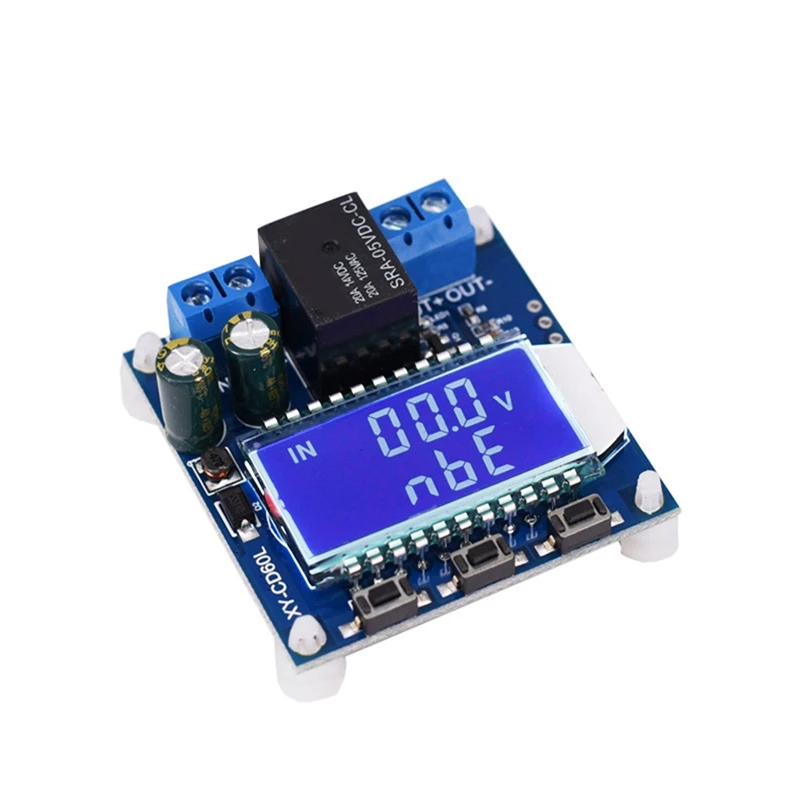

Key function:Short press UP button, switch display% and time, long press 5 seconds switch mode, charging mode: IN, discharge mode: OUT.SET key: Short Click to view the parameters currently set;Long press SET button to enter the parameter setting interface, set UP: voltage upper limit, dn: voltage lower limit, OP: turn-on time, dOP: delay turn-on time (0-999 seconds), FOP: forced turn-on time (0-10 seconds) in discharge mode.
Short press DOWN button, turn off on relay enable (emergency stop function) turn off, LCD display OFF, relay disconnect.Long press DOWN button to set the status of LCD backlight L-P: OFF backlight constant brightness, ON: backlight automatically extinguishes after 5-10 minutes; after extinguishing, any key wakes up.
Parameter Settings:(a) Enter the parameter setting interface by pressing the SET key for a long time;(B) After entering the parameter setting interface, switch the setting parameters by pressing the SET key.(C) After choosing parameters, it can be set by UP/DOWN key to support short press and long press.(D) To set other parameters, repeat steps B and c;(E) After all parameters are set, press SET key for a long time, exit and save;
3.1 Charging/Discharging Time Control Function.When the time parameter OP is non-zero, start charging/discharging time control.When the relay turns on a charge/discharge, the countdown begins; when the time is completed, the relay is automatically disconnected to complete a charge/discharge process;

Max work voltage: 4V
Max work current: 250 Max
Power: 1W
Indicate H: ER reminds users that time parameter setting is unreasonable; press any key to stop flickering;
When the charging/discharging time control is not turned on, the product will record a complete time. When entering the time display interface, flashing shows the charging time, then exiting the time display interface or clearing the next time the charging is turned on (relay is turned on).
3.2 Automatic parameter detection:
When the parameters are set and exit, if the lower voltage limit DN is greater than the upper voltage up, the system will flicker to display "ERR" as a reminder.
3.3 Delayed turn-on function (0-999 seconds): completion of a charge/discharge, the interval between re-opening;
3.4 Discharge Conduction Forced Start Time (0-10S): After satisfying the relay conduction condition, the relay is forced to turn on (0-10S) to detect the battery voltage again.
Condition: New
Type: Logic ICs
Supply Voltage: 12V
Dissipation Power: 2-3A
Application: Computer
Mode:Charging mode IN/Discharge mode OUT
colour: photo colour
Material:ABS+ metal+Polycrystalline silicon
Size:46x45x20mm+ 90 x 90 x 3MM

Package contents:
1 x Module

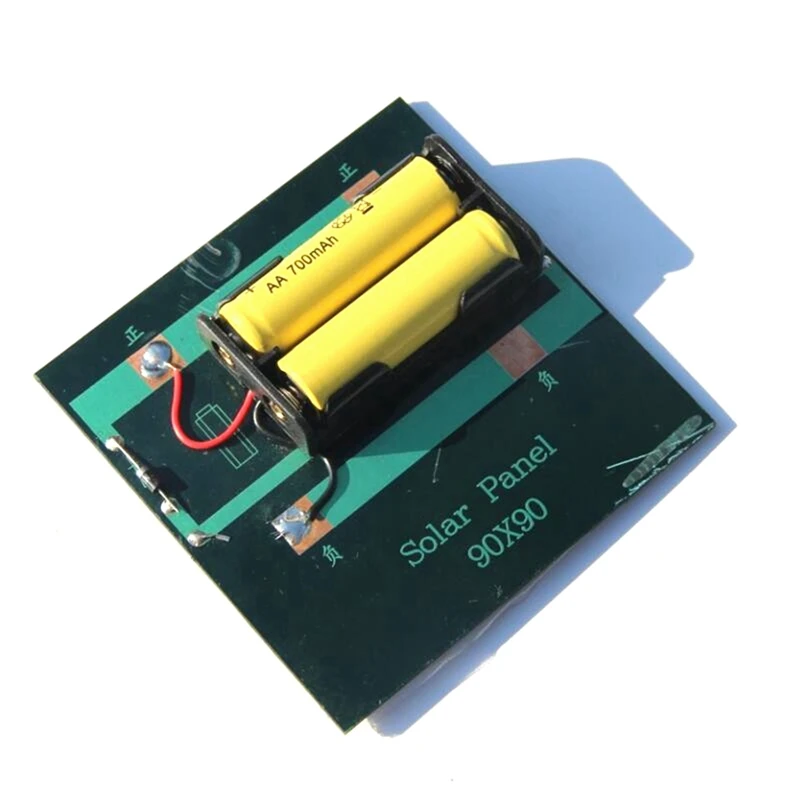

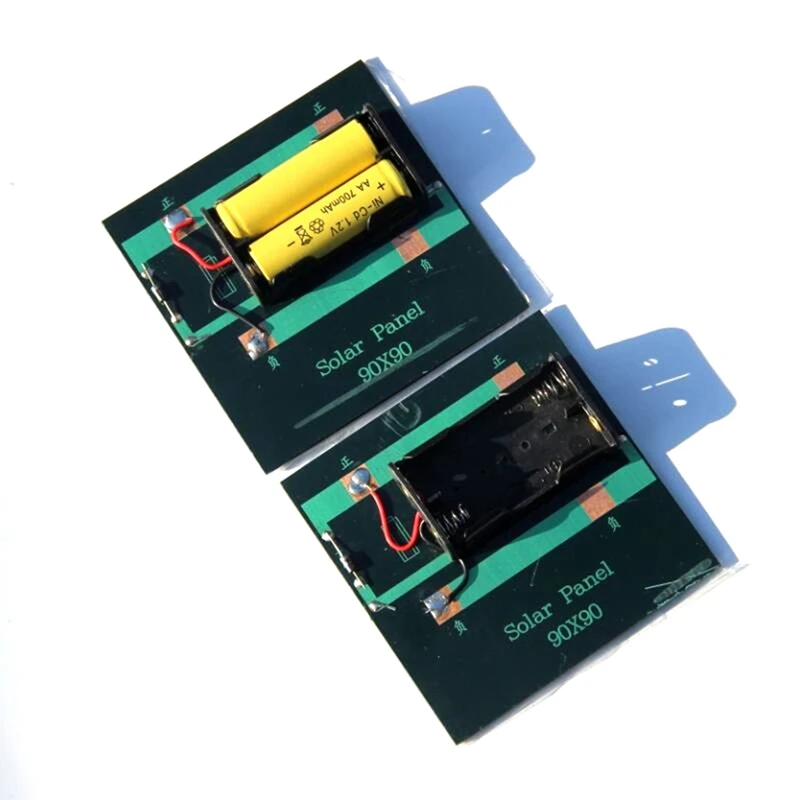

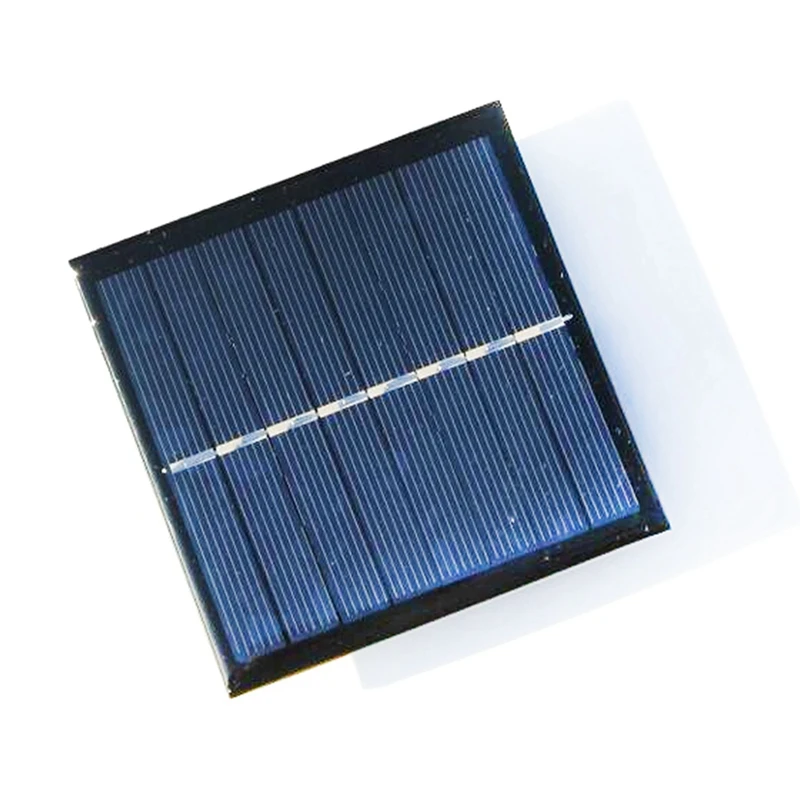

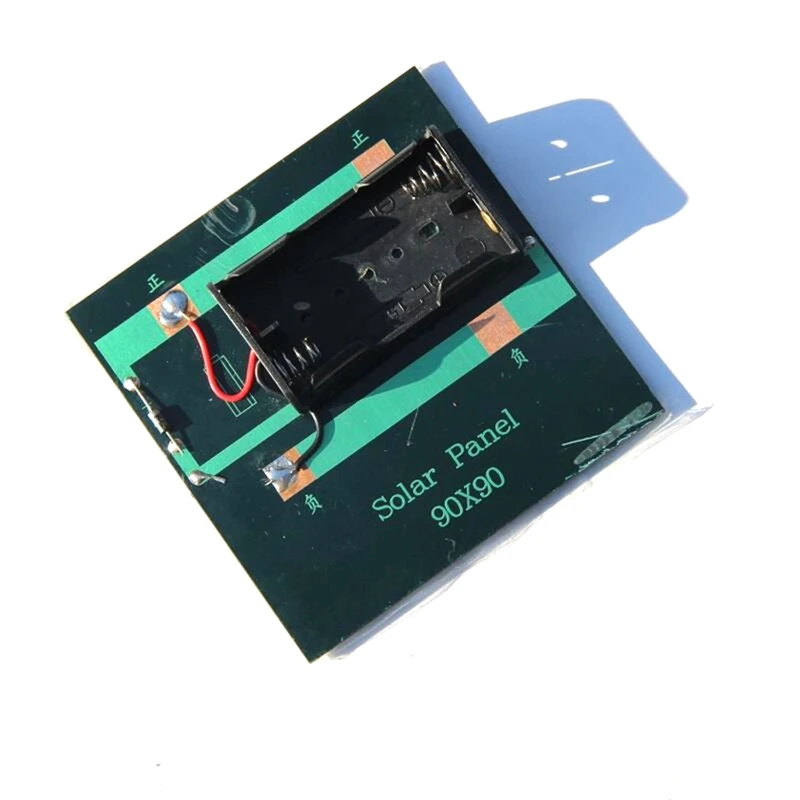

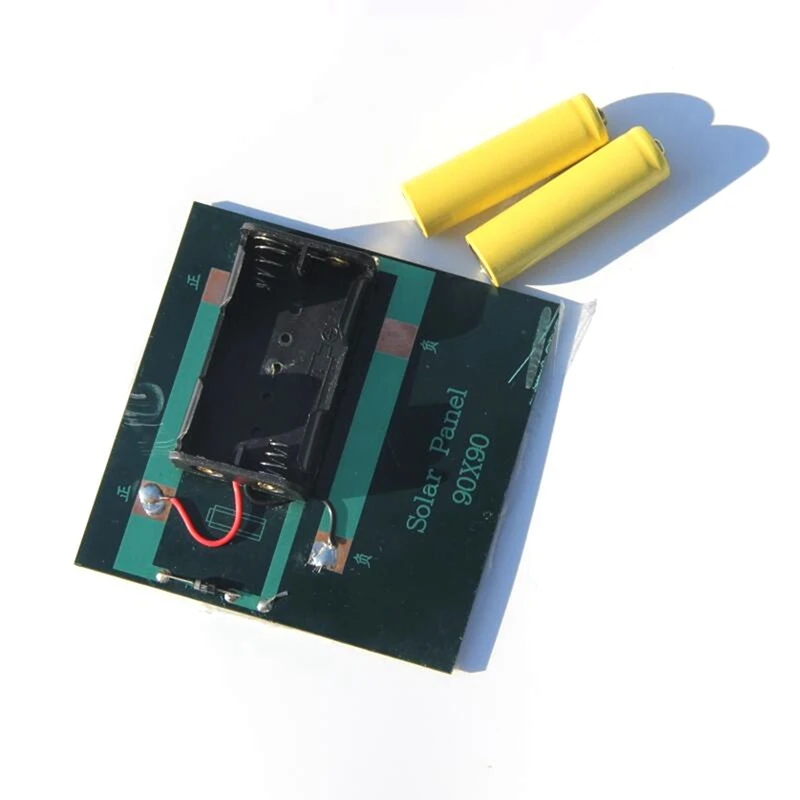

1 x Solar panel charger(Battery excluded)

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
