Principle and theory Reference steam turbine；Principle of aircraft engine，Combined with the characteristics of low pressure and low speed small boiler，We designed this one“unique”A new steam turbine

principle：A mechanical device for converting steam kinetic energy into rotor rotational kinetic energy。The principle of this steam turbine is the same，But some designs can't Copy real machine completely。Because the steam pressure of small boiler is much lower than that of real boiler，Therefore, the impeller structure used in the model is slightly changed。

theory：In theory, the thermal efficiency of the steam turbine is up to 100%35％Piston reciprocating steam engine。But because the pressure of small boiler is very low，also Steam turbines are not forced to do work。So in the model world of low pressure and low speed，The piston is better than the turbine。

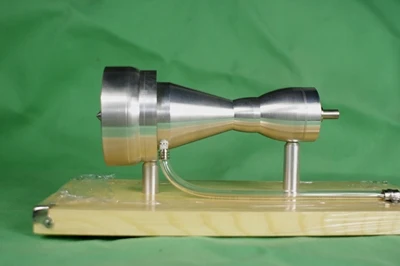

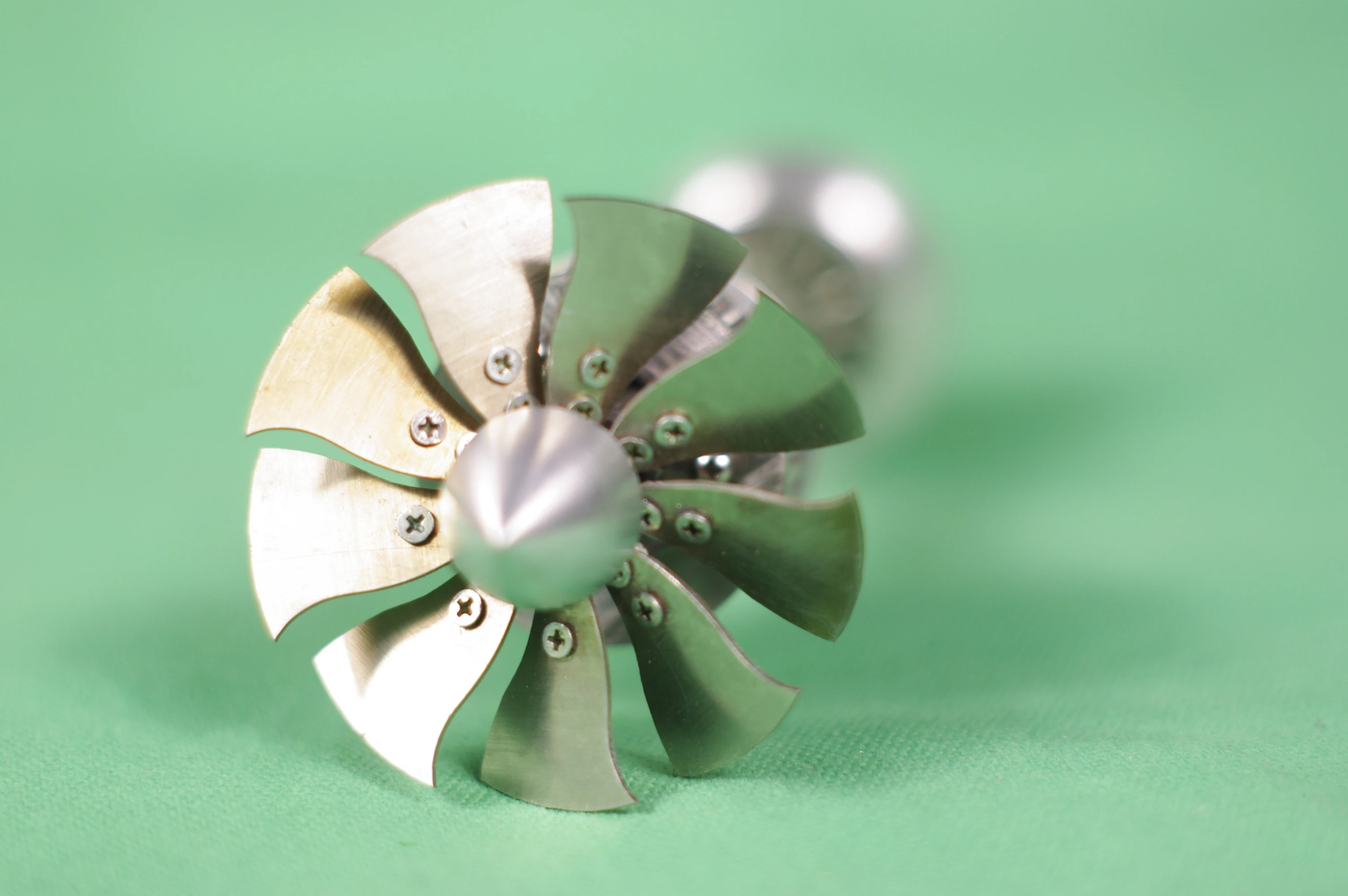

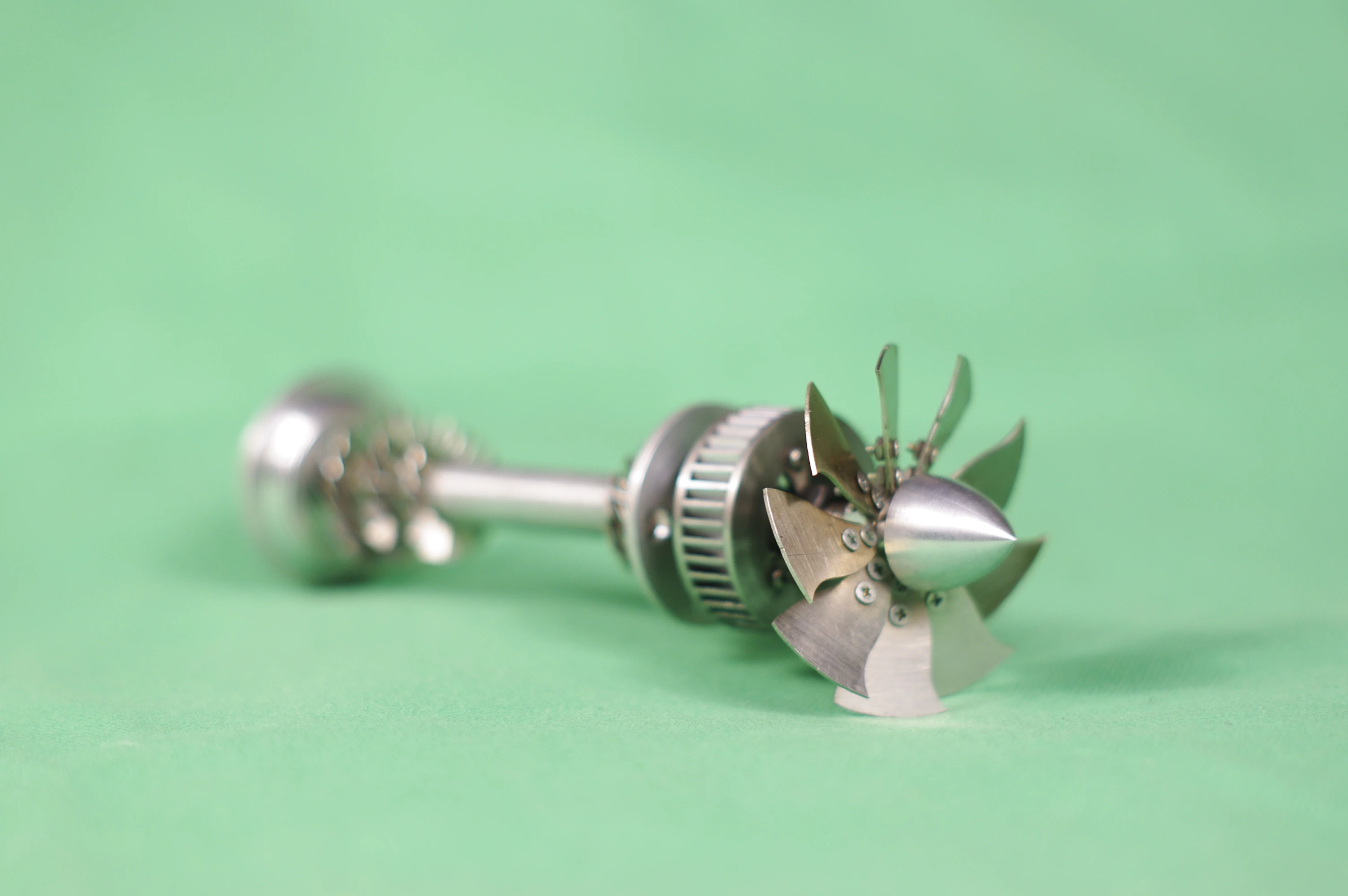

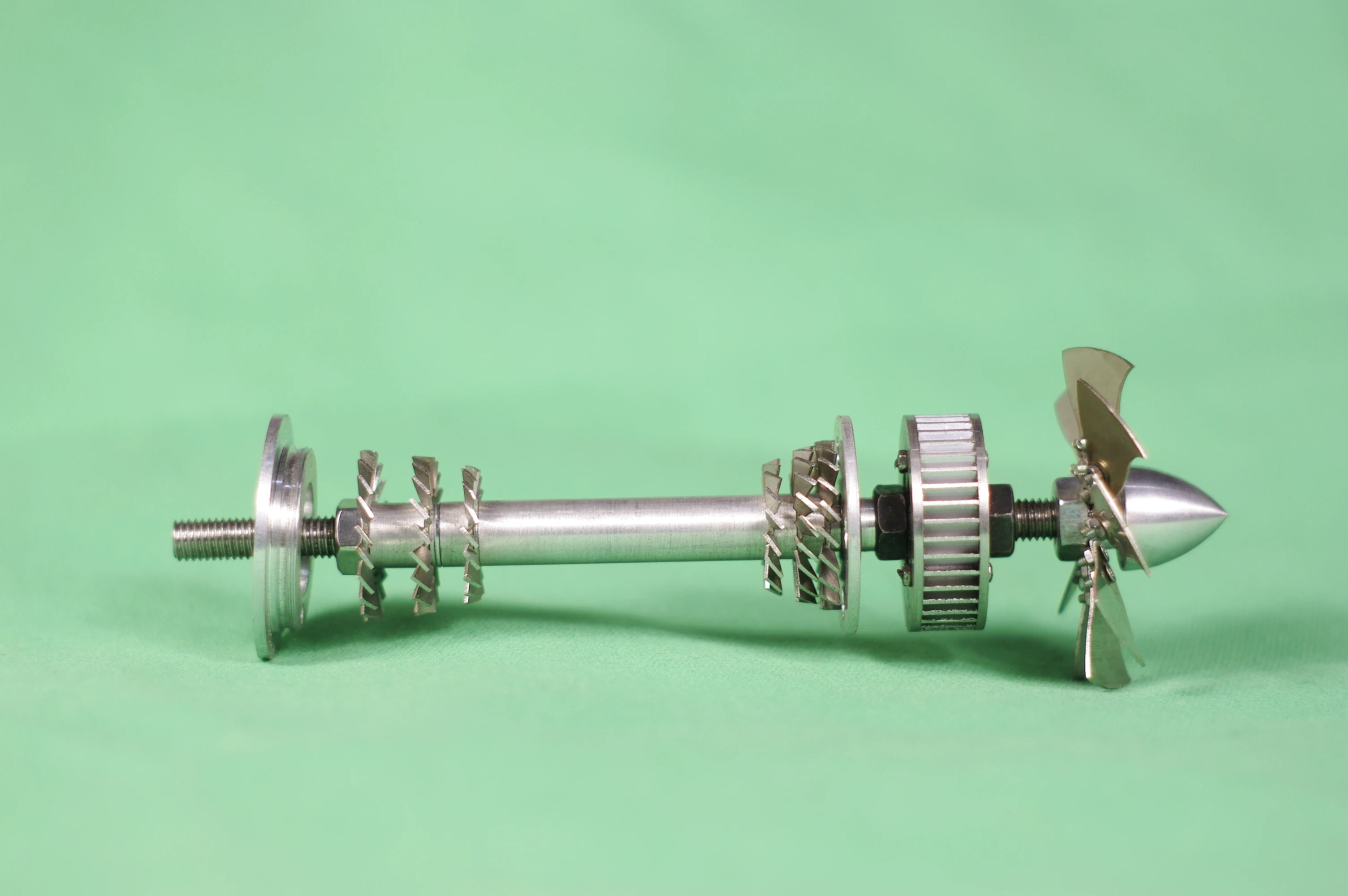

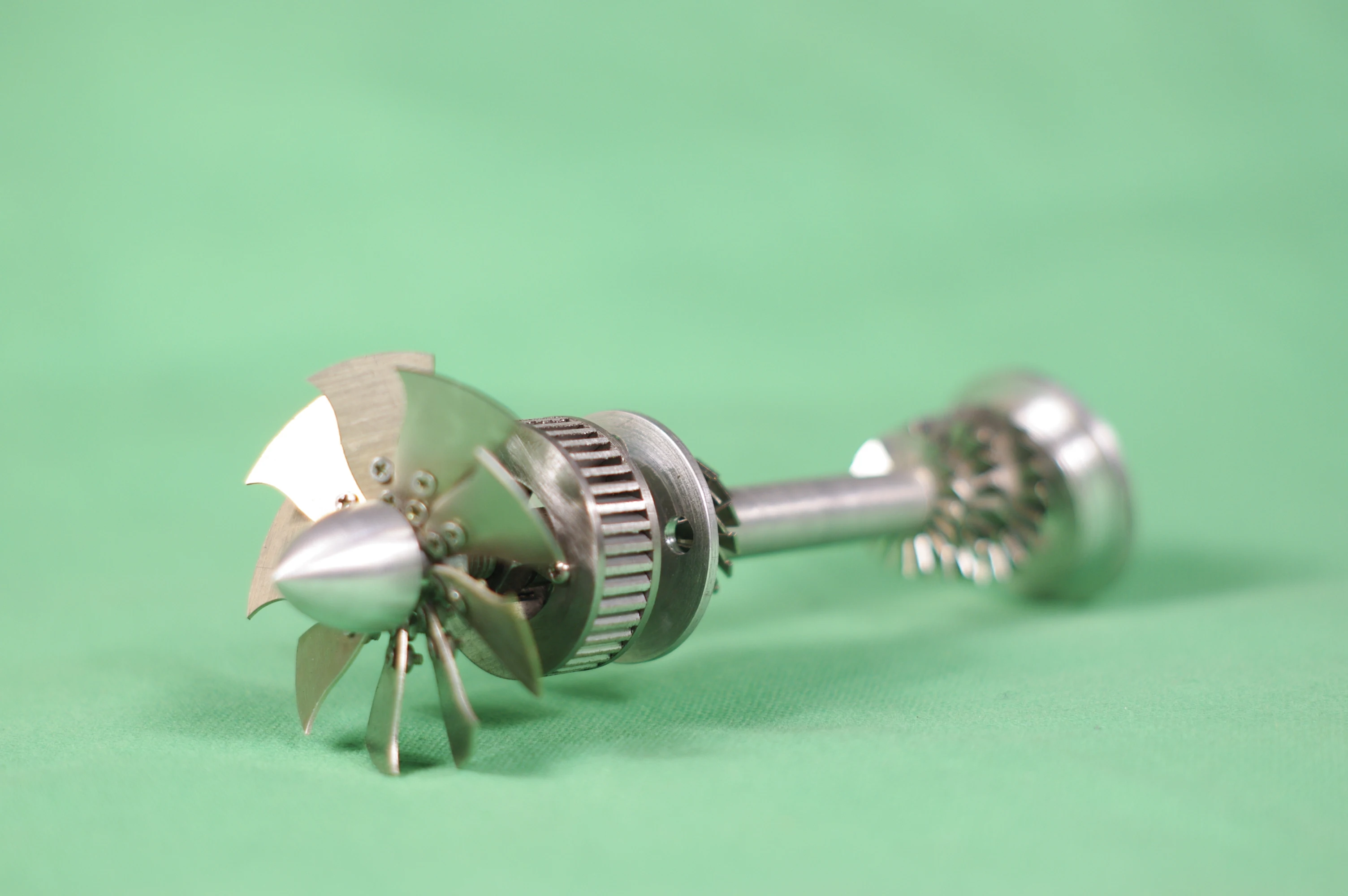

describe Appearance（millimeter） long210 wide150 high130 Gain fan diameter63angle42degree Diameter of driving impeller40angle0degree Diameter of three groups of impeller in front stage35/30/26angle45degree Impeller diameter of three groups of rear booster34/32/24angle45degree

speed：Ordinary pressure cooker drive per minute8050Revolutions per minute

advantage：Self starting without assistance、High speed、Long life and continuous operation。

shortcoming：Low pressure, low speed, almost no torque，Under the same air pressure, the torque is the main force of piston steam engine30％。
