Overview

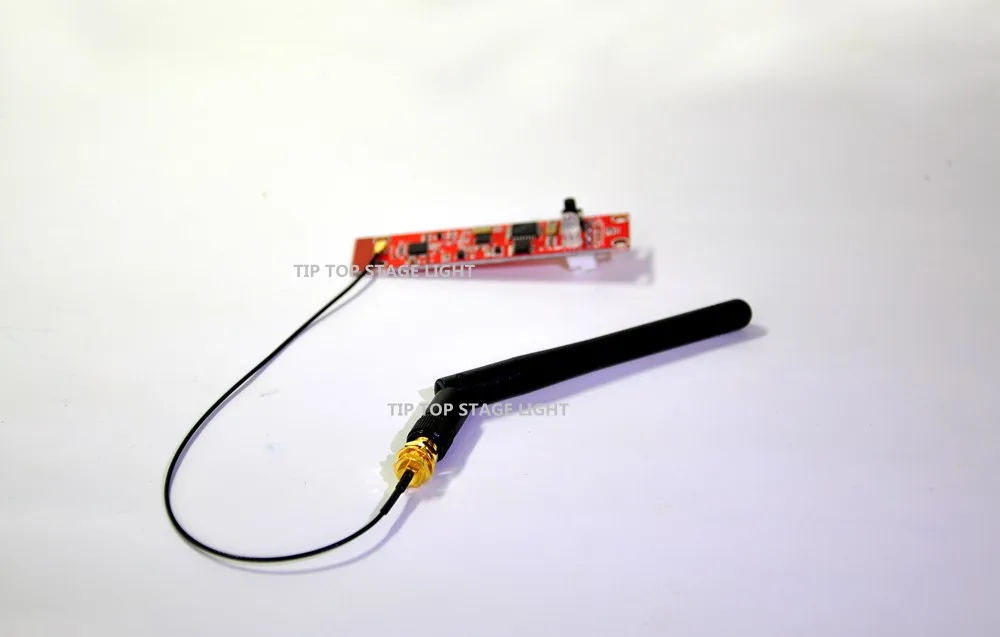

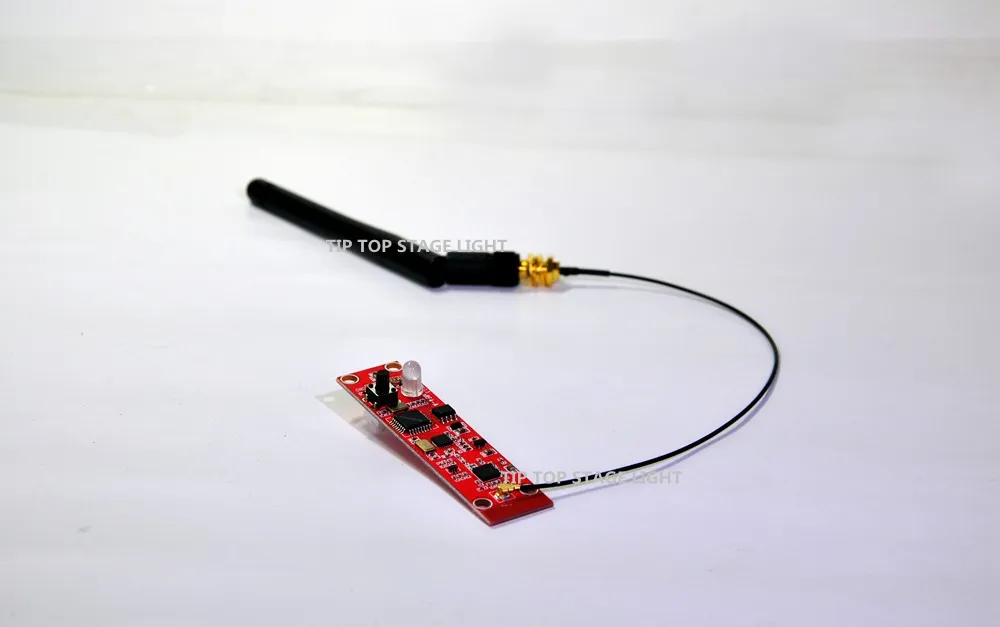

Wireless DMX512 Transceiver LC-512M DMX512 console data to the wireless transmission of standard lamps and lighting can also be transmitted on-line data, the product is completely solved the wireless transmission of data between the console lights and lamps, lamp and lampcompletely remove the long dependent on twisted pair. Data transmission process to be done without delay, real-time data and reliable! The product uses 2.4G global open ISM band, license-exempt use. Efficient GFSK modulation, 126 channel automatic frequency hopping communication design, strong anti-interference ability.

Features and Benefits

- Completely independent R&D, Design Patent and Utility Model Patent certificated
- 2.4G global open ISM band with license-exempt use

- Efficient GFSK modulation and 126 channels frequency hopping, avoid interference channels automatically
- Fully duplicate DMX512 console signals, including the Break time, MAB time, number of channels, and refresh rate.
- Auto-switching transceiver
- 32-bit ARM Core CPU
- Standard DMX512 three core XRL male & female connector
- Tri-color LED displays working status and parameters with one-touch operation that can set 6 groups ID codes

Correspondence between the ID code and the LED color:

1:RED----------------------------RED
2:GREEN------------------------GREEN
3:BLUE--------------------------BLUE
4:RED+GREED-----------------YELLOW
5:GREEN+BLUE----------------CYAN
6:RED+BLUE-------------------PURPLE

Operating Instructions

1. Power on the transmitter and receiver, after blinking RED-GREEN-BLUE, the Transmitter and Receiver would display the corresponding color according to the setting of the group.
2. Press the button on the transmitter and receiver(s) to select the operating group. (The system will store this setting for future use)
4. Once both the transmitter and receiver(s) are both set to the same group, connect the transmitter to the DMX controller or the DMX out of a fixture on your DMX chain. Connect the receiver to the fixture you wish to control.
5. Once a DMX signal is provided to the transmitter, the status LED will blink RED, and then check the status LED on the receiver(s) until flash GREEN, Now, you can free to control fixture just like the cable connection.
6. If interference occurs in current channel, the transceivers can select the channel automatically with BLUE light flashing.
