Model: AL7002

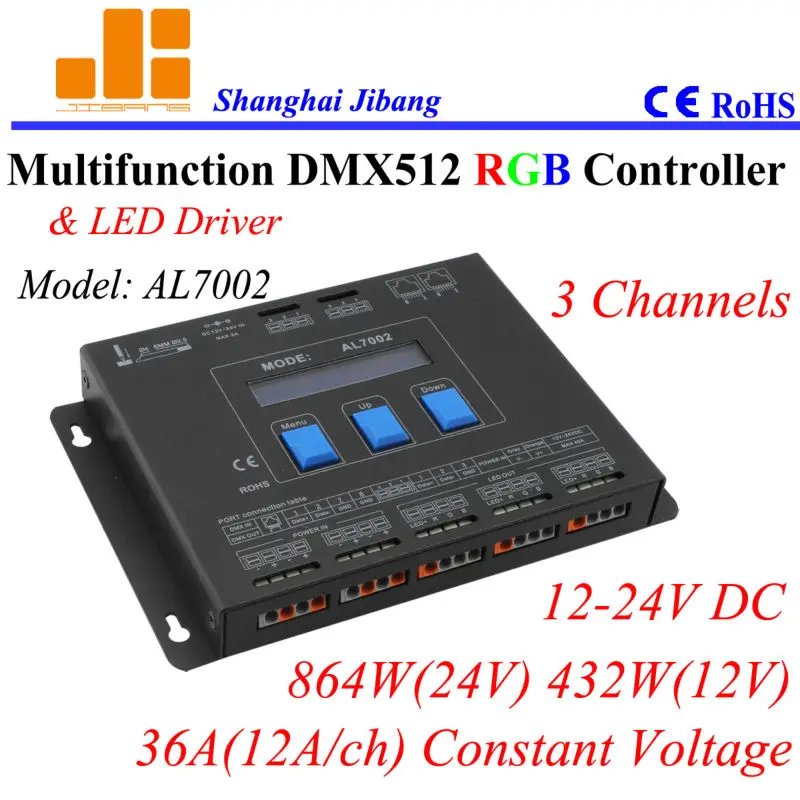

Multiple RGB Controler / DMX drivers / DMX master,  3 Channels/12V-24V/36A/864W

Features

 1.Meets with the large scale system,with many kinds of signal output, this product is used for the convenience of engineering to design.

 2.Multifunctional controller, can be used as a DMX512 master controller,DMX512 branch controller,RGB controller and decoder.

 3.With 30 kinds of movable LED flash effect. When used as DMX512 master controller can take 170 RGB pixels.

 4.With the LCD screen to display the function operation.

 5.Custom-Made Available

Tech-parameter

Size

Function Instructions

1.keep press the Menu button, turn out the first program menu

{"   1:DMX Slave "}

{"   2:DMX Master "}

{"   3:Color Mode "}

Through "Up","Down"to choose the function you need and press Menu short time to be sure.

2.When enter the second menu{"   1:DMX Slave "}Adjust the address code{" DMX Address:   "},respectivelypress Up, Down to adjust. press Menu a long time return to the first menu.

3.When enter the second menu{"   2:DMX Master "},choose mode{" DMX Mode:   "},respectivelypress Up, Down to adjust. Return to choose mode{" DMX Mode:   "},again press Menu with a long time!Return the main menu please press Menu a long time.In the current mode,will send a group of address to the products LED drive output,Send address in{"   1:DMX Slave "}function set well the address to adjust,if want to set the others address please return{"   1:DMX Slave "}menu mode,set the address well,again enter {"   2:DMX Master "} function,LED by setting of the output change address to run effect.

4.When enter the second menu{"   3:Color Mode "}to choose{" Color Mode:   "}respectivelypress Up, Down to adjust,Short the Menu button switch to choose according to speed{" Mode Speed:   "};respectivelypress Up, Down to adjust,return to choose mode{"   3:Color Mode "},,again short press Menu. Return main menu please long press Menu.

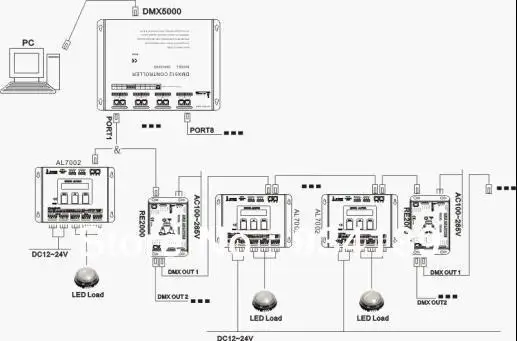

Wiring Diagram

Installation notes:

1.DMX - 512 control signal connection, DMX signal cable is made of twisted pair (line), DMX signal includes positive and negative, when connect the DMX signal line plug should pay special attention to polarity. Put the DMX512 controller output signal positive, signal negative and signal ground with the AL7002 input interface corresponding connection.

2.DMX5000 output with the AL7002 transmission lines can't over 300 meters.

3.DMX5000 each port can connect 170 PCS AL7002. Eight outputs,Through the JBLED FLASH light making software with computer on line control can be realized. Realize infinite exceptional with DMX light.

4.When connect 32 PCS AL7002, DMX signal must add a RE2000 signal amplifier. Cascade can't more than 4 PCS.

5.The load LED's voltage must keep with the controller of power supply voltage. and must be in the product prescribed voltage input range.

Note:

   In a buscannot use 2 PCS AL7002 as the master controller, otherwise, the signal will garbled. Cannot work.

Exception Handles
