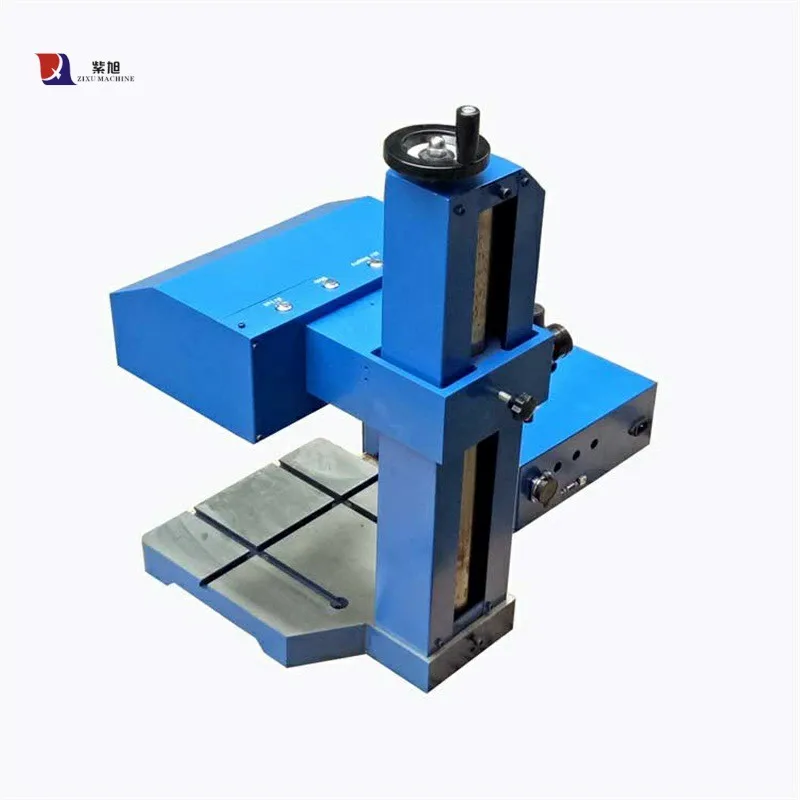

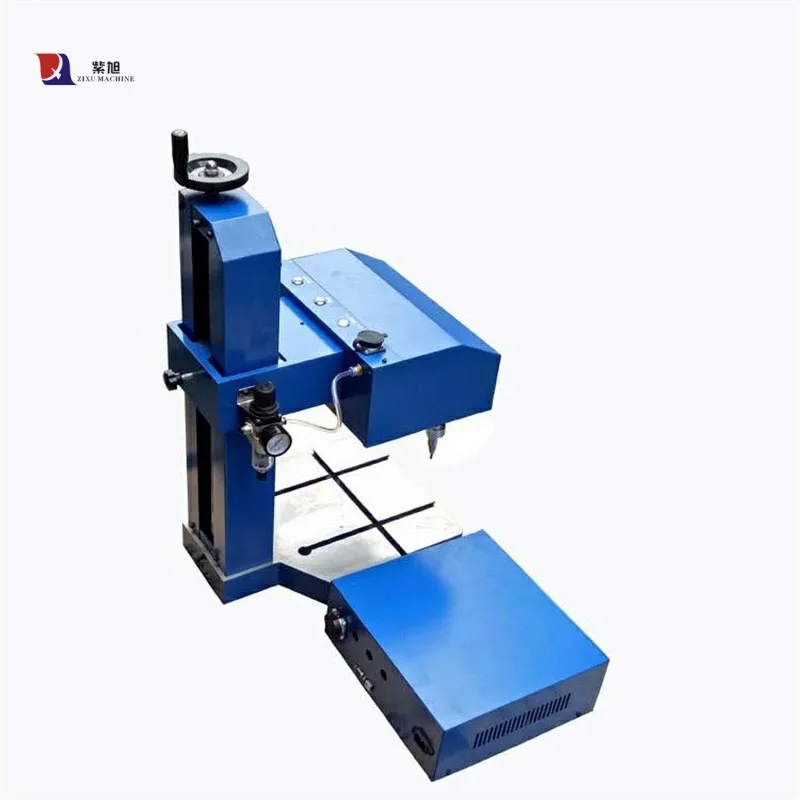

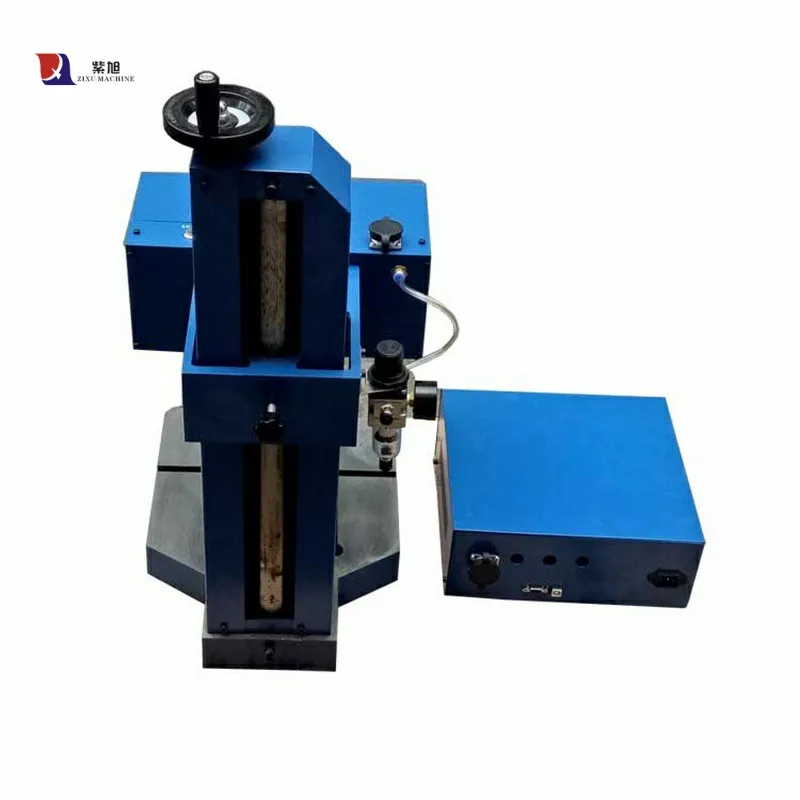

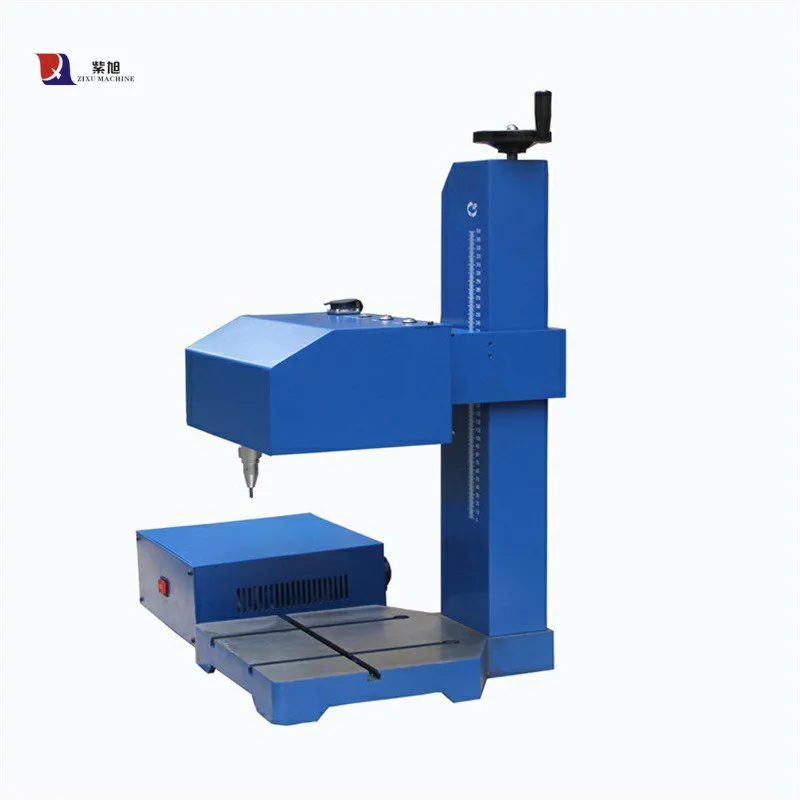

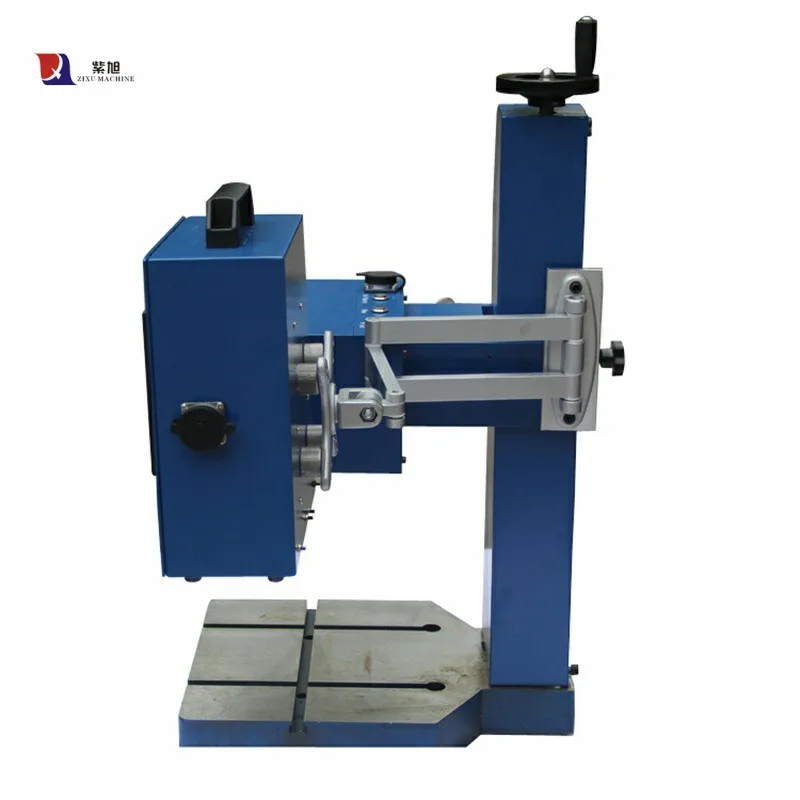

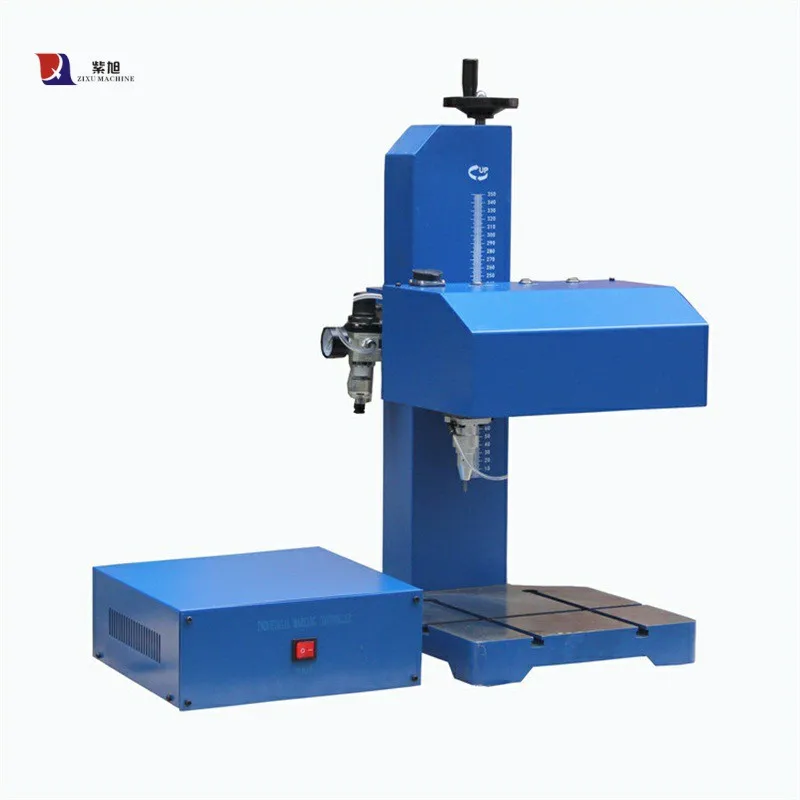

What is model PMK-B01?

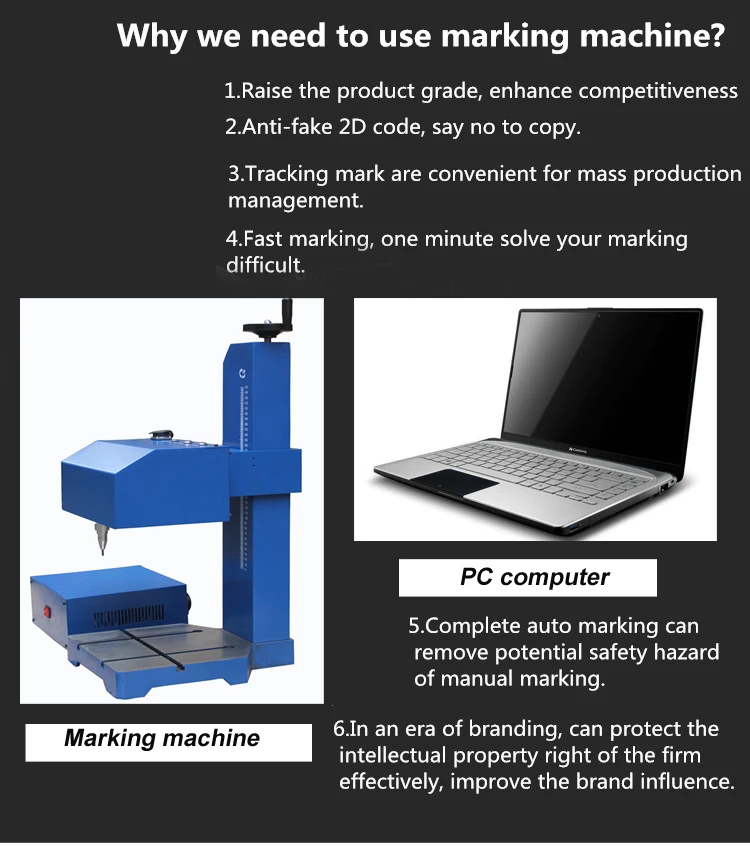

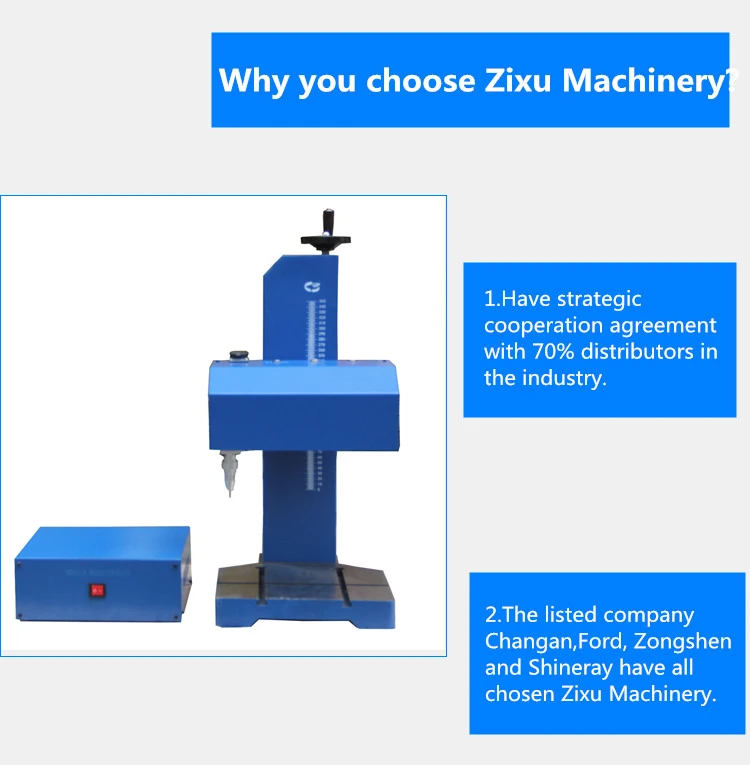

1. Desktop  marking machine ,with PC USB controller,used conveniently,friendly software interface,very easy to use.

2. Supported fixture device:

• a. Rotary fixture, Suitable for various pipe marking, external diameter within 100mm, internal diameter 40-80mm;

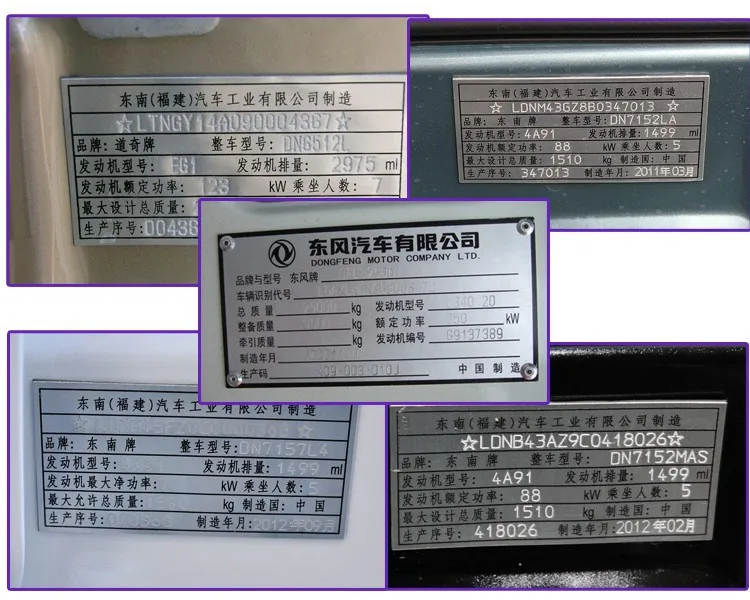

• b. Pneumatic name plate fixture suit for various plates marking.

• c. Manual name plate fixture (customied supported) .

3.Dot Peen marking equipment, is a permanent, direct part marking process using a carbide pin

to indent the marking surface to form dotted lines, logos and 2D Data Matrix bar codes.

What content can be marking?

• Any character size 1mm to 80 mm

• Serial number (value, tee, elbow, batch, shift)

• Arabic numerals Alphanumeric (Figure& Letter)

• Graphics

• VIN code

• Time variables (year, month, week, day, shift)

• Date& Time

• Barcodes & Reading

• Ticket number

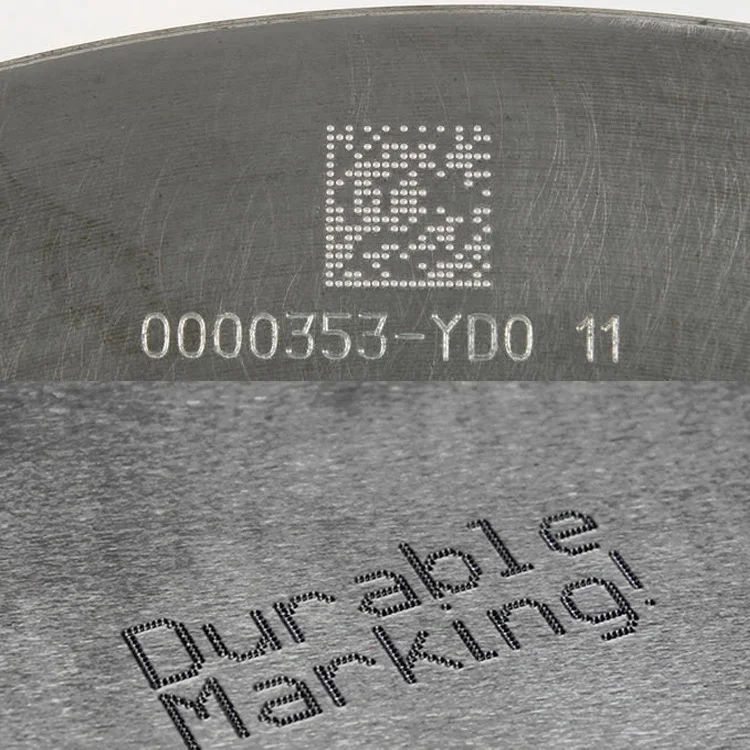

• Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line

• Logos marking

• Special symbols

• Database connection marking

What is the parameter of it?

Marking speed:2-4 characters(2x2mm)/s

Stroke Frequency:300times/s

Marking depth:0.01 to 0.1mm (Vary to the material)

Marking contents:Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code,Time, Letter, Figure, Logo, Graphics and etc.

Stylus Pin Hardness: HRA93

Marking area:140x80mm (other marking area could be customized)

Dimensions:340mm×440mm×350mm

Marking materials:below HRC60 metallic and nonmetallic materials

Repeat accuracy:0.02-0.04mm

Power:300W

Work voltage:AC 110V 60HZ or AC220V 50HZ

Connection:2 USB and RS-232

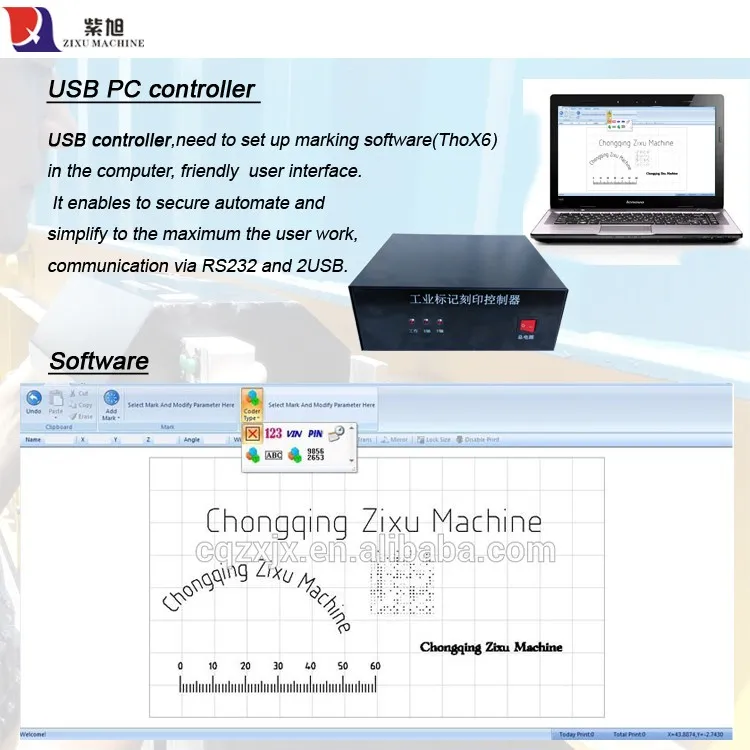

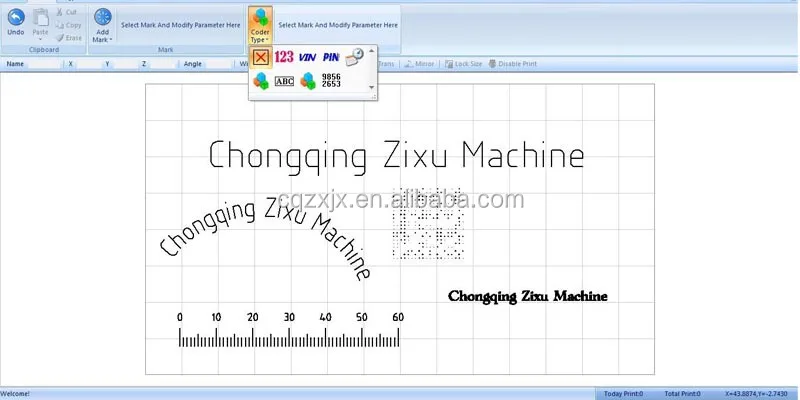

How about the software?

• Serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics,

• VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code(two-dimension code),

• The software also contains features such as serial numbering, date andtime marking and password protection.

• Support multiple graphics and fonts,compatible with AutoCAD, CorelDraw.Flexible and user-friendly software, compared with the same numbers.

• Database: Marking report available, special fonts and graphics editor.

What is the advantage of this marking machine?

• Industrial marking system, ideal for making permanent marks on variety size of workpieces with different surface, such as flat, curve, concave, convex, round. And also the inside of pipe and other special place that hard to reach.

• Widely be used to mark on the metal or nonmetal materials.

• Pneumatic dot peen marking styluses, besides normal marking inquiry, there are deep marking stylus (0.1~1mm) and high hardness material (HRC60) marking.

• Multiple choice of controller: Mini PC based controller, small size, easy to move and light weight; 7"LCD touch screen controller, insert software, no need of PC

•
