· Quality assurance to ensure the credibility of service integrity · · · affordable one year warranty !

Powerful new featuresSuper PasswordAfter entering the super password can not decryptOnly ClearPLCMemory to clear super password ( clearingPLCMemory, the program and the password will be cleared along ) , super password , better protect your labor. (2014Year2Month and after the sale of the product to add this feature ) .

1 .Comprehensive, systematic anti-jamming power circuit through multiple anti-jamming design , without fear of the harsh electromagnetic interference environment.

2 .Using powerful32Bit high speedARMNuclearCPU; programming software can be usedFXGPWINAnd GX DeveloperAndGT-Works2 more availableProgram You can downloadUploadDebuggingMonitorEncryptionConnect text or a touch screenPLCStorage space is clearedClear data storage unitClear bit device storage space,Monitoring ( to monitor writes to facilitate debugging ).(No software to convert , and formalPLCThe same way to download)

3.Easy to install , comes with 10mm of spacers , fixed -hole mounting

· Dimensions for 69mm × 98mm×25mm

4.Our PLC industrial control panels , sold without a download cable , to have another shot , if customers need to purchase optional Come shop .

·

5.PLCApplications:Can be applied flexibly in a variety of industrial automation applications , such as metallurgy , chemicals, plastics , textile, food, packaging , printing, building materials, carpentry , central air conditioning , environmental protection equipment and a single process control devices and other industries in the production of machinery, industrial assembly line a variety of machine tools in industrial control equipment .

6 .The Control Board for24VDCPower , select the type of FX1N. Input : X0-X7 8:00 Total output : Y0-Y3 total of 4:00 . Maximum memory capacity : 8000 -step program (Board has been sprayed three anti- paint , to better adapt to the complex application environment )

The product currently supports command set(Stand by32PositionDInstruction,Support pulsePInstruction)

General instructions:LD LDIAND ANIOR ORI OUT

Pure word instructions: ANB ORB MPS MRD MPP INV NOP

Pulse command: LDP LDF ANDP ANDF ORP ORF PLS PLF

Reset/Set/Step instructions: RST SET STL RET

Program flow instructions: JC CALL SRET FEND

Program flow(P)Instruction: CJP CALLP

Transfer compare instruction: CMP ZCP MOV BMOV

(D)Transfer compare instruction( 32Position): DCMP DZCP DMOV

Transfer compare instruction(P):CMPP ZCPP MOVP BMOVP CMPP ZCPP MOVP

(D)Transfer compare instruction(P): DCMPP DZCPP DMOVP

Four.Logical operation instructions: ADD SUB MUL DIV INC DEC WAND WOR WXOR

(D)Four.Logic operation: DADD DSUB DMUL DDIV DINC DDEC DWAND DWOR DWXOR

Four.Logic operation(P): ADDP SUBP MULP DIVP INCP DECP WANDP WORP WXORP

(D)Four.Logic operation(P): DADDP DSUBP DMULP DDIVP DINCP DDECP DWANDP DWORP DWXORP

Data processing instructions: ZRST

Data processing instructions(P): ZRSTP

High-speed instruction : PLSY PWM PLSR (Support Y0, Y1 two -way , which can be used to support transistor output )

Easy instructions(P): ALTP

Contact compare instructions: LD = LD> LD< LD<> LD<= LD>=

AND = AND> AND< AND<> AND<= AND>=

OR = OR> OR< OR<> OR<= OR>=

(D)Contact compare instructions:DLD = DLD> DLD< DLD<> DLD<= DLD>=

DAND =DAND> DAND< DAND<> DAND<= DAND>=

DOR =DOR> DOR< DOR<> DOR<= DOR>=

End instruction: END

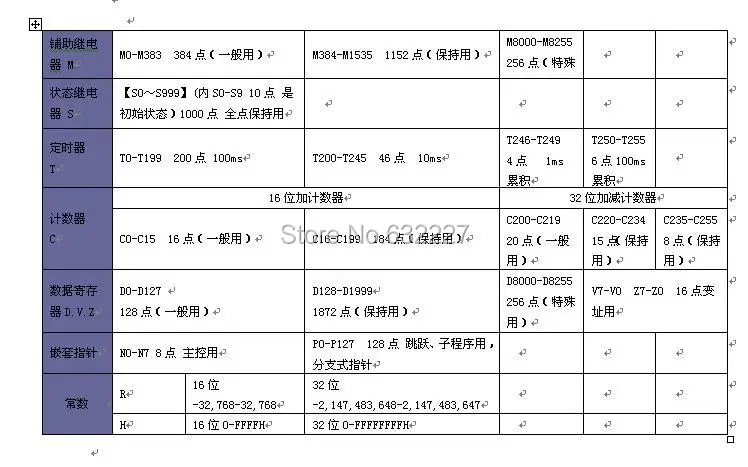

Device Table

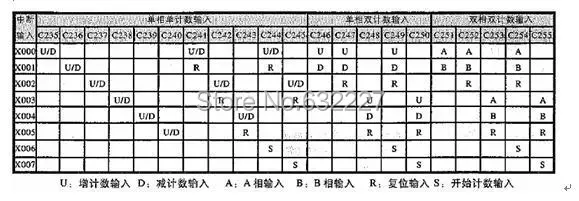

Supported by the following tableThere are high-speed counting FX1NThe function of

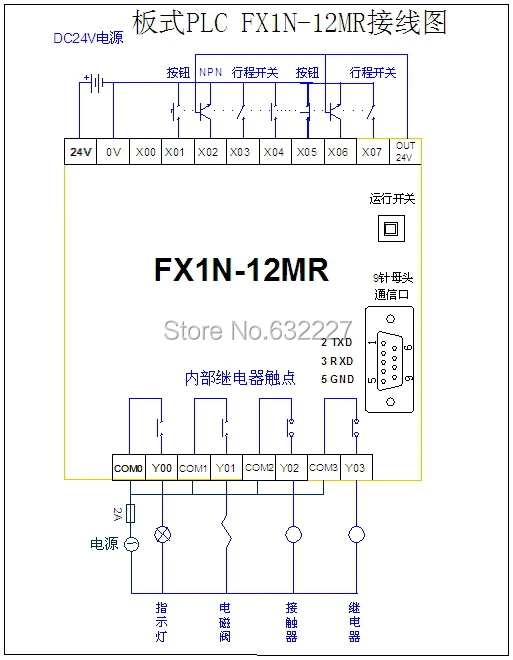

Wiring Diagram

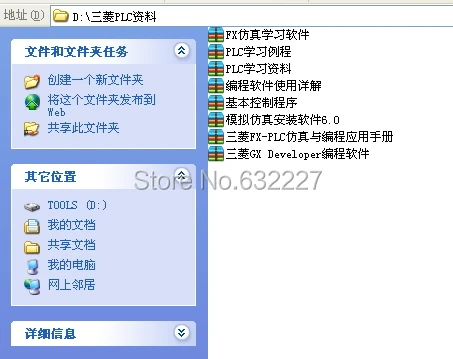

For the convenience of buyers use , data , everything, the seller presented as follows:

1 PLCProgramming Software ( Chinese )GX Developer

2 PLCSimulation Teaching Software

3, Product brochures

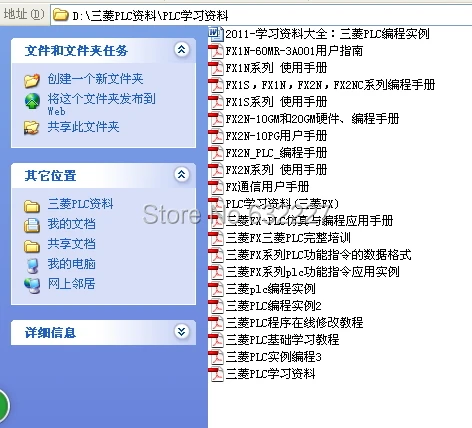

4 PLCData

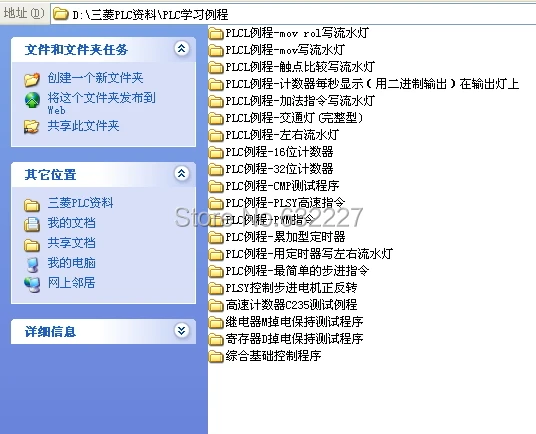

5A variety of sample programs

6,PDFReader

7 GXSoftware Installation and Download

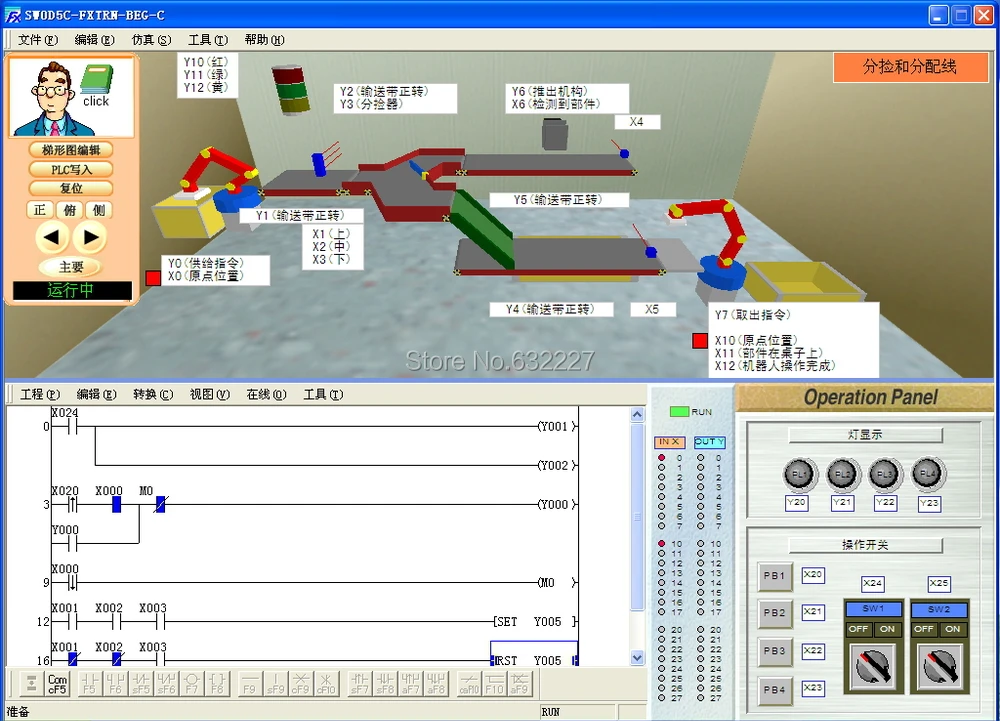

Free delivery: PLCSimulation Teaching Software

Software Description:FX-TRN-BEG-C PLCGetting started teaching software, the virtual stage and expert operational guidance combined together , learning common ladder logic programming. No other training tools , software installed on the PC to get started !3Dimensional virtual space design, users can control a real-time manufacturing unit , andPLCSimulation operation. Users can adjust the speed of the machine and the screen to confirm the status of the program elements in the " Run" process.Progressive course levels. The purpose of the different subjects so that users can choose the level of difficulty as a novice or complete courses at a higher levelFX-TRN-BEG-CLearning . Choose the most suitable for your level !Tutor will provide guidance and tips throughout your learning process . Allowing you to enjoy the fun of programming .
