The General Description

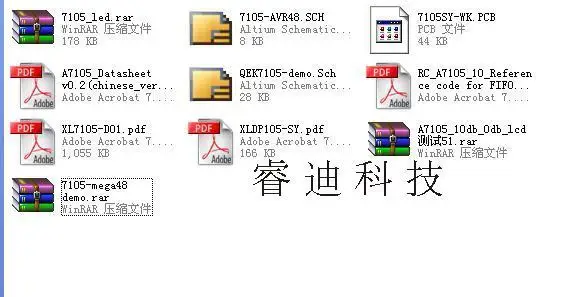

Module data:blog.21ic.com/user1/5022/archives/2010/67446.html

Large amount of professional manufacturing, good price!Can open a formal machine invoice, please make out an invoice

Each module can send and receive, need at least 2 can be used.

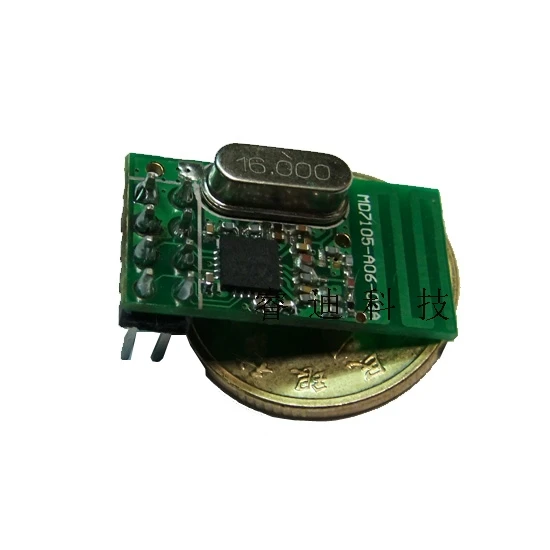

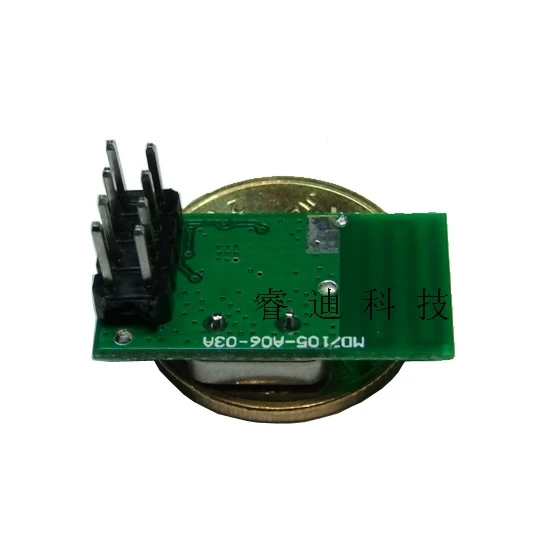

(AMIC XL7105 - D01 adopt Taiwan sheng) high-performance 2.4 G wireless transceiver chip A7105!Work in 2400-2483 - m international open ISM frequency band, the maximum transmitted power of 0 DBM (1 mw), the highest rate of 500 KBPS, ultra high receiving sensitivity- 99 DBM @ 250 KBPS, which makes the module open two-way test furthest distance of 120 meters!A similar NRF24L01 works

IC built-in ID CODE WORD, support CD (carrier detect), FEC error correction mentioned in the preceding paragraph, a 16-bit CRC check, data whitening, Manchester codec,Three quarters of the line

SPI interface, independent of the 64 - byte RX and TX FIFO.

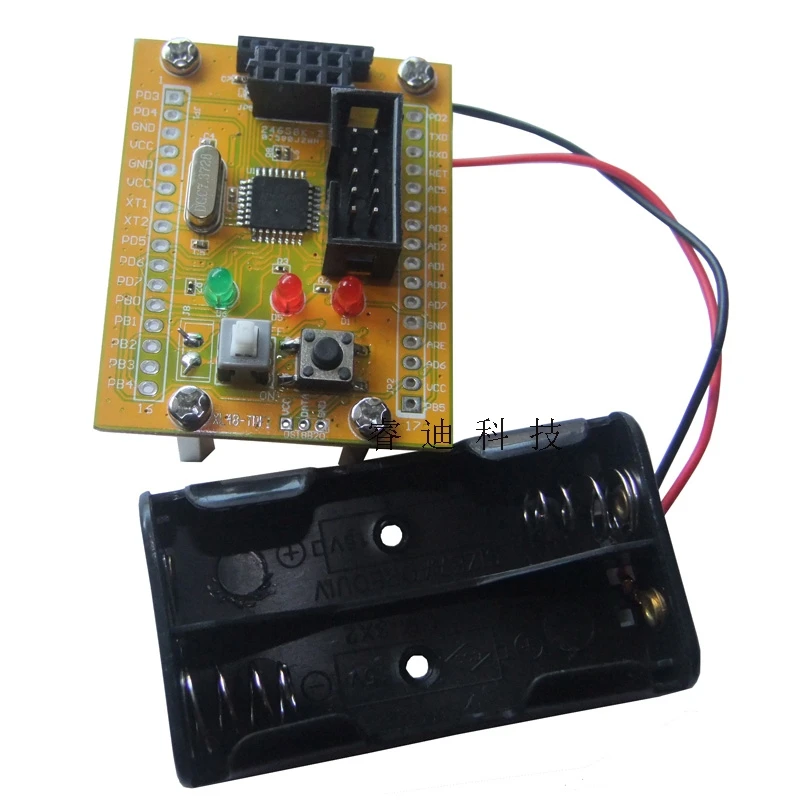

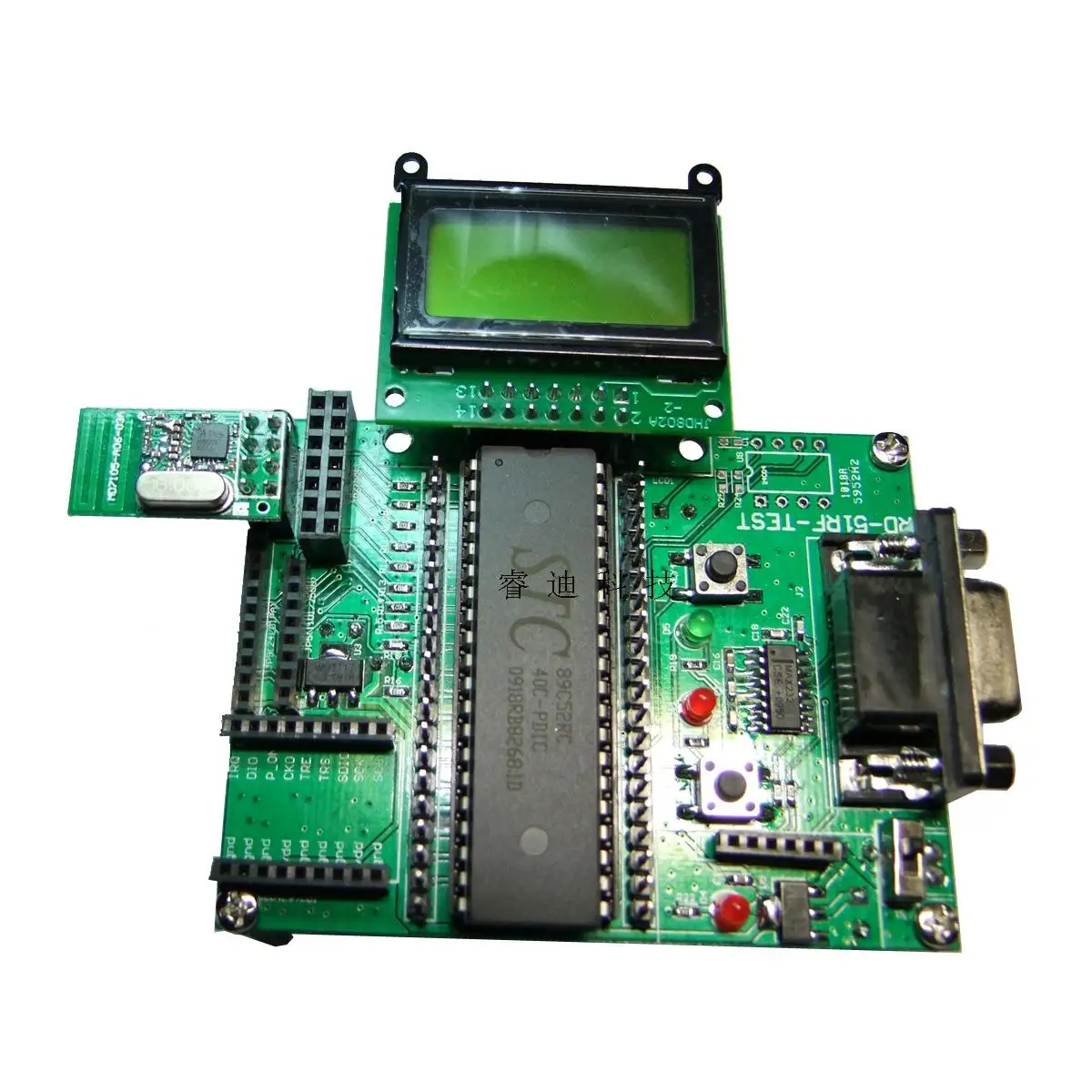

Supporting development board:

Note: this module should be 3.3 V power supply, 3.3 V available this store 5 V - 3.3 V step-down voltage chip implementation

Dupont line:STC89C52 single-chip microcomputer

Other wireless transceiver module

XL7102 - D01 XL1101 - D01 XL905 - D01

XL24L01 - D01 XL7105 - D01 XL2500 - D02

Interface
