FUWAYDA Wireless CCD Chip Car RearView Camera for Peugeot 206207 306 307 308 406407 5008 Partner Tepee+4.3 Inch foldable Monitor |

---



 Products Recommended

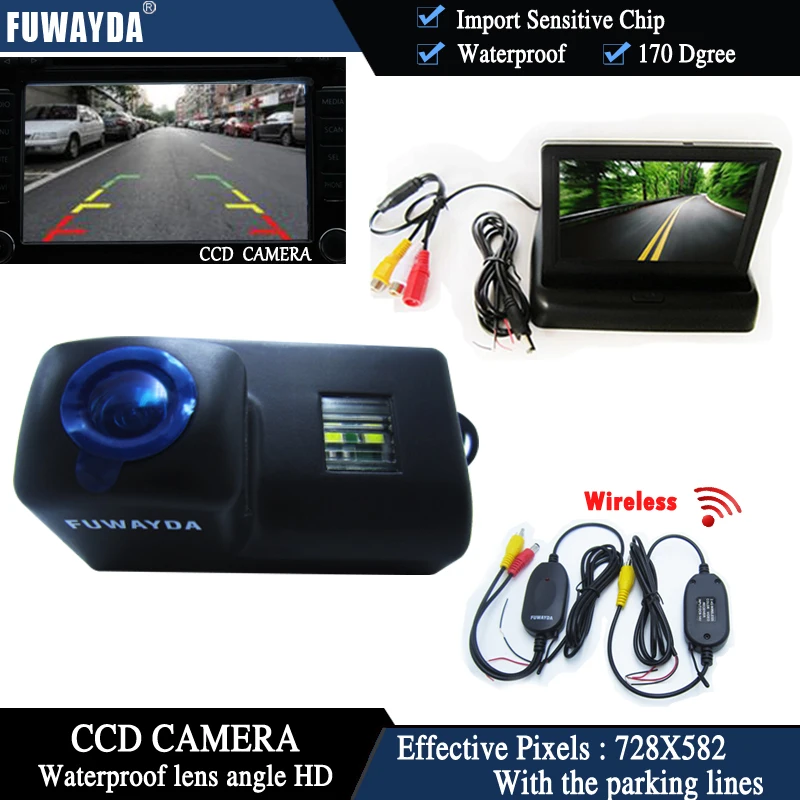

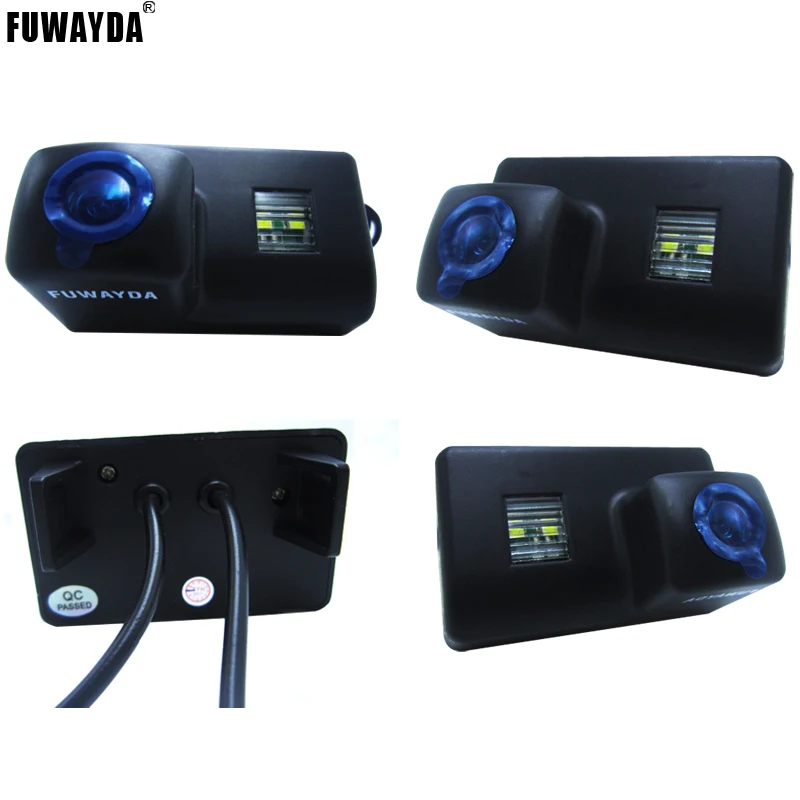

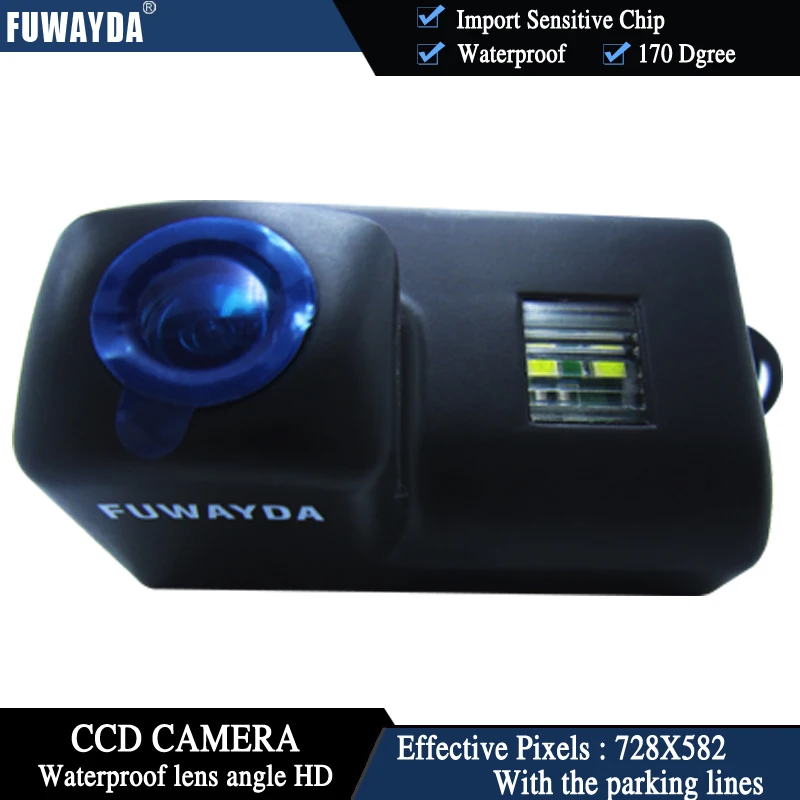

This is our store link: (http:/store/404383)   CCD camera is high clear, better quality than the Colorful CMOS and CMD   CCD Car rear view car camera for:   206 2D CC / 206 4D SEDAN / 206 3D/5D HATCHBACK / 206 5D  SW(STATION WAGON) 207 2D CC 207 3D/5D HATCHBACK 207 5D SW(STATION WAGON)  306 5D SW(STATION WAGON)  307 4D SEDAN 307 5D SW(STATION WAGON)  308 2D CC 308 5D SW(STATION WAGON)  406 5D SW(STATION WAGON)  407 5D SW(STATION WAGON)  5008 5D MPV Partner (M59)(B9)(M49) / Partner Tepee (B9)    with the 2.4 GHz wireless module, no need to turn the video cable inside the carless labor work, easy install         Main Features   High Clear,Night Vision,Water Proof, Plastic material.170 degree view angle,very small,and easy    for installing.Low illumination and fill light automatic,waterproof.Designed according to the licese    light hole install. All you need is a screen and video input port.



PLS kindly Take Note as below :

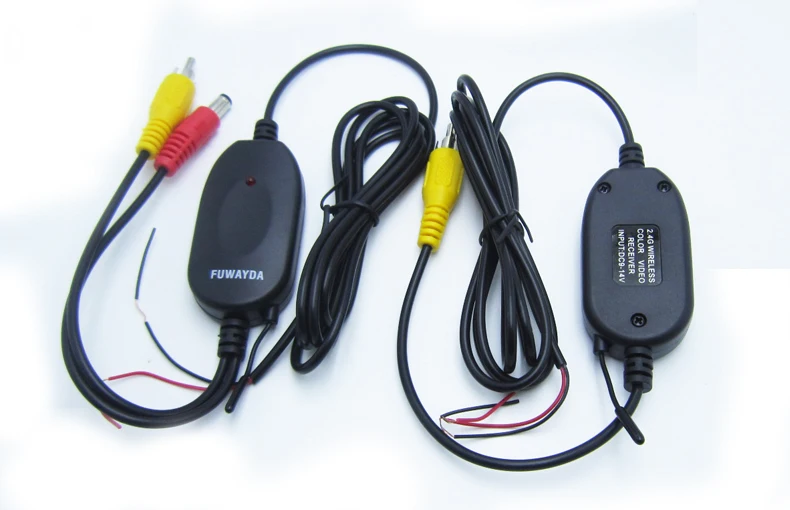

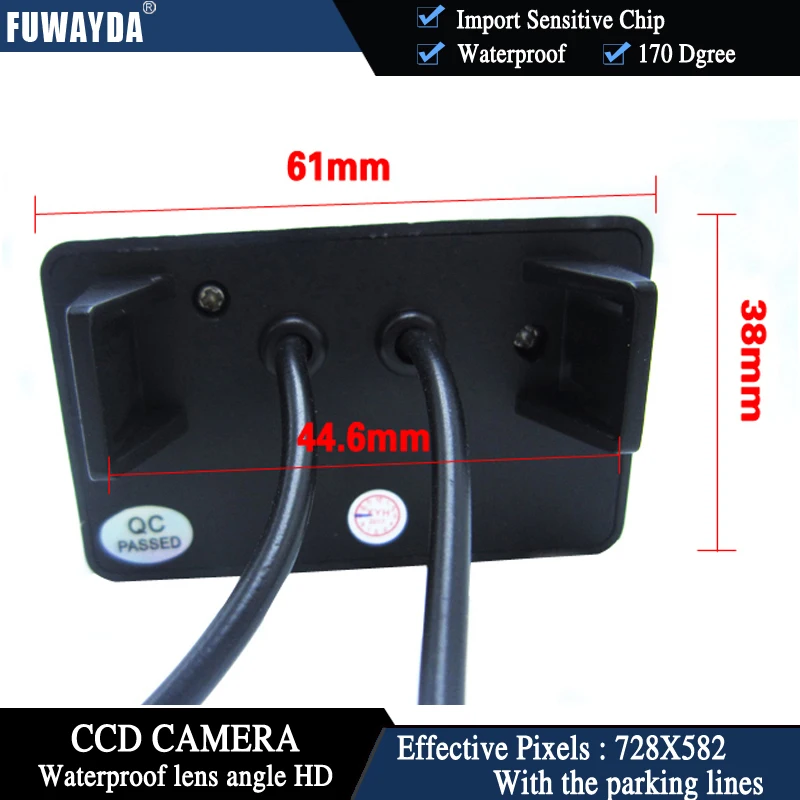

  To be safe, please pay attention to dimension picture before buying. Please contact us if you are not   sure.Please kindly make sure that our product's size is same with your car' s license plate light,   because there may have a little difference even for the same style car but in different country.   This camera will replace one of the license plate lights.                                                Image sensors: 1/4" Color SONY CCD Chip TV System: NTSC (PAL version should be required) Minimum illumination. <0.1 AGC: Auto BLC: Auto White Balance: Auto Video Color: Colorful Effective Pixels : 728x512 Resolution : 520TV lines (Normal CMOS/CCD/CMD camera is 420 TV Lines) Video Output: 1.0Vp-p,75Ω Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S S/N ratio: Better Than 48db Lens Angle: 170 Degree Waterproof Class:Ip 68 Operation Temperature: -20°C+80°C RH95% Storage Temperature: -30°C+80°C Working Power (DCV): 12 V Current consumption: 90mA Max   Video transmitter& receiver 1. 100% brand new, high quality, easy installation 2. Take one minute to get your camera become a wireless camera 3. Wireless 2.4 GHz transmitter/receiver set ( Vehicle voltage12 Volt) 4. Work range: Up to about 50m (hollowness) 5. Connect to rear view camera and front video screen 6. Fit all RCA composite video connections 7. Power: DC 12V 8. Transmitter /receiver cable: 1.5m   Monitor Specification: 1.Housing material:ABS plastic  2.Screen size: 4.3 inch  3.Pixel: 480(W)×RGB×272(H)  4.Contrast: 350:1  5.Aspect ratio: 16:9  6.Power supply: DC 12V  7.Monitor folded size: 5.2 * 4.5 * 0.98 inches  8.Video Input  9.AV Signal auto detect power on/off  10.Auto switch when reversing    CCD CAR CAMERA                                                                        Package:

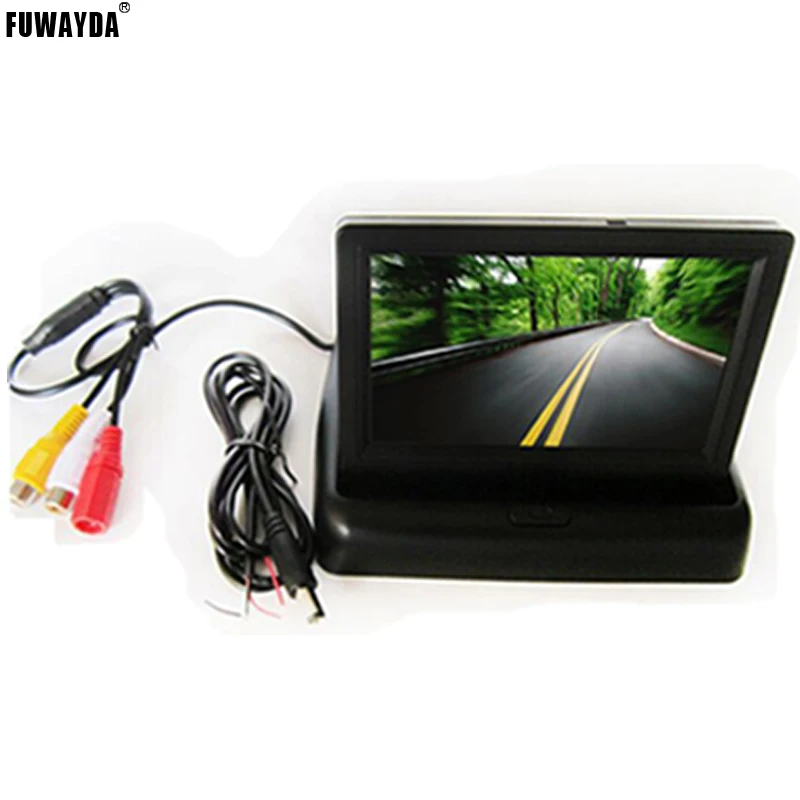

1x4.3" LCD Car Monitor

1xCCD Camera

1x2.4 Ghz Transmitter

1x2.4 Ghz Receiver

1xMonitor Power Cable

1xDouble-sided Adhesive Tape



Installation Method  Take out your stock license plate light at the back of your car. Fix the camera to where the stock license plate light was. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power Connect the power of the camera to your brake lights - red wire to positive and black wire to negative. Connect the video cable of the camera to the extension cord. Connect the extension cord to your car monitor. You will see the images when your car is in reverse shift.



Returns:

We do our best to serve our each customer the best that we can.
We will refund you for items returned within 7 days of you receiving them, for any reason. A full refund will be given if items are returned in their original condition.
Merchandise which is damaged or missing components is not refundable.
Buyers are responsible for return shipping with proper packaging.
On receiving items, we will refund you immediately.

Warranty &Maintenance:

We provide 1 month replacement and 12 months maintenance warranties. Items can be replaced during the first month or maintained for the first year.

***** Buyers are only responsible for the return shipping fees for warranty items.(In most cases, buyer will only have to return the problem components rather than the entire package.).
Before returning items, please make sure you get our (the seller’s) return address, and write “gift” on the delivery detail sheet. Please use regular postal service and send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.


Feedback:
Please leave us a good feedback if item received in good condition;
For Buyers that is not satisfactory with your shopping Experience, you can always contact us first before you left outcome feedback;every problem could be worked out via good communication between both sides
