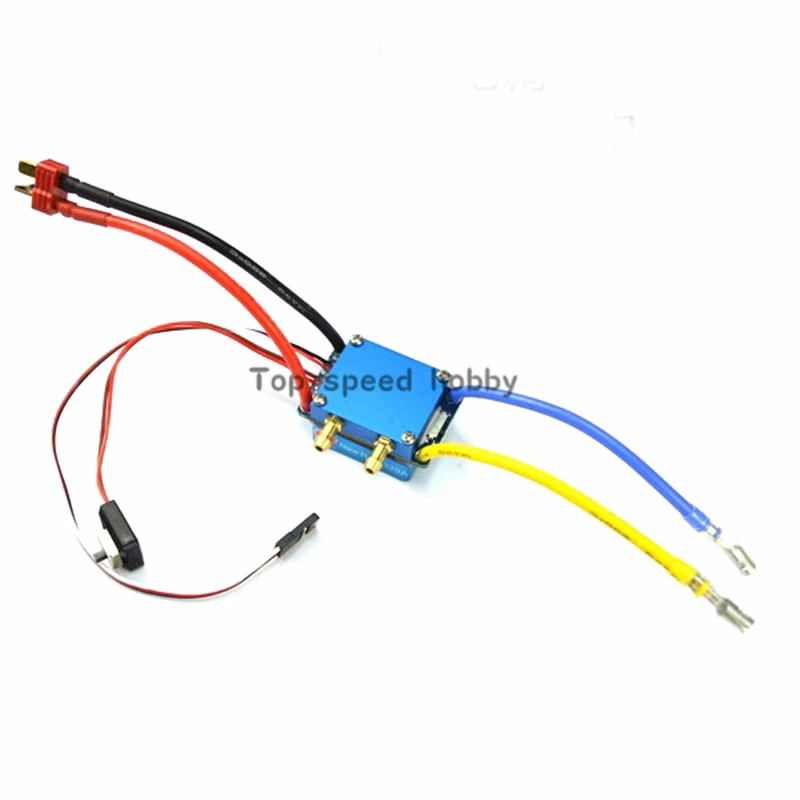

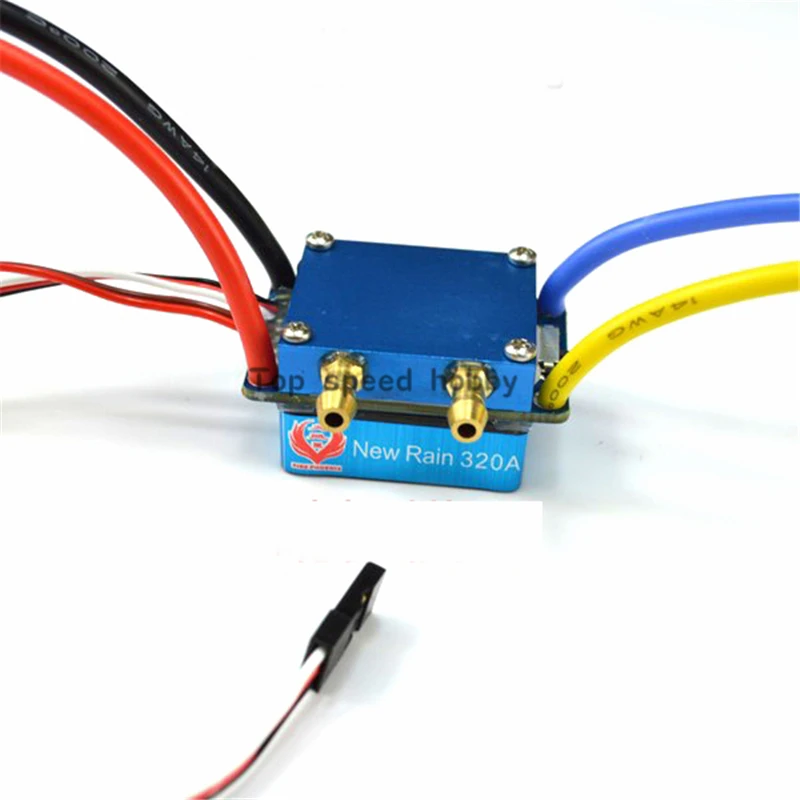

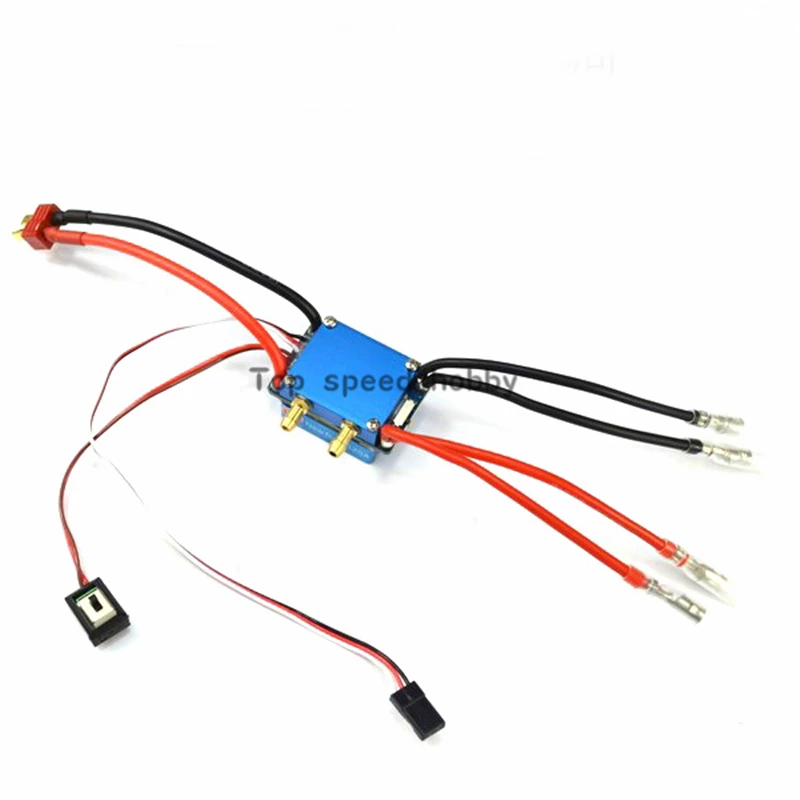

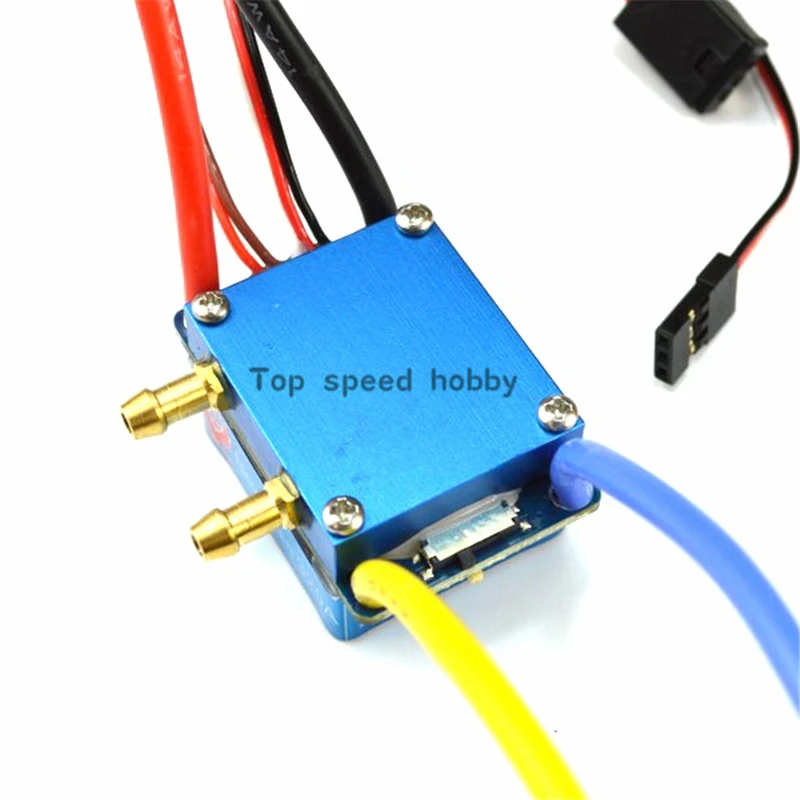

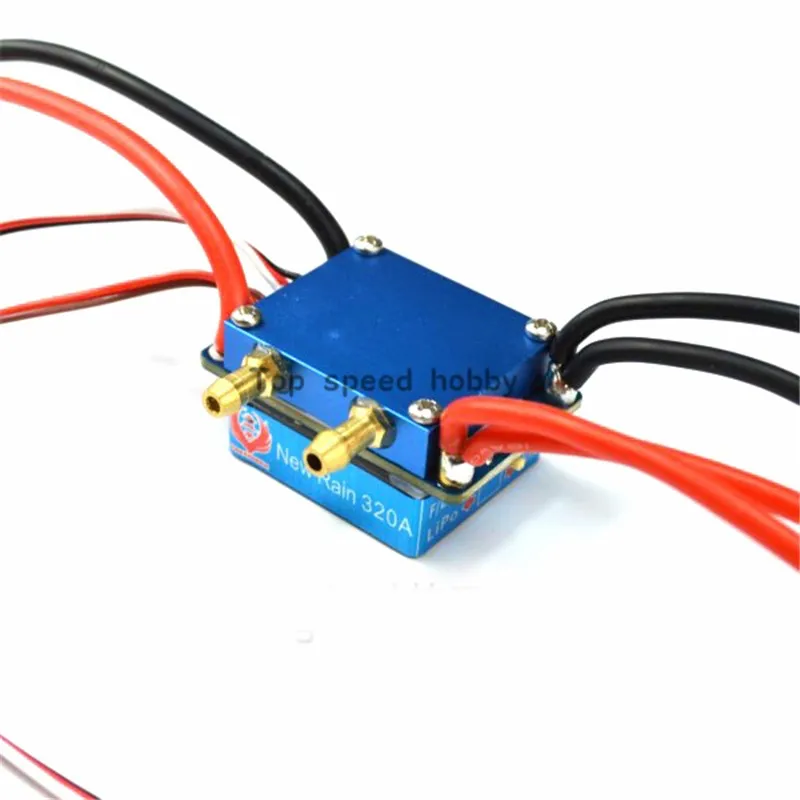

Waterproof 7.2-16V 320A Water cooling Brushed ESC Speed Controller Dual Mode Regulator band brake 5V 3A for Fishing boat car

Products Description:

100% brand new

Support 1: the lithium battery 2-3 s support 12 v battery voltage

2: using high-grade brushless electric adjustable in flat large current of power MOSFET resistance as low as 0.0015 ohms

Article 3: strengthen copper conductive heat dissipation

4: good waterproof

5: can set the brake

6: small size high performance

Working voltage: 6-15 v (2-3 s). Nickel metal hydride, nickel cadmium group 6 ~ 9 (7.2 V to 15 V); Lithium electricity 2 ~ 3 groups (7.4 ~ 11.1 V) the 12 V battery support

Voltage protection: 6 v (factory setting), when the voltage protection effect, pull the throttle motor work for 3 seconds or stop, to pull the throttle can work again for 3 seconds.

Protect temperature: 90 degrees Celsius. When electric adjustable temperature of 90 degrees, electricity will completely stop working, until the temperature has dropped below 90 degrees.

BEC output: 5 v / 3 a

Sustained current work: 60 a

Current: 320 a

Forward or backward to use the same amount of power MOSFET, under current exactly the same.

Product size: 43 mm long, 28 mm wide, about 25 mm (including water)

Programming instructions of the project:

Operation mode: two-way (F/B/R)/one-way (F/B)/climb (F/R), the default value is \"two-way\".

\"Two-way\" mode, namely the positive &negative belt brake model, provides a reverse function, the model is often used to daily training. This model adopts double click

Type reverse way, namely the throttle rocker in the region of the first to point to reverse zones, the motor is braking, won't produce reverse action; when

Throttle rocker quickly returned to the neutral point and push for the second time to reverse zones of the region (the so-called \"double click\"), if the motor has stopped, then

Produce reverse action, if the motor did not stop, will not reverse, still is the brake, need again would throttle back to neutral and to reverse zone

Astern, the goal is to prevent the error caused by multiple snub in the process of vehicle reversing.

\"One-way\" mode, namely forward with brake mode, the vehicle can only move forward and braking, but not reverse, the model is usually used in competition.

\"Climb\" mode, namely direct positive &negative mode, click type reverse way, namely the throttle rocker pushed to reverse area of the region from which point,

Motor back an immediate action, the model is generally used in rock climbing car and other special vehicles.

2. The battery type: lithium-ion battery (Lipo)/nickel metal hydride (NiMH), the default value is \"lithium electricity\".

Packet content:

• 100% Brand New

• 1 x 320A Dual Mode Brushed Regulator band brake

Shipping:

Items will be sent to all the countries over the world,(Russian Post was affect by LCACS, so the local mail delivery services (including EMS) will be delayed many times)

• The shipping costs to all countries are the same.
• Item will be shipped within 1-2 business days
• This package will be sent by China Airmail Post or HK post airmail
• Items will be checked carefully before sent out.
• We will use air bubbles to wrap the items carefully

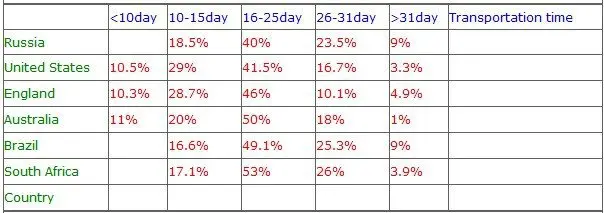

Shippingtime:
