VFivesystemcolumn-Eighty-sixPanel remote control(220V)

an instruction manual

Two, the scope of applicationWarehouse, office, factory, hotel, villa and other places

Lighting and intelligent control of lighting

Three, function introduction:

220VConnection remote control, using imported touch chip, touch sensitive, circuit

Board useFRFourFire proof double side glass fiber board, patch technology; standardEightSixBottom box installation, high quality

Toughened glass panel, anti aging, anti squandering, touch panel buttons can be more texture;

Choose one road, two road, three road, four road, touch button launchRFWireless signal,

With the division remote control switch, remote control socket use, can achieve bedside, staircase switch

Non wiring dual control function; panel icon,LogoCan be in accordance with the requirements of the guests, a free

Fee customization!

Four, technical parameters:

1Working voltage:220V AC,

2Working frequency:Three1FiveMHZ(can be customizedFourThreeThreeMHZ), 50HZ-60HZ

ThreeCoding format:EV152Seven

FourTransmit power:13mW

5Specification size:Eighty-six*Eighty-six*3Seven.5MM

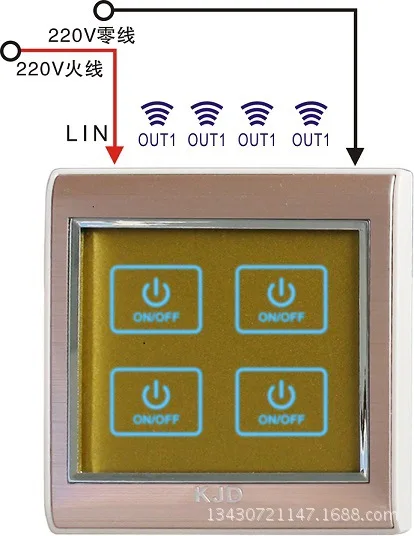

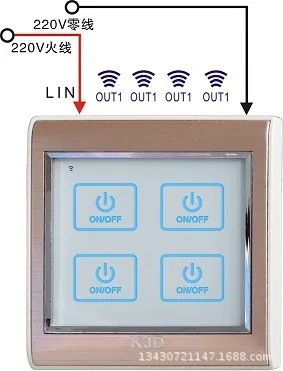

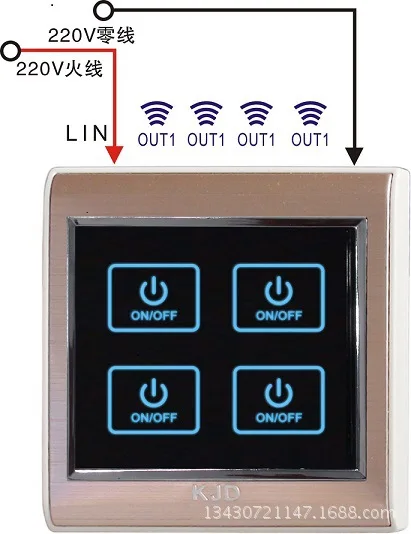

6Installation method: StandardEighty-sixBottom box installation,input220VZero line

7Panel material: high quality tempered glass

8Indicator light status: in the launch state, the indicator light blue light,

Standby time micro bright

Product name:86Panel remote control(220VZero line, line of fire power supply

Product model:KJD-V1-220VT1(all the way)

Product naming rules:KJD-Company name

V3Product seriesT1-Emission signal

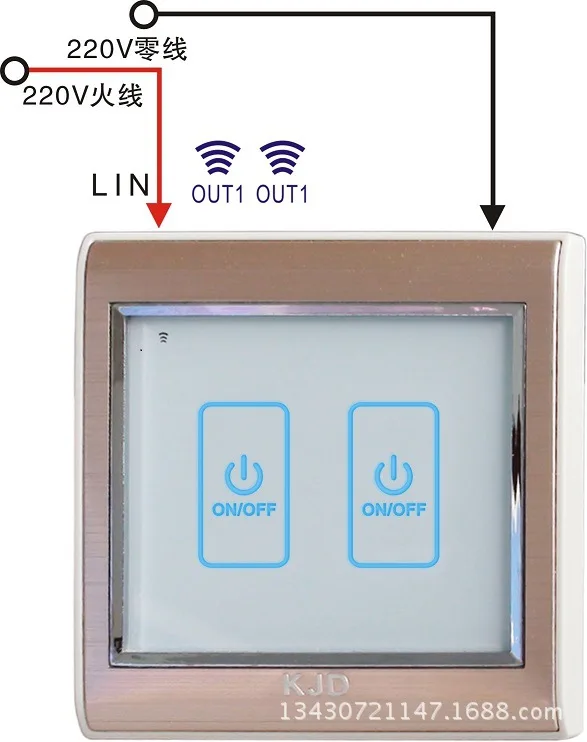

V5-Product seriesT2-Two way emission signal

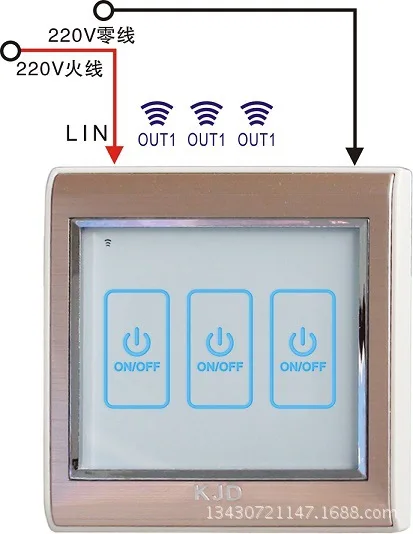

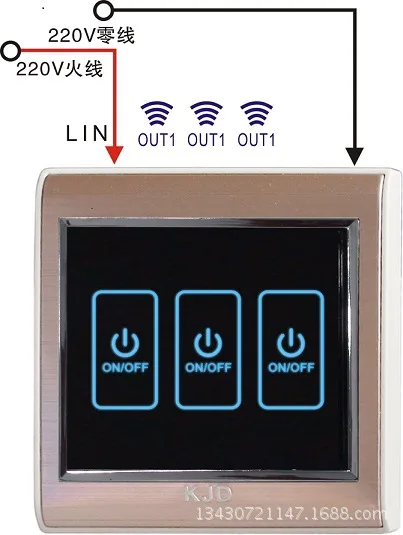

220V-working voltageT3-Three transmit signal

T4-Four way emission signal

Seven, the original packing list:

1,86Panel remote control.220VPower supply) a;

2,A copy of the instruction;

3,Product qualification certificate;

4,Fixed bottom box screw2Gold;

Eight, warranty:

1Product quality problems,7Days unconditionalreturn free within one month

Replacement of the same type of products;

2, the company\'s products, the implementation of free warranty for one year (except for the appearance of parts),

Lifelong maintenance;

3Under the normal use of the instructions and system control notes,

Product failure, please contact the dealer to contact the request for warranty repair,

The warranty tag torn, it shall have the right to refuse warranty;

The following conditions are not in the scope of free warranty:

1,No three packs of credentials;

2,Machine repaired by a non authorized service center;

3,Damage caused by natural disasters such as floods, fires and lightning strikes;

4,Due to the fall, extrusion, water immersion, damp and other man-made damage;

5,Not in accordance with the use of product specifications to use the product caused by failure, as a result of normal

Periodic inspection, maintenance, repair or replacement of parts for wear and tear.

Panels and enclosures are not within the scope of the warranty
