Best price Micro desktop PC HTPC Intel Celeron N3150 Quad core HD Graphics HDMI 4*USB 3.0 WIFI Dual LAN Mini NC690 | Компьютеры и офис

---

Micro desktop PC, Dual LAN mini PC

Braswell Intel Celeron N3150 Quad Core Burst 2.08GHz Braswell Intel Celeron N3050 Dual Core Burst 2.16 GHz,2M Cache Fanless, Smart, 2*HDMI, 2*NIC, 4*USB 3.0, 2*USB 2.0, Wi-Fi, TDP: 6W Windows 10, Intel HD Graphics, Size: 16*12*3.7cm, Metal Case Windows 10 Desktop: Kindly Remind:  1, The Mini PC works with DDR3L at 1.35V instead of normal 1.5V RAM. 2, it has 3-year warranty. buy it without worries. 3, The RAM and SSD/HDD are from famous brand, the RAM is normally Samsung, Elpida, Kingston; The SSD is normally from Toshiba, Samsung, ADATA, Intel, Lite-on etc. it will be shipped out at random from stock. 4, The Operating System is copied, activated but not licensed, it can update as normal.  please install the licensed one if you like it.  5, According to Aliexpress policy, it is buyer's duty to pay VAT and import tax; it is normally declared at USD100-120 to save buyer's tax, but not sure if it is free.         Branded Spare Parts, Boyscott Fake Parts!!  Top Quality, 3 Year Warranty, Rest Assured!!   1, Quality Approval: 2, Performance: 3, Specification:



Mini PC, HTPC General
Processor	Onboard Intel Celeron N3150/N3050
Operating System	Optional: Default:Windwos 10 Optional:Windows 8/Linux
Storage	SSD: 32GB/64GB/128GB/256GB/512GB
	HDD: 320GB/500GB/1TB
Memory	2GB/4GB/8GB DDR3L-1600 1.35V
Motherboard	Intel SHARKBAY(Intel Haswell-ULT)
Processor details
CPU	Intel Celeron N3150 1.6GHz, Turbo Boost 2.08GHz, Quad Core Quad Thread Intel Celeron N3050 1.6GHz, Turbo Boost 2.16GHz, Dual Core Quad Thread
Processor Number	2/4 core/ 4 threads
Core code	Braswell
Clock Speed	1.6GHz(100MHz x 16.0)
Burst Frequency	2.08GHz
Technique	14nm
L1 data cache	2 * 32 KB, 8-Way, 64 byte lines
L2 code cache	2 * 32 KB, 8-Way, 64 byte lines
L3 cache	3 MB, 12-Way, 64 byte lines
TDP	6W
BIOS	AMI BIOS, ACPI supported, support call on function automatically, Wake-On-LAN
Function	Hyper-Threading, Virtualization technology, 64 bit computing
Graphic Cards	Intel Haswell- ULT Integrated Graphics Controller
	Intel HD Graphics(320~640MHz)
Audio Cards	ALC662 sound chip, 6-channel
	Intel Panther Point HDA
Network card	RTL8168E PCI-E Gigabit Ethernet NIC
Ethernet	10/100/1000 BaseT LAN*2
WIFI	802.11.b/g/n with dual antenna (optional:bluetooth)
In/output Port
Display port	2 * HDMI
USB port	4* USB 3.0, 2 * USB2.0
SATA port	1 * MSATA3.0, 6Gb/s;
MINI PCIE	1 * MSATA SSD, 1 * WiFi module
Ethernet port	2*RJ45 10/100/1000 Mbps Adaptive
Power input port	1 inner diameter 2.5mm,external diameter 5.5mm
Audio port	Standard 3.5 Audio input and output
Power and Working Environment
Input	AC100-240V AC/50-60Hz
Output	DC 12V/3-6A
Consumption	10W
Noise	Zero Noise
Temperature	0-70 Centigrade

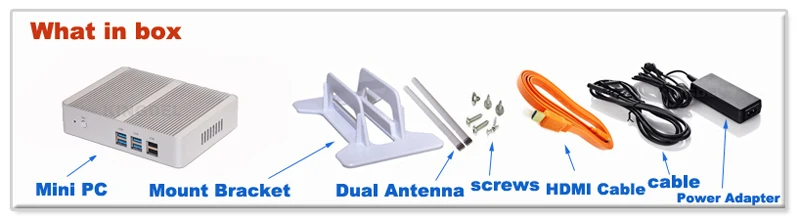

What in Box	Mini PC, Power Cable, Power Supply, WiFi Antenna, Screws,HDMI Cable

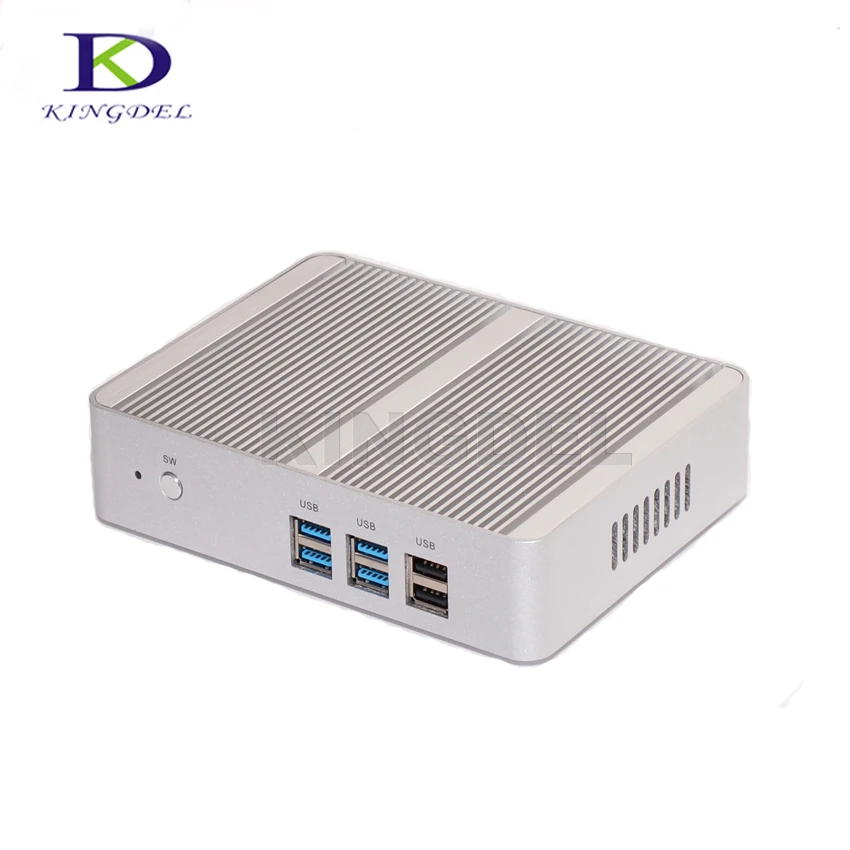

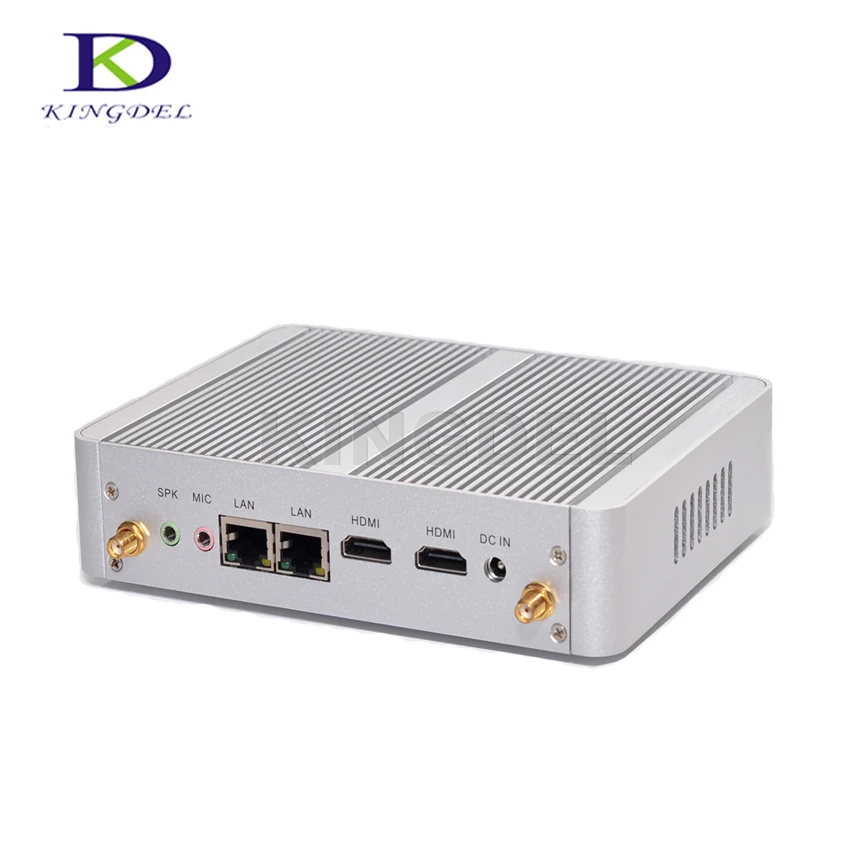

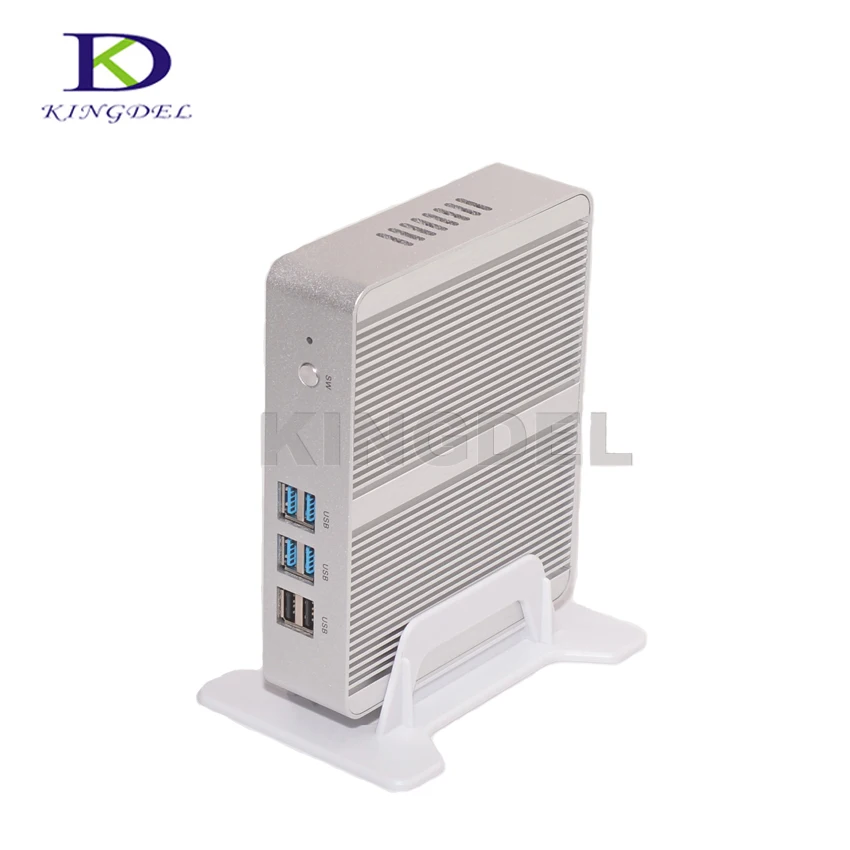

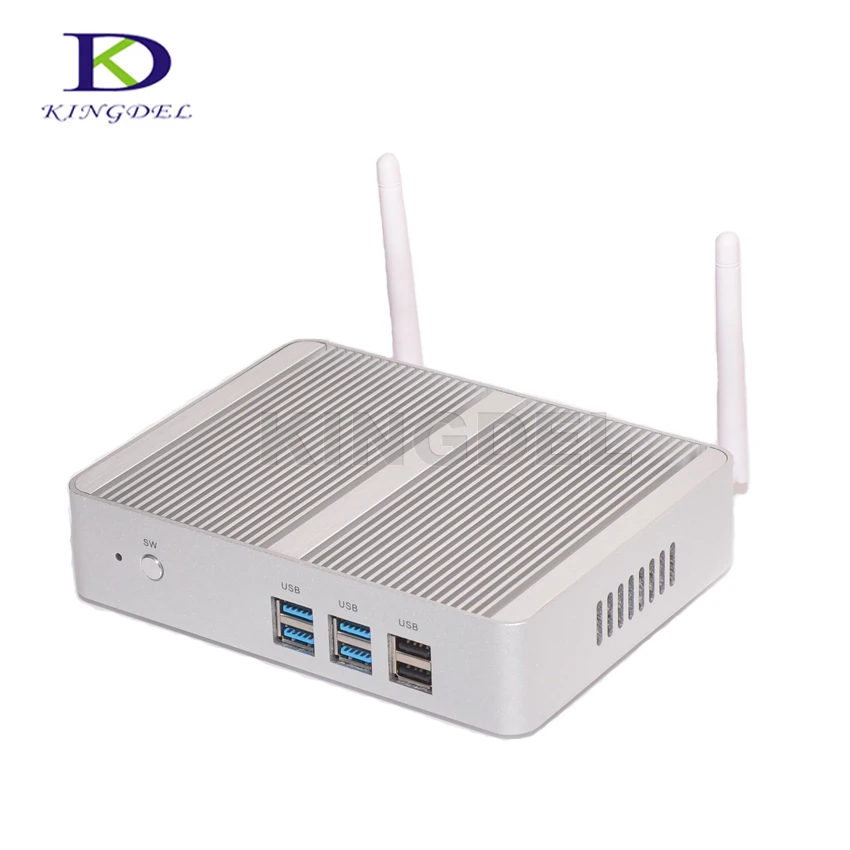

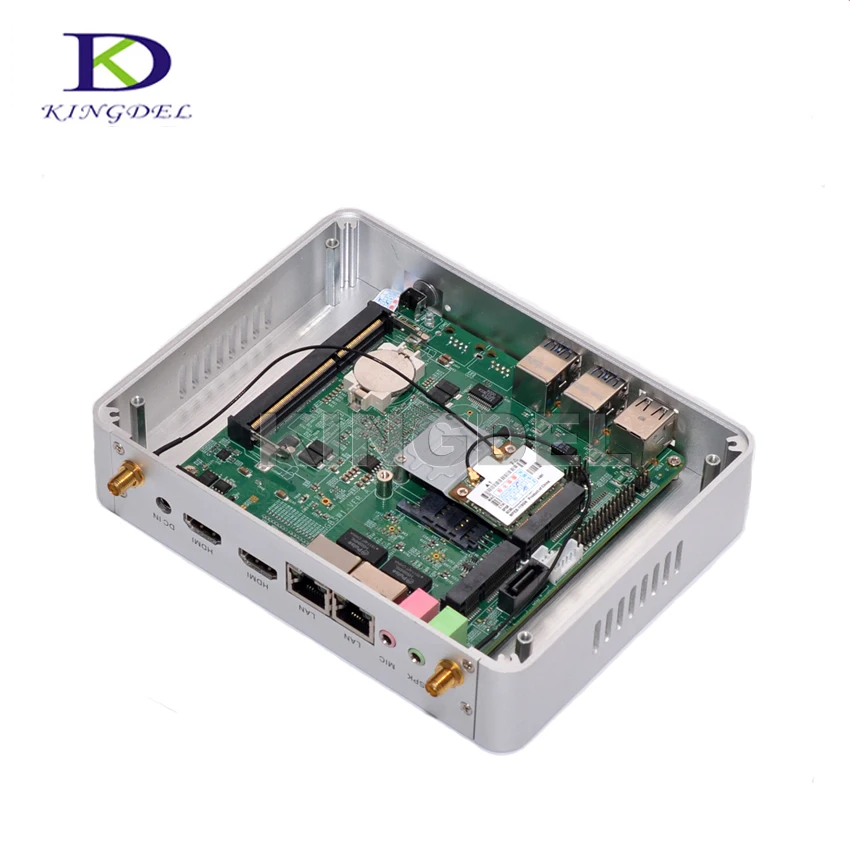

    4, Product Photos:
