1, the technical parameters

Working voltage: 220V

Work frequency: 315 MHz / 433 MHz

Maximum load: 1500 W

Working way: jog , self-lock and inter-lock(Adjustable by pad)

Circuit board size: 60 × 30 × 17 mm

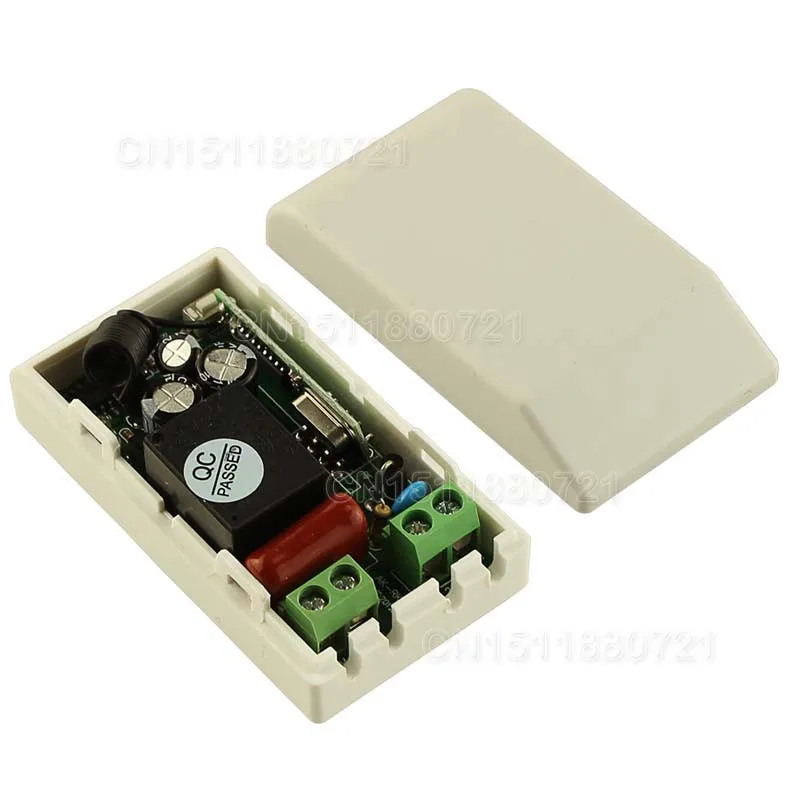

Shell size: 66 x 36 × 21 mm

2 learning method

Hold the learning key until the indicator off. , then press any button of remote, indicator will flash 4 times, then will keep lighting,it means it learns successfully.

Note: the controller can learn fixed code (PT2262, SC2260 chip, etc.) / learning code (EV1527, ) 20 different code

3 clearing method

Continuously hold learning key about 8 seconds until the indicator put out, then keep lighting, it means it clears successfully,,

4 working way switching

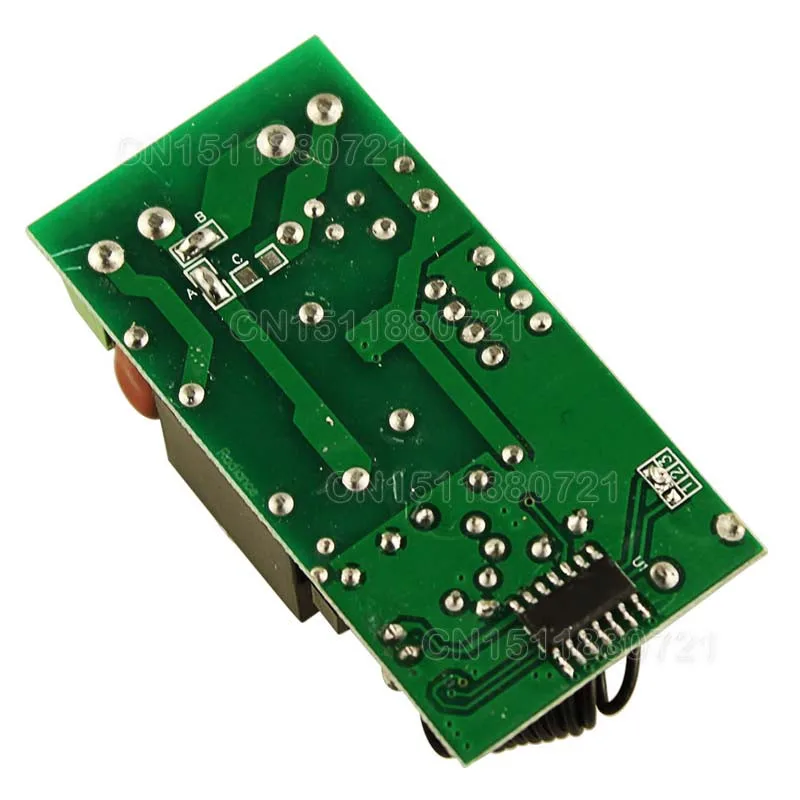

Through the sub circuit board behind the pad 1, 2, 3 different local to switch working way

1 jog1, 2, 3 pads non-occupation, not connect

2 self-lock, shorted 1, 2

3, inter-locking shorted 2, 3

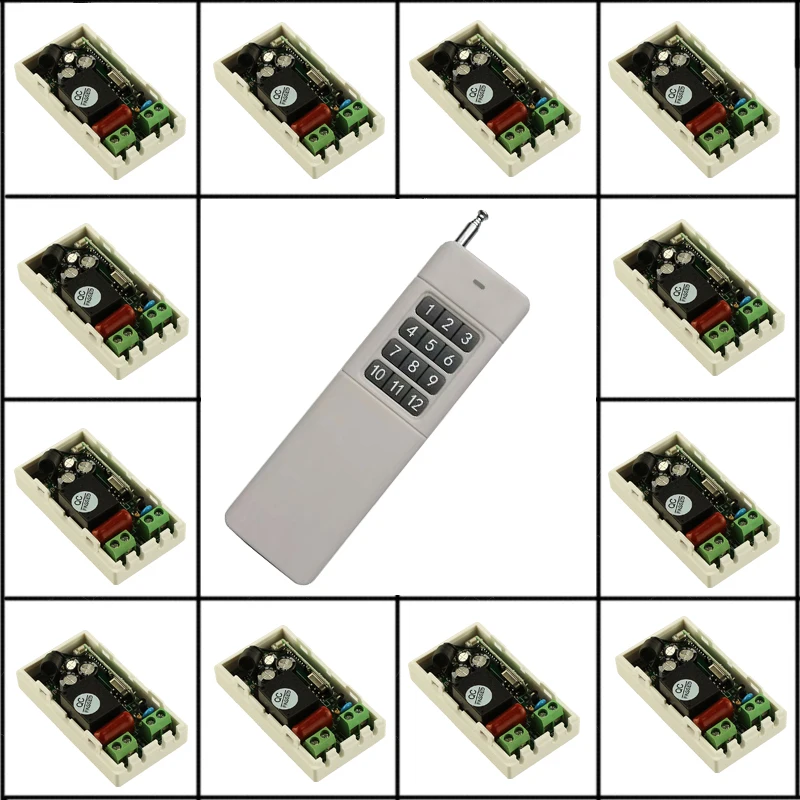

Package Include:

  12 x Receiver(with cover)

  1 x Transmitter(with battery)

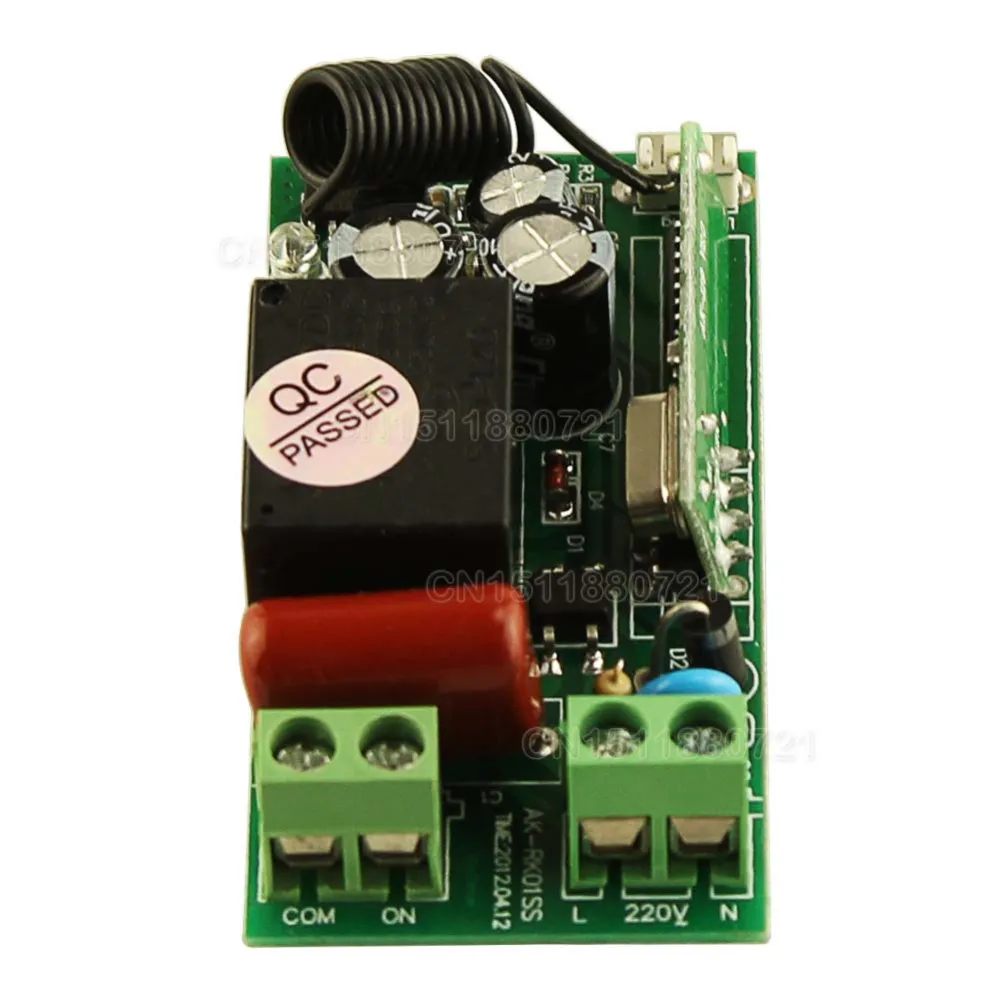

photo show
