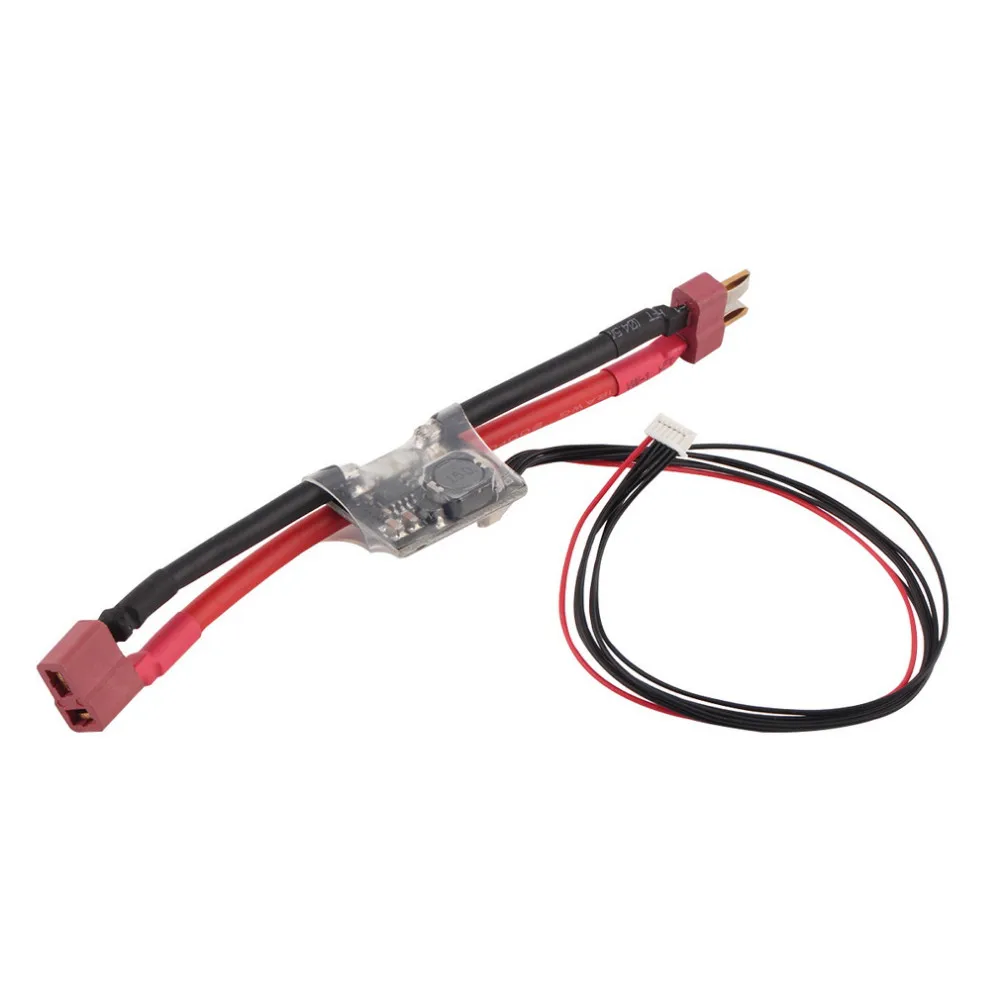

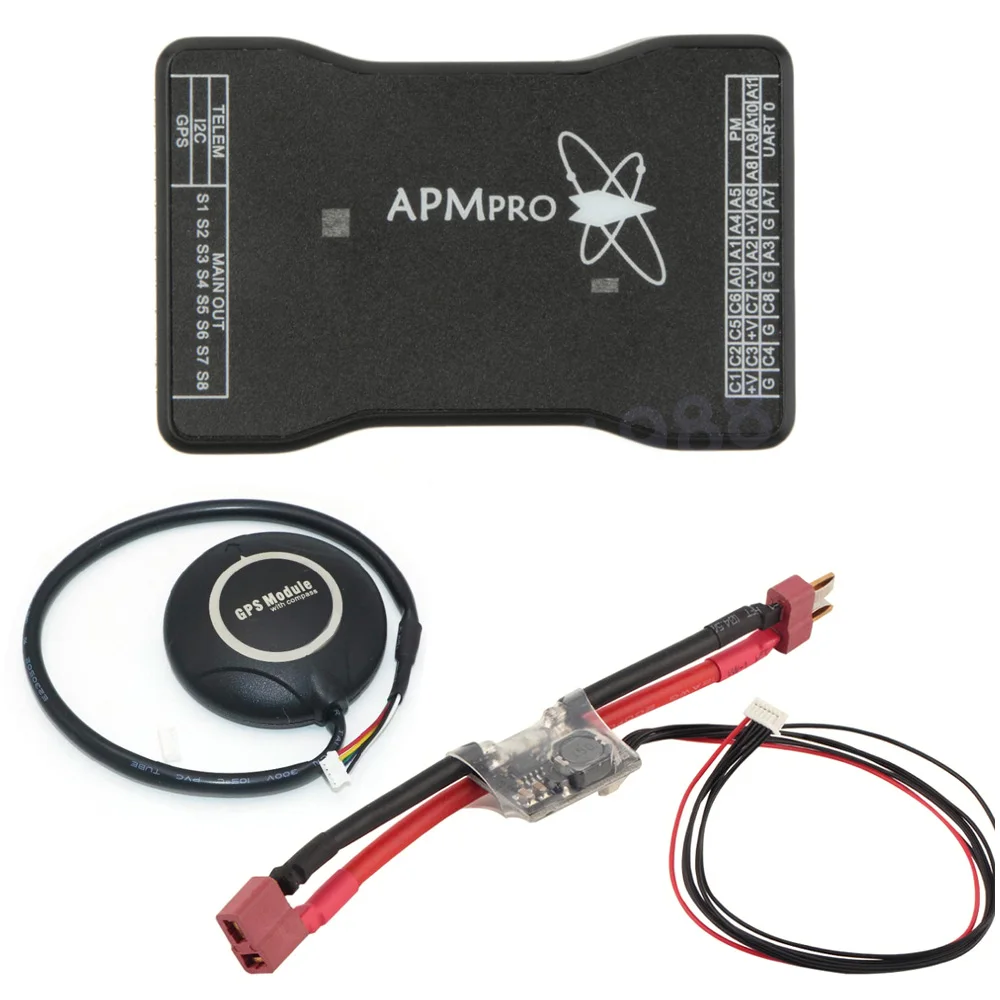

MINI APM PRO Flight Controller Board + 7M GPS Module Power T Plug For Quadcopter Helicopter | Игрушки и хобби
История изменения цены
*Текущая стоимость уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Apr-18-2026 | 0.15 руб. | 0.61 руб. | 0 руб. |
| Mar-18-2026 | 0.35 руб. | 0.74 руб. | 0 руб. |
| Feb-18-2026 | 0.66 руб. | 0.47 руб. | 0 руб. |
| Jan-18-2026 | 0.76 руб. | 0.69 руб. | 0 руб. |
| Dec-18-2025 | 0.54 руб. | 0.9 руб. | 0 руб. |
| Nov-18-2025 | 0.96 руб. | 0.62 руб. | 0 руб. |
| Oct-18-2025 | 0.79 руб. | 0.28 руб. | 0 руб. |
| Sep-18-2025 | 0.43 руб. | 0.67 руб. | 0 руб. |
| Aug-18-2025 | 0.24 руб. | 0.53 руб. | 0 руб. |
Описание товара

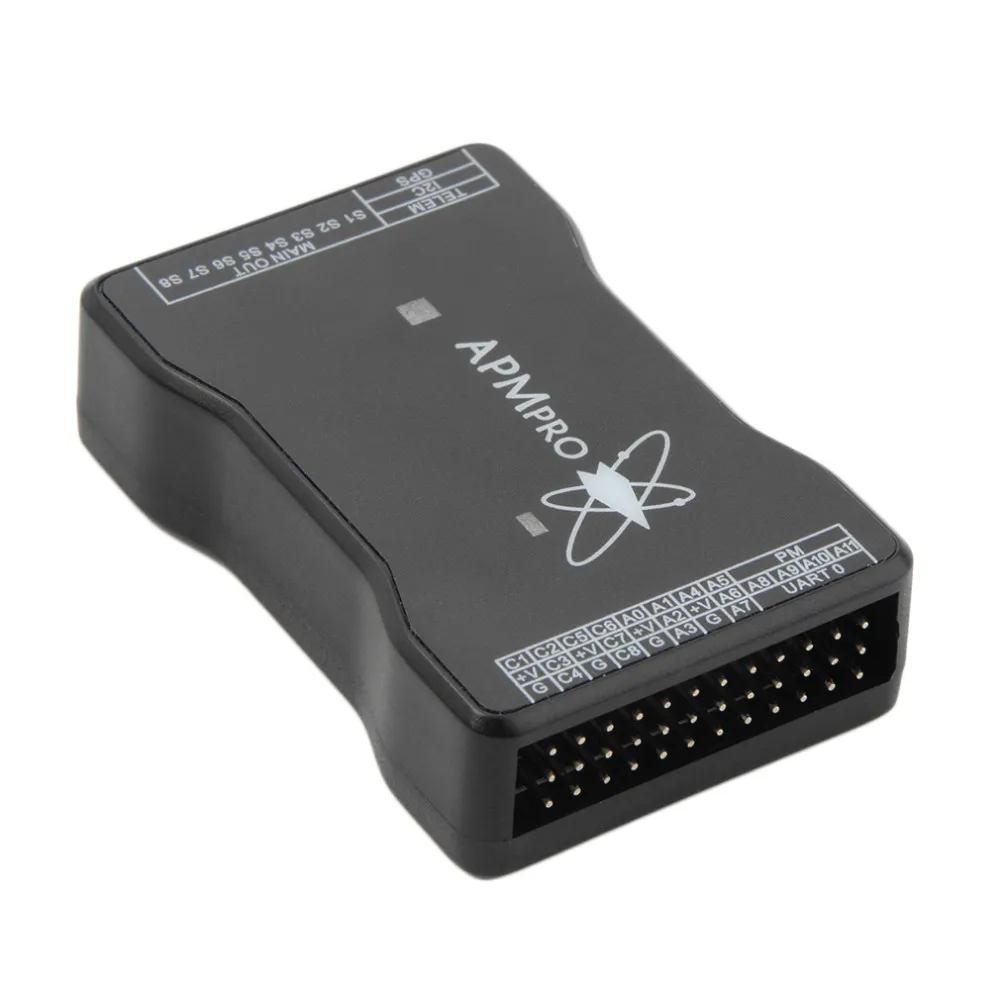

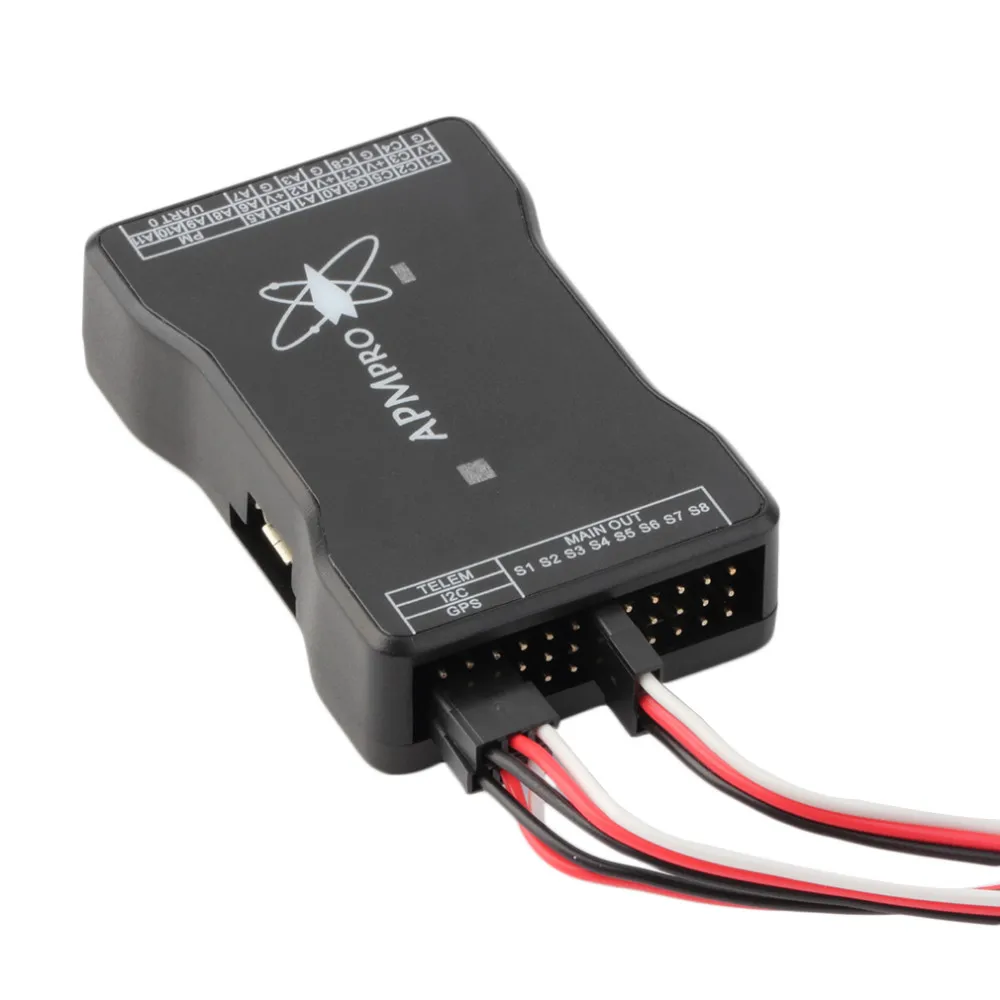

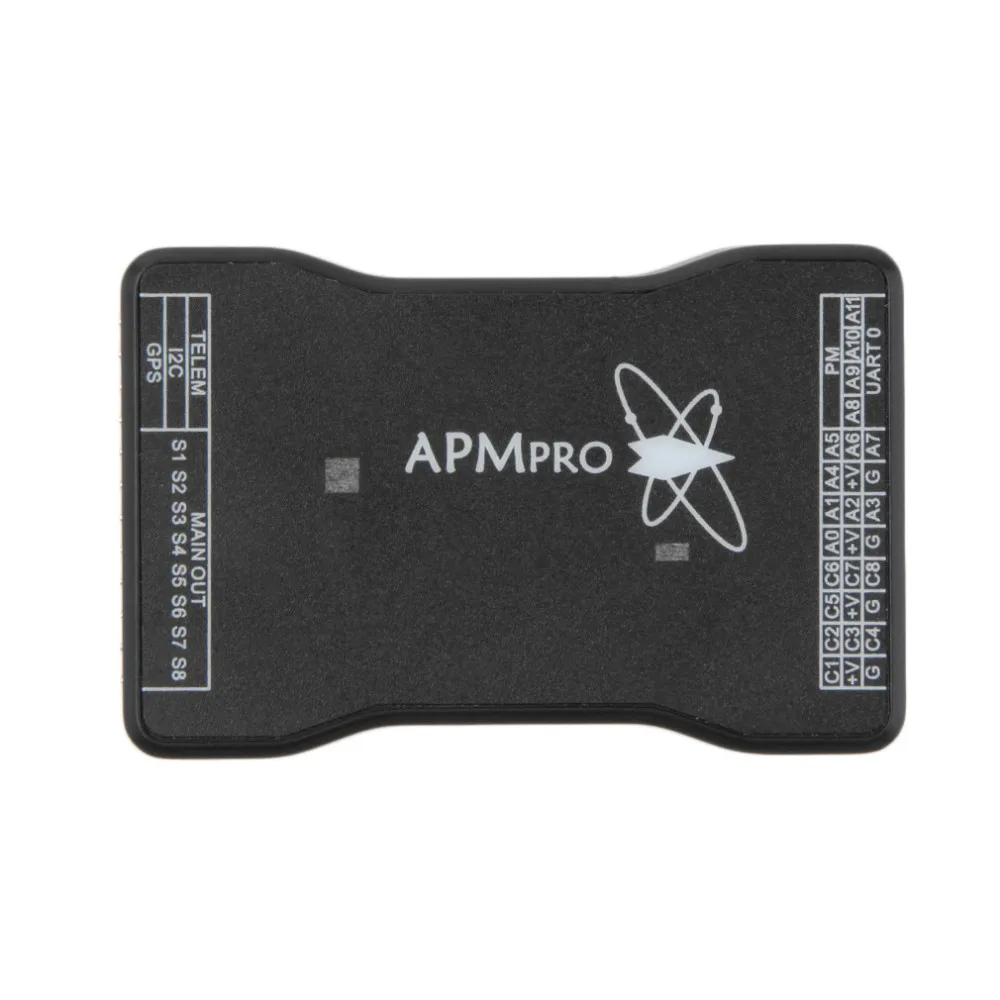

Mini APM Pro:
-Using imported large current LDO instead of previous version 3.3V LDO to support outputting 500MA power.
-Change the previous diodes to PIX PMEG2005 diodes and integrate the two-way output power
-22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).
-All ports have mounted on both ends and 2.54 standard Dupont connectors are adopted to create stability.
-Two pieces RGB led lights have replaced the PPM light, looks super flashing and dazzling
-8-way PWM input signal has been simplified by 4pcs servo cable to realize signal input.

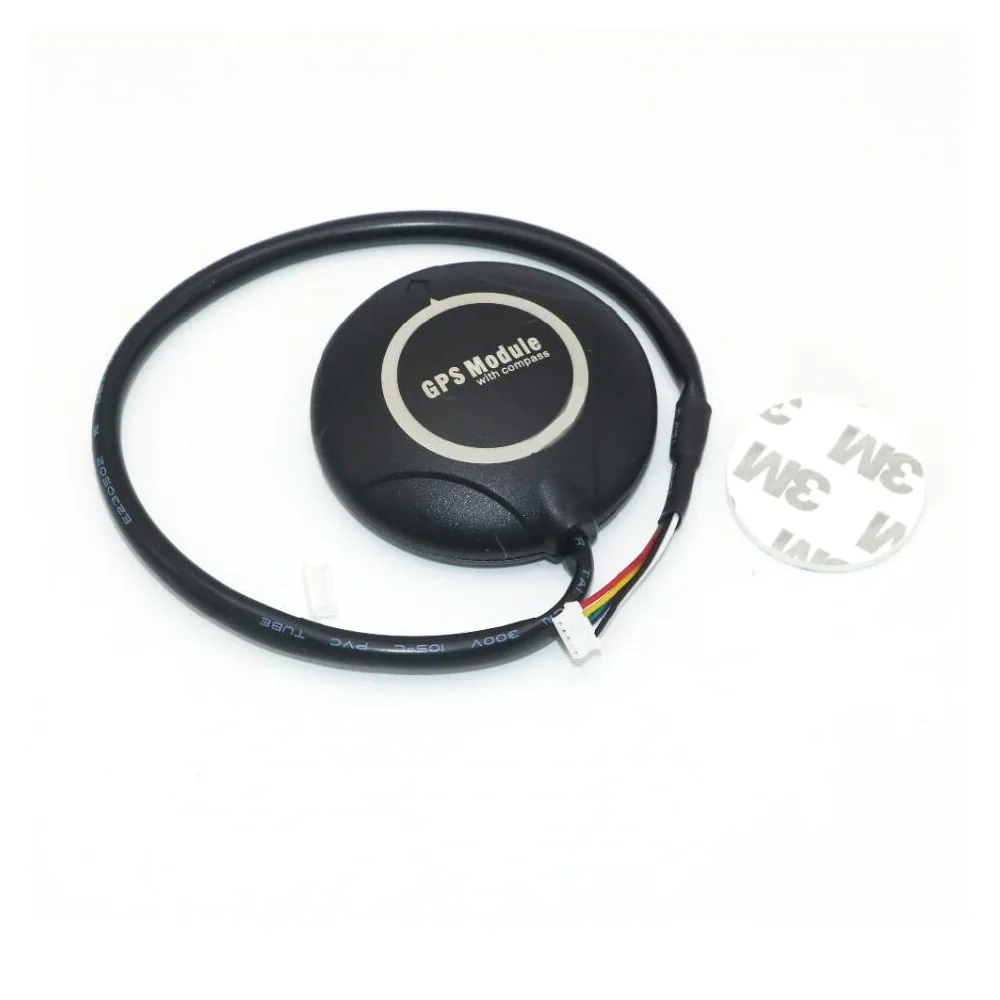

7M GPS module
10Hz update rate
Build in 25 x 25 x 4mm ceramic patch antenna
LNA and SAW chip
3.3V LDO low noise regulator
UART (TTL) port with EMI protection
3V Rechargeable Backup Capacitors
Fix indicator LEDs
Reverse polarity protection for input power
+ 4 pin connector for onlyGPS use
+ 4 pin connecton for compass only use
+ GPS "PCB HOOD" for More EMI/RFI Shielding
can use both 4 pin at once
The GPS unit is per-configured for multiwii !! Unlike other shops send it out default settings, and yet you figure it out.
pre tested = PLUG AND PLUG for MWC 2.1!
MultiWii GPS assited Position Hold and RTH functions
-Using imported large current LDO instead of previous version 3.3V LDO to support outputting 500MA power.
-Change the previous diodes to PIX PMEG2005 diodes and integrate the two-way output power
-22UF/16V capacity was added into 5V module to ensure stable power of main controller (2560 part).
-All ports have mounted on both ends and 2.54 standard Dupont connectors are adopted to create stability.
-Two pieces RGB led lights have replaced the PPM light, looks super flashing and dazzling
-8-way PWM input signal has been simplified by 4pcs servo cable to realize signal input.
GPS module
10Hz update rate
Build in 25 x 25 x 4mm ceramic patch antenna
LNA and SAW chip
3.3V LDO low noise regulator
UART (TTL) port with EMI protection
3V Rechargeable Backup Capacitors
Fix indicator LEDs
Reverse polarity protection for input power
+ 4 pin connector for onlyGPS use
+ 4 pin connecton for compass only use
+ GPS "PCB HOOD" for More EMI/RFI Shielding
can use both 4 pin at once
The GPS unit is per-configured for multiwii !! Unlike other shops send it out default settings, and yet you figure it out.
pre tested = PLUG AND PLUG for MWC 2.1!
MultiWii GPS assited Position Hold and RTH functions
