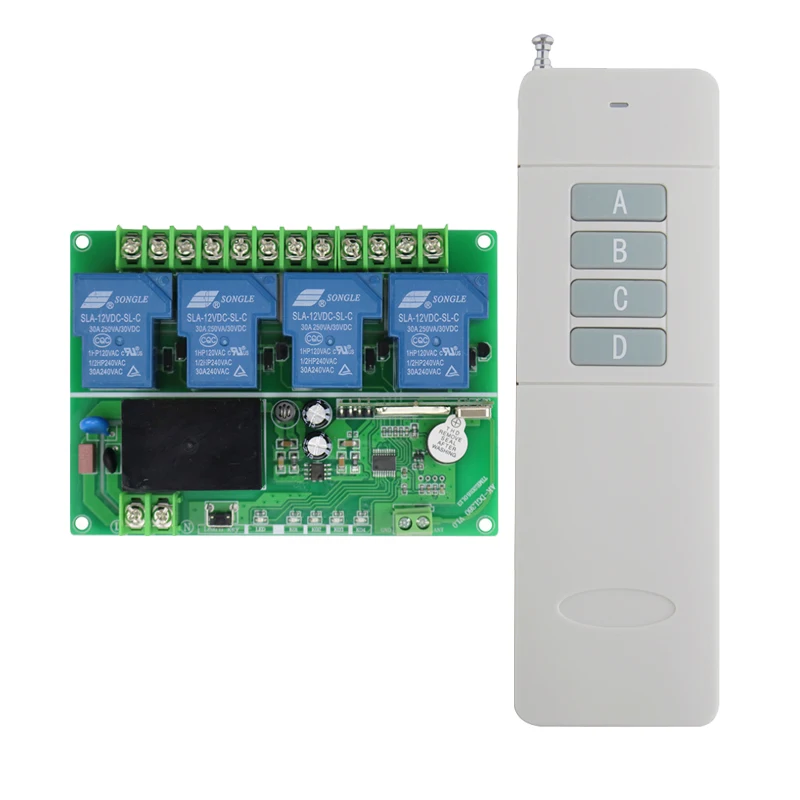

AC 220V-380 4CH 30A Relay Wireless Remote Switch Light Lamp LED Motor Machine 200-3000m RF Receiver Transmitter 315/433M | Обустройство

AC 220V-380 4CH 30A Relay Wireless Remote Switch Light Lamp LED Motor Machine 200-3000m RF Receiver Transmitter 315/433M | Обустройство

1.Working Voltage: AC220V-380V
2.Max Load:30A Relay, Resistive load≤25A, Inductive load≤20A
3.Channel: 4CH
4.Working Frequency : 315MHZ/433.92MHZ Optional
5.Receiver sensitivity: : -105Db
6.Working temperature : -40'C - +85'C
7.Output way : Momentary. Toggle .Latched Adjusted
8.Code type: Learning code Add Controller by the Learning Button on the receiver
9.PCB Size : 122*87*17MM


A: Momentary-----------According to A (data bit 1000) key learning

B: Toggle------------According to C (data bit 0010) key learning

C: Latched------------- According to B (data bit 0100) key learning

D:Momentary+Toggle-----According to D (data bit 0001) key learning (1，2)Momentary+(3，4)Toggle

Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF,

Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF,

Latched------------Press transmitter button A, the receiver relay A is ON, Press transmitter button B, the relay A OFF.

Learning Code

Input AC220V-380V for the Receiver , Press the Learning Button until the ON. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.

Clearing Code


 press the Learning Button and hold, the LED indicator flash 5times and OFF, it means clearing is successfully.

Package Include:

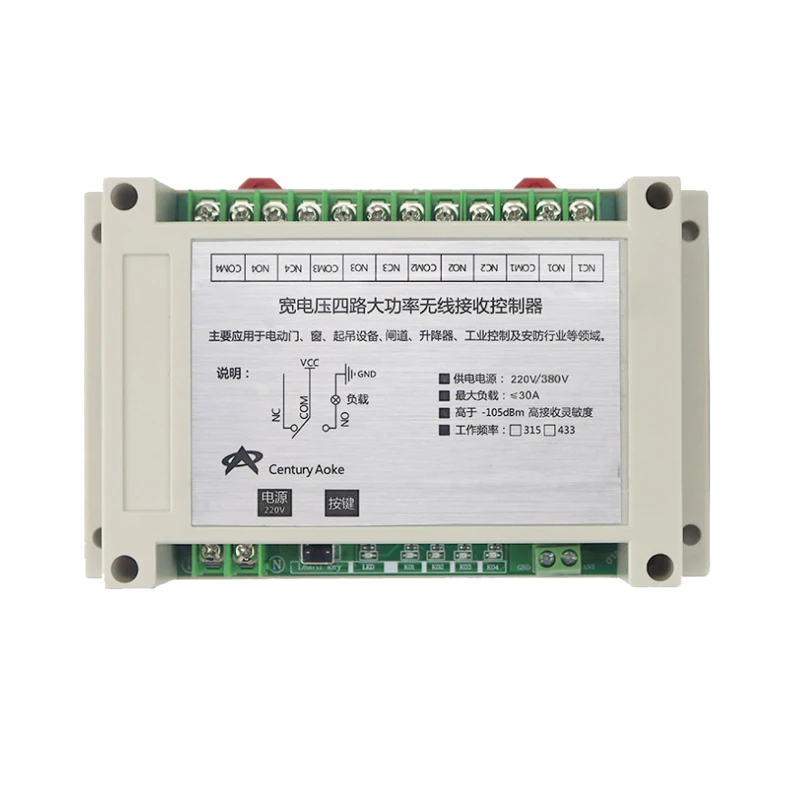

   1  x Receiver(with cover)

   1  x Transmitter(with battery)
