W20B Webster Hardness Tester Metal Portable Measure Aluminum Alloys W-20B | Инструменты

---

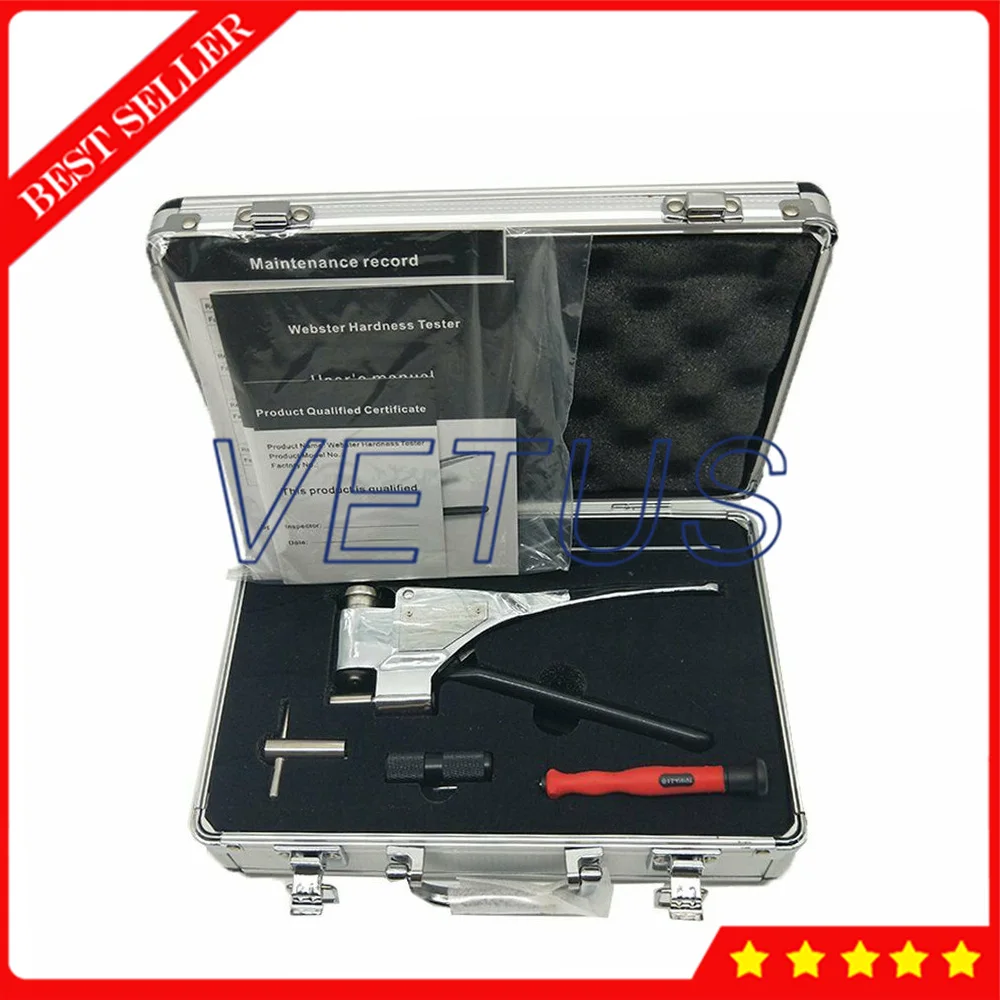

 W20B Webster Hardness Tester Metal Portable Hardness Tester Measure Aluminum Alloys W-20B

Main Feature    Webster Hardness Tester is a portable instrument which can measure conveniently the aluminum,  especially  can measure  special workpiece shapes which can not be or inconvenient to be measured by  other instrument,  such as extrusions, tubes, plates and so on. The test process has no damage to workpiece,  and no need for  sample taking, it is specially applied in production site, sales site or construction site.     Application    * Used to inspect whether the work piece has been heat-treated, and the heat treatment effect, judge whether the workpiece mechanical property is qualified  * Used to ascertain whether the workpiece is processed by improper alloys, judge whether the workpiece  alloy composition is qualified  * Used to test the overlength, overweight workpiece and assemblies  * Used for production inspection, acceptance inspection and quality monitoring and inspection     Function   * compact dimension, light weight, easy to carry, one-hand operation  * can measure a variety of workpiece shapes  * easy operation, operating skills has no influence on readout  * convenient to read, and can be easily converted to other hardness values

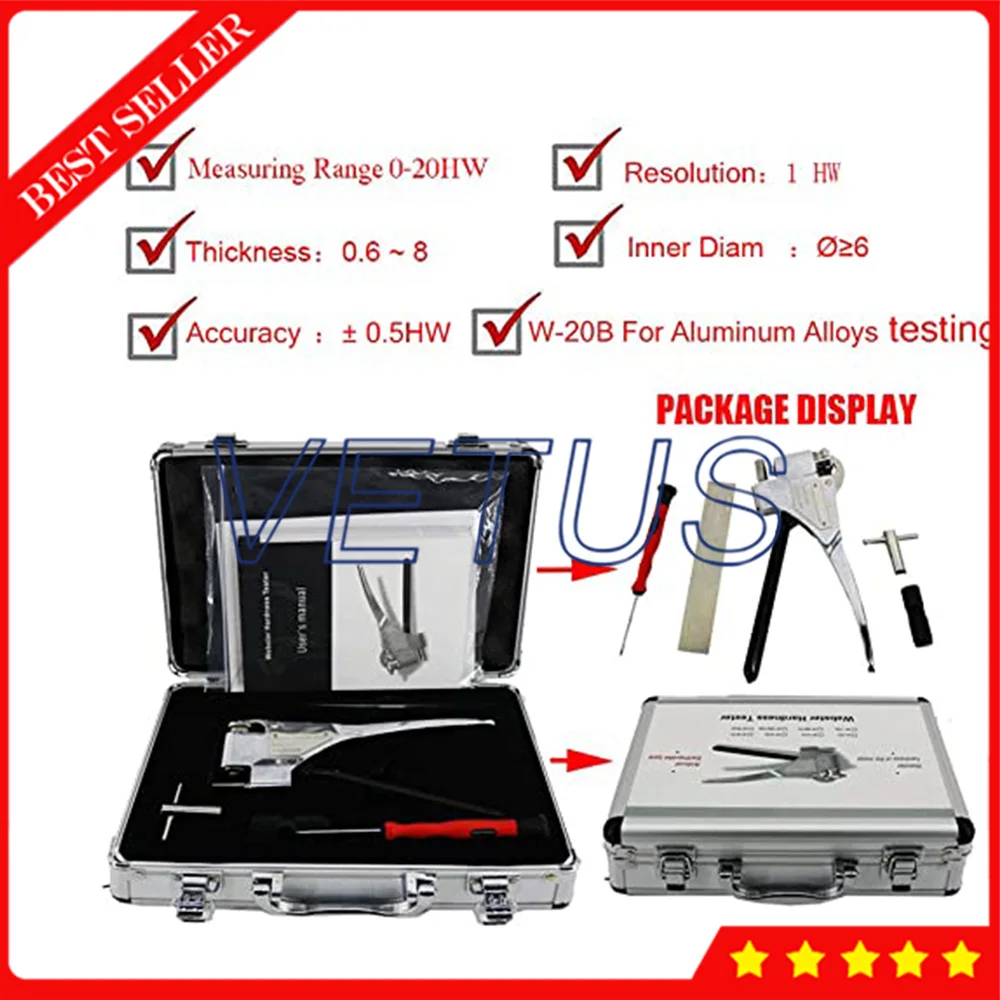

Specification

Part	Measuring	Resolution	Accuracy	Specimen Dimension(mm)
No.	Range			Thickness	Inner Diam
W-20	0-20HW	1 HW	± 0.5HW	0.6 ~ 6	Ø≥10
W-20a	(25~110HRE;			0.6 ~ 13	Ø≥10
W-20b	58~131HV)			0.6 ~ 8	Ø≥6
