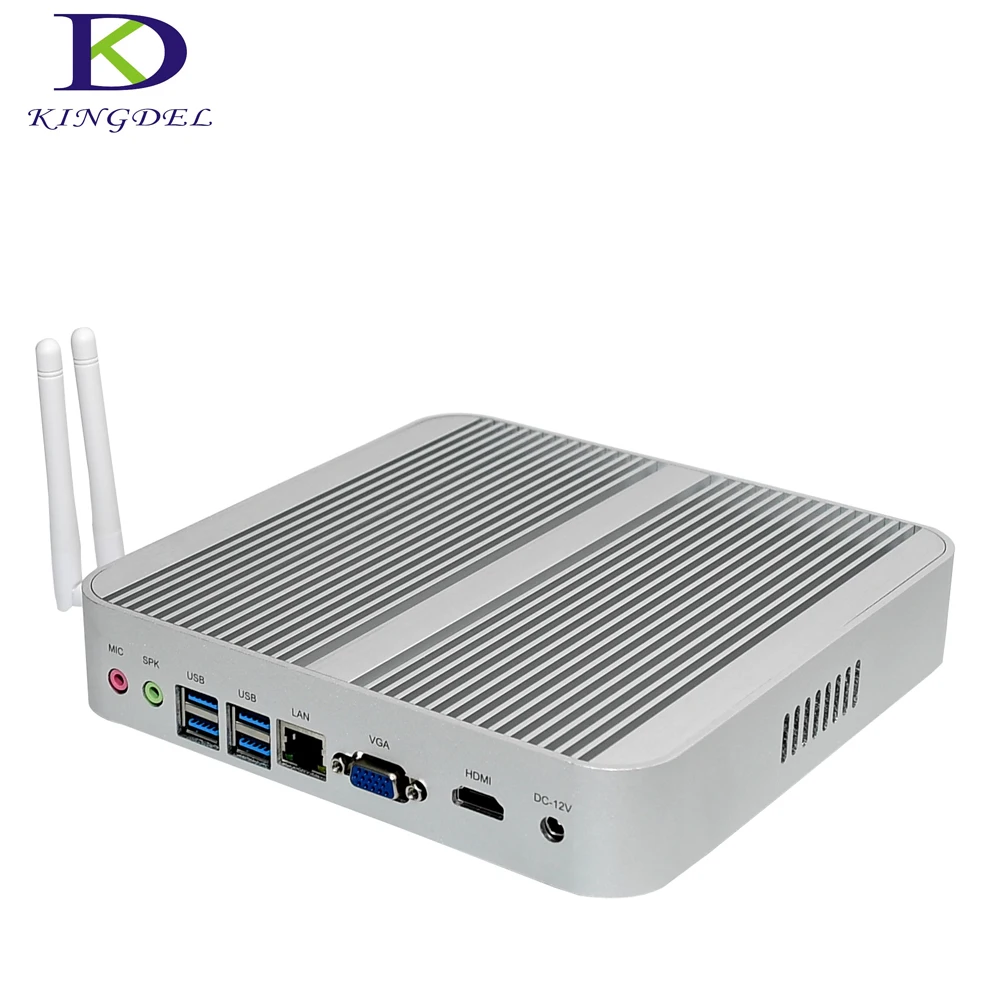

Big Promotion Newest 7th Gen Core i5 7200U i3 7100U Fanless Mini PC Intel HD Graphics 620 Nettop Computer 3M Cache Desktop 8G | Компьютеры

---

Mini PC, HTPC I ntel i5-7200U 2.5GHz Turbo Frequency 3.1GHz, 14nm Kabylake 3MB Cache  1*HDMI, 1*VGA,  1*RJ45 LAN Port,  4*USB3.0, 2*USB2.0, 1000M LAN Intel HD Graphics 620, 4K, Blu-Ray, WiFi, Fanless, Zero Noise





Kindly Reminded:



1, This computer only works with RAM at lower voltage 1.35V instead of normal 1.5V RAM. 2, Warranty is 3 years for Barebone PC, 1 Year for RAM and Storage. 3, The RAM and SSD/HDD are from famouse brand, the RAM is normally Sam'sung, Elp'ida, Hynix; The SSD is normally from Tosh'iba, Sam'sung, ADATA, Intel, Lite-on etc. they will be shipped out at random for stock. 4, The Operating System is just for testing, copied and activated but not licensed, please install the licensed one by yourself if you prefer. 5,  Please carefully read the SHOPPING GUIDELINES    on the bottom of this page. It is regarded as you have agreed all listed when you place an order. We won't take responsibility for any problems might caused except the quality problem of the product.   Thank you !   Windows 10 Desktop:



Wireless Mini Keyboard on sale for this mini computer:



  Branded Spare Parts, Boyscott Fake Parts!!

Top Quality, 3 Year Warranty, Rest Assured!!



Quality Approval:





Key Features:

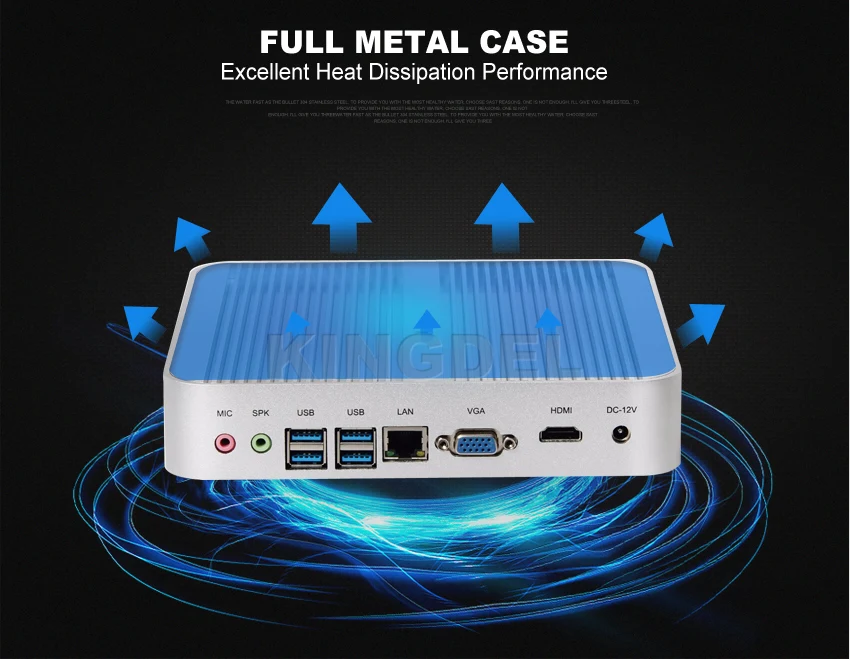

  CPU: Intel® Core™ i3-7100U /i5-7200UProcessor (3MB Cache, 2.4 GHz/2.5GHz);   Graphics: Intel® HD Graphics 620 , support Ultra 4K HD Resolution  4096x2304@60Hz;      RAM: Support DDR3L-1600; max expanded to 16GB SODIMM Notebook memory;      Storage: max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop SSD/HDD SATA3, no limited on storage capacity;   Operating System: Default: Windows 10 Pro; Optional: Linux Ubuntu      Wireless: 300MB WiFi with 2 Antennas      I/O: 1*HDMI, 1*VGA,  1*LAN Gigabit (RJ45),  4*USB 3.0,  2*USB2.0,  1*Power indicator and switch, 1*MIC, 1*SPK;  1*DC IN ; Internal ports: 1*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI);       HD Out put: 1*HDMI, support HDMI to DVI and HDMI to VGA      LAN port: 1*Gigabit RJ45 port speed up to 1Gbps;      Case Material: Brushed Aluminum Alloy;         Product Specifications:

Processor	Intel® Core™ i5-7200U Processor
	Dual Core Quad Threads
	Base Frequency 2.5GHz, Max Turbo Frequency 3.1GHz
	14nm Lithography
	Intel KABY LAKE SOC Chipset
	3MB L3 Cache
	15W TDP
	Multimedia Instruction Set: 64-bit; MMX, SSE, SSE2, SSE3, SSE4.1, SSE4.2, AVX
Processor Graphics	Intel® HD Graphics 620
	Graphics Base Frequency 300.00 MHz
	Graphics Burst Frequency 1.00 GHz
	Graphics Video Max Memory 32 GB
	Max Resolution (HDMI 1.4): 4096x2304@24Hz
BIOS	AMI BIOS, ACPI supported
RAM	DDR3L-1600; 2gb/4gb/6gb/8gb/16gb optional, 2*DDR3 SO-DIMM SDRAM Slot
Storage	SSD: 64GB/128GB/256GB/512GB available;  HDD: 500GB/1TB available
Operating System	Default: Windows 10 Pro; Optional: Linux Ubuntu (Windows 7/8 not supported)
Audio Card	ALC892 sound chip, 6-channel
Network Card	RTL 8111E 10/100/1000 BaseT LAN
Wireless	Wifi 802.11.b/g/n, 300M, Dual Antennas; Bluetooth 3.0 optional

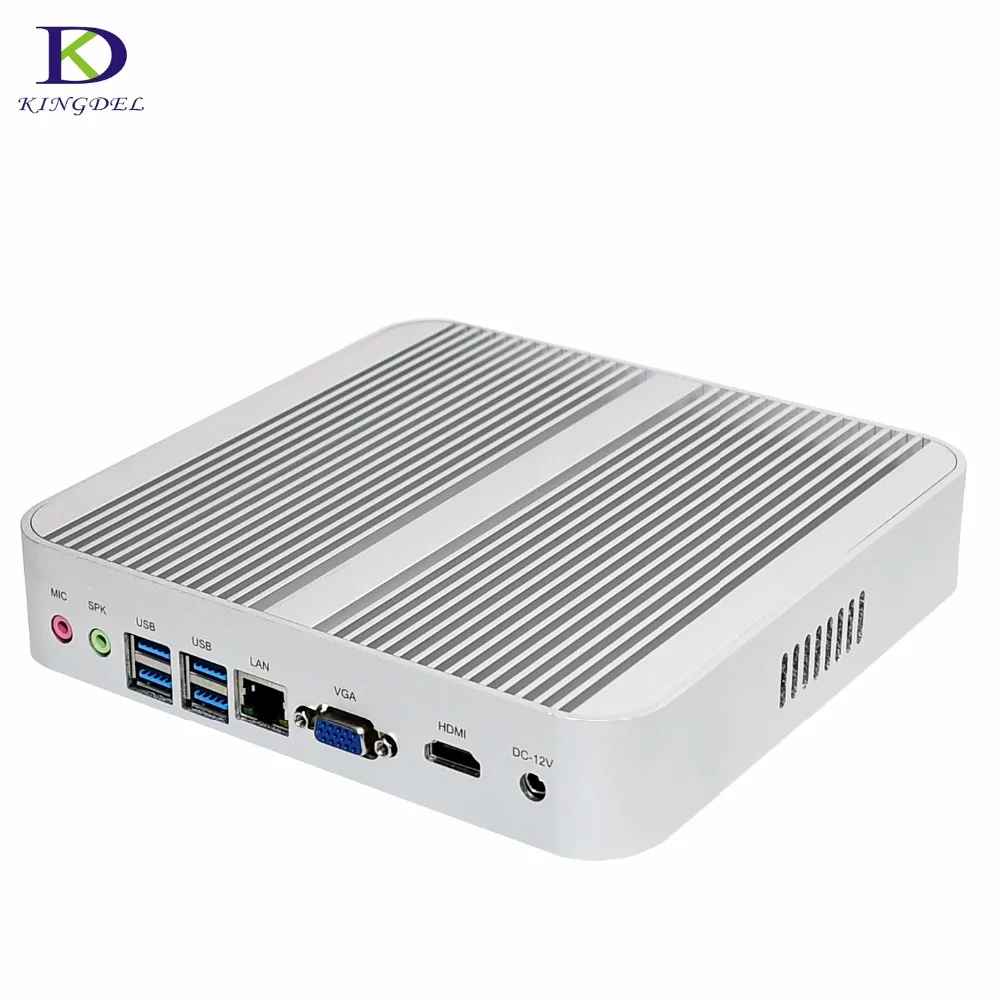

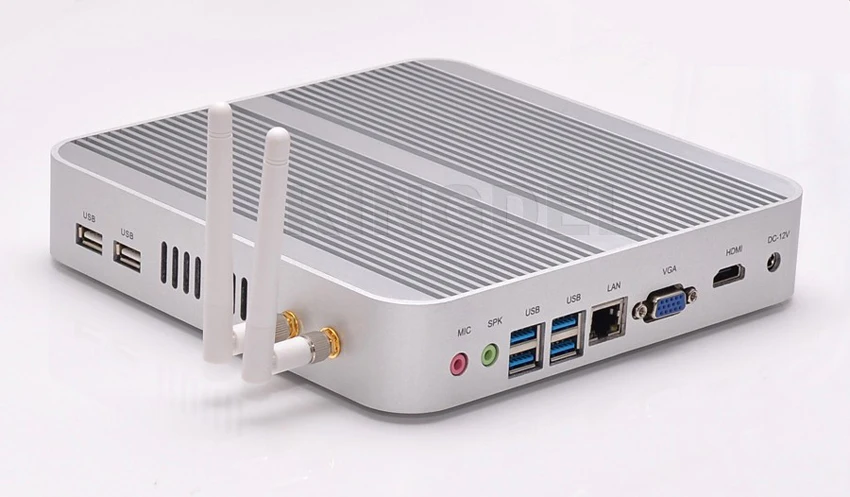

I/O Port	1*HDMI, 1*VGA, 1*RJ45 LAN Port, 4*USB3.0, 2*USB2.0, 1*DC IN, 1*MIC, 1*SPK
SATA	1*mSATA3.0 Slot, 6Gb/s; 1*SATA3 Connector, 6Gb/s
MINI PCIE	1* MINI PCIE Slot for Wifi Module
Power	In: DC100-240V AC/50-60Hz Out: DC 12V/3A
Operating Temperature	0°C~70°C (32°F~140°F)
Storage Temperature	-20°C~80°C (-68°F~176°F)
Relative Humidity	10%~90% (non-condensing)

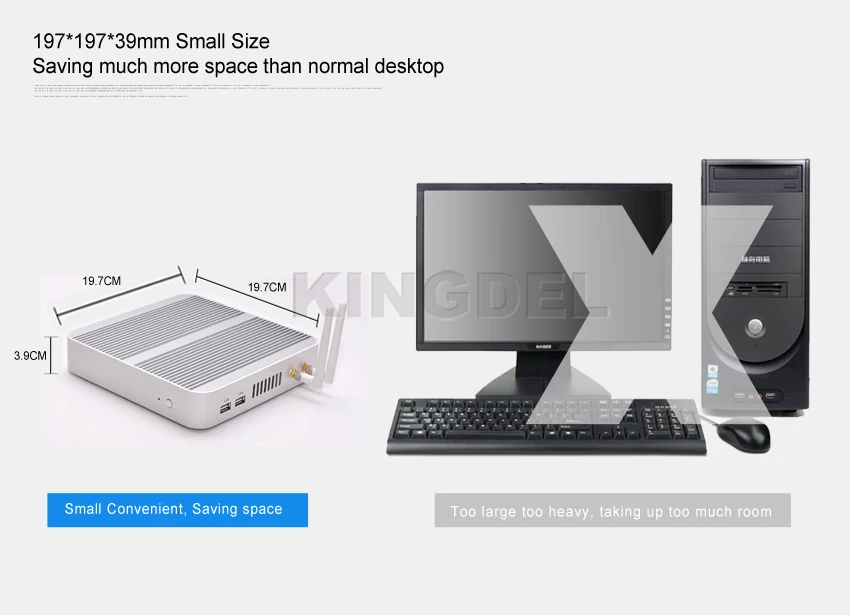

Size	197mmx 197mmx39mm

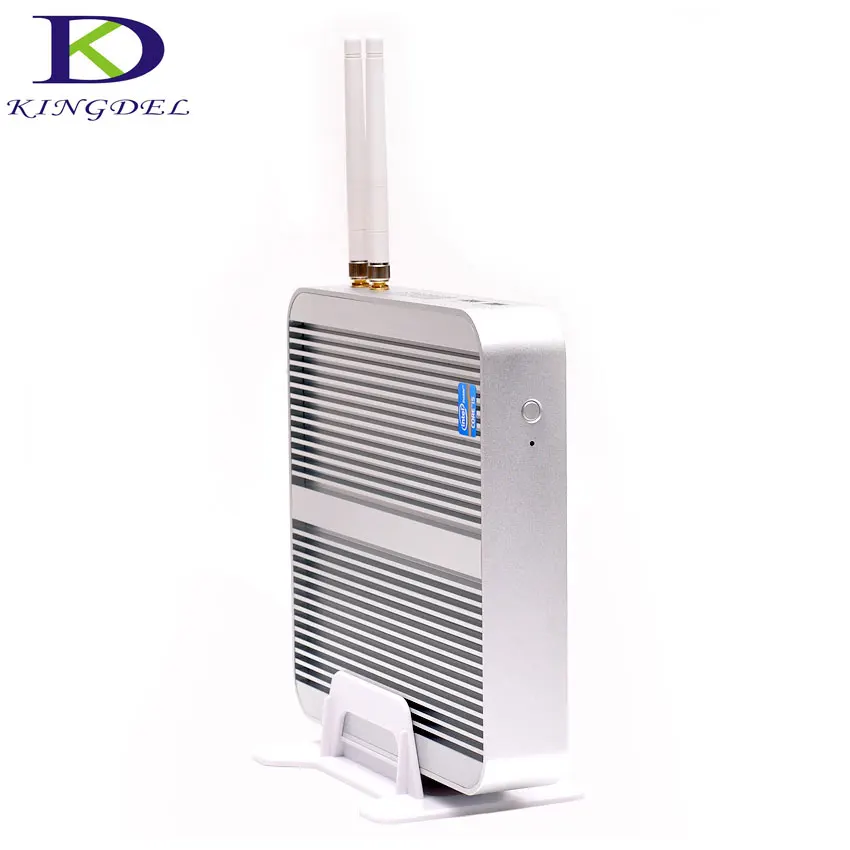

Package Content	Mini PC, Power adapter, Power Cable, Wifi Antennas, Stand Bracket, Screws



Product Advantages:

  Small Size: All Kingdel Mini PC is smaller than A4 paper, some of them only 3.5 inch size, just like the HDD size used in traditional fat computers. Most of those small size mini pc can be mounted to the backside of monitor, and takes almost zero space on your desk, make your desk more clear and tidy.   Durability: all of the fanless mini pcs are highly intergrated, fanless design makes it silent in working and no need extra maintenance like normal fat comptuters. And most of their cases are made by aluminium alloy metal materia.   Low Power: all of the mini pcs work 12V power supply, power consumption is from 15W to 30W, compare to 150W traditional pc's consumption, it saves more than 80% energy.   Universal Performance: The mini pcs are compatiable to almost all popular operating systems, such as Windows, Linux. You can not only use it as personal computer at home, HTPC in living room, but also use it in office, training center, advertisement, factory, internet cafe and anywhere that needs computers to work.   Application:   - used as HTPC (Home Theater Personal Computer). Connect HDTV with the HDMI cable, you can enjoy education online and play internet movies or games. -used as Personal Computer, high configuration and fast speed, zero noise. - Internet Bar. High speed Gigabit Ethernet and diskless certificate, support 3D games. - Factory, classroom, bank, supermarket, manager rooms, stores. - used in Library, reading room, hotel, training, call center, CCTV company.     Product Photos:

VESA bracket as Gift:
