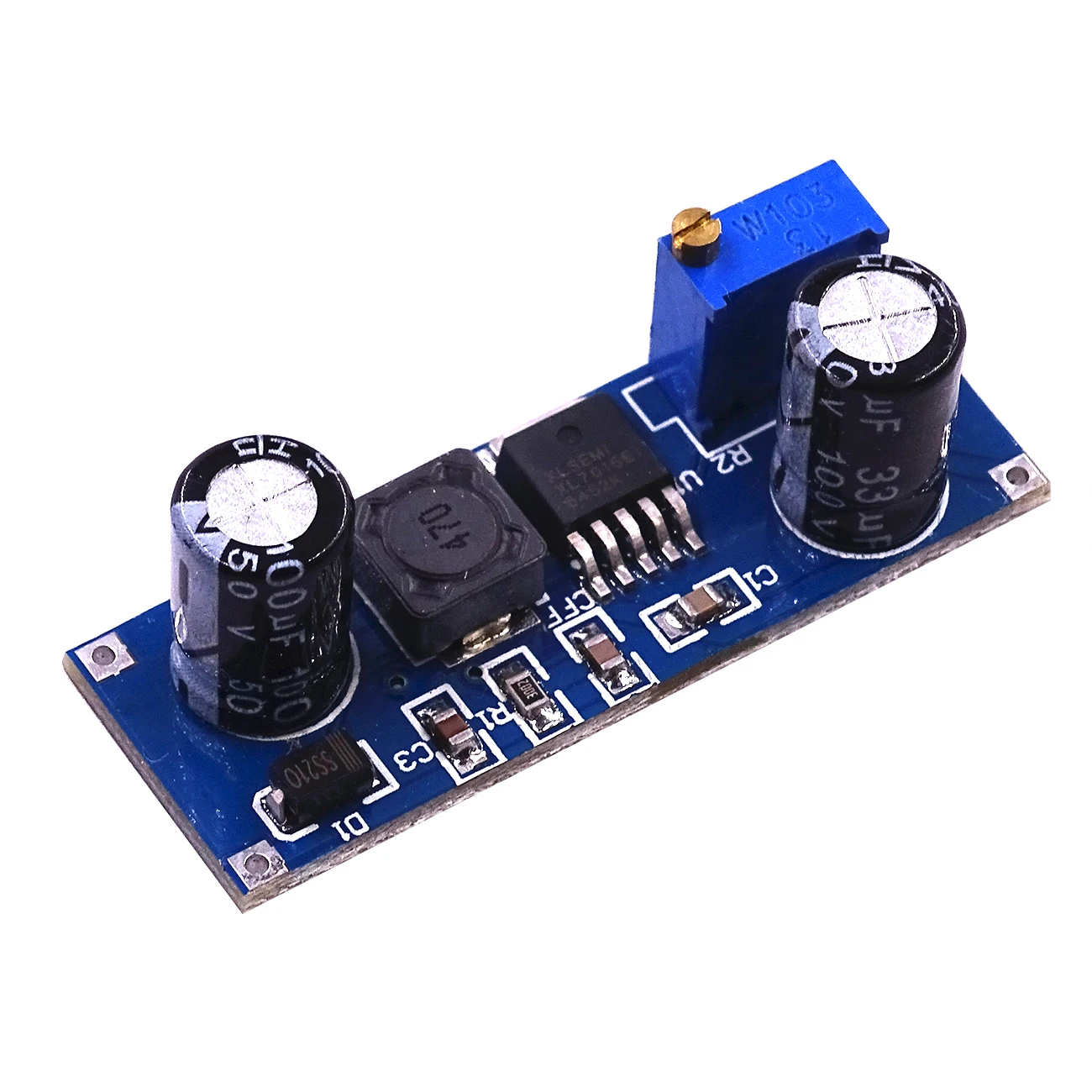

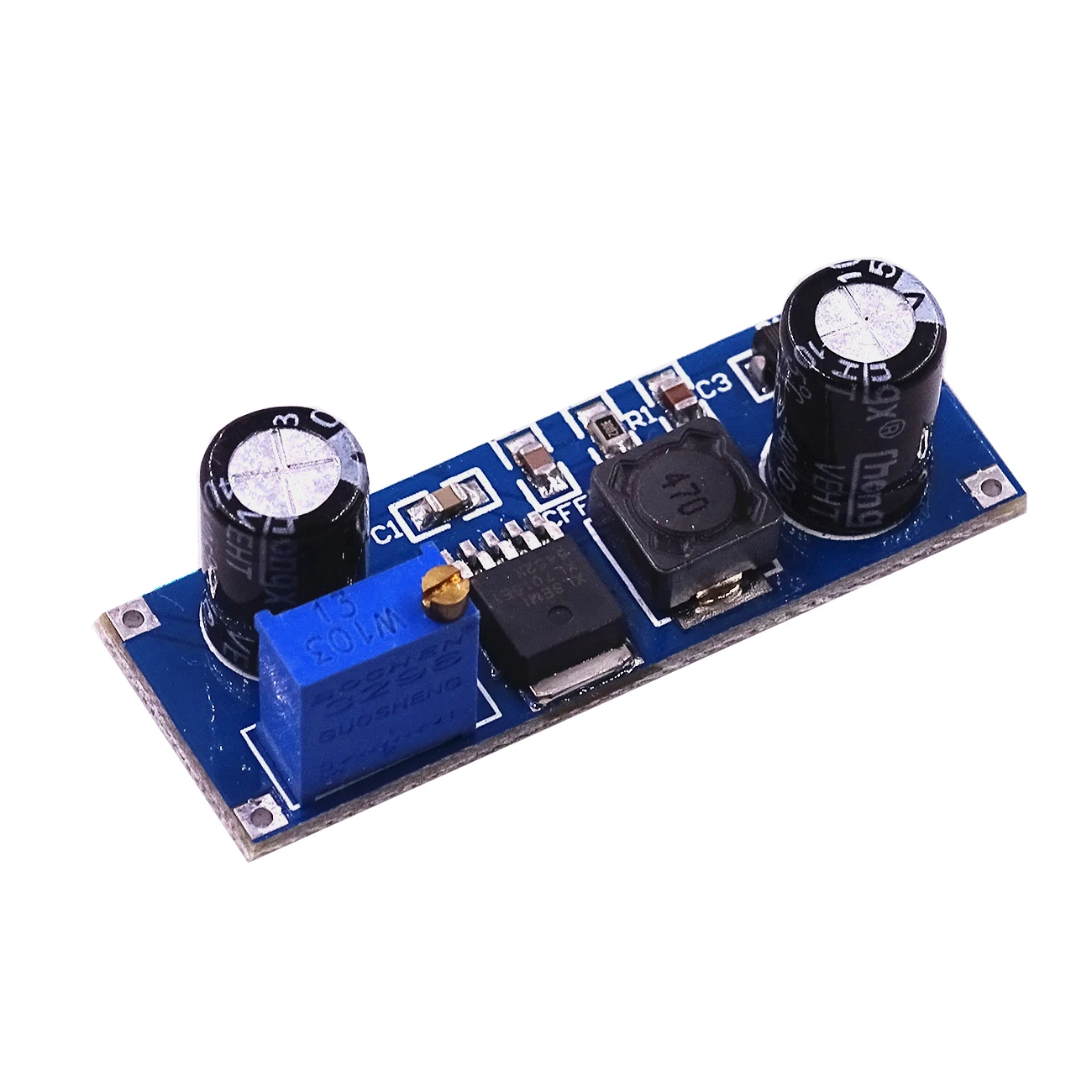

XL7015 DC - DC buck type module is A highly efficient, high pressure step-down DC - DC converter, provides the highest 0.8 A output current capability, low ripple, excellent linear regulation and load regulation, up to A maximum of 80 v input voltage, more than 2596 modules, etc. Chip built-in various protection mechanisms. Can be applied to electric vehicle controller, etc.

1. 5 v to 80 v input voltage range wide;

2. The output voltage from 5 v to 20 v adjustable;

3. The minimum pressure drop 1 v.

4. 0.8 A biggest switch current;

5. Recommend the output power is less than 7 w;

6. Shut off built-in overheating protection, output short circuit protection, over current protection;

7. Good linear with load regulation;
The board size: 16 mm * 44 mm;

Wiring instructions
1. VIN: input voltage (5 v - 80 - v);

2. The GND: input voltage side;

3. The VOUT: output voltage (5 v - 20 v);

4. The GND: output voltage to end;

Package list:

XL7015 DC - DC DC converter  x 10
