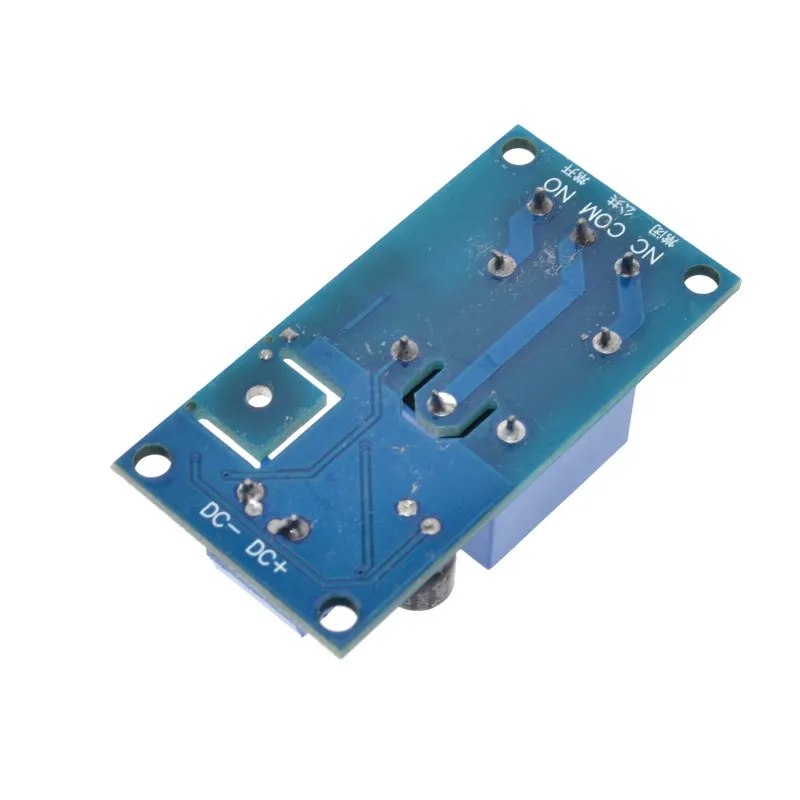

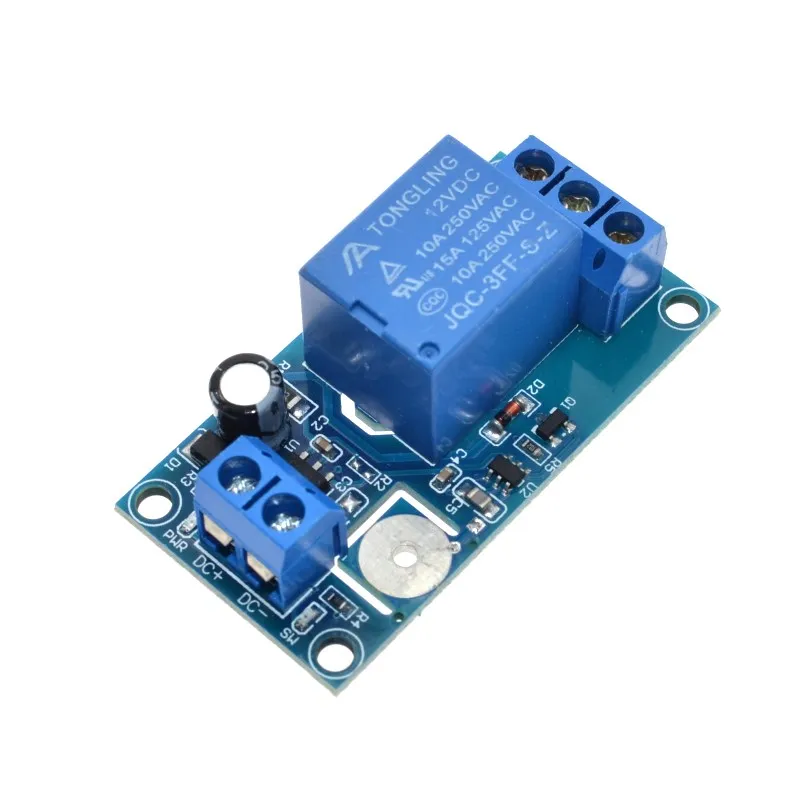

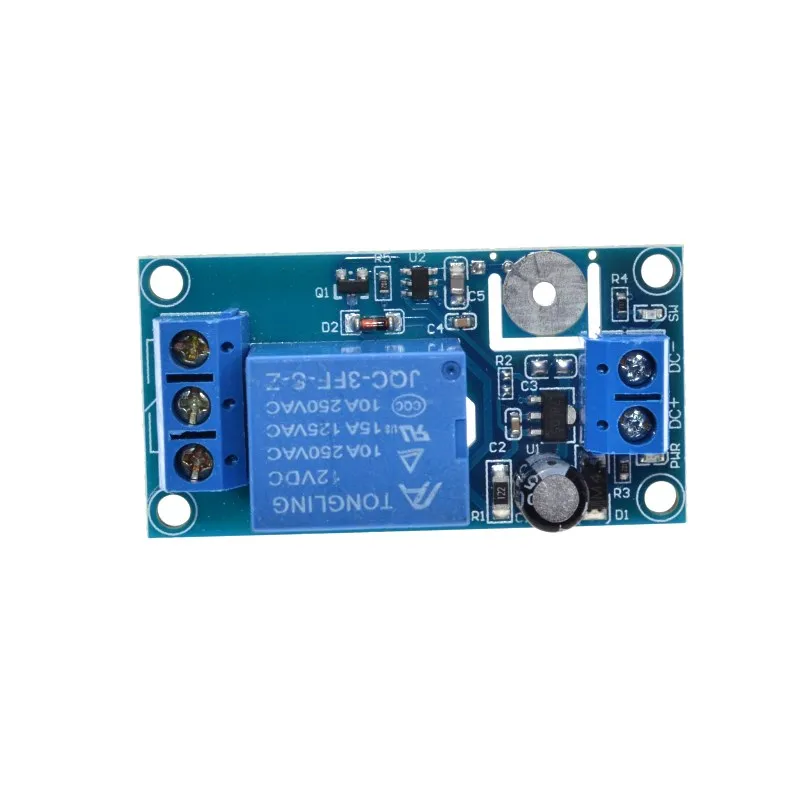

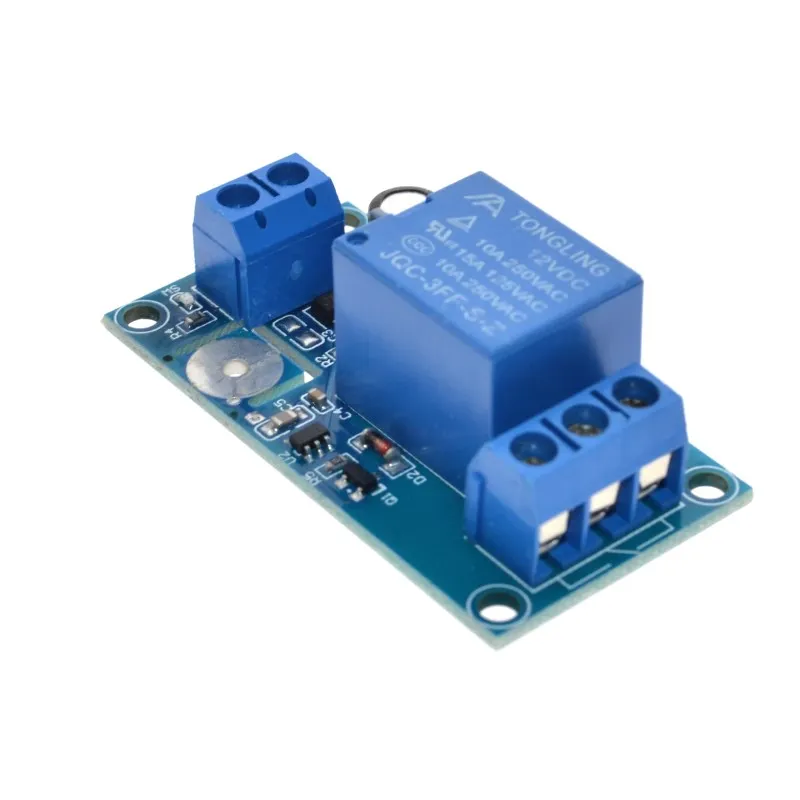

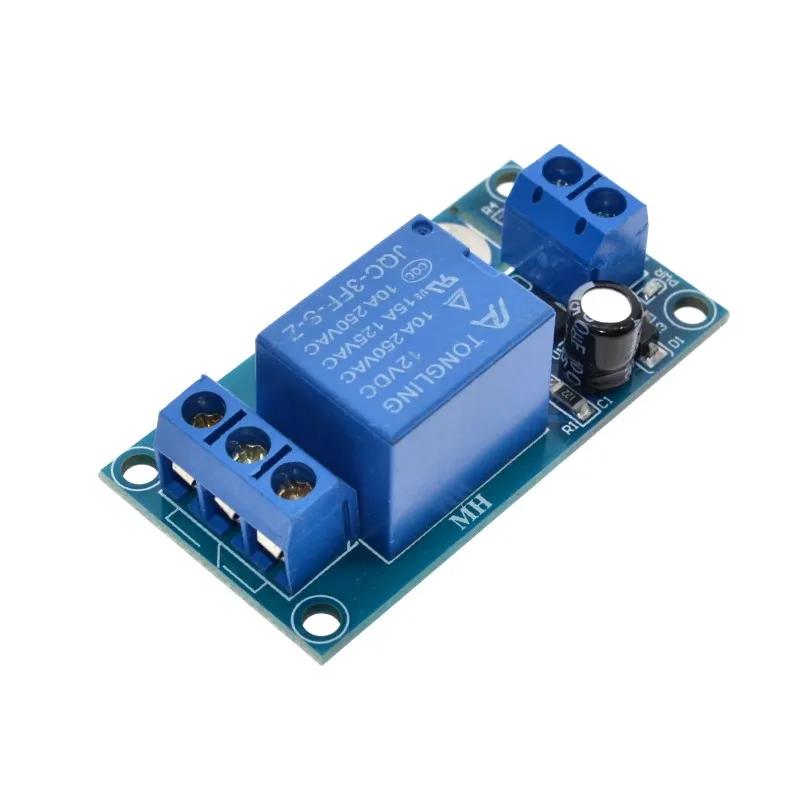

12V 1-Channel Touch Relay Module Capacitive Switch For Arduino TTP223 |
История изменения цены
*Текущая стоимость 155.48 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-28-2026 | 197.10 руб. | 201.27 руб. | 199 руб. |
| Jan-28-2026 | 160.56 руб. | 163.22 руб. | 161.5 руб. |
| Dec-28-2025 | 194.24 руб. | 198.68 руб. | 196 руб. |
| Nov-28-2025 | 192.79 руб. | 196.16 руб. | 194 руб. |
| Oct-28-2025 | 153.49 руб. | 156.13 руб. | 154.5 руб. |
| Sep-28-2025 | 189.18 руб. | 193.12 руб. | 191 руб. |
| Aug-28-2025 | 188.99 руб. | 192.41 руб. | 190 руб. |
| Jul-28-2025 | 186.62 руб. | 190.10 руб. | 188 руб. |
Описание товара
Module features:
1.Self locking type: self locking is touch, relay, and then touch, the relay closed. (similar to the touch key function).2.Low power consumption.3.Positive and negative can be used as a touch surface, and can replace the traditional touch keys.4.4 kinds of 3MM screw positioning holes, easy to install.5.Indicator:Red LED, power indicator; Green LED, lights when touch.6.Touch area:Blank circular area, fingers gently touch can be triggered; also available leads to trigger.7. Output form: load directly connected with AC 220V 10A or DC30V 10A.8. Positioning hole: 4 M2 screw location hole, aperture 3mm, the module is convenient for mounting and positioning.9. PCB size: 50mm*26mm10. Electrical parameters:Voltage version Quiescent Current Working current 5V 2.5mA 60mA11.Relay contact capacity: 250V 10A (AC) or 30V 30A (DC) (theoretical is maximum load capacity), connected AC power should below 1500W, and DC should below 200W.12.Module interface:Input part:VCC: Connect power positiveGND: Connect power negativeOutput part:Normally open(NO):Normally open relay,when the relay does not suck, disconnected with the common port,connected with the public port when turned on;Common port(COM):The public port of relay;Normally closed terminal(NC):Normally closed terminal of relay,connected with common port when relay does not turn on,and disconnected with common port.Normally open wiring methods:
