Wlecome To My Store

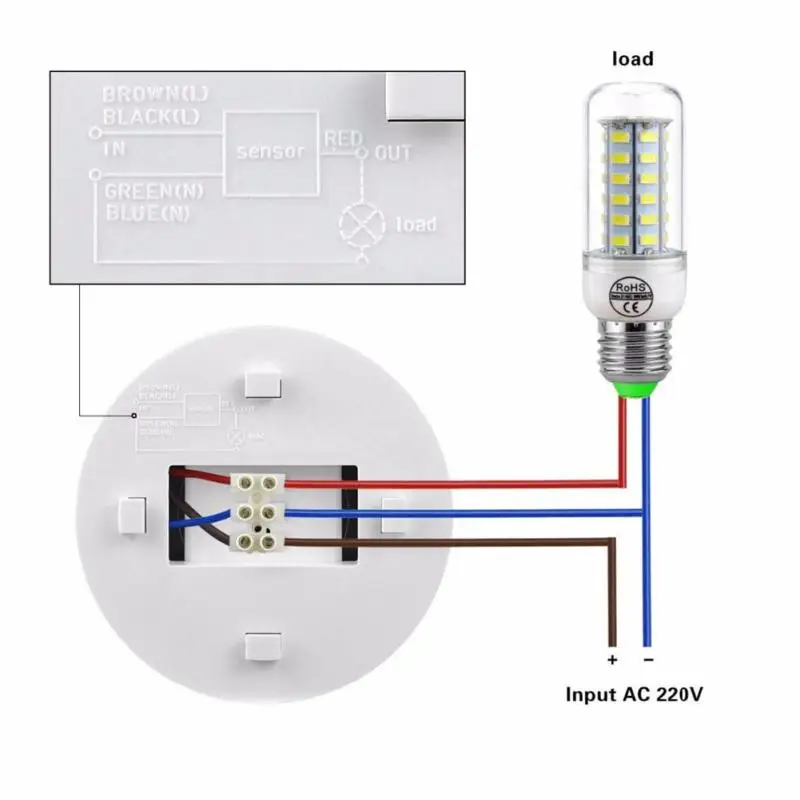

The Motion Sensor Switch adopts good sensitivity detector, integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion infrared rays.When one enters the detection field, it can start the load at once and identify automatically day and night.Its installation is very convenient and its using is very wide. It has functions of power indication and the detection indication. Based on infrared technology, automatic control products, when someone enters switch sensing range, special sensors detect the infrared spectra of the human body, the switch automatically switches the load, in the range of induction activities, the switch will continue to turn on; people left, switch delay automatically turn off the load. People to the lights, people from the lights out, friendly convenience, safety and energy saving.   Bipolar design: three-wire connection Load capacity: Incandescent 1200W, meet energy-saving lamps, LED lights 300W Automatic induction: one to immediately switch is turned on, a person automatically switch delay in the induction area, after the people left by the time set out the lights. Relay switch: switches the load power, relay switch service life 100,000 times. Automatic Metering: light intensity without induction (factory setting), the photosensitive belt adjustment (also adjustable sensor or sensors in any all-day light).   Delay time is adjustable:; 5 seconds -8minutes they used TIME knob. Low power consumption: Switch own power <0.016W / h (annual consumption <0.14 degrees), more energy-saving than other brands of similar products .. Lightning Function: Special lightning protection devices, can effectively prevent lightning and other damage caused by the switch to high-voltage transient.   Specification Power Source: DC9-24V                              Detection Range: 120 Degree(Side-view ))/360 Degree (Top-View) Power Frequency: 50Hz -60HZ                                      Working Temperature: -20°C~+40°C Ambient Light: Less thank 10Lux                         Working Humidity: <93%RH Time-Delay:min:5seconds-MAX8Minutes                   Installation Height: 2.2-4m Power Consumption: 0.45W (work)      0.1W (static)                   Rated Load: 120W(DC9-24V) Detection Motion Speed: 0.6 ~1.5m/s                 Detection Distance: 6m max (24°C) Packing: 1pcs * carton Weight: 164.0g   Asjustable Detection Distance , Time-delay , Ambient Light Automatically Move Detection Performance Stability Day/Night Adjustable
