FrSky S6R 6канальный приемник со стабилизацией на 3 осях и телеметрией Smart Port для фиксированного крыла самолета и мультикоптера.

FrSky S6R 6канальный приемник со стабилизацией на 3 осях и телеметрией Smart Port для фиксированного крыла самолета мультикоптера.

Brand NameFLIGHT-MODEL.COMOriginMainland ChinaMaterialPlasticUseVehicles & Remote Control ToysRecommend Age12+yPlastic TypeABSRC Parts & AccsReceiversFor Vehicle TypeAirplanesUpgrade Parts/AccessoriesServo testerMeasurement unitpiece/piecesEach pack1

Unavailable in

5,0

All stars

• VitBoss 8.12 October 2022·Show original

  Everything works! Receiver is wonderful)

  Show more
• Victor K.7 April 2023

  The receivers working perfectly. Seller very responsive Thanks Seller. knowledgable and helpful. Recommended

  Show more
• Edgardo S.18 June 2023·Show original

  Very good receiver with built-in stabilizer

  Show more

Description

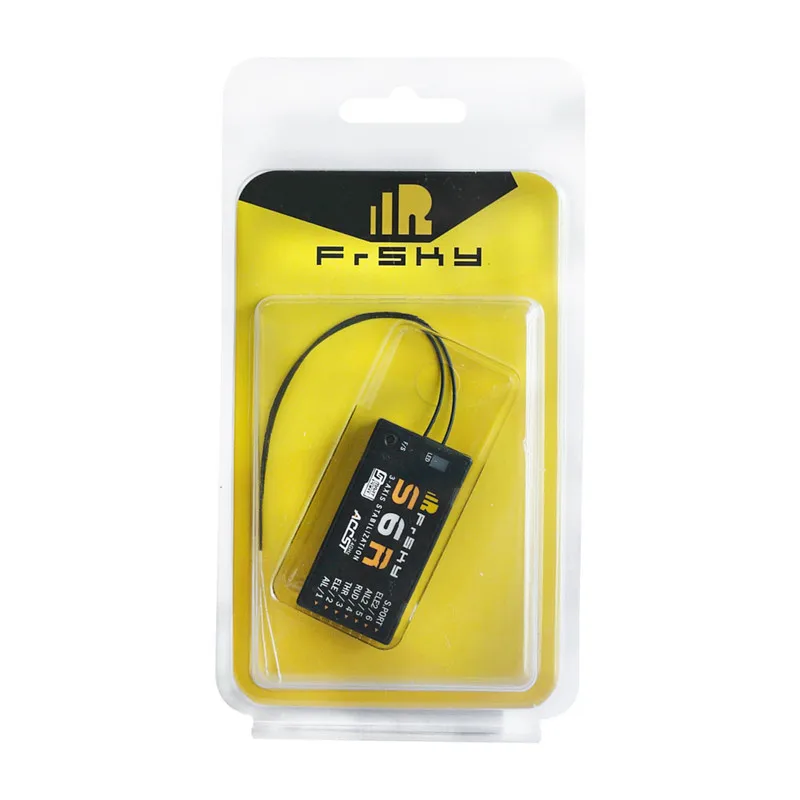

FrSky S6R 6ch Receiver w/ 3-Axis Stabilization + Smart Port Telemetry Fix Wing and Multicopter receiver

Features

Please attention: The detail user manual can download from FrSky site. For more detail specification and question are recommend contact with FrSky technical supporter directly.

FrSky has combined the popular FrSky receiver technology with a super stable 3-axis system for fixed wing aircraft. The S6R is based on the STM32 platform, with both receiver and flight control functions. The S6R includes a three-axis gyroscope and three-axis accelerometer sensor module, with settings that are programmable via FrSky radios(*)  FrSky SPORT TOOL KIT (STK), it is separate sell.

Note

1.Firmware version of the X9DP should be more than 2.2 and above;

2.Decompression S6RScript.zip and put the S6RScript folder in the X9DP SD card;

3.Running S6R.lua files which under the S6RScript folder through the X9DP;

4.Reading or writing the set parameters of S6R.

5.The two firmware for X9DP X9E is only for test.

or the PC configuration tool by FrSky SPORT TOOL KIT (STK), it is separate sell.

Besides six-channel receiver function, the S6R also has stability augmentation, automatic level, crane, sideward flight, and shutdown functions of conventional airfoils. Delta wing (flying wing) and V-tail models only support stability augmentation, automatic level and shutdown functions.

03-specification

Model Name:S6R(6ch receiver with built-in 3-axis gyro and 3-axis acceleration)

Dimension:47.42*23.84*14.7(L*W*H)

Weight:12.1g

Number of Channel:6CH(1-6CH from conventional channel outputs)

With RSSI output on board:PWM voltage output(0~3.3V),100HZ,1500±500uS

Operating Voltage Range:4.0-10V

Operation Current:100mA@5V

Operating  Range:full range

Gyro Measurement Range:±2000dps

Accelerometer Measurement Range:±4g

Firn Upgradeable

Compatibility: Please attention what firmware version your option, sorry, we are not responsible any result caused by wrong version purchased.

Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode

S6R-EU LBT Version is only works with Frsky Taranis X9D Plus-EU LBT/X9E-EU LBT/Horus X12S-EU LBT/XJT-EU LBTin D16-EU LBTmode

S6R-FCC Non EU version is work with FCC NON EU tx module.
