EDM-Broken-Tap-Remover
Магазина EDM-Broken-Tap-Remover работает с 09.07.2015. его рейтинг составлет 100 баллов из 100. В избранное добавили 136 покупателя. Средний рейтинг торваров продавца 5 в продаже представленно 2735 наименований товаров, успешно доставлено 40 заказов. 12 покупателей оставили отзывы о продавце.
Характеристики
EDM-800C small and light portable clamp edm machine broken tap remover drilling cutting low precision |
История изменения цены
*Текущая стоимость US $1,580.00 - 1,708.00 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-21-2026 | 1.58 руб. | 1.88 руб. | 1 руб. |
| Jan-21-2026 | 1.11 руб. | 1.40 руб. | 1 руб. |
| Dec-21-2025 | 1.60 руб. | 1.64 руб. | 1 руб. |
| Nov-21-2025 | 1.23 руб. | 1.61 руб. | 1 руб. |
| Oct-21-2025 | 1.45 руб. | 1.66 руб. | 1 руб. |
| Sep-21-2025 | 1.16 руб. | 1.95 руб. | 1 руб. |
| Aug-21-2025 | 1.81 руб. | 1.8 руб. | 1 руб. |
| Jul-21-2025 | 1.13 руб. | 1.64 руб. | 1 руб. |
Описание товара
EDM-800C small and light portable clamp edm machine broken tap remover drilling and cutting low precision
China,Russia and America Warehouse Fast Delivery(Free Shipping)
Fast and effetive method to solve your broken tap headache
No damage to the threads and work pieces
Advantage Portability allows one to take the machine to the work and do the hole making or stud extraction work in place. Additionally, the SFX Portable EDM machine will work in any directions: upside down or horizontally, etc. Most EDM machines are not portable and require that the work be taken to the machine.
Features
- Light, small, portable, compact design.
- High speed & High efficiency and low cost.
- Simple operation, easily remove broken tap.
- Full Power Source Choices
100V/110V/120V/200V/220V/230V/240V, 1 PHASE, 50HZ/60HZ.
-
Dielectric
Using ordinary tap water as machining dieletric liquid.
-

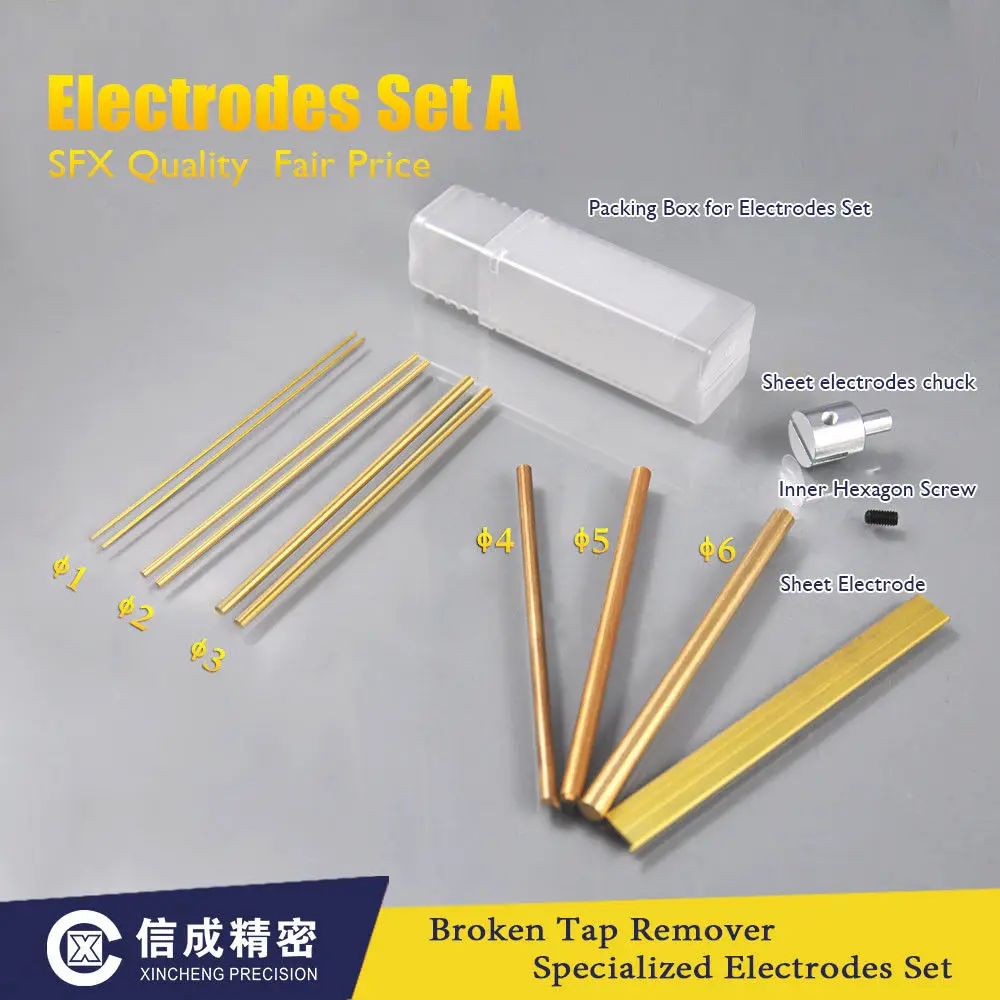

Electrode
Using any brass bar as electrode
-
Flexibility
Machining easily even on a large work piece.
-
No damage
Remove taps easily without damage the threads.
-
Complete functions
Auto feed, depth setting (stop at a specific depth), selectable arcing timer, auto retrace, work head swivel alarm message: depth arrival, arcing, over- temp.
-

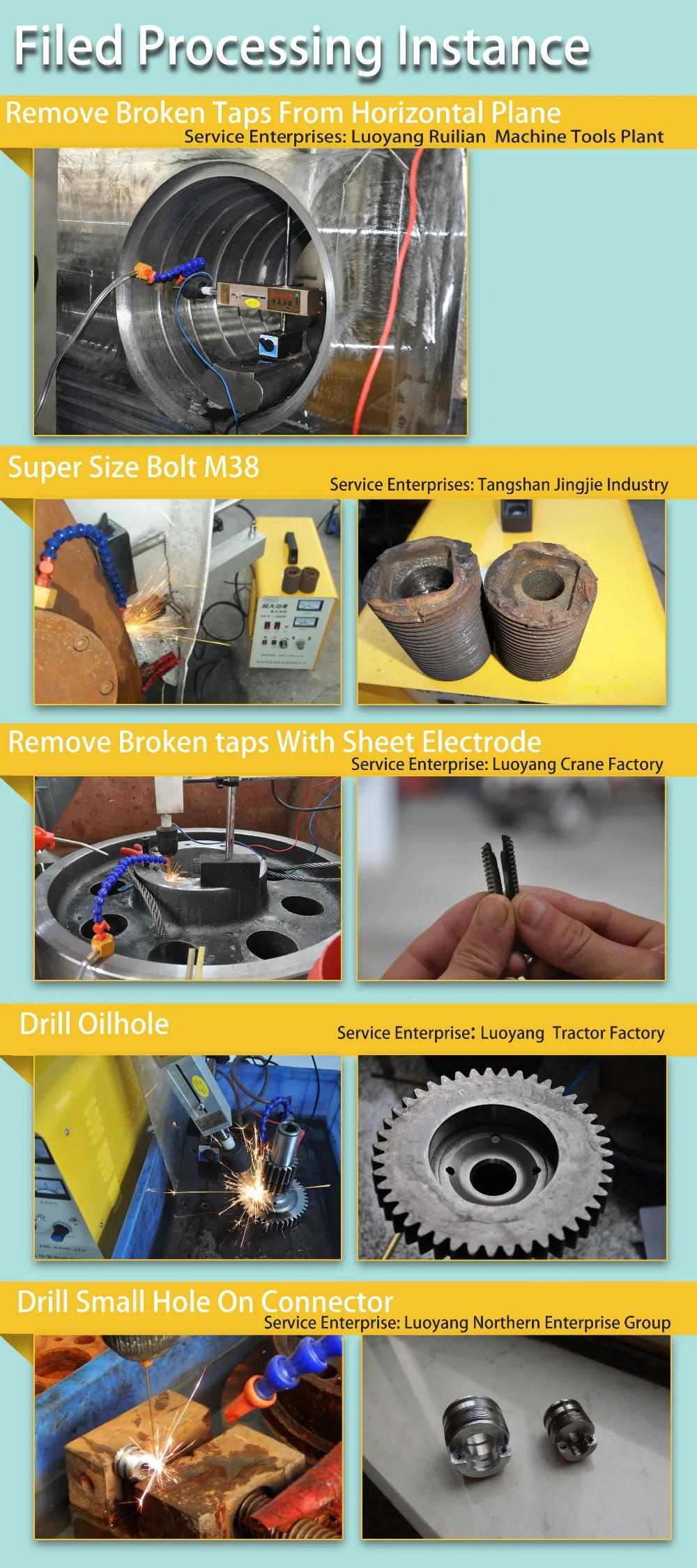

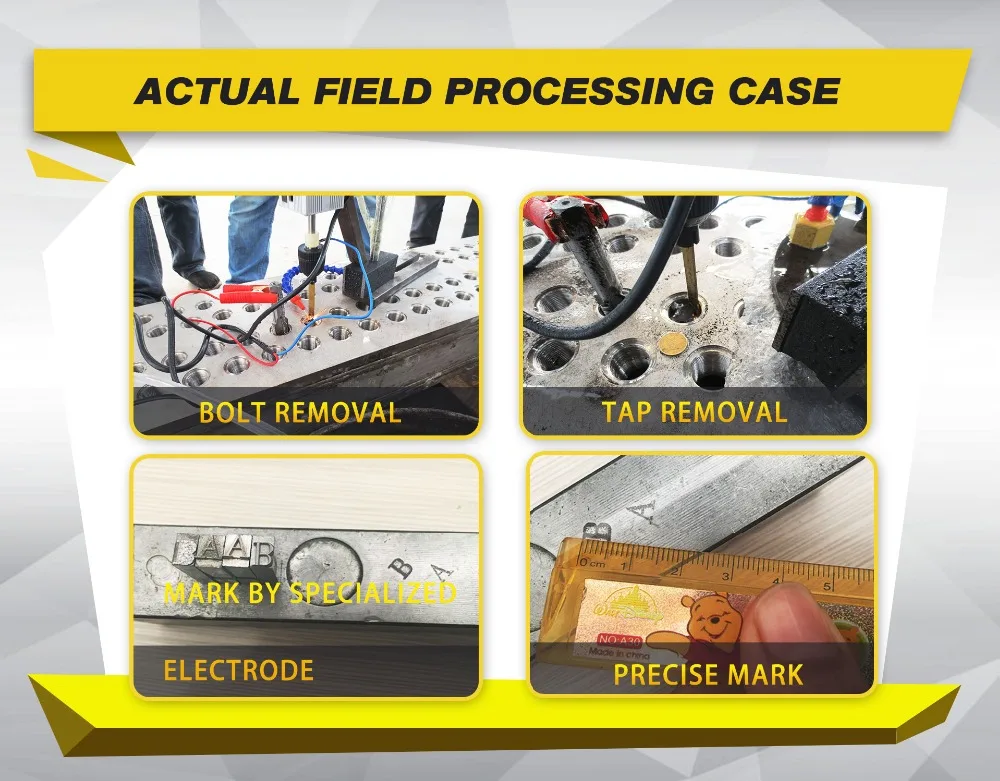

More applications
Starting hole for Wire Cut EDM.
Cutting Tungsten Carbide or any harden steel.
Marking.
Specification:
| Stepper Current | Yes |
| Depth setting, auto reatract and alarm | Yes |

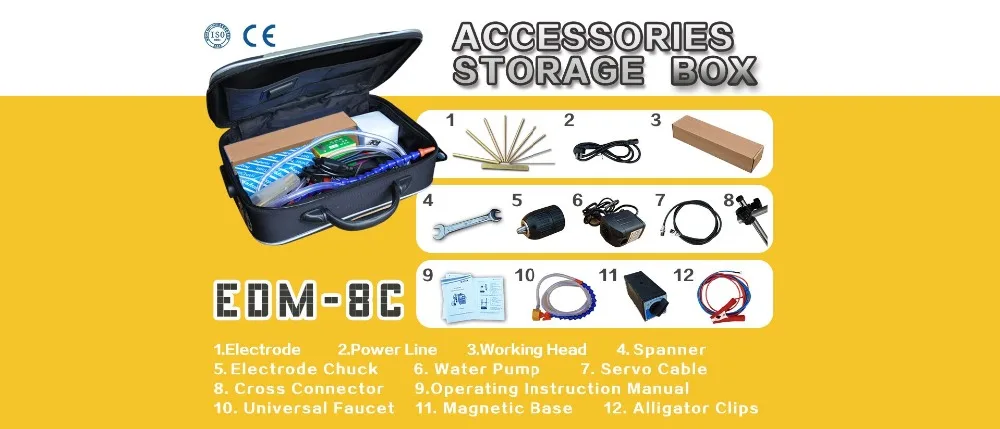

| Accessories storage | Tookit |
| Input Power | 800w |
| Electrode chuck diameter | 0.8~10 mm |
| Working Liquid | Tap water |
| Max Process Depth of spindle servo | 70mm |
| Short Hole Processing Speed | 1mm/min |
| Power Box Size | 380*160*300 mm |
| Model and size of working head | DK8 300*50*50 mm |
| Packing Size | 498*308*392 mm |
| Net Weight | 16 Kg |
![1.[,,].jpg](http://sc02.alicdn.com/kf/HTB1bv8flH_I8KJjy1Xaq6zsxpXa0/200646759/HTB1bv8flH_I8KJjy1Xaq6zsxpXa0.jpg)
![2[details show]1.jpg](http://sc02.alicdn.com/kf/HTB1zHgpeGzB9uJjSZFMq6xq4XXai/200646759/HTB1zHgpeGzB9uJjSZFMq6xq4XXai.jpg)
![4[]2.jpg](http://sc02.alicdn.com/kf/HTB1DpKyl4PI8KJjSspfq6ACFXXa8/200646759/HTB1DpKyl4PI8KJjSspfq6ACFXXa8.jpg)
![5[].jpg](http://sc01.alicdn.com/kf/HTB1NVKBl_vI8KJjSspjq6AgjXXaL/200646759/HTB1NVKBl_vI8KJjSspjq6AgjXXaL.jpg)
![6.[].jpg](http://sc01.alicdn.com/kf/HTB15VFRn0fJ8KJjy0Feq6xKEXXag/200646759/HTB15VFRn0fJ8KJjy0Feq6xKEXXag.jpg)
Our warranty is 1 year.
During this period, if any technical problems, we will repair it for free including the news parts.
![7.[FAQ].jpg](http://sc01.alicdn.com/kf/HTB1BeHuejgy_uJjSZKzq6z_jXXaX/200646759/HTB1BeHuejgy_uJjSZKzq6z_jXXaX.jpg)
1.How big size can your machine remove?
Our SFX-4000B can remove M2 to M36 taps,screws,studs,drills,drifts,etc.
EDM-8C can remove M2-M20 taps,screws,studs,drills,drifts,etc.
2. How long will it take to remove one tap?
It depends on the size of the broken taps;The processing speed is 1~2mm/min as usual.
3.Do you have any other payment terms?
Yes, Paypal, T/T is also available.
4. Can this machine work up-side down or horizontally?
Yes, the work head is fixed by a cross connector which can swiveling 360°.
Not a problem for SFX.
5.How should I contact you if I wanna order more?
Contact Inforamtion
- E-mail brokentapremover(at)gmail.com
- QQ 3241589355
- Skype 86-13592083781
