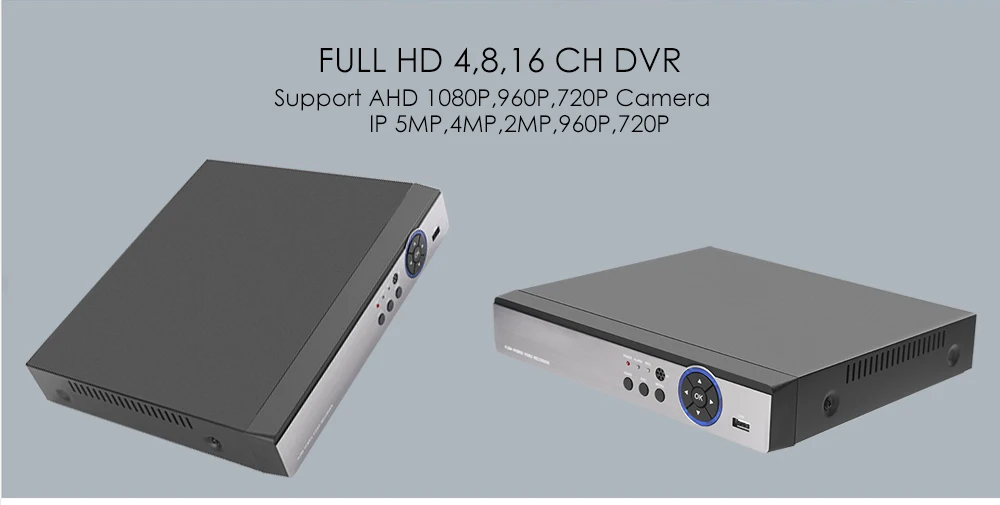

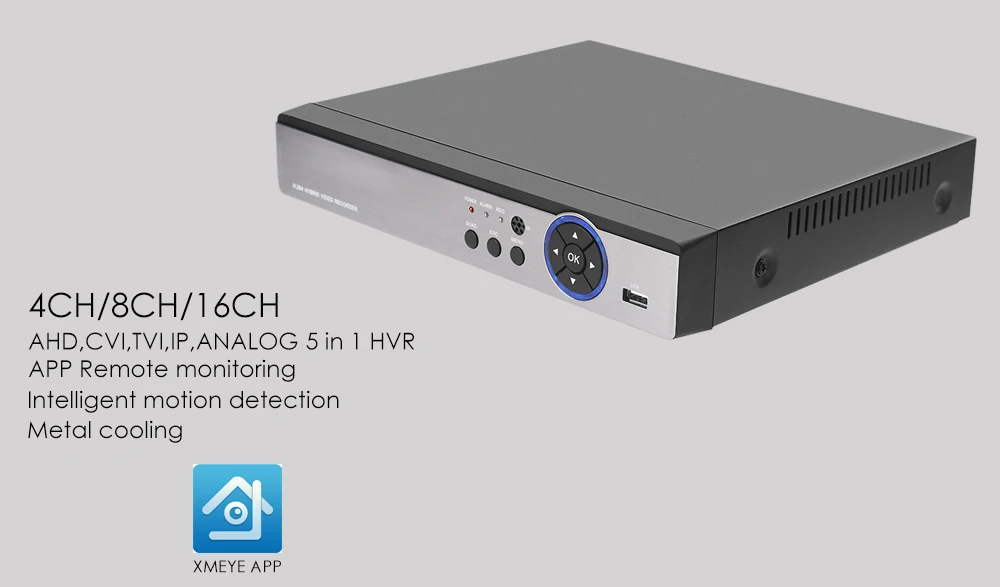

USAFEQLO 8CH 2MP AHD DVR Цифровой видеорегистратор для системы видеонаблюдения CCTV с поддержкой Onvif Network 4/8/16 Каналов 1080P Оповещение по электронной почте.

USAFEQLO 8CH 2MP AHD DVR Цифровой видеорегистратор для системы видеонаблюдения CCTV с поддержкой Onvif Network 4/8/16 Каналов 1080P Оповещение по электронной почте.

Brand NameUSAFEQLOModel NumberUSA6904/08/16NHTechnologyHDTVITechnologyAnalogTechnologyHDCVITechnologyAHDTechnologyNetworkHDD CapacityNoneAudio Output1CH RCAVideo Output1CH HDMI-compatible 1920X1080 60HzWireless SecurityWPA2Video Resolution1080NCompression FormatH.264Video Input InterfaceHDMIAudio Input4 ChannelAudio Compression FormatG711AVideo StandardPALVideo AdjustmentAuto White BalanceHard drive Interface TypeSATAHard Drive Size3.5''Network InterfaceRJ45 10/100MCommunication InterfaceRS485Network ProtocolTCP/IPIP ModeStatic IP addressSupported Mobile SystemsWindows MobileSupported Mobile SystemsiPhone OSSupported Mobile SystemsAndroidSupported Operating SystemsMicrosoft Windows 2000Supported Operating SystemsMicrosoft Windows XPSupported Operating SystemsMac OSSupported Operating SystemsMicrosoft Windows 98Supported Operating SystemsMicrosoft Windows 7Backup TypeHard DriveAlarm ActionFTP PhotoAlarm ActionEmail PhotoAlarm ActionLocal AlarmTwo-way Audionoe-Cloud(P2P)YESDVR Power SupplyDC12VMeasurement unitpiece/piecesEach pack1Standard PAL/NTSCAHD Single AHD1080P/960P/720PCVI SingleCVI 1080P/960P/720PTVI Single TVI 1080P/960P/720PAnalog Single 960H CameraIP camera 4,8CH 1080P/ 16CH support 5MMotion Detection SupportOnvif SupportMaterialsMetai+ABSHDD Not include(Need to buy)IP Camera Attention Must much with XM NVR

Unavailable in

Description

How about the delivery and how to do if the item not arrive on time ?

1: Most of the parcel will arrive in 20-60 days, the Brazil will need 30-90 days arrive. Other remote country even need more days.

If you order the item, please make sure that in 60 days do not make any dispute to say item still on the road. You can contact us online and we will reply you where is the item and what is the problem with the shipping. Brazil need wait 90 days.

For example, Germany buyer brought one item on 01/01/2018, and we send out the itme on 05/01/2018, our delivery time will be 60 days until 05/03/2018, in these days you can ask us help you extand delivery for the order. We will not accept anyone open dispute in 60 days.

About the delivery time, the airmail shipping sometime slow and sometime fast, this will have many reasons, like the custom Improve security specifications, Item made of metal, or the item include li-battery inside. So please understanding about the delivery time.

2: Russian buyer need offer us your city, province, contact number, passport number, receiver name clear. Some of the russian address have the same city by not the same province, sometimes will got the problem with the address.

3: If you need the item arrive fast, or if you need it hurry, please choose the Express to send the item, like the SPSR,DHL,FEDEX,TNT,EMS.

How to Receive the package ?

1: This is the electronic product, so sometimes easy damage by shipping, or somewhere no working.

So when you saw the itme package box is Severe extrusion or deformation, please help make a video of open thepackage.

This will help us save more time to confirm the problem and make refund. If damage item by shipping, the shipper will bear some loss.

2: If your post agree with you open the package before sign the item, you can check the item weather complete first, if it have any problems, you can choose Rejected the parcel. And please contact us at the first time to let we know the parcel is damage.

How to do if you get some problem and can not be slove by yourself ?

1: When you have the problem how to use the item, please leave message into the order, our worker will reply you in 24 hours.

We will on work from Monday to Saturday Chinese BeiJing Time 10:30 to 17:30. In this time you can ask us the technical questions. We will have engineer online to help you slove the problem. If we can not reply in 24 hours, please send more message again.

Other times we will just reply the message, if on Sunday, please leave us your question into the order or wait on Monday to contact us online.If you think your question is not easy to slove, please find a free time to keep online to ask us to help you.

2: All the items will take a 1 year warranty, in this year if you find anywhere no working, please contact us online, we will help you slove the problem as soon as possible.

In this way we will offer you some questions, please kindly to reply us, this will help us fast confirm the problem.

​

What problem can open the dispute ?

1: When after we talk about the problem, we will tell you how to do with the item.

Sometimes if real have problem we will make some refund, or full refund. This all need you contact us to talk about the problem first, do not worry, any problems we will help you slove it first, if we can not help you slove the problem for a long time, you can open dispute to ask refund.

2: Some of the item is expensive, and you have choose the air mail shipping to send out the item, so please know the item will on the road for a long time, no one can promise the item can  be intact, some times the parcel have somewhere deformation, please understanding about this.

If you can not accept any deormation, please choose the Express shipping way, like the FedEx,DHL,TNT,EMS,ARAMEX to send out the item. We will take a strong package for you.

3: When you get the problem of the item features, Please don't open dispute first, feature problems most because of the country reason or the technology reason. So contact us to help you slove the problem will be best !

We are the chinese USAFEQLO factory, we have engineer to   Production and research and development CCTV security items, if you have any problem, please trust us first instead of your loacl person.

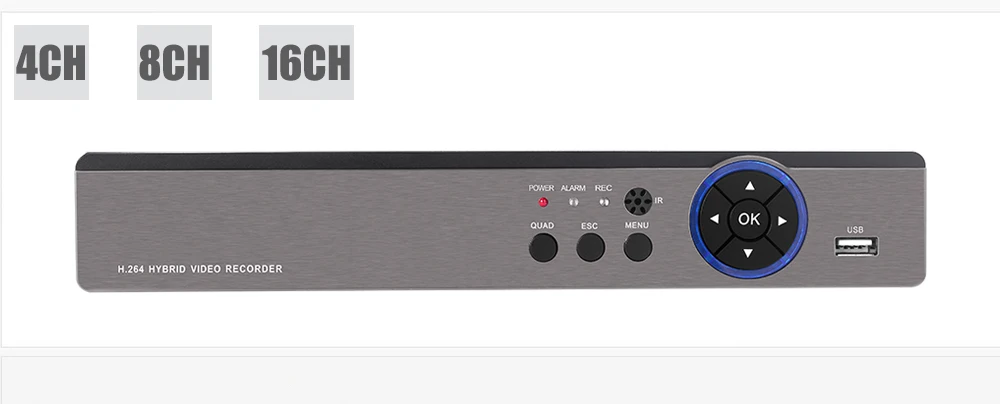

Model

AHB7004T-LM -V3

7008T-LM-V3

7016T-LM-V3

System

Main processor

Hi3520D V200

Hi3520D V300

Hi3521A

Interface

Preview

1/4

1/4/8/9

1/4/8/9/16

Video

Codec

H.264

Monitor quality

VGA,HDMI:HD

Preview ability

4*1080N

8*1080N

16*1080N

Encode ability

4*1080N

8*1080N@12fps/4*1080P@15fps

16*1080N@12fps/16*960H/8*1080N

Decode ability

1*1080N

8*1080N@12fps/4*1080P@15fps

16*1080N@12fps/8*960H/8*1080N

4CH Multimode input

analog: 4*1080N;4*720P;4*960H

hybrid: 2*720P(analog)+2*720P(network);

network: 8*1080P;12*960P;8*720P; 4*1080P; 4*720P; 1*1080P

8CH Multimode input

analog: 8*1080N;4*1080P

hybrid: 2*1080P(analog)+2*1080P(network); 4*1080N(analog)+4*960P(network)

network:16*1080P; 9*1080P;16*960P; 4*5M

16CH Multimode input

analog:16*1080N;8*1080N;16*960H;

hybrid: 8*1080N(analog)+8*960P(network)

network:8*1080P+8*960P; 4*3M ;4*5M

Motion Detection

Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity

can be set (Limited local channel)

Audio compression

G.711A

Audio

Intercom

support

Record mode

manual>alarm>motion detection>timing

Record & playback

Local Playback

4ch(analog input mode)

8ch(local input mode)

16ch(analog input mode)

Search mode

Search by time, calendar, event, channel

Video storage

HDD, network

Storage &

backup

Backup mode

Network, USBhard disk, USB burner, SATA burner

Video input

4CH BNC

8ch BNC

16ch BNC

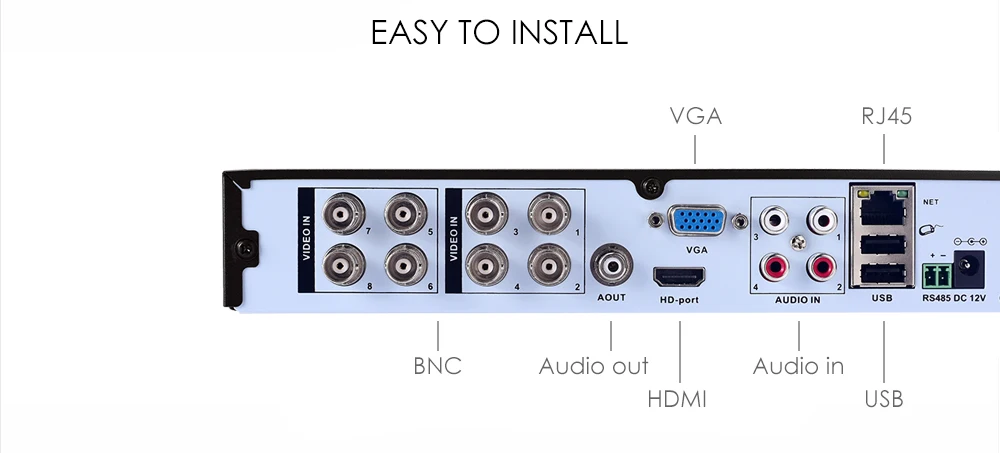

External Interface

Video output

1ch VGA, 1ch HDMI

Loop Vout

N/A

Audio I/O

4/1

Alarm I/O

0

Network interface

RJ45 10M/100M self-adaption

PTZ control

1*RS485, Support kinds of PTZ protocols

USB

2* USB 2.0 ports

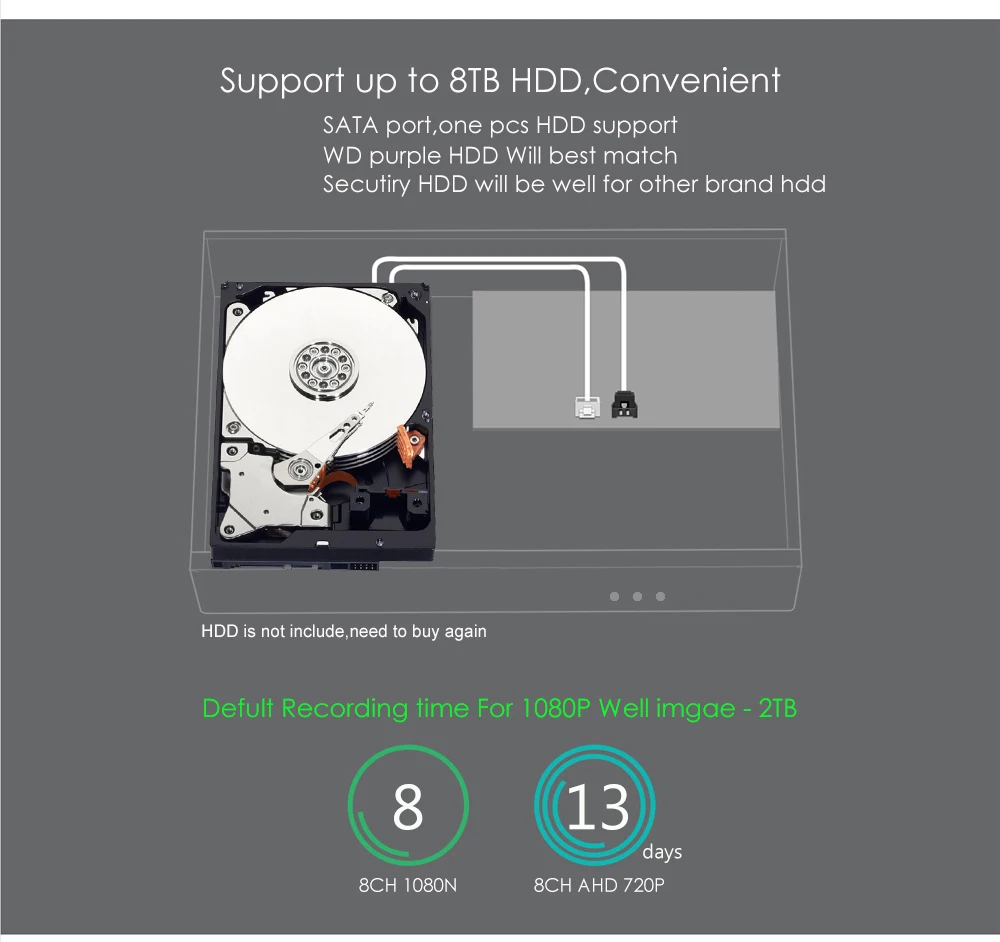

HDD

1*SATA ports (Max 8TB/per)

3G/WIFI

NO

Power supply

12V/2A(if you use the HDD,please know to use the 4A or 5A adapter.)

General

Power Consumption

<15W (without HDD)

Working environment

Temperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
