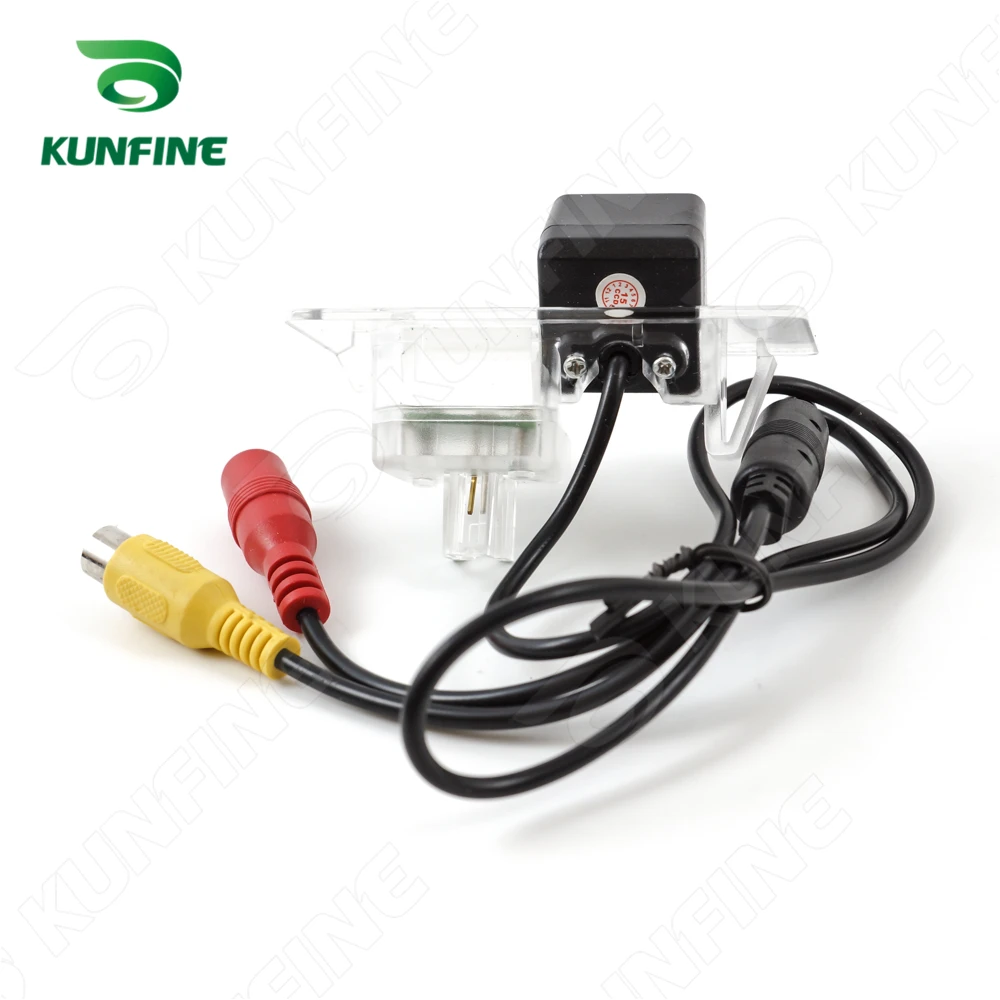

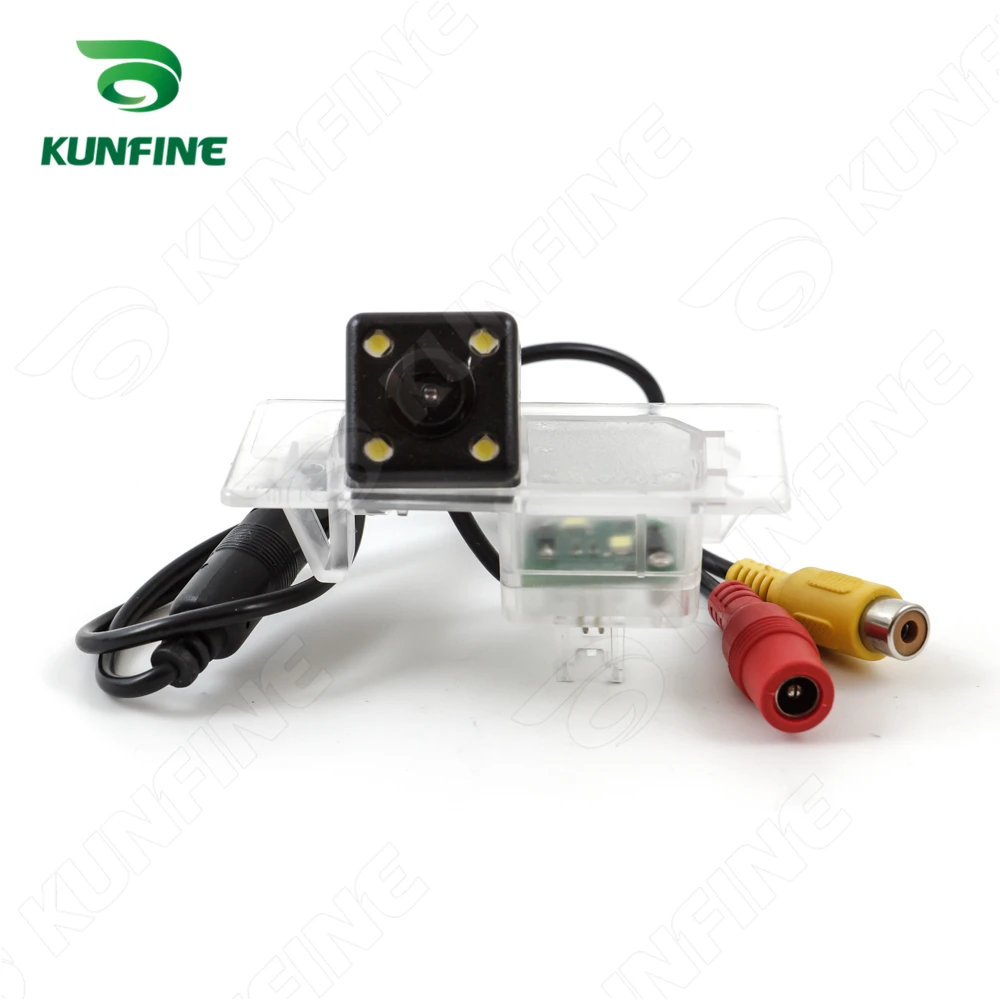

^{Wireless CCD Track Car Rear View Camera For Audi A4L A6L A3 Saloon A1 S3 Q3 Q5 Parking Assistance Camera Track Line}   Night Vision Waterproof

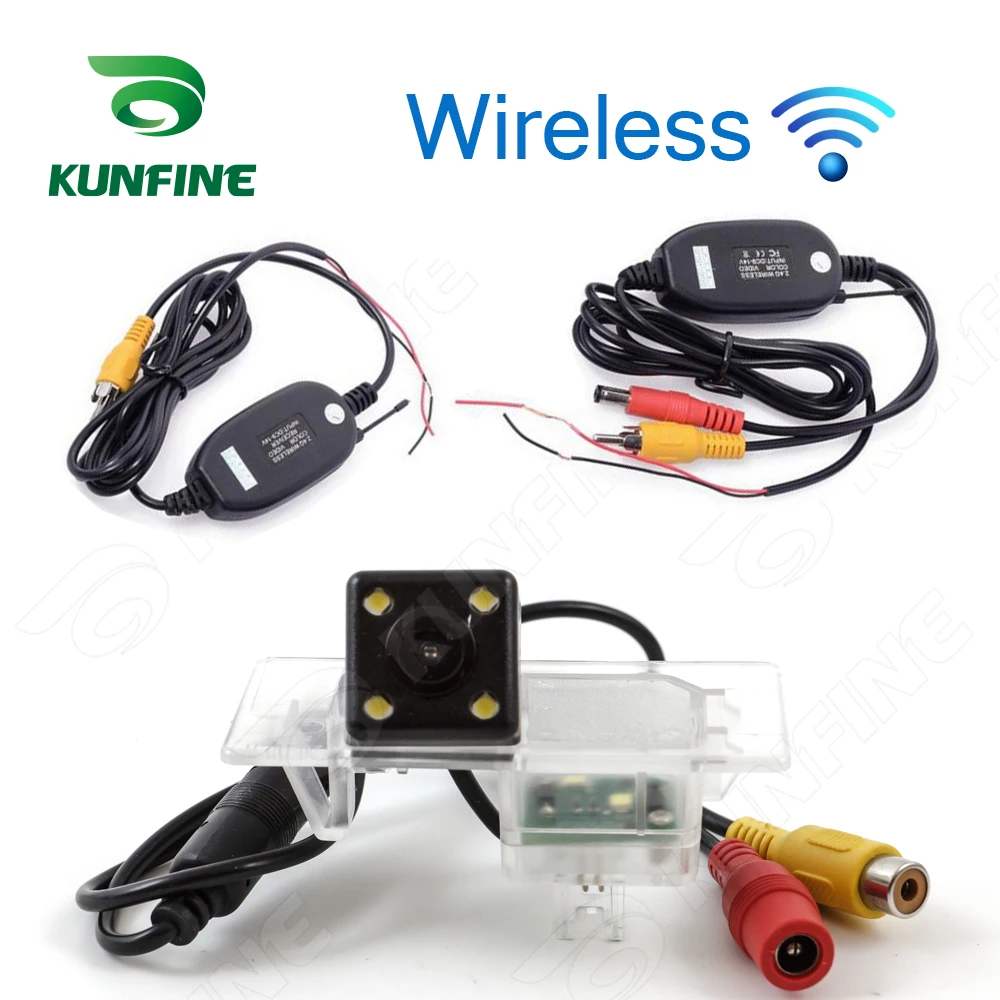

Suitable For Car:     FOR  Audi A1                2013 2015  FOR  Audi A3 Saloon   2013  FOR  Audi A4L              2013 2014 2015   FOR  Audi A6L              2012 2013   2014 2015 FOR  Audi S3                2013 2014 2015  FOR  Audi Q3                2013 2014 2015 FOR  Audi Q3                2013 2014 2015         Car Rear View Camera Features:   High definition  CCD Track Camera Color night vision Wateproof Shock-proof 170 Degree Wide viewing angle  Environmental & Durable 1-year warranty to every customer     Car Rear View Camera Specification:    · Image Sensor: 1/3 "OV Color CCD  · Horizontal Resolution: 600 TVL  · Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)  · Night Vision: 5-10meters  · Lens: 2.8mm  · Diagonal Viewing Angle: 170 degree   · Synchronization: Internal synchronization  · Signal to noise ratio: >48db  · Signal System: PAL/NTSC  · Electronic Shutter: Auto  · Video Output: RCA interface, 1.0Vp-p, 75Ohm  · White Balance: Auto  · Backlight Compensation: Auto  · Power: DC 12V  · Current Consumption: 50-60mA, Max 130mA with IR on  · Operating Temperature: -20C~ +60C, RH95% Max  · Storage Temperature: -30C ~ +80C, RH95% Max     Wireless Video Transmitter & Receiver Specification:   Easy installation Take one minute get your camera become a wireless camera Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation) Work range: up to about 50m (Hollowness) Fit all RCA composite video connections Power: DC 12V Transmitter/Receiver cable length:1.5m     Package Contents:(Two Choose : A is wire camera , B is wireless camera)   Package Contents  A ：Wire Camera   1 x Car Rear View Camera 1 x 6M Power & Video Cable 1 x user manual     Package Contents  B ：Wireless Camera   1 x Car Rear View Camera 1 x Wireless Transmitter + Receiver Cable 1 x user manual















How to Install

Take out your stock license plate light at the back of your car.

Fix the camera to where the stock license plate light was.

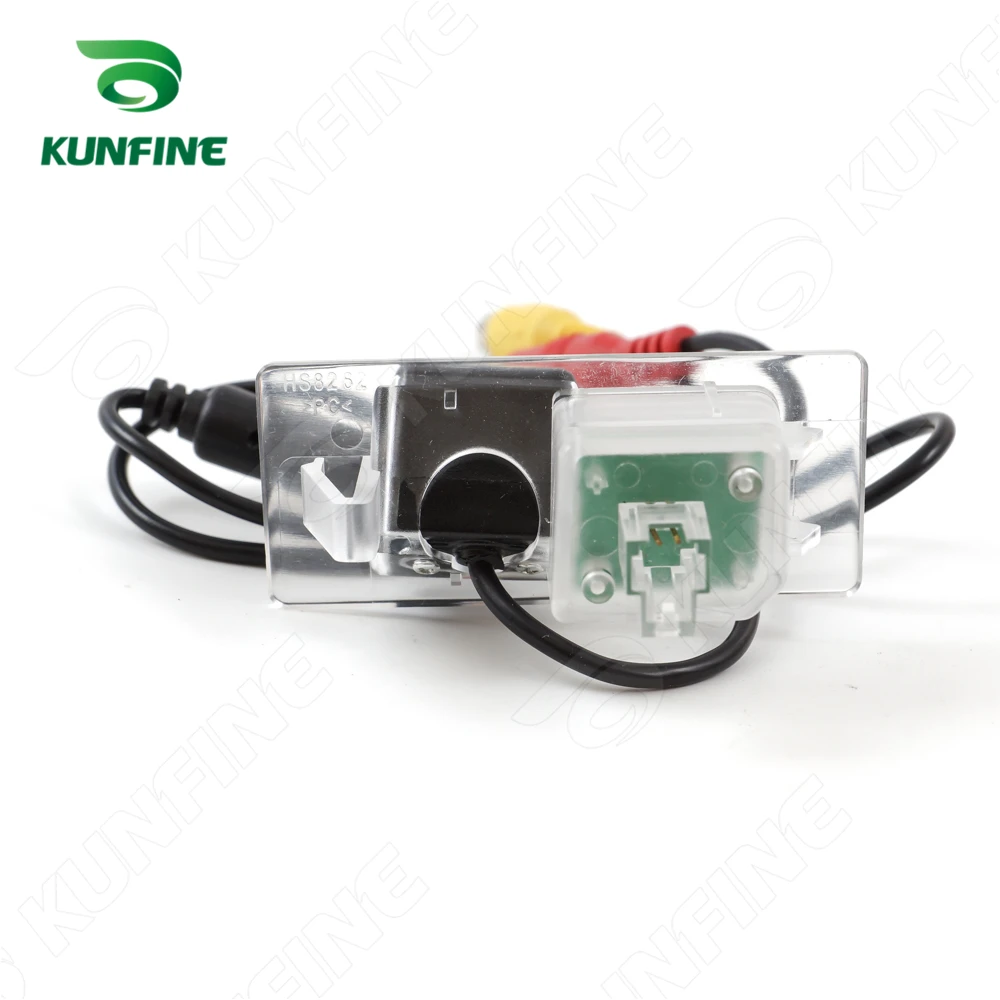

Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

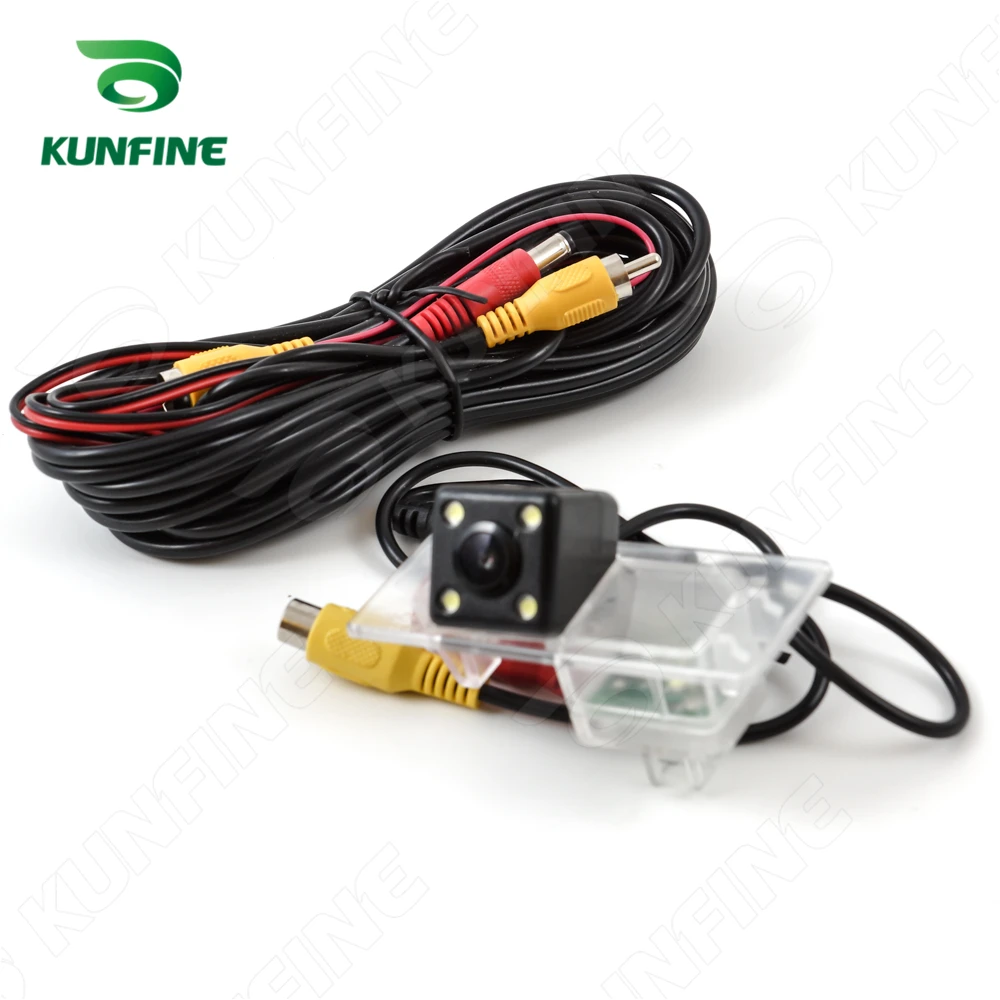

Connect the video cable of the camera to the extension cord.

Connect the extension cord to your car monitor.

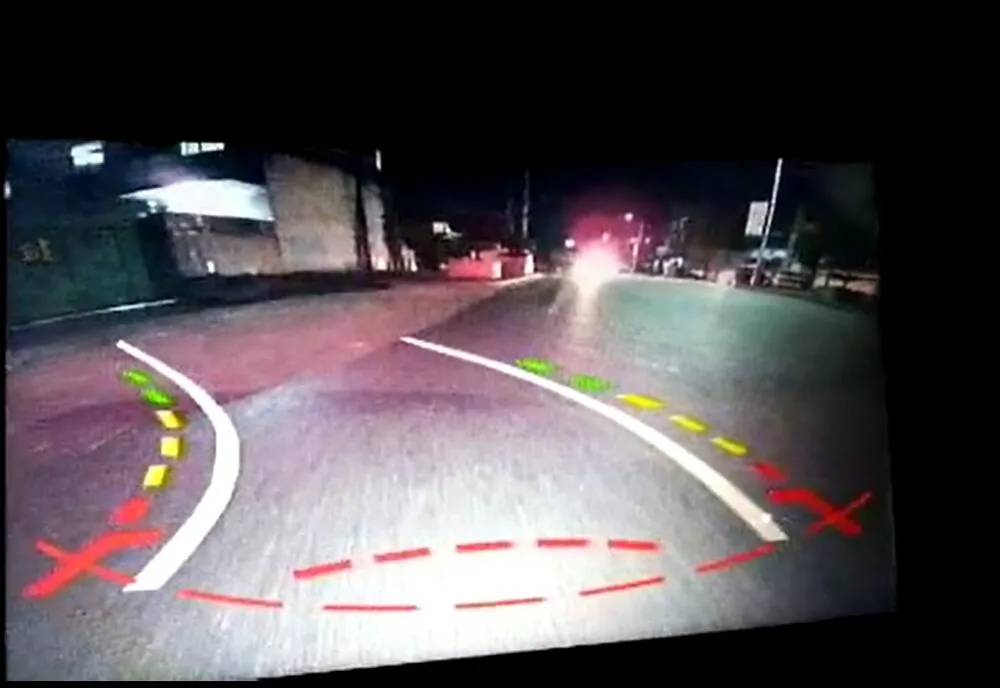

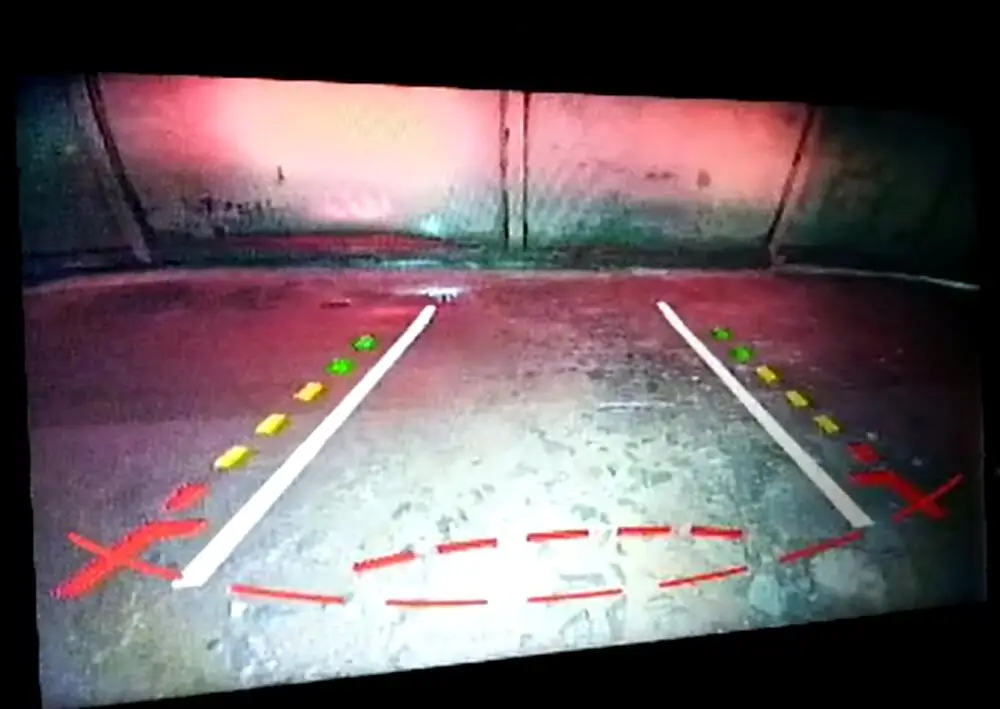

You will see the images when your car is in reverse shift.
