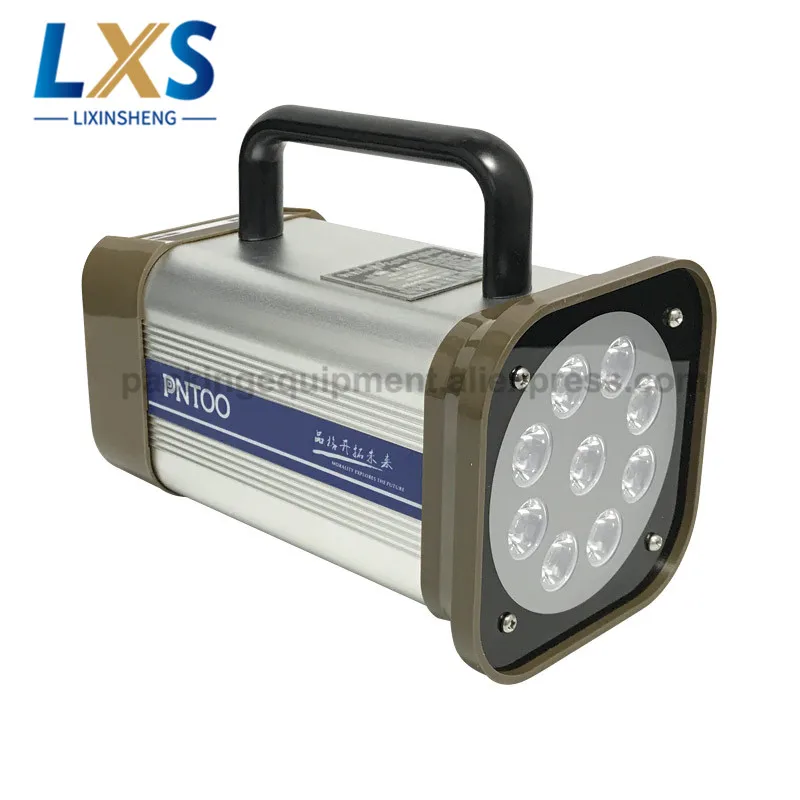

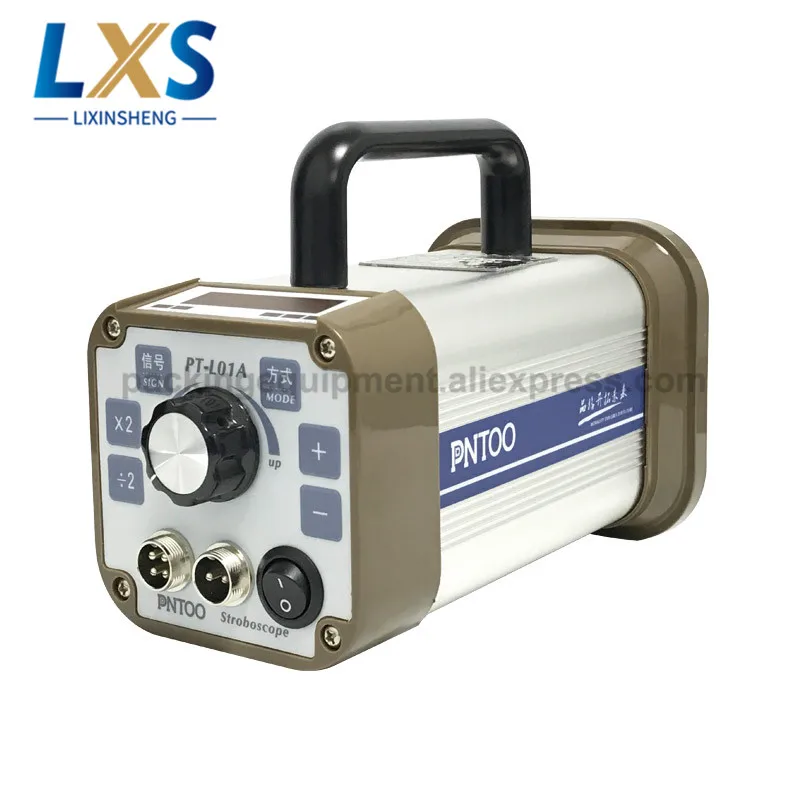

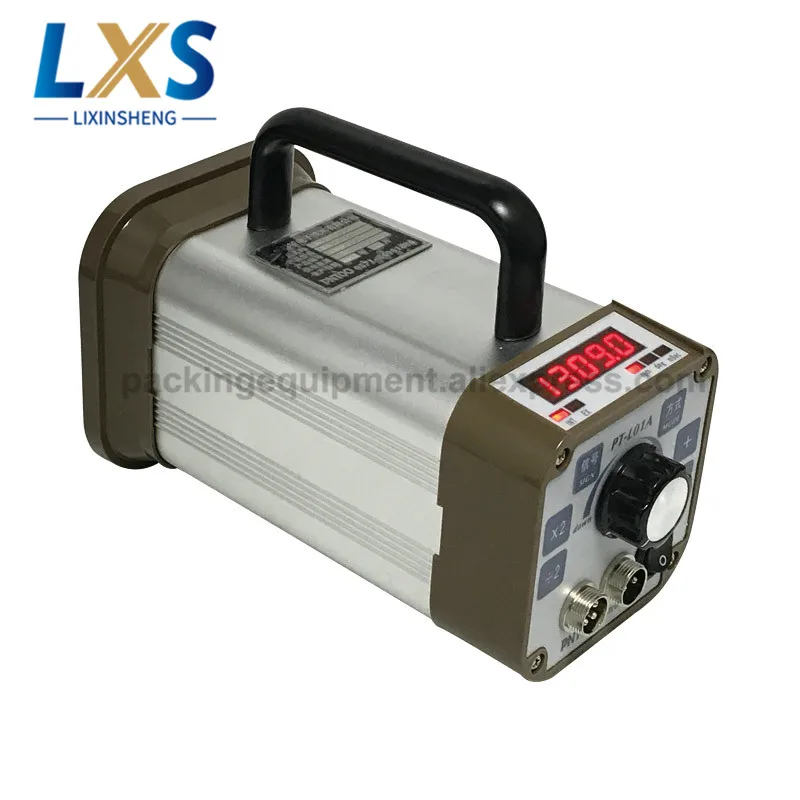

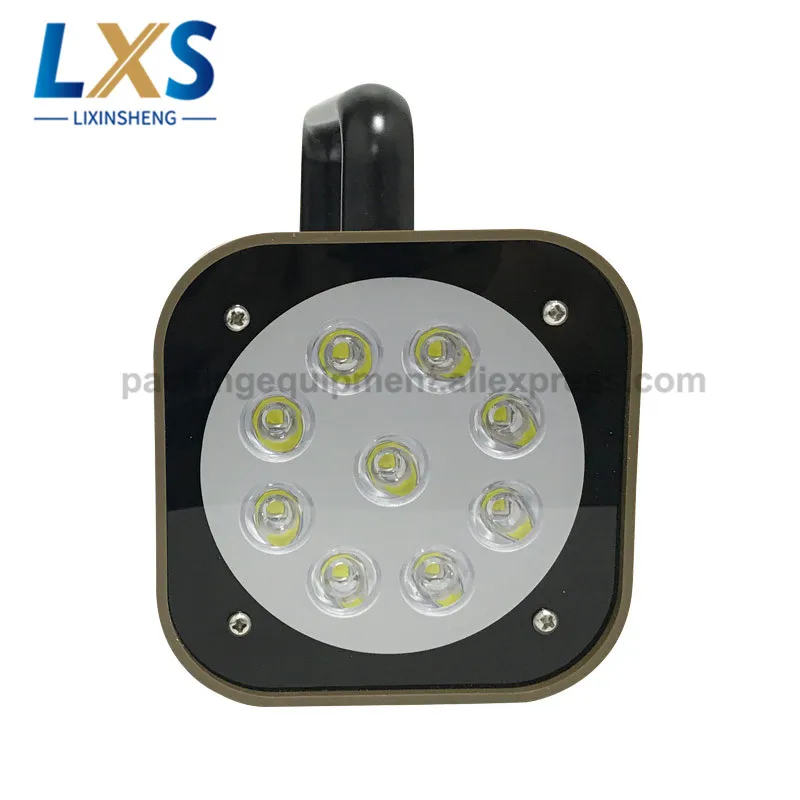

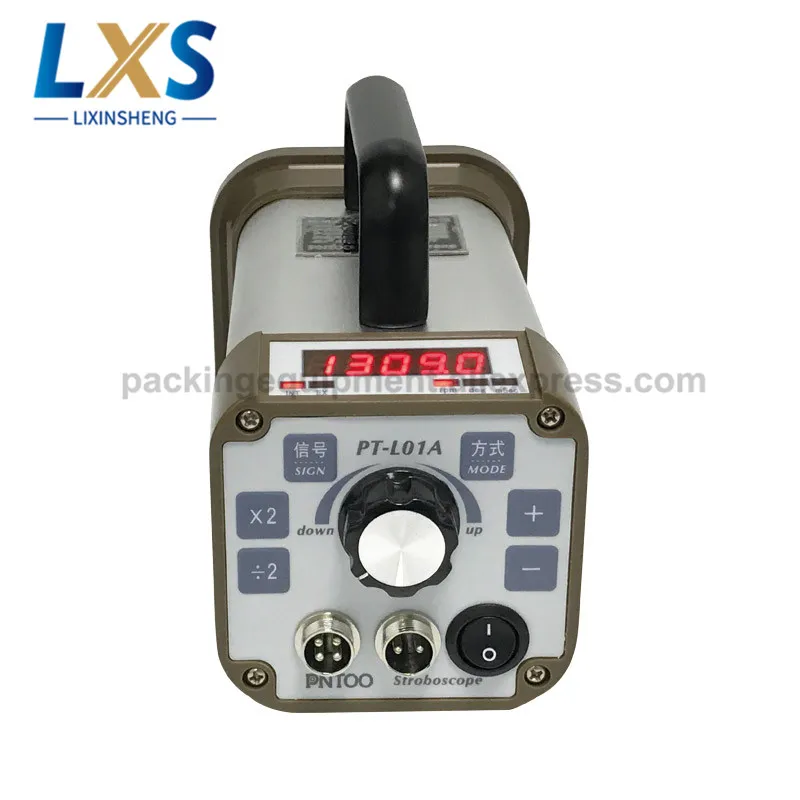

Paper Industry Portable Stroboscope Lamp PT-L01A-AC Rechargeable Battery LED Stroboscope Inspection Light

Product Introduction

Brand: PNTOO.

Model:PT-L01A-DC charging/pt-l01a -AC plug-in.

Origin: Fujian,China

Energy saving and environmental protection: LED lamp bead.

Charging: it takes about 3 hours to charge and more than 5 hours to use.

1.Using imported LED lamp beads, energy-saving and environment-friendly, Long service life and the illumination is uniform and soft.

2. Using efficient energy control chip to control the energy output, making the energy output more stable, high brightness and low heat.

3.Using high-performance single chip microcomputer processing unit and special display chip drive digital tube display, with high frequency accuracy.

4.Using imported rotary encoders for fast frequency modulation,the weight of built-in high-performance lithium battery is lighter ; No need AC220V AC power supply,solving the operating limit of the power cord , easy carry and more convenient to use.

5.Large battery capacity,the continuous working time is about 4-10 hours (the specific time is related to the frequency of the light)

6.Especially suitable for the occasions of electric inconvenience, voltage instability or steam explosion. It is suitable for printing industry, paper industry, textile industry, steel cold rolling, large generator, aluminum foil industry, machinery manufacturing industry and other industries.

Technical Parameter:

1. Working power: DC12V,3A

2. Power supply: AC100V ~ 240V 50 ~ 60Hz;

3. Display: 5 digit display;

4. Accuracy: ± 0.1%;

5. Triggering frequency range: The internal continuous adjustment from 50-99,999 times / minute, the regulation accuracy is 0.1 times / minute; or 50-300,000 times / minute. (Can be customized per customer needs)

6. Phase delay: Under the provision of external trigger source , the phase delay function can be adjusted from 0 ~ 359°, regulation accuracy 1°;

7. Strobe interval: Adjustable strobe interval of 8-100 microseconds (accurate to +/- 1 microsecond);The internal software limits the strobing time as the frequency increases to a duty cycle of 1/50

8. External trigger sensor type: photoelectric switch, Hall switch (PNP normally open), proximity switch (PNP normally open), encoder signal;

9. External trigger signal requirements: low 0 ~ 0.7V, high> 2.7V (up to 24V), the rising edge of the trigger, high duration> 20 us;

10. External trigger sensor power supply: DC12V 50mA (stroboscope provided);

11. Dimensions (length × width × height): 240mm × 120mm × 150mm.

Features

1. A variety of trigger modes: internal trigger and external trigger, external trigger mode can achieve the effect of automatic tracking

2. External triggering work mode(using optical signals) to achieve the automatic tracking of patterns;

3. Built-in memory, with automatic the function of flash memory frequency and internal parameters for facilitating the use use next time;

4 Adopting imported encoder, with streamlined operating software, knob adjustment faster, accurate, practical, which make it easy to use.

5 Software strobe phase angle adjustment function;

6. Frequency unit Hz and f / m available, suitable for different occasions;

7.Adopting imported high-power LED lamp, built in high-performance power module, improve flash brightness and reliability when working;

8. The latest products, further stable performance, few trouble occurs for long periods of use;

9. The software has two tracking programs that can automatically track printed surfaces without fixed color mark;

10. New power supply design, powered by lithium battery, more durable;

11. High luminous efficiency, the light is more uniform.
