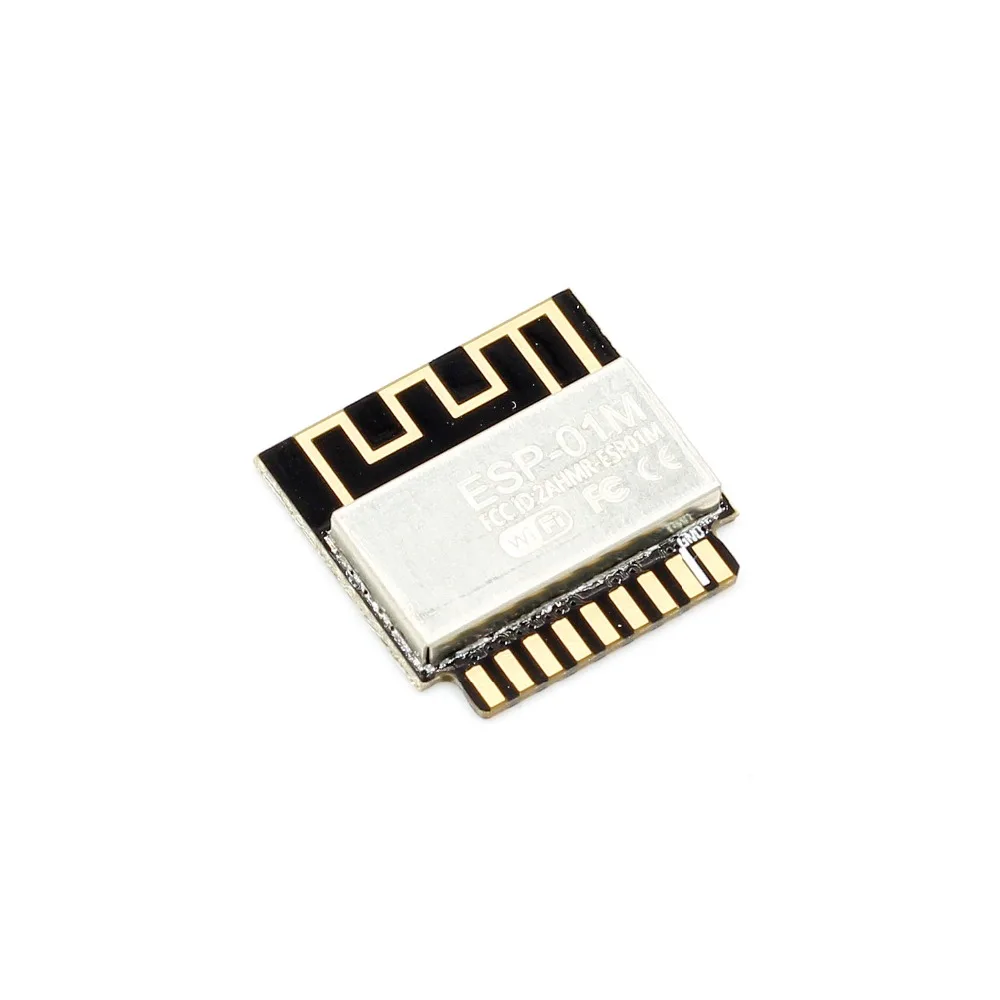

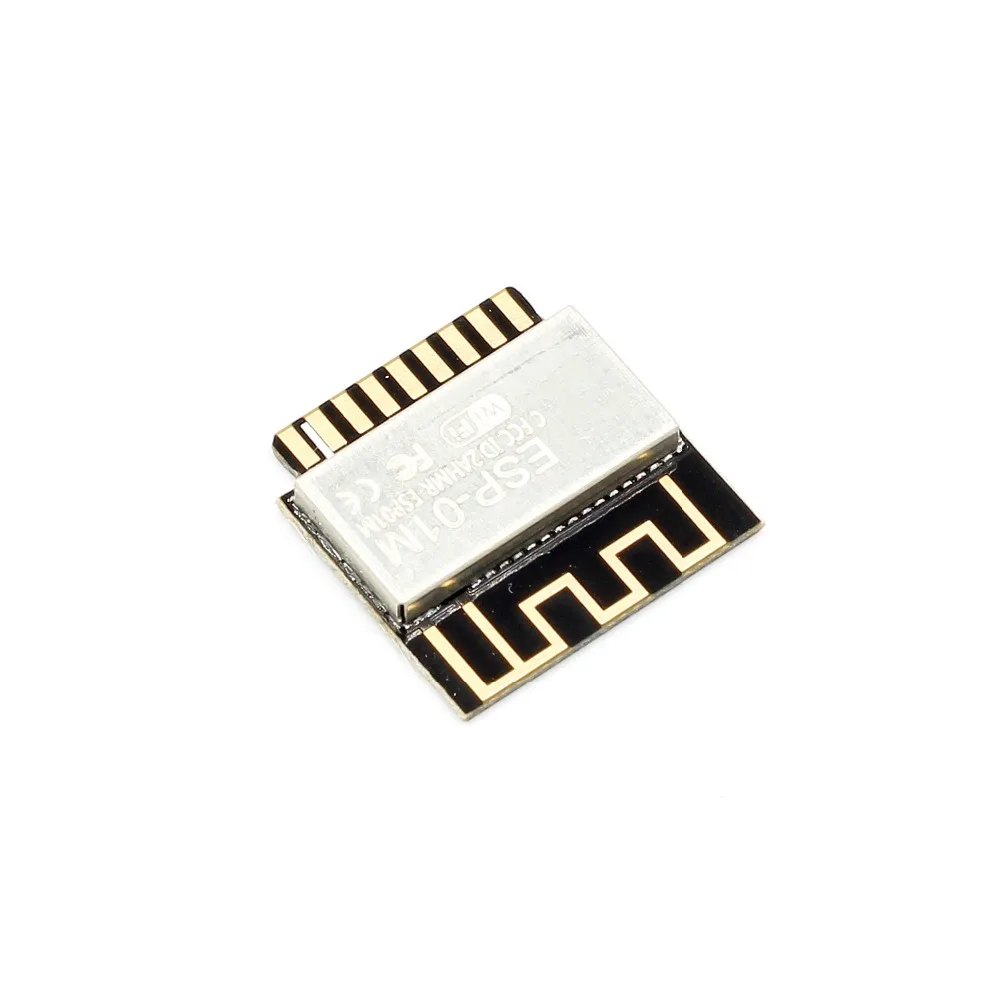

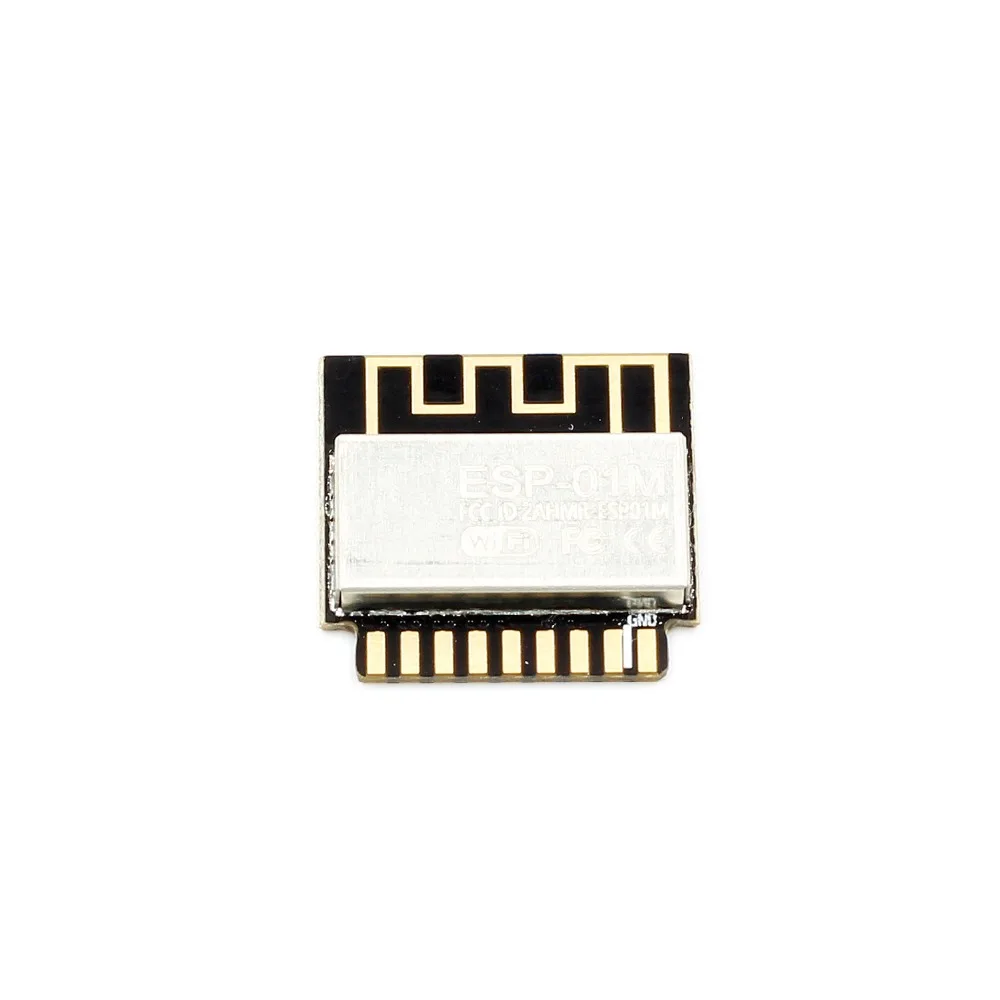

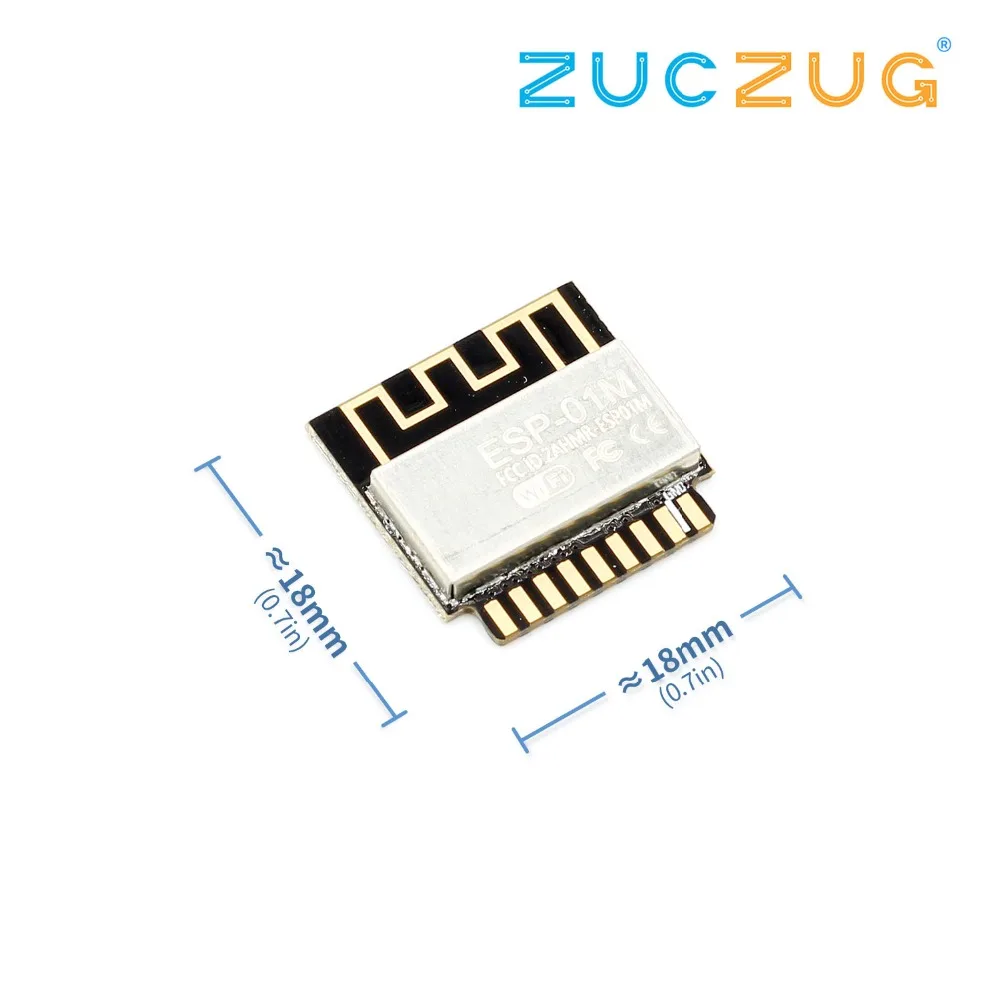

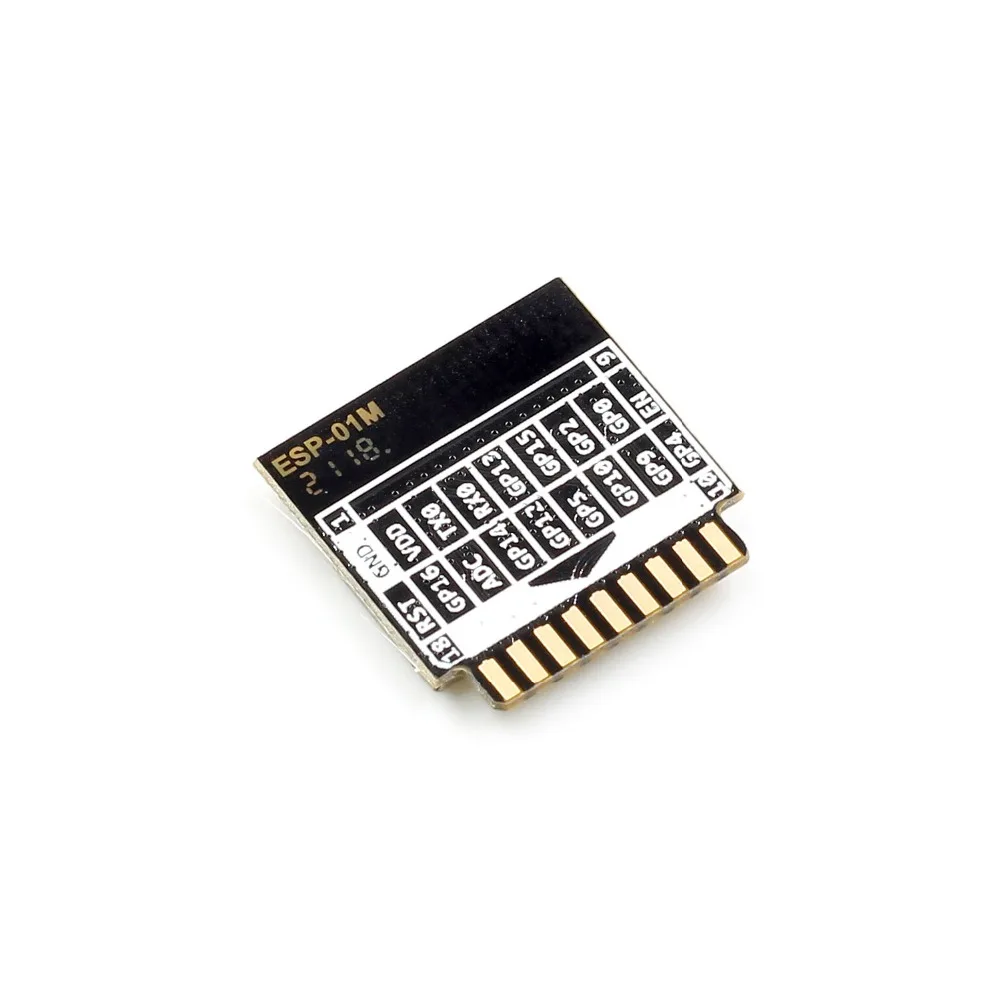

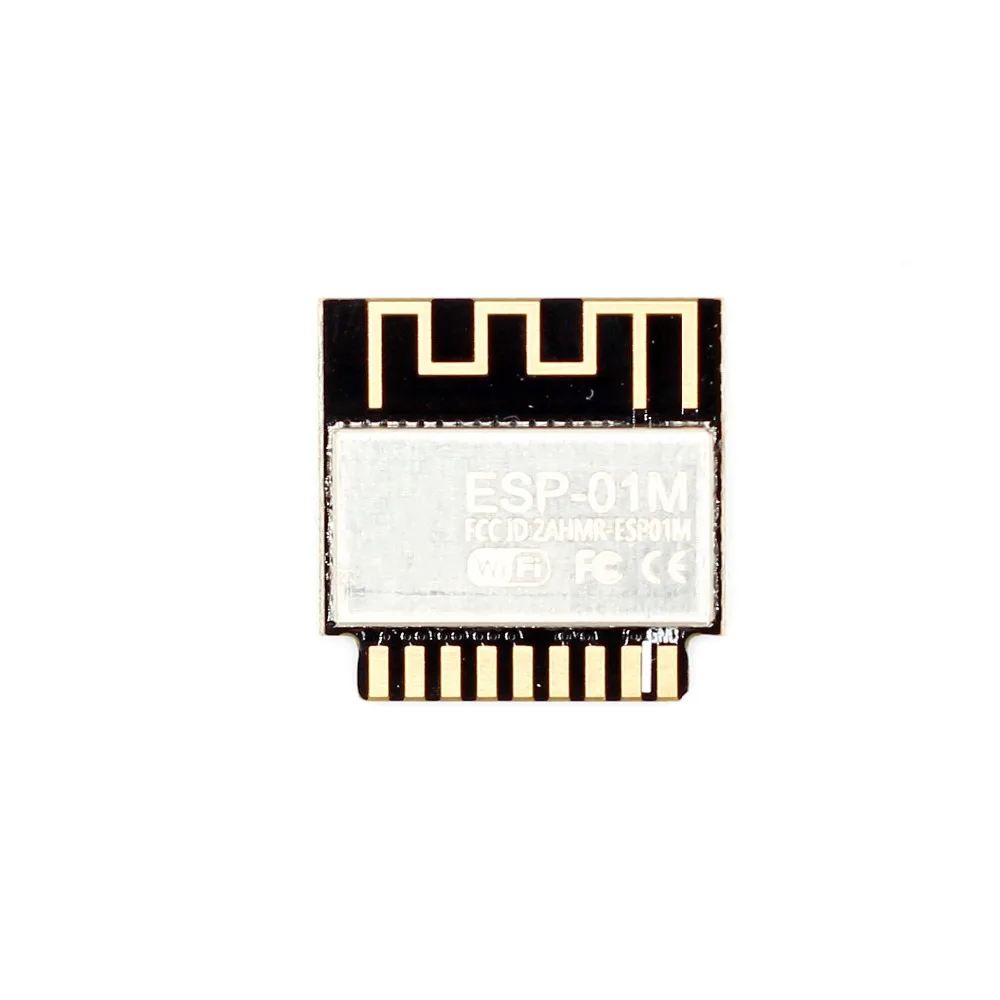

ESP-01M ESP8285 WIFI Wireless Transmission Module IOT 1MByte Flash | Электронные компоненты и принадлежности

---

4737589445907122

Recommended by the seller youe shone high quality One set UNO R3 (CH340G) MEGA328P for UNO R3 + USB CABLE ATMEGA328P-AU Development board US $ 2.73
/piece youe shone 1set uno r3 MEGA328P ATMEGA16U2 for Compatible without USB Cable US $ 4.51
/piece Mega 2560 PRO ATmega16U2/ATmega2560-16AU for Mega 2560 pro US $ 8.00
/piece youe shone Mega 2560 PRO (Embed) CH340G/ATmega2560-16AU, with male pinheaders. Compatible for Mega 2560. US $ 7.35
/piece youe shone Pro Mini 328 Mini 3.3V/8M ATMEGA328 ATMEGA328P-AU 3.3V/8MHz US $ 1.89
/piece youe shone pro mini 328 electronic building blocks Interactive Media ATMEGA328P 5V 16M for Compatible Nano US $ 1.89
/piece youe shone Mega 2560 R3 ATmega16U2 Development Board + USB Cable Diy Starter Kit ATmega2560 Atmega US $ 8.96
/piece youe shone MEGA 2560 R3 ATmega2560 R3 AVR USB board + Free USB Cable 2560 MEGA2560 R3,We are the manufacturer US $ 7.16
/piece youe shone NEW Official Compatible DUE R3 Board SAM3X8E 32-bit ARM Cortex-M3 / Mega2560 R3 Duemilanove 2013 US $ 13.00
/piece Hot Selling 2.8 Inch TFT Touch LCD Screen Display Module for arduino DIY KIT US $ 8.50
/piece Long distance wireless 915/868/433Mhz Lora Shield v95 for Arduino Leonardo, UNO, Mega2560, Duemilanove, Due US $ 19.50
/piece MK Set Deluxe Kit with USB Cable Dupond Line Alligator Clips for Children Free Shipping US $ 10.43
/piece Features Frequency up to 160MHz Built-in 10 bit high precision ADC Support UART / GPIO / IIC / PWM / ADC and other interfaces Integrated Wi-Fi MAC / BB / RF / PA / LNA Supports multiple hibernation modes with standby power as low as 1.0 mW Embedded Lwip protocol stack Support STA / AP / STA + AP working mode Support Smart Config / AirKiss a key distribution network Serial port speed up to 4Mbps Universal AT command can get started quickly, you can brush Web configuration firmware Support serial local upgrade and remote firmware upgrade (FOTA)     Details   SPI Flash: 1MB The type of interface: UART/GPIO/ADC/PWM The quantity of IO put: 11 Series rate: 300-4608000 bps, the default is 115200bps RF range: 2412-2484MHz The type of antenna: onboard PCB wire Transmission power: 802.11b: 16±2 dB (@11Mbps) 802.11g: 14±2 dB (@54Mbps) 802.11n: 13±2 dB (@HT20, MCS7) Receiving sensitivity: CCK, 1Mbps: -90dB CCK, 11Mbps: -85dB 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm Power consumption: Continuous transmission→average value:71 mA, maximum value: 300 mA. Modem sleep: 20mA Light sleep: 2mA Deep sleep: 0.02mA Security: WEP/WPA-PSK/WPA2-PSK Supply voltage: 3.0V-3.6V Supply current: >300mA Working temperature: -20℃-85℃

Storage environment: -40℃-90℃，<90%RH
