PG164130 PICkit3 Emulator downloader burner | Электроника

PG164130 PICkit3 Emulator downloader burner | Электроника

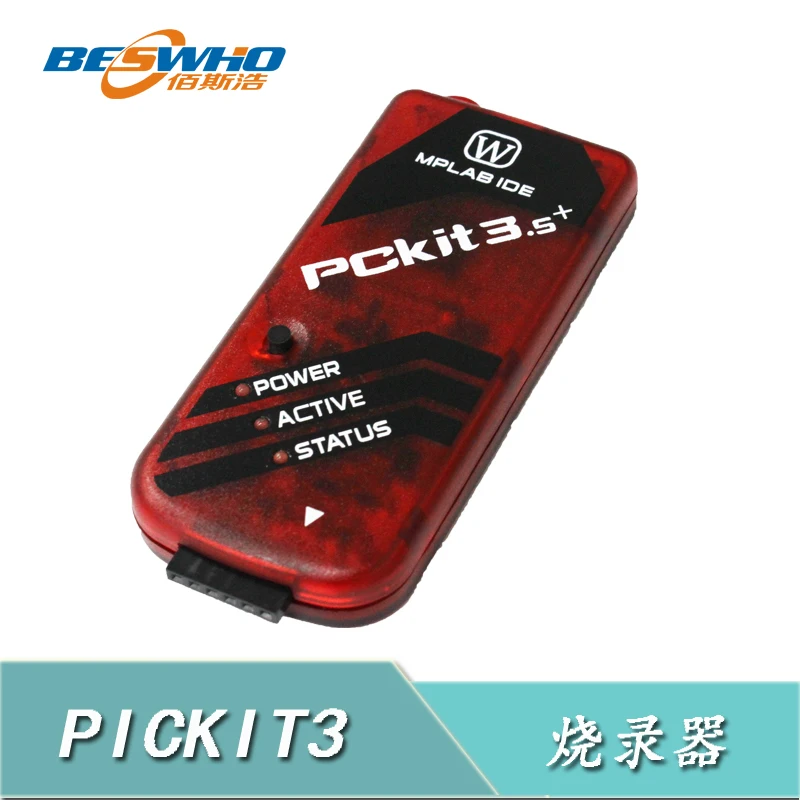

This PICKit 3 is a simplified version without DEMO. Function brief introduction: PICKit 3 Debug is suitable for 8-bit and 16-bit PIC microcontroller (MCU) and dsPIC digital signal controller (DSC), and will support 32-bit PIC MCU later. In the future release of MPLAB IDE, free firmware upgrades will also provide support for new PIC MCU, DSC and PIC32 MCU. By using the free MPLAB integrated development environment, the PICKit 3 Debug makes it easier to explore the embedded control world and learn more quickly. The plug-and-play toolkit can be connected to and powered by any PC's USB. The plug-and-play toolkit can realize online debugging functions, such as pause, one-step, data or address breakpoints. In addition, since the 6-pin ICSP connector is similar to the one on PICKit 2 Debug, the PICKit 3 probe is compatible with the PICKit 2 demo kit. Using an RJ-11 to ICSP adapter (part number: AC164110), it can also be compatible with Microchip's MPLAB ICD 2 and MPLAB ICD 3. PICKit 3 is the latest low-end online debugger launched by MICROCHIP to promote the promotion of PIC32. It supports PIC MCU and DSC from 8 to 32 bits. It works on the MPLAB IDE development platform. By programming software, you can easily upgrade the operating system (Firmware) of PICKit 3 programmer free of charge. Support for new PIC MCU and DSC and PIC32 MCU will be increased through firmware upgrade. Starting from MPLAB IDE V8.40, step by step support offline download is better than ICD2 and PICKit 2. PICKit 3 connects PCs via full-speed USB2.0 interface, allowing faster programming and firmware upgrades without additional power for programmers or target boards. PICKit 3 connects to the target board through standard ICSP interface, which is compatible with PICKit 2, ICD2, ICD3 and other development tools. In addition to debugger functions, PICKit 3 can also be used as a development programmer. 1. PC system requires: 1. Operating system: 32-Bit:Windows 2000 SP4, Windows XP SP2, Windows Vista Windows and Windows 7 OS 64-Bit:Windows XP 64, and Windows Vista 64 OS?? 2, an idle USB interface; Two, PICKit 3 has the following characteristics: 1) for PIC 16 bit and 32 bit chips, the burning speed is 2 times higher than that of ICD2. 2) for PIC32 series MCU, support software breakpoints supported by ICD3/REAL ICE; 3) built in overvoltage and overcurrent protection, and PGD/PGC protection is stronger than PICKit 2. 4) USB2.0 full speed, HID interface; 5) the working voltage is 2.0-6.0V; 6) compatible with target board interface PICKit2, ICD2, ICD3, etc. 7) the processor runs at maximum speed. 8) built in overvoltage / short circuit monitor. 9) diagnose LED (power, activity and status); 10) read and write program memory and data memory of MCU. 11) erase all memory types (EEPROM, ID, configuration and program) and check function. 12) freezing peripherals at breakpoints; Three. Comparison of PICKit 3 with other products: 1, the comparison between PICKit 3 and ICD 2: 1) adopt HID interface with PC, and connectivity is more reliable than ICD2. 2) for 16 bit chips, the download speed is much faster than ICD2 two times. 3) the price is much lower than ICD2, and the support series is almost the same as that of ICD2. 4) it can support offline downloading, and can be adapted to field program upgrading and small batch programming. 5) directly debug PIC18FXXK series and PIC16F72X and other VPP chips below 10V. 2, the comparison between PICKit 3 and PICKit 2: Similarities: 1) the same function; 2) power supply through USB cable connected to PC; 3) provide programmable voltage source; The difference is: 1) PICKit 3 will be faster. The main chip of PICKit 3 is PIC24, which is slightly faster than PICKit 2, USB or Full 12M. 2) expand offline download space (512Kbytes), PICKit 2 (128Kbytes); 3) Provide more accurate reference voltage source, increase voltage range (1.8-5V VDD; 1.8-14V VPP), PICKit 2 (2.5-5V VDD); 4) More chips are supported, PICKit 3 already supports PIC16F193X and PIC32; PICKit 2 will not support PIC32 debugging in the future; 5) PICKit 3 has already supported WIN7 system, and PICKit 2 does not support it. Please note that some chips need special debugging head to debug, usually less than 20 pin pins.
