Описание товара

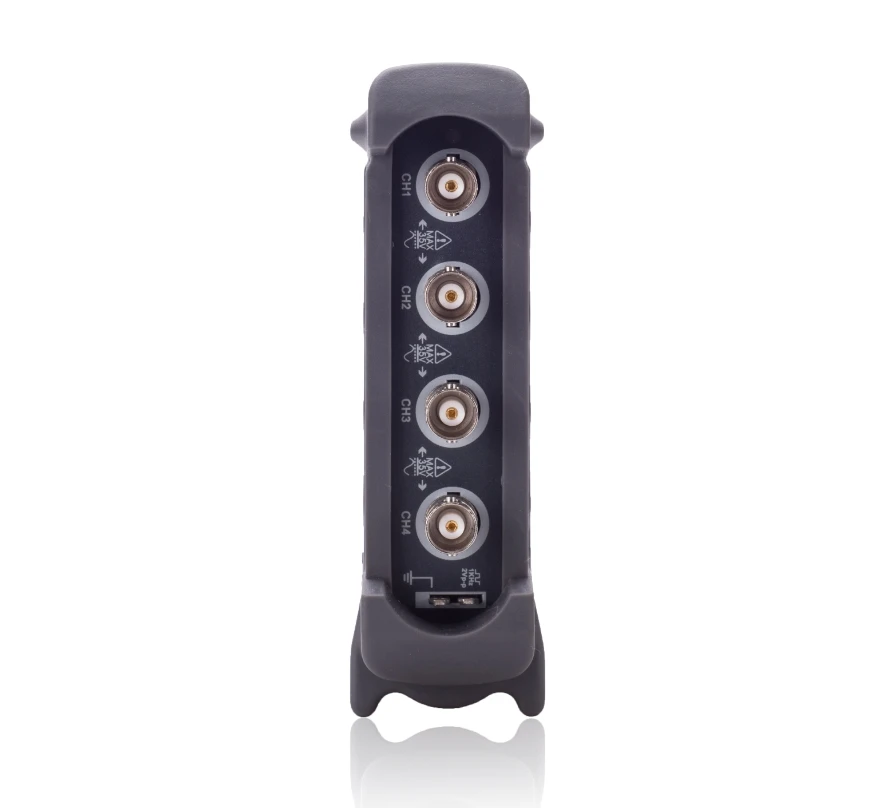

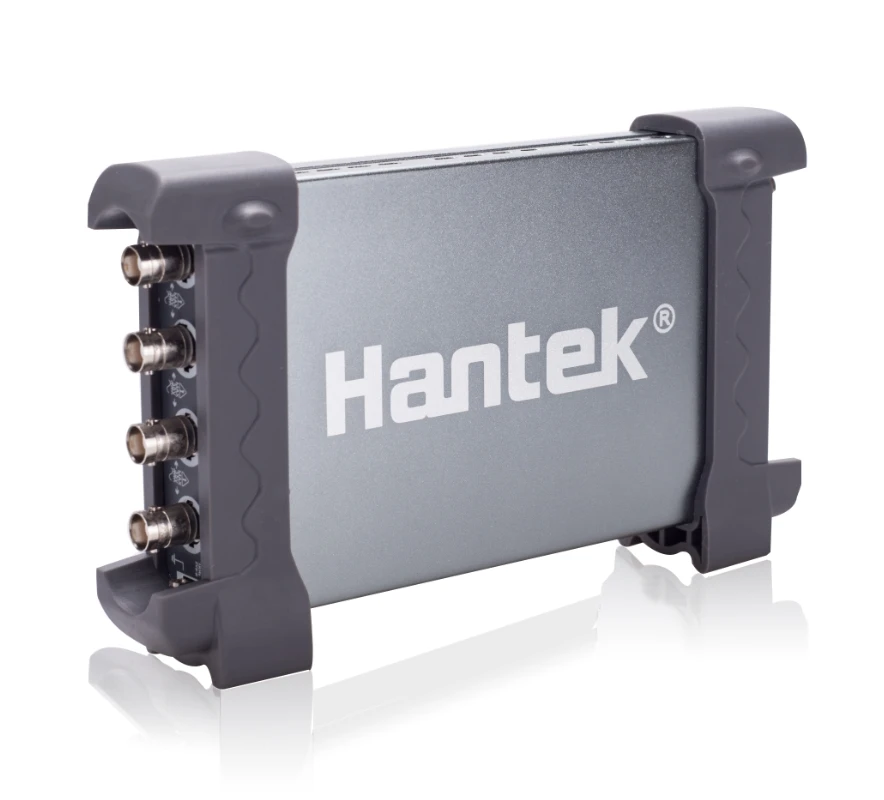

Hantek6204BC Series
The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Features
The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

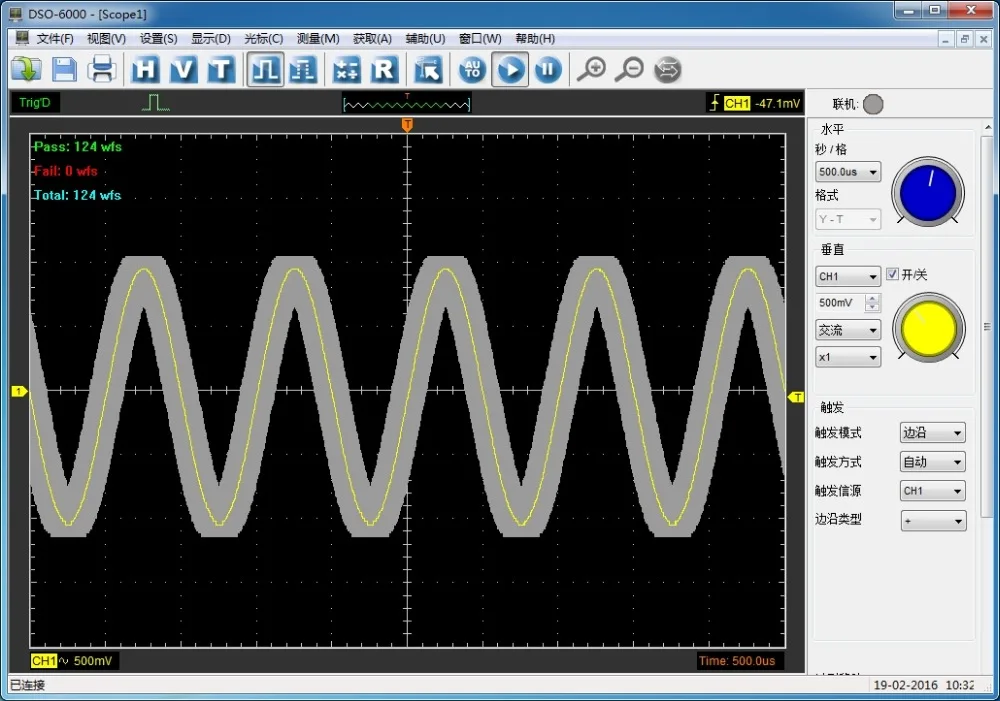

· Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.
· USB2.0 Interface, plug and play device.
· Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

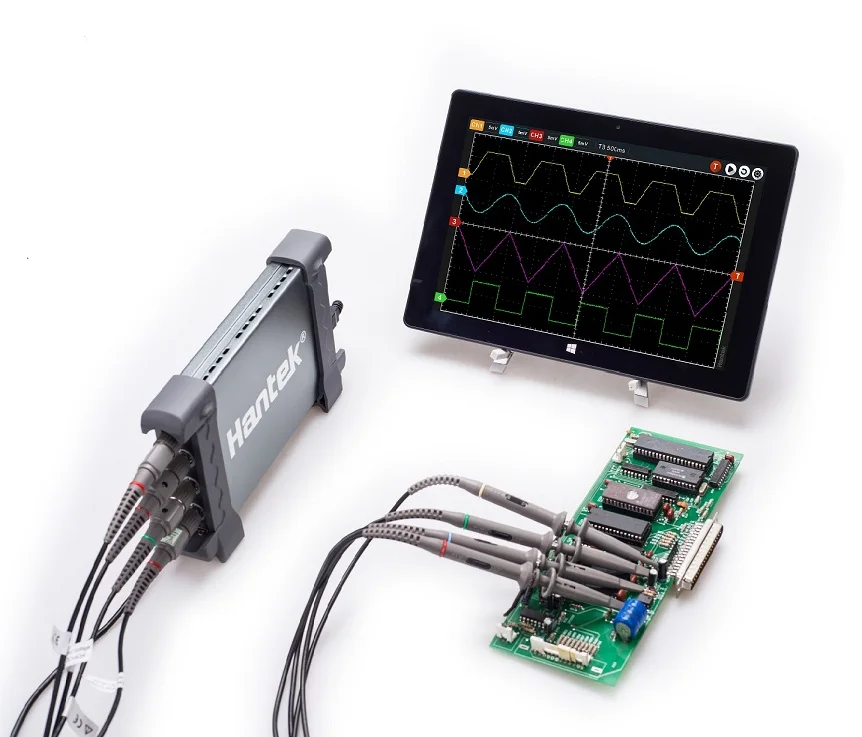

· Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.
· Software support: Windows10, Windows 8, Windows 7
· The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.
· More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.

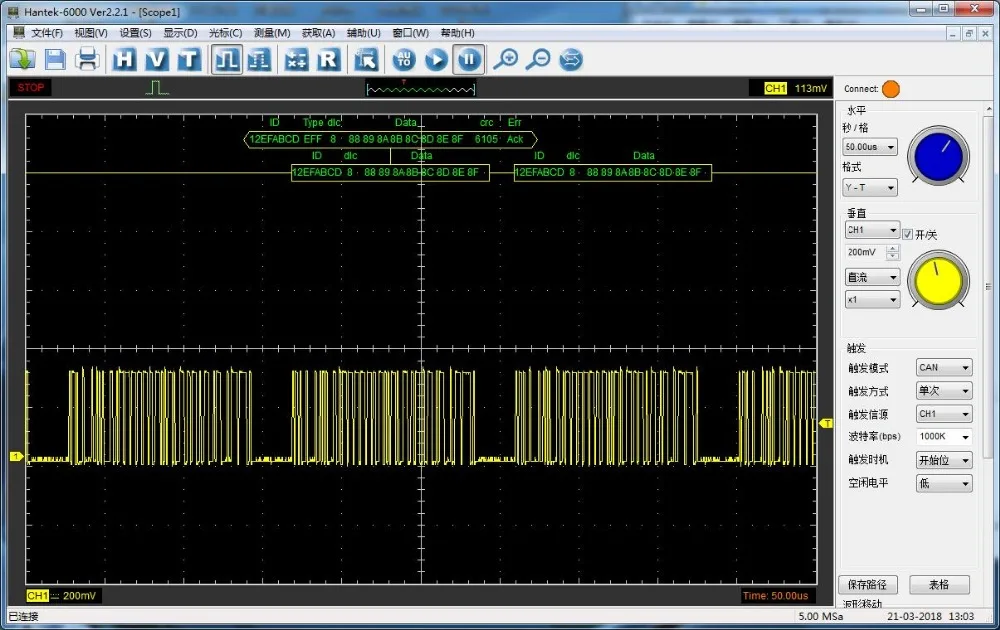

· Serial bus triggering and decode, Bus protocol information can be quickly and intuitively displayed in table form.

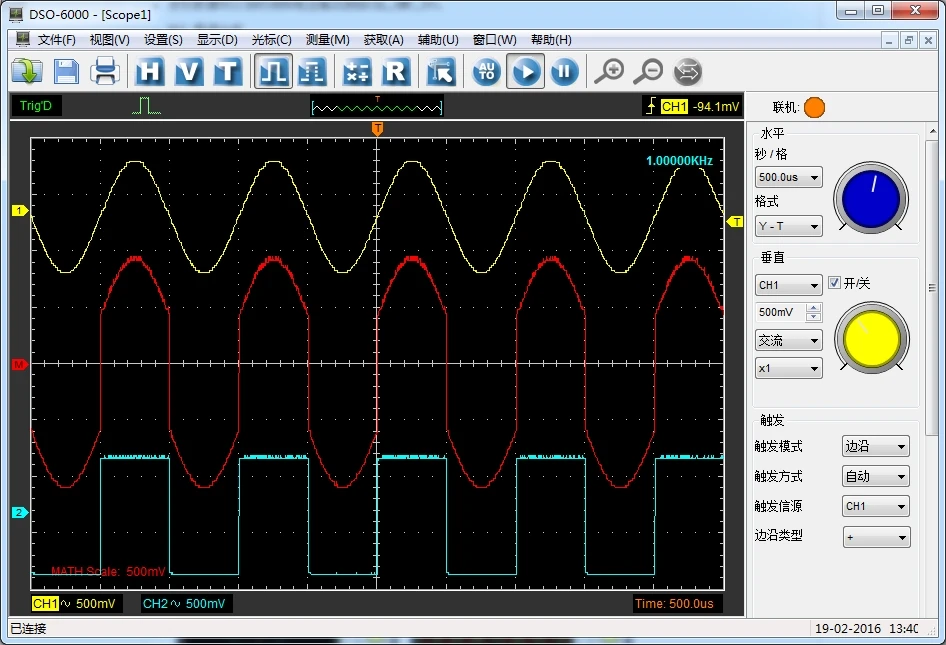

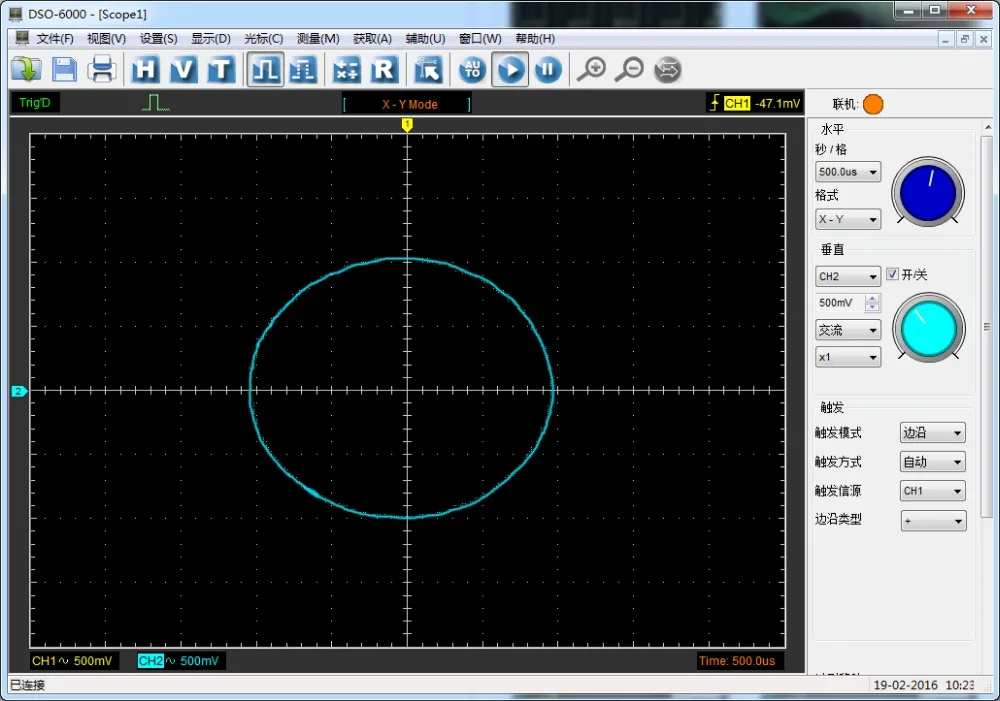

· Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

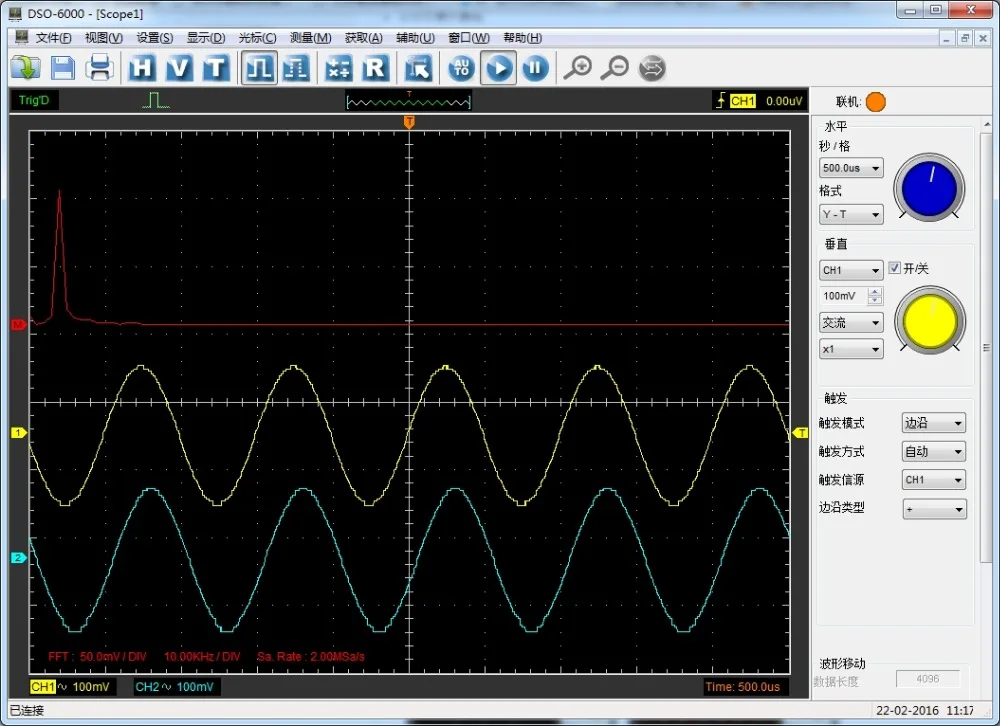

· FFT spectrum analyzer
· One computer could connect with multiple oscilloscopes, expand the channel number easily.
· USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.
· Provide secondary development library DLL; Provide Labview\VB\VC developing examples.
| Model | Hantek6204BC |
| Bandwidth | 200MHz |
| Channel | 4 CH |
| Real-time Sampling Rate | 1GSa/s |
| Memory Depth | 64K |
| Time BasePrecision | ±50ppm |
| Time Base Range | 2ns/div-1000s/div (1-2-4 sequences) |
| Input Impedance | 1MΩ 25pF |
| Input Sensitivity | 2mV/div~10V/div |
| Vertical Resolution | 8Bit |
| Vertical Displacement Range | 2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe; |
| DC Gain Accuracy | ±3% |
| Bandwidth | 20MHz |
| Trigger Mode | Edge, Pulse, Video, Alternative |
| Trigger Source | CH1, CH2, CH3,CH4 |
| Waveform Signal Process | +,-,x,÷,FFT, Invert |
| Cursors Measurement | Cross, Trace, Horizontal, Vertical |
| Auto Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Volume | 175mm * 105mm * 25mm |
| Weight | 0.9KG |
| Accessory | 2 passive probes, 2 gator clip lines |
