FZ25 4A 25w 5A 35W Digital Battery Capacity Tester Voltmeter Adjustable Constant Current Electronic Load Charger Testers | Инструменты

---

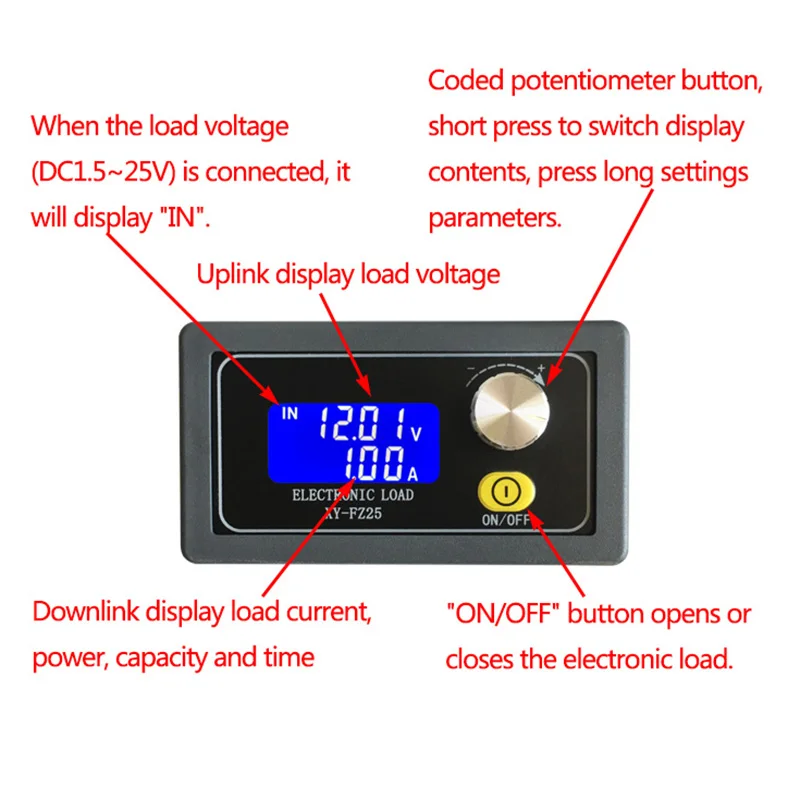

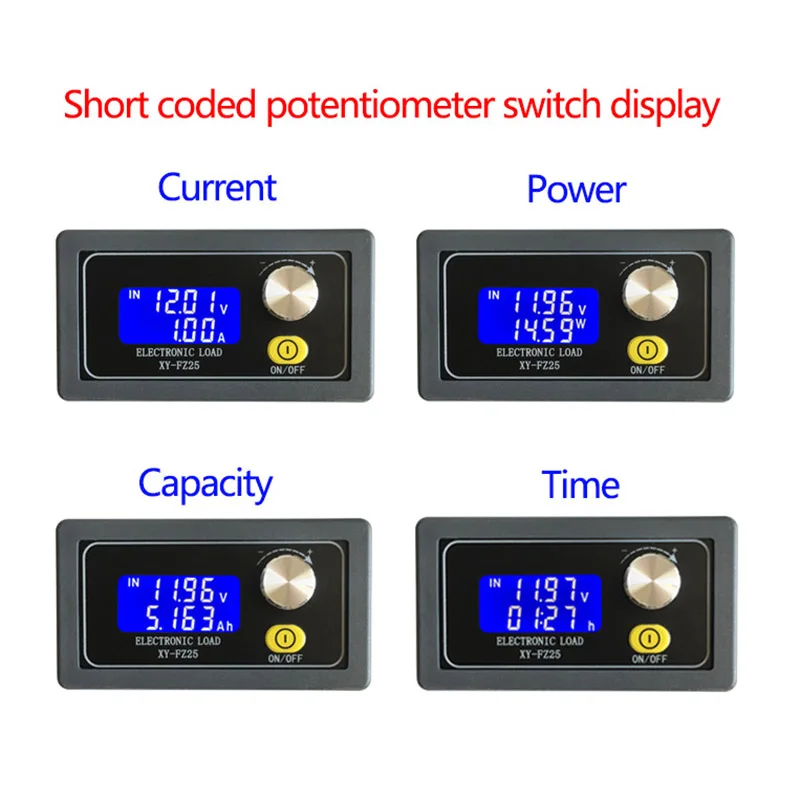

First, the operation interface operation instructions:1. The electronic load is powered on and then enters the operating interface, which is used to turn the electronic load on or off by short pressing the "ON/OFF" button, and to modify the current of the electronic load in real time by rotating the encoder potentiometer;Short press the encoding potentiometer key to toggle the downlink display content (current/power/capacity/time);
In any display interface, the rotating encoding potentiometer will automatically switch to the current display interface;In the current display interface, the long press "ON/OFF" button is used to turn the data lock function on or off, if the data lock function is turned on, the locking symbol "|-" will be displayed in front of the current, at this time can not adjust the load current in real time by rotating the encoding potentiometer to prevent misoperation;
In the capacity/time interface, the long press "on/off" button to empty the corresponding capacity/time data.
No alarm status:Load supply voltage, load current, capacity value, discharge time;11.90V,0.11A,0.004Ah,00:02 à Load voltage 11.90V, load current 0.11A, capacity 0.004Ah, discharge time 00:02;
Read product parameter settings;OVP:25.2, OCP:5.10, OPP:35.5, LVP:1.50,OAH:0222,OHP:00:00,Overvoltage, overcurrent, over power, undervoltage, maximum capacity, maximum discharge time
Second,the Setup interface operation instructions:
1.In the running interface,the long press encoding potentiometer enters the setup interface;
2.By rotating the encoder potentiometer, adjust the size of the parameters, increase clockwise,and decrease counterclockwise; switch the parameters that need to be modified by short pressing the rotary encoder;
3.In the maximum capacity (OAH)/Maximum discharge time (OHP) two parameter interface,short press "ON/OFF" button to select the corresponding function of the turn on or off,if closed, the display "----";
4.In the maximum capacity (OAH) parameter interface, short press "ON/OFF" button to select the capacity range (9.999Ah/99.99Ah/999.9Ah/9999Ah);
5.Parameter settings complete,long press encoder potentiometer,exit the Setup interface, set parameters automatically saved;
Serial port Control (single-chip TTL level communication)
Baud Rate:9600 bps
Data bits:8
Stop bits:1
Note:If the maximum discharge time is turned on,00:02 indicates a countdown;
Alarm Status:
Upload Alarm status code (OVP/OCP/OPP/LVP/OAH/OHP/OTP)

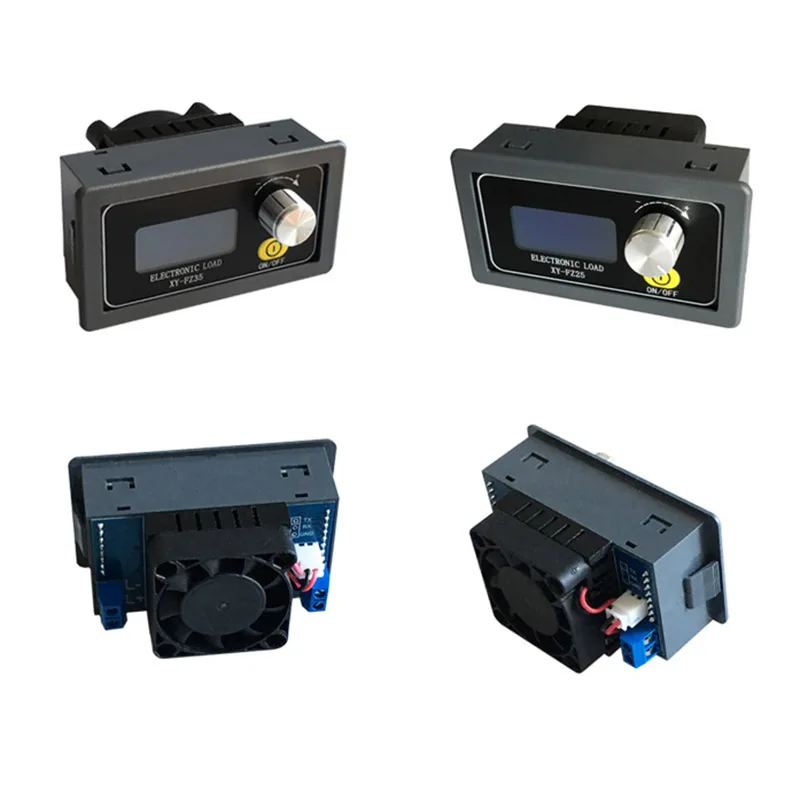

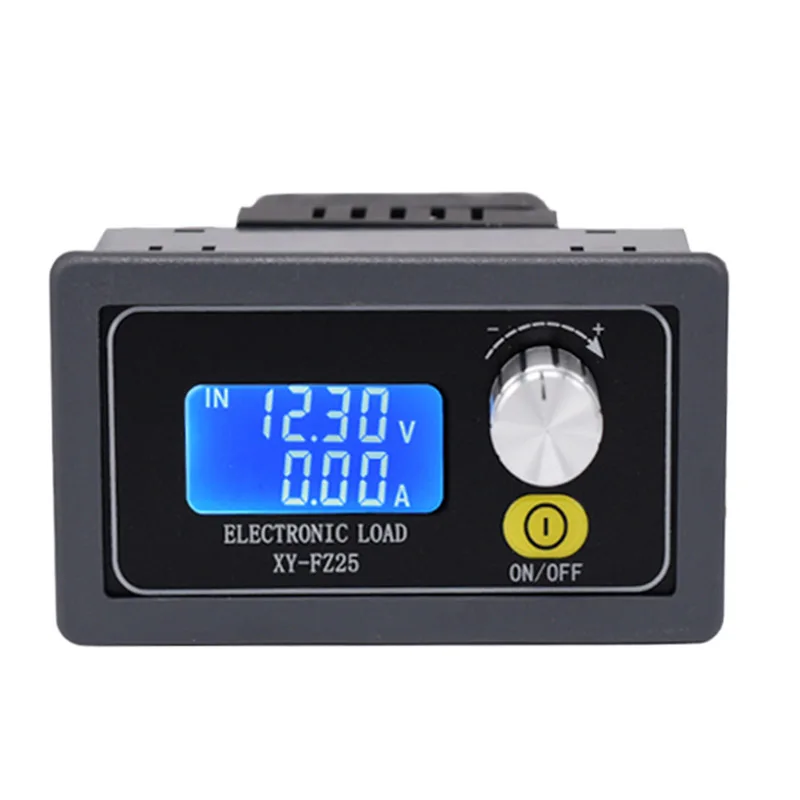

Model Number:FZ25/FZ35
The current a voltage V power W capacity ah and discharge time can be displayed;
Have a sound protection mechanism;
Automatic statistics of discharge capacity and discharge time;
colour:gray
Material:plastic

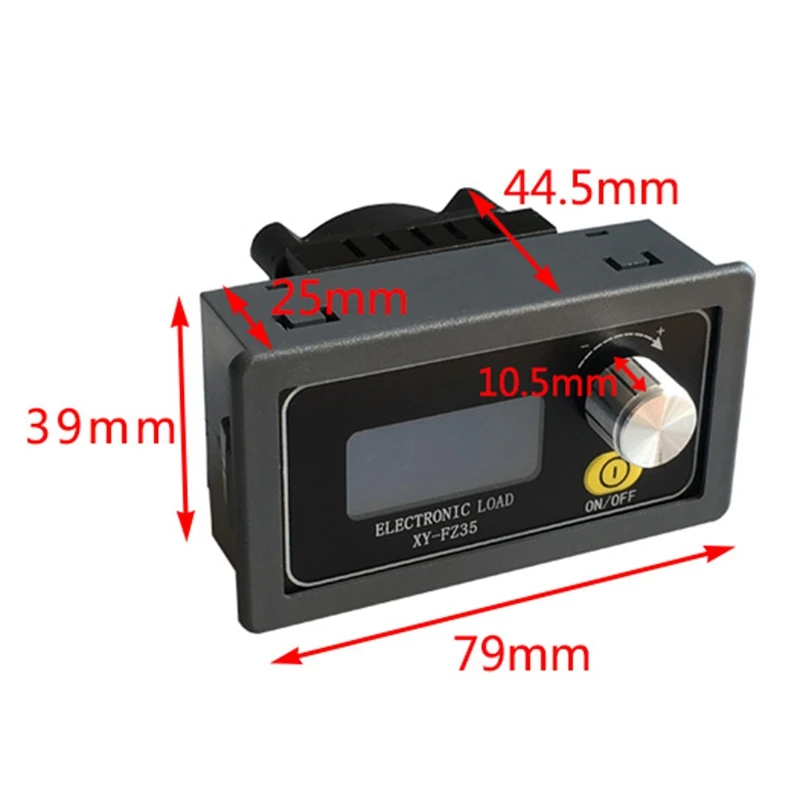

size:7.9*4.3*5.5CM
Package Contents:
1 * Battery Capacity Tester
Only the above package content, other products are not included.
