QINPU A-6000 MKII HIFI 6N3 Вакуумная ламповая гибридная усилительная система Hifi с наушниками и интегрированным аудиофильским усилителем.

---

Features:

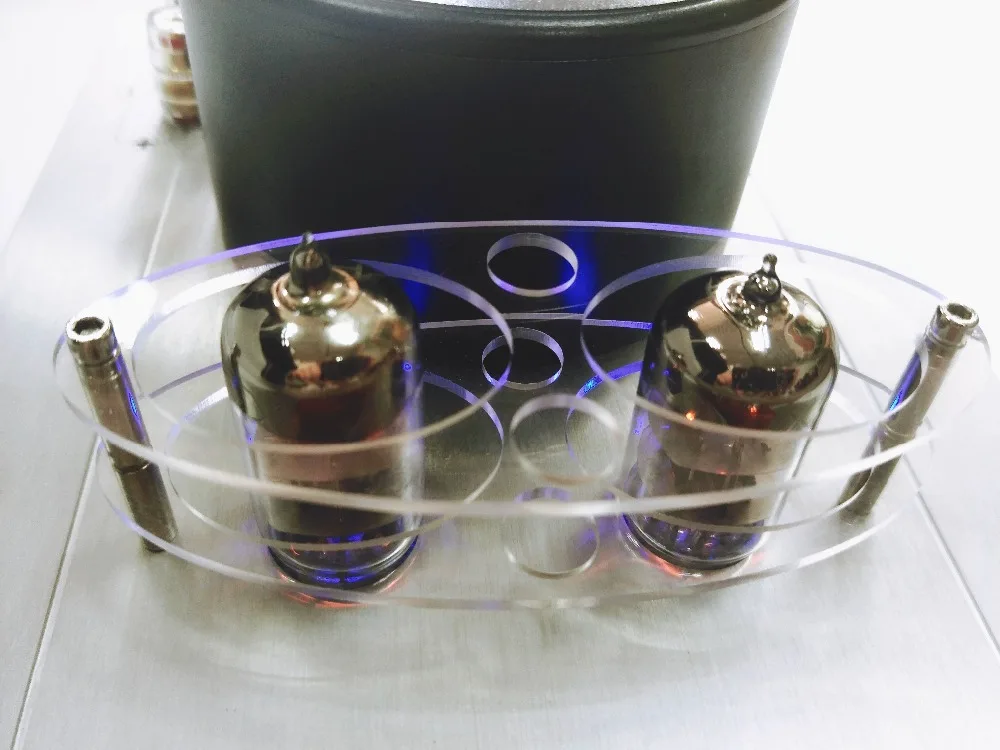

6N3 x 2pcs with Hi End Power supply, take you to a totally different music world,shocking your senses for sure,bring you back to

nature sound.

"Small but has it all" is the best word to describe this fine piece of tube thransistor amplifier, it performs equally well in

your bedroom or your living room. With its MP3 and iPod input, and produces enough power to push large speakers with

harmonic,articulate musical sounds.

About A-6000

A-8000 hi-fi amplifier, a masterpiece designed by Mr.Guan, has got a lot of praise at home and abroad. Soon Mr.Guan got a fresh

idea of building a mini hi-fi amplifier to continue the beautiful outlooking of A-8000. He intended to make 6N3 serve as pre-amp

and LM1875 power module as amplifier. Both these two items have got high recognition by shrewd audiophiles.

Although some other IC models such as TDA2030 or TDA 7000 are much cheaper but Mr.Guan still refused compromising chose LM1875 firmly.

We can be assured that no flaw will exist in a master's great work.


Electric Performance Index


Output Power: 2 x 16.5 W ( 8Ω RMS）

Frequency Response: 20Hz-50kHz

THD：≤2%（1kHz）

S/N Ratio: ≥80dB(A Weighted）

Crosstalk Attenuation: ≥50dB

Input Sensitivity: ≤450mV

Overloading Level: ≥20V

Load Impedance: 8Ω

Input Impedance:10kΩ

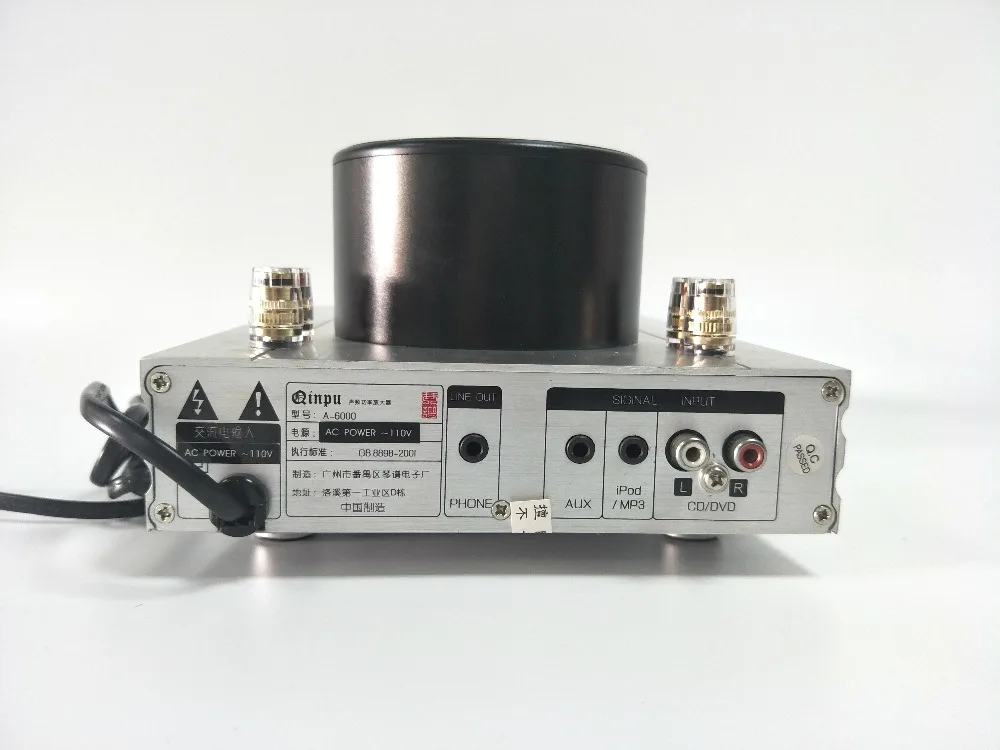

Audio Output: 1 group speaker out,1 x 3.5 mini jack out (line/headphone)

Net Weight: 2.75KG/pcs

Gross weight:4 kg

Dimension:261mmx170mmx110mm

Power Supply: 220V（±10%）50Hz

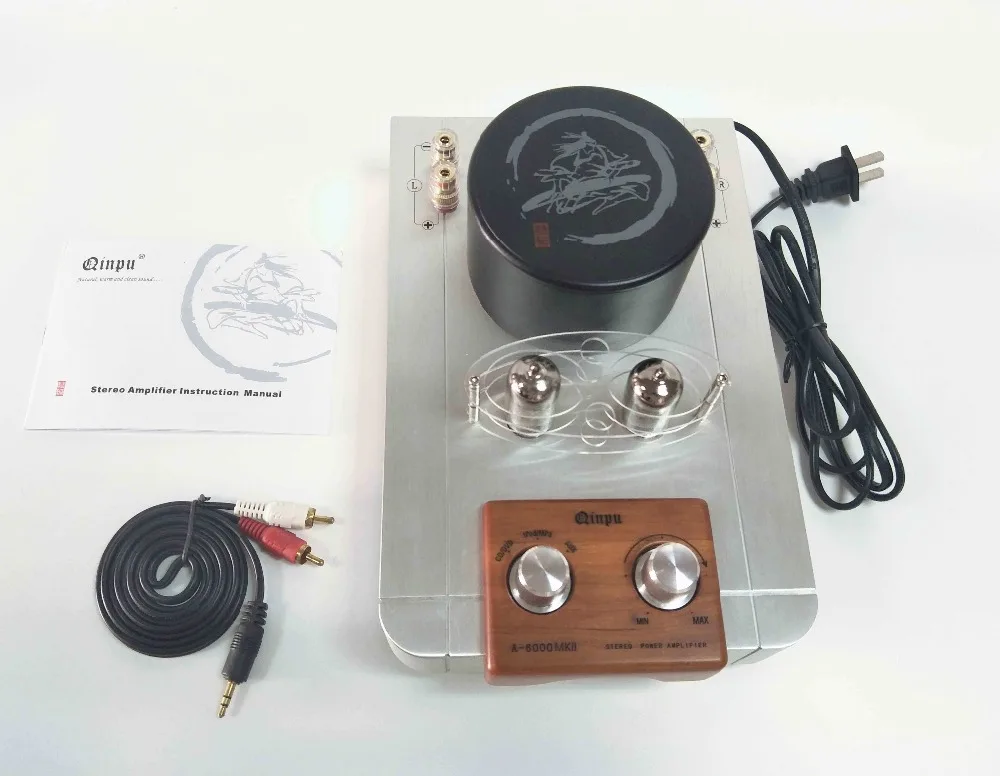

Packing Included: the Amplifer, Full Set Tubes, A operating instructions and Standard 1.5m Power Cord

Tube Amplifier Precautions:1. Tube amp must connected with speakers before turning ON. Strictly prohibit send signals to amp without connected loads(speakers) or load short circuit when the switch is ON.2. Too high or too low power supply voltage does irreversible harm to the amp,preferably less than 5% of the specified voltage. If your mains voltage exceeds this value, often best to use with the AC power supply.3. Temperature is higher when tube amps working, placing attention to ventilation, cooling.4. In the boot or just shut down for a period of time (within 30 minutes) Do not spill liquid on the tubes.5.  You should take about 100h time to operate the amp.RUN-IN to the amp gives it's best and stable sound.so during the first 100h use time the sound maybe is not the best,you can also use your own run-in method.6. If you donot sure how to plug the tubes, please contact us before try itSpeakers connection:All tube amplifier used with stereo mode:  L(left) and R(right) speakers.Normally there are 6 speaker cable connectors: +8L, +4L, -0L, -0R, +4R, +8RExample: +8L and -0L are for connecting with your Left 6-8ohms speaker-0R, +4R is for connecting with your Right 4ohms speakerAbout Us :We are dedicated to offer the best audio-visualproducts at the lowest price to our customers.Bringing great products and customer service,and thus help enriching our customers’ lives is our ultimate goal.About shipping :Before shipment, we must go through rigorous testing and secondary anti-fix packaging, and we guarantee it is brand new and original! Note: Please check whether the inner and outer packages are damaged before signing the package.We recommend that you take photos (external, internal, details, and overall) when you open the package.which can be solved in a timely manner after the problem is discovered. About feedback:1.Since online shopping uncertainty, so thank u very much for choosing&trusting us.our service is ready to help u any time,your feedback is extremely important to us.2.If you are satisfied, please leave 5 stars positive feedbacks, It’s very honored for us to achieve generous authentic assessments and photographs,thx!3. (Damaged, wrong product, sound is bad, no tracking information, package lost, apparence problem, shipping delay, etc) Any problem or dissatisfaction after received product,  If you have any questions, please be sure to contact us, communication is the only way to solve the problem.  You can open dispute only when we can't give your a satisfied solution!4.In case of returns, please contact us first, you describe the problems and reasons. Then we'll send you the return slip. For all other questions contact us by Shop customer service or email.About customer service:1. Our office hours are Monday through Friday from 8:30 am to 6:00 pm (GMT+8).3. Our office is closed on Sundays and public holidays. We apologize for the late arrival during the holiday.

---
