2PCS 6A 3A RC Miniature One-way Brushed ESC Output 1S/5V-500ma for RC Hollow Cup Brushed Electronic Governor Fixed Wing

Specifcation:

1. Continuous / peak current:

3A / 4A

6A / 8A

2, battery section number: 1S

3, BEC output: linear mode: 5V, 500mA (can supply power to 5v receiver) Can not supply power to the servo

BEC output; 1S power (that is, battery voltage) can supply power to 1S servo and 1S receiver

4, power cord length; 68MM

Motor line length; 68MM

BEC signal line; 200MM

Total length; 310MM

5, total weight; 6 grams

Features

1. Safe power-on function: When the power is turned on, the motor will not start immediately regardless of the throttle stick in any position to avoid personal injury;

2. Throttle stroke calibration function: adapt to different remote control oil

The difference in door stroke improves the linearity of the throttle response, and has a smooth, delicate speed control feel and first-class speed regulation linearity;

3. Applicable 1S power supply (single lithium battery)

BEC output 5 v - 500 ma

(can supply power to 5v receiver) can not supply power to steering gear)The BEC output 1S electricity (namely battery voltage)

can power the 1S steering gear and the 1S receiver

Current 3A 6A is optional

4. BEC output: 5 v, 500 ma(can supply power to 5v receiver) cannot supply power to steering gear

5. BEC output; The 1S power (that is the battery voltage) can power the 1S steering gear and the 1S receiver

The first use of ESC does not require identification of the maximum and minimum travel of the remote control (if identification is required)

The itinerary) method is as follows:

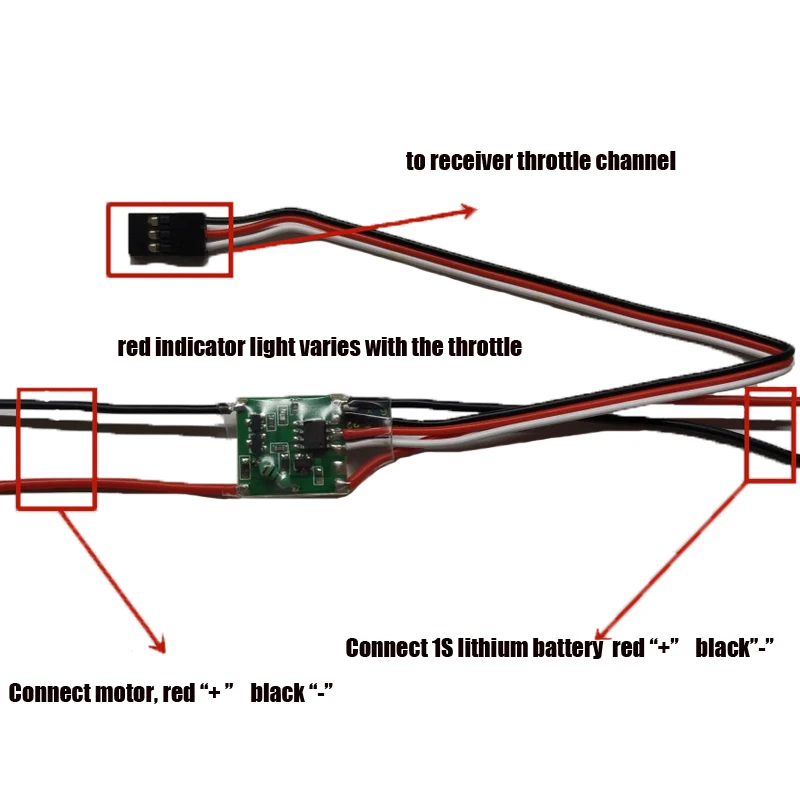

Electric adjustment to the motor ------ electric control line connected to the receiver ---- open the remote control and push the throttle to the highest point ------ plug the ESC into the battery ----- - Look at the red light of the LED----The red light flashes and flashes (the highest point of the throttle is confirmed)----after pulling the throttle stick to the lowest point-----Look at the LED red light----( The red light flashes and flashes)-----OK LED red light changes with throttle size

Package Included:

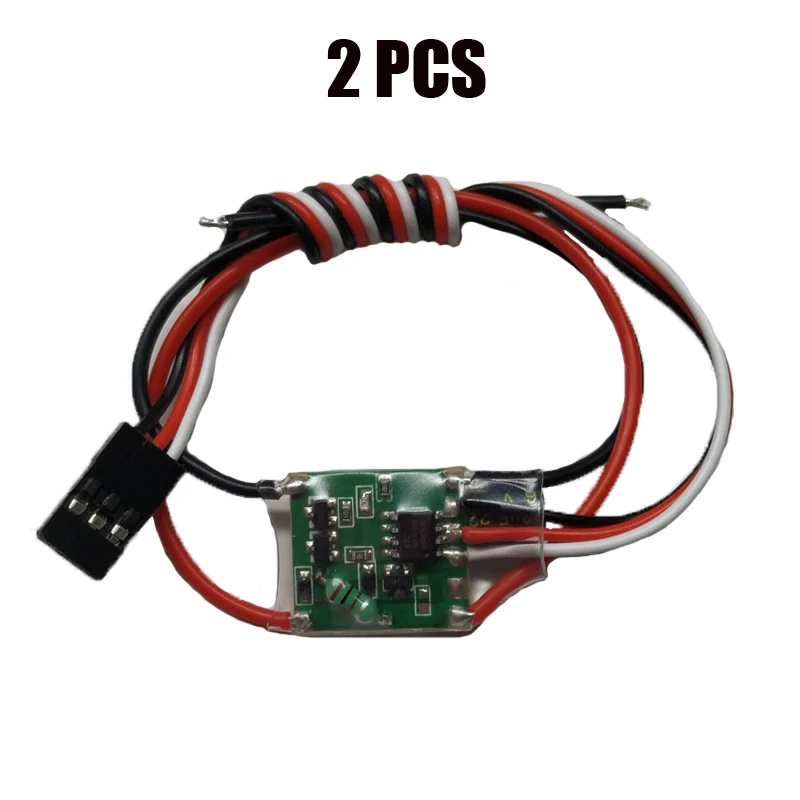

2PCS BEC
