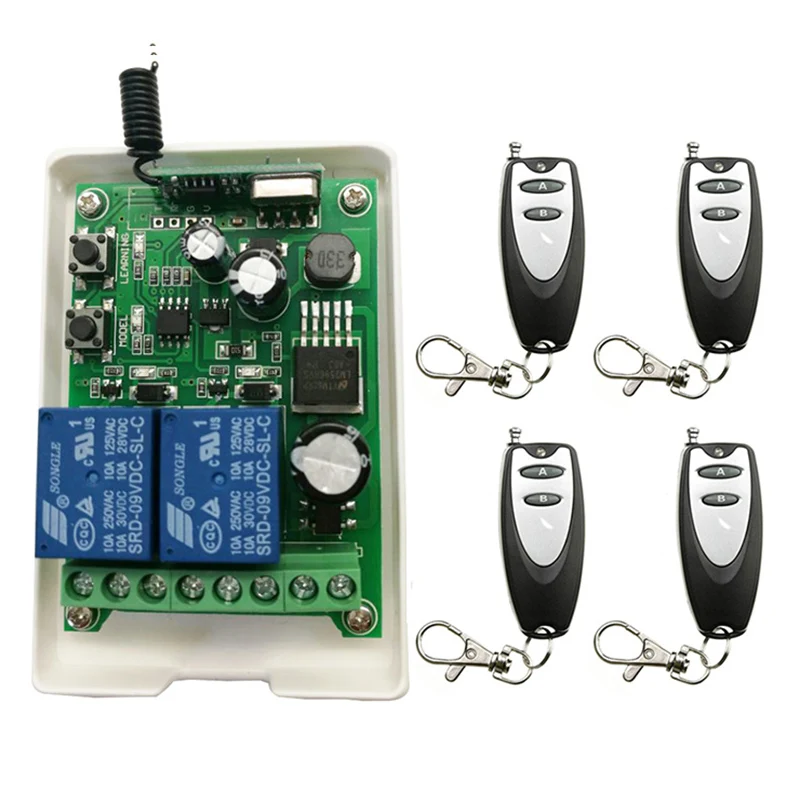

DC12V 24V 36V 48V 2CH 2 CH Mini Wireless RF Remote Control Light Switch 10A Relay Output Radio Receiver Module+Transmitter | Электроника

DC12V 24V 36V 48V 2CH 2 CH Mini Wireless RF Remote Control Light Switch 10A Relay Output Radio Receiver Module+Transmitter | Электроника

functions:

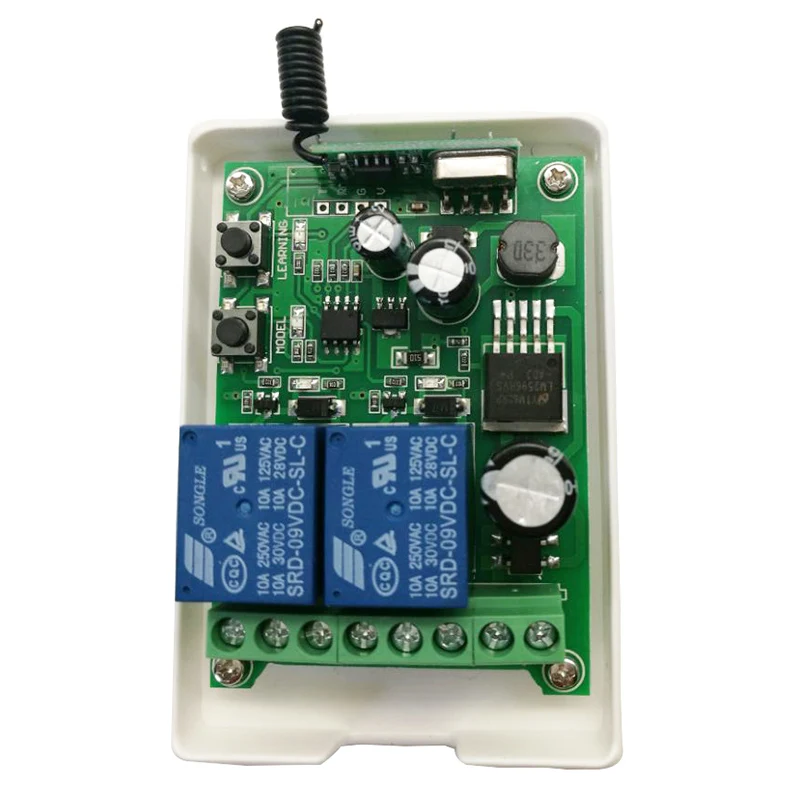

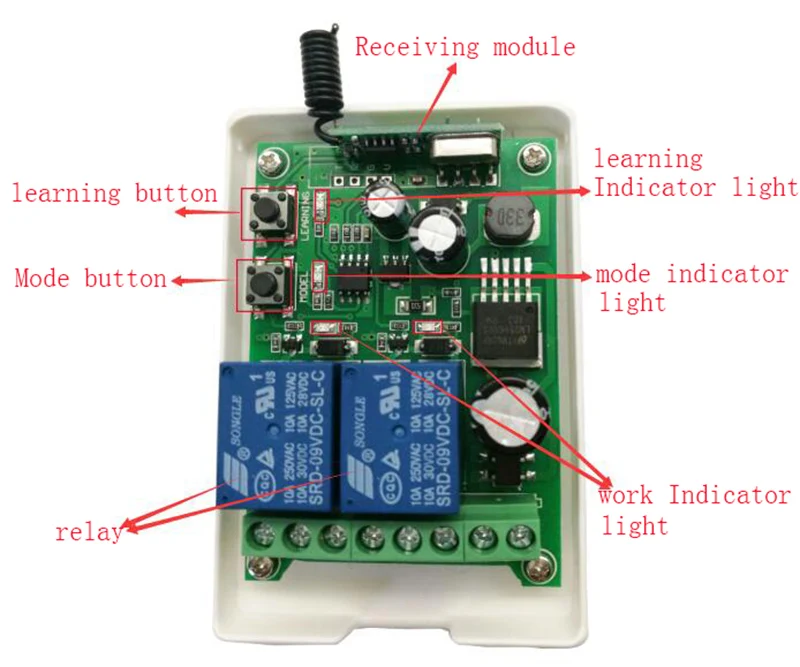

The two buttons on the receiver  are LEARNING button and mode  button (MODEL).

2. Learning methods:

Press the learning button once, the indicator light flashes (enter the learning state), press any key of the remote control, and the indicator light flashes rapidly three times, indicating the success of the learning of relay 1.Press the learning key twice and repeat the above steps to learn the second relay.

3. Work mode switch :(when all relays are closed, the power can be disconnected first and then power on again.)

Click: press the mode switch button. If the indicator flashes once, it will go out, indicating that the setting is successful.

Interlock: press two mode switch buttons;If the indicator flashes twice, the interlock setting is successful.

Self-lock: press the switch button in three modes;The indicator flashes three times and then goes out, indicating that the self-lock setting is successful.

Delay for 5 seconds: press 4 mode switch button;The indicator lights flicker four times and then go out, indicating that the delay setting is successful.

4. remove code:

Long press the study button until the indicator light is on.

Main technical parameters

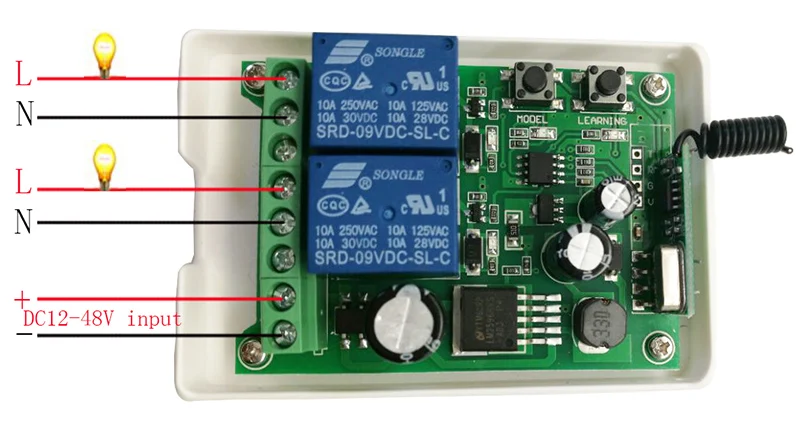

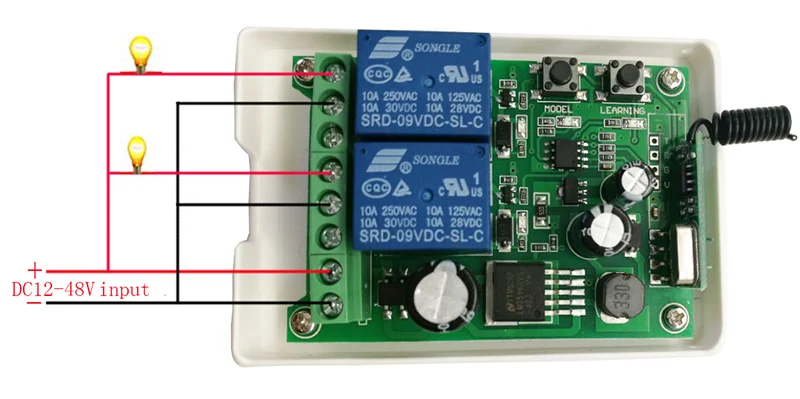

1. Working voltage: AC/ dc12-50v

2. Static current :10mA

3. Working current: 30ma-90ma

3, working temperature: - 20 ℃ to 80 ℃

4. Receiving sensitivity: -103dbm

5. Working frequency: 315frequency

6. Load range: less than 10A

7. Output mode: switch signal contact output

8. Size: 68mm*48mm*20mm

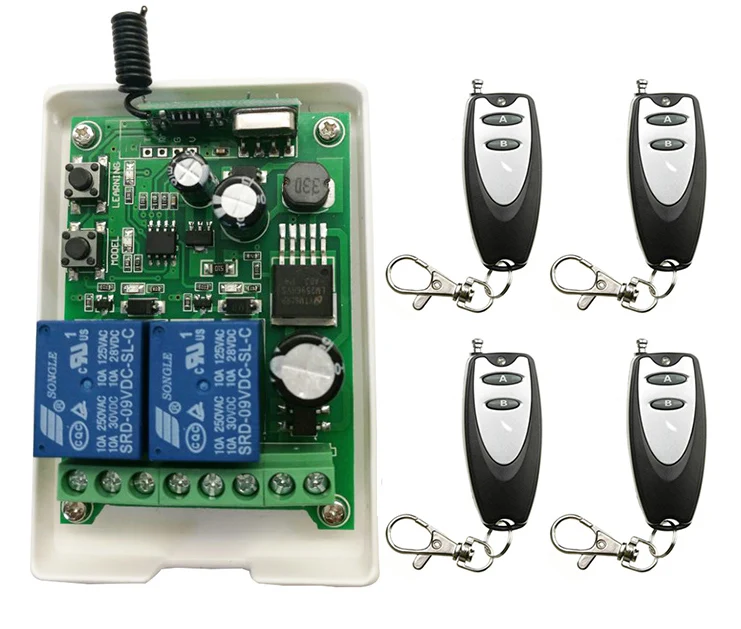

 pacote inclued:

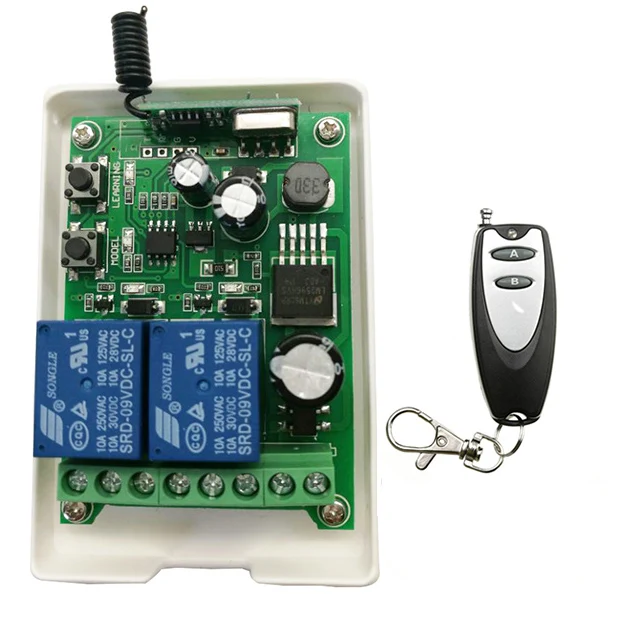

A:

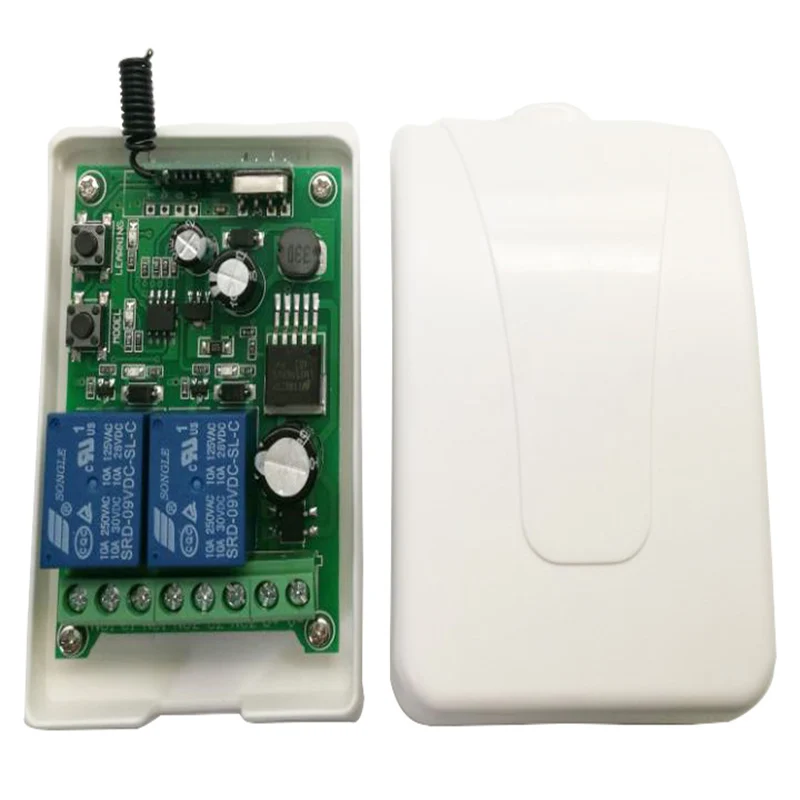

1 x Receiver(with cover)

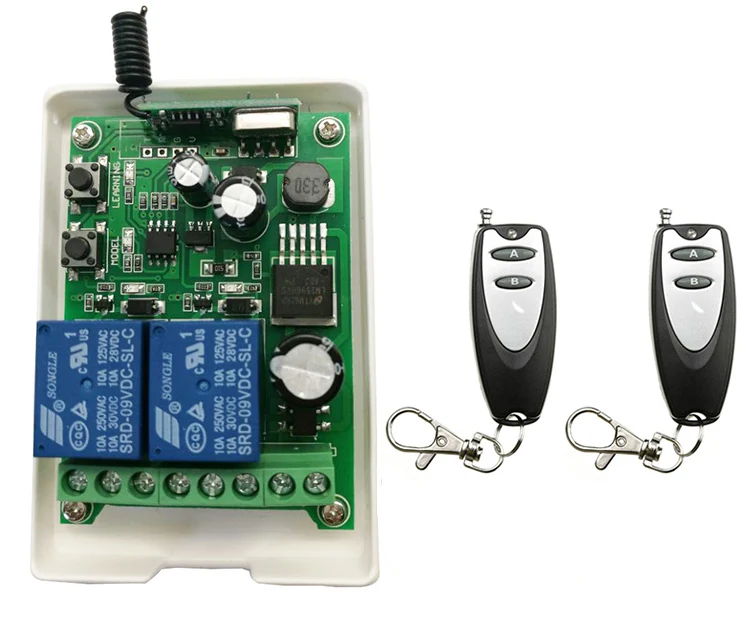

B:

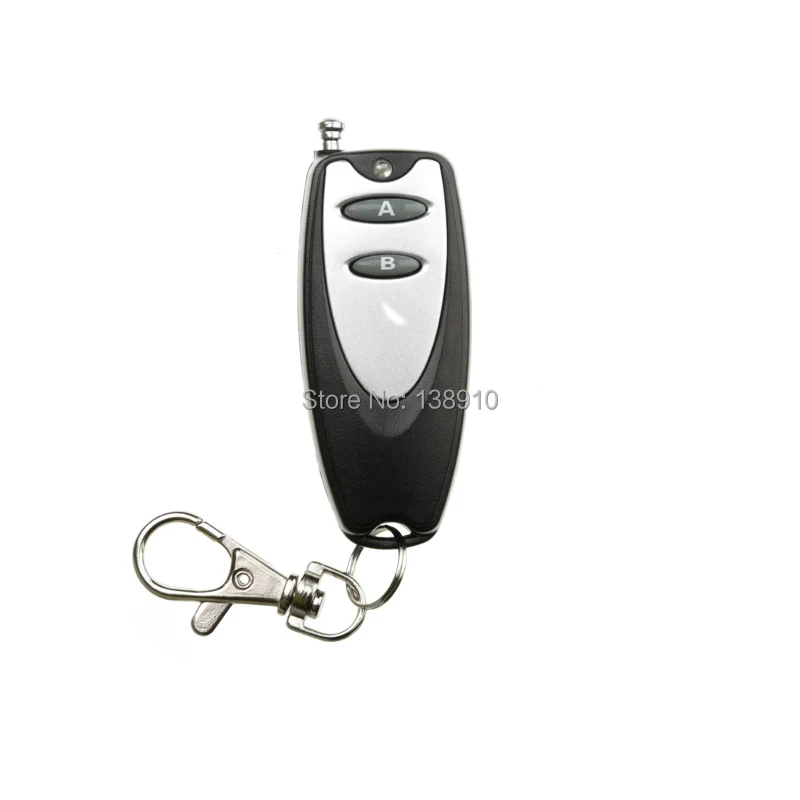

2x Transmitter(with battery)

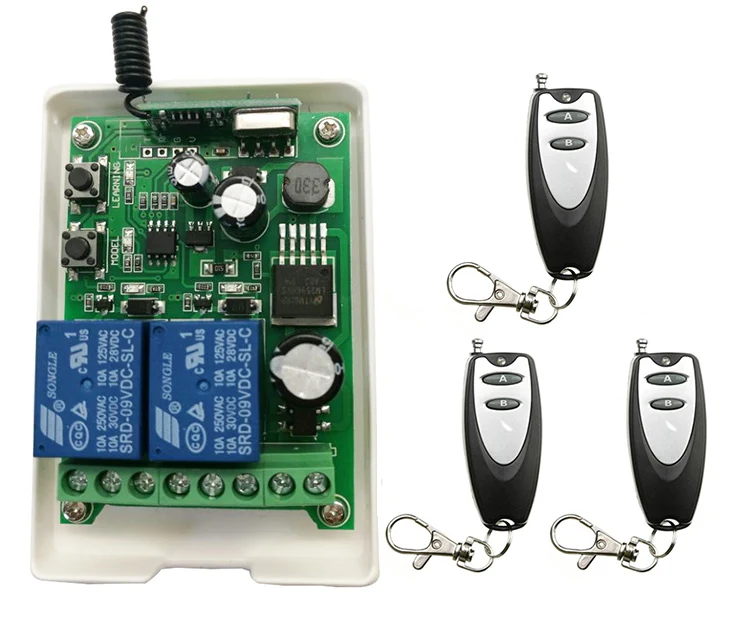

C:

3x Transmitter(with battery)

D:

4x Transmitter(with battery)
