4K 50/60Hz HDMI Matrix 4X2 Audio Extractor Switch For Dolby True HD ARC SPDIF EDID 4 In 2 Out HDMI Converter Switcher Splitter

Description:

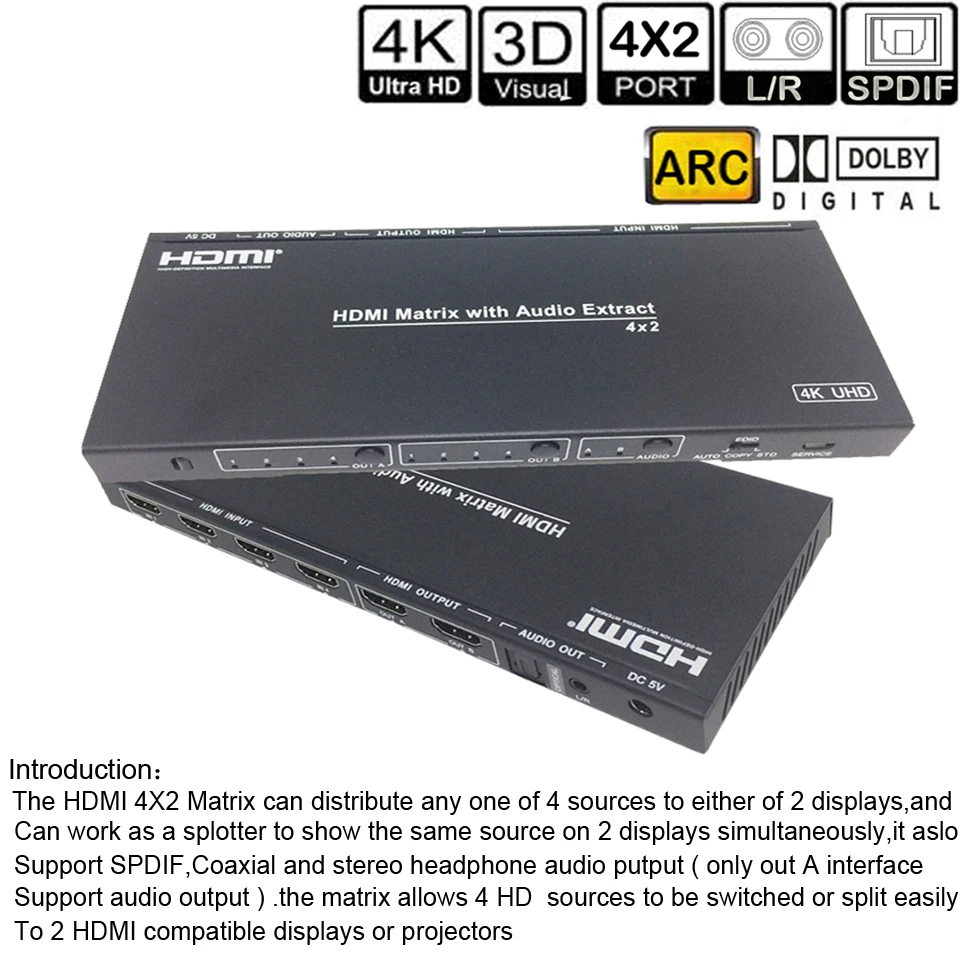

1. 4x2 Nsendato HDMI Matrix routes four HDMI sources to two HDMI displays at the same time. It supports up to 4K*2K 50/60Hz YCbCr 4:2:0 and HDCP resolution 2.2.

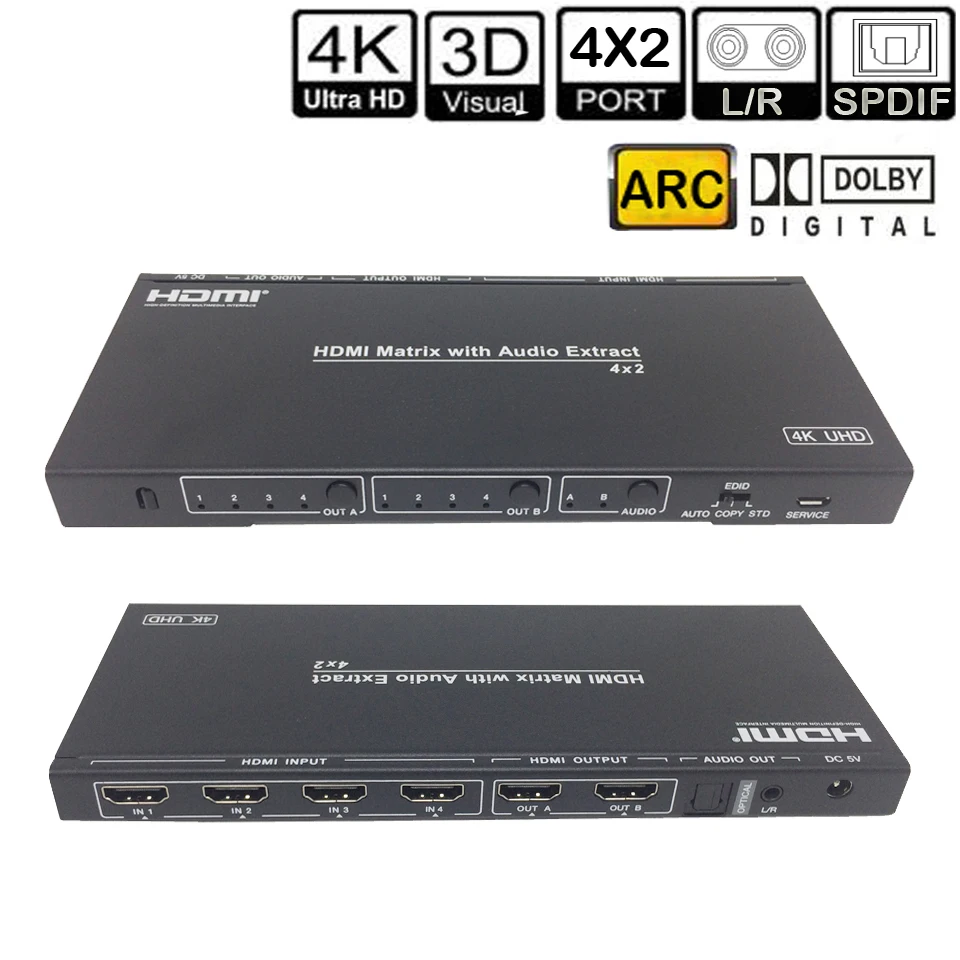

2. This product supports the extraction of optical and analog output from the audio of output A or output B port. AUTO, COPY and STD mode EDID control can be selected. Through the panel button, the infrared remote controller can be controlled flexibly.

Feature:
1. HDMI 1.4b, HDCP2.2/HDCP1.4 and DVI 1.0 are compatible.
2. Supporting HDMI resolution up to 4K2K 50/60Hz (4:2:0).
3. Support digital and analog audio extraction output of output A or output B.
4. EDID can select AUTO, COPY and STD modes through selectors on the panel.
5. Support analog audio PCM 2.0.
6. Support optical audio through formats, including LPCM 2.0/2.1CH, for Dolby 5.1, for Dolby True HD, for Dolby DD+, for DTS 5.1, for DTS-ES 6/DTS-HDMA 5.1, for DTS HD-HRA 5.1.
7. Control by panel button and infrared remote control.

Specification:
HDMI Compatibility: HDMI 1.4b
HDCP Compatibility: HDCP 2.2 and HDCP 1.4
Video bandwidth: 297 Mbps
Video resolution: 480P 60Hz, 720P 60Hz, 1080P 60Hz, 1080P 3D 60Hz, 4K24/30Hz, 4K2K 50/60Hz (4:2:0)
Color spacing: RGB/YCbCr 4:2:0, YCbCr 4:4:4, YCbCr 4:2:2
Color depth: 8 bits, 10 bits, 12 bits
HDMI Audio Format: PCM2.0/5.1/7.1CH, for Dolby 5.1, for DTS5.1, for Dolby-TrueHD, for DTS-HD
L/R Audio Format: Analog Stereo 2CH
Optical audio formats: LPCM (2.0/2.1) CH, for Dolby 5.1, for Dolby True HD, for Dolby DD+, for DTS 5.1, DTS-ES 6, for DTS-HDMA 5.1, for DTS HD-HRA 5.1
ESD Protection: ±8 kV (Air Gap Discharge), ±4 kV (Contact Discharge)

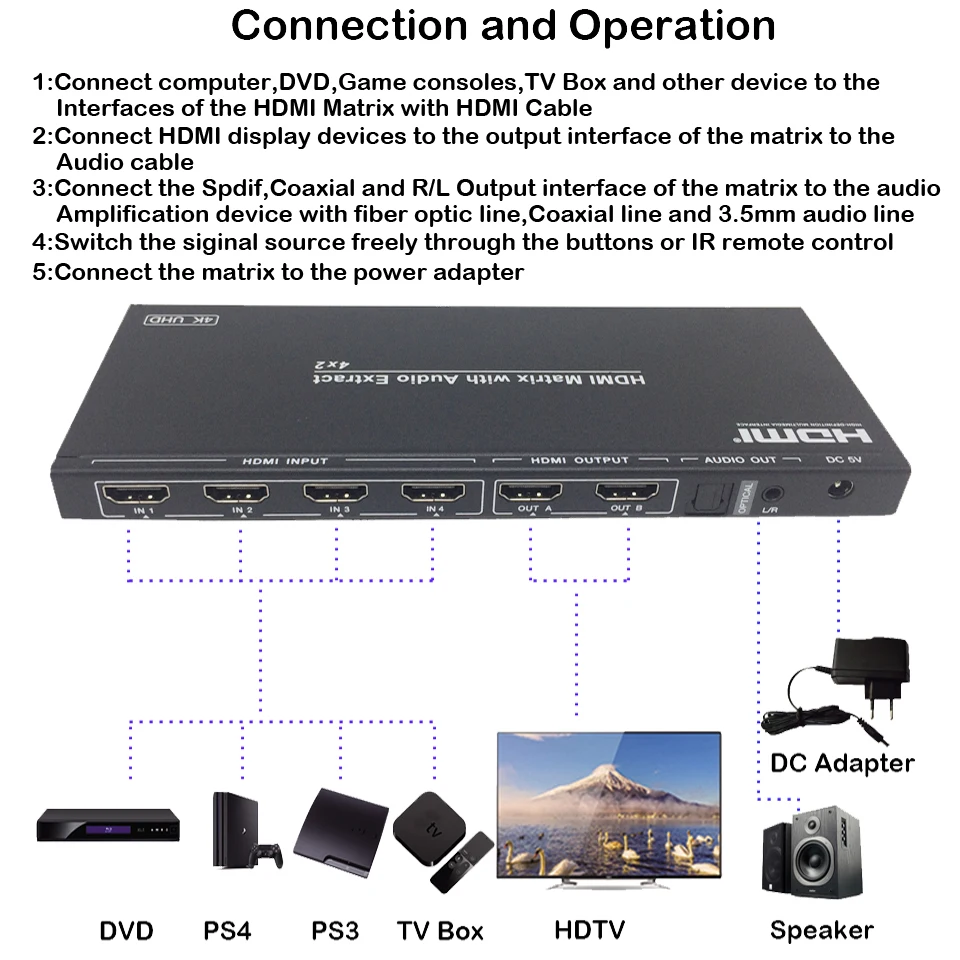

Interface:
Input:
4 x HDMI A type (19pin female head)
1 x IR Receiver Window
Output:
2 x HDMI A type (19pin female head)
1 xL/R Audio Output (3.5mm Stereo Mini-jack)
1 x optical output (S/PDIF)
Power: 2W
Working temperature: 0°C~40°C
Storage temperature: -20°C ~ 60°C
Relative humidity: 20-90% RH
Product size: 200*80*16mm/7.87*3.14*0.62''
Plug type: EU, US,AU,UK

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.

Packing:

1 x HDMI Matrix 4X21 x Power Adapter1 x Remote Controller1 x User Manual
