Оригинальный модуль беспроводной передачи данных на частоте 433 МГц SX1278 с интерфейсом SPI и скоростью 300 Кбит/с.
История изменения цены
*Текущая стоимость 4512.56 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Mar-19-2026 | 5369.48 руб. | 5637.34 руб. | 5503 руб. |
| Feb-19-2026 | 5324.87 руб. | 5590.2 руб. | 5457 руб. |
| Jan-19-2026 | 4467.79 руб. | 4690.70 руб. | 4578.5 руб. |
| Dec-19-2025 | 5234.11 руб. | 5496.68 руб. | 5365 руб. |
| Nov-19-2025 | 4557.36 руб. | 4785.19 руб. | 4671 руб. |
| Oct-19-2025 | 5144.77 руб. | 5401.46 руб. | 5272.5 руб. |
| Sep-19-2025 | 5099.16 руб. | 5354.65 руб. | 5226.5 руб. |
| Aug-19-2025 | 5053.71 руб. | 5306.90 руб. | 5179.5 руб. |
| Jul-19-2025 | 5008.8 руб. | 5258.64 руб. | 5133 руб. |
Описание товара
|

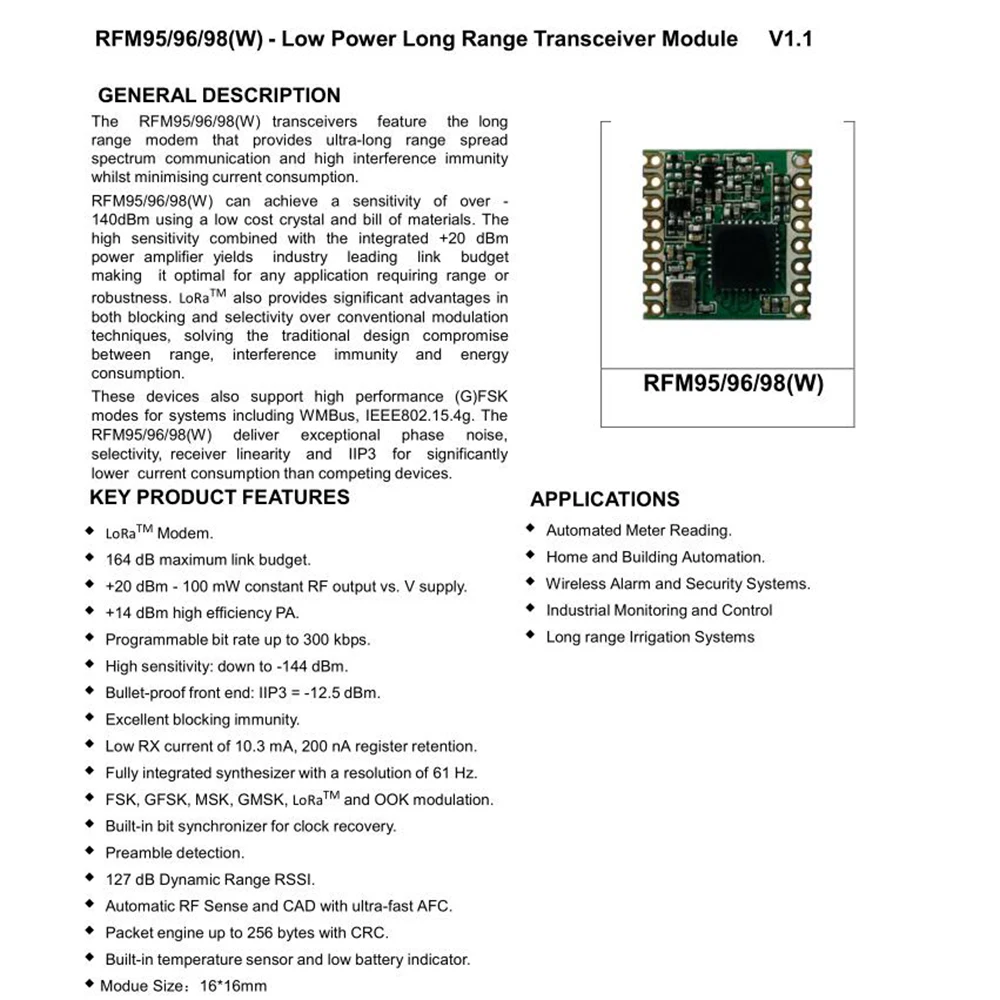

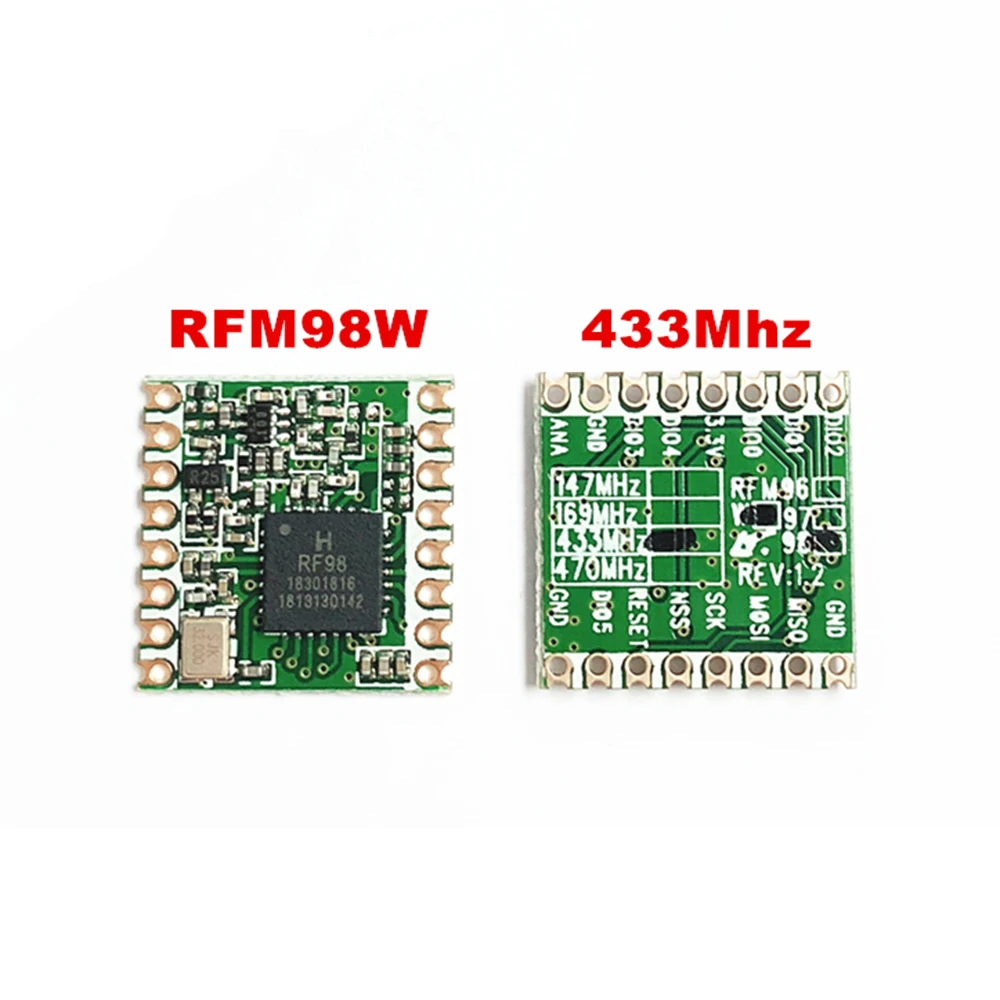

Original LoRa FSK GFSK 00K RFM98 RFM98W 433Mhz SX1278 wireless transceiver module transmission rate 300Kbps SPI data interface Basic parameters of wireless transceiver module RFM98: Working frequency: 433MHz Modulation method: LoRa/FSK/GFSK/ OOK Transmitting power: 20dBm Receive sensitivity: -136dBm (LoRa, BW = 125KHz, SF = 12,CR=4/5, 1% PER) Transmission rate: FSK: 300Kbps; OOK: 32Kbps; Emission current: 120mA (+20dbm) Receive current: 10.8mA Standby current: 0.2μA Data interface: SPI Communication distance: >8000 meters (about 1.2kbps rate, visible distance) @LoRa Antenna impedance: 50Ω Working temperature: -20 ~ +70 ° C Power supply mode: DC 1.8 ~ 3.7V, 1.8V power supply transmission power will not drop Module size: 16x16mm Wireless transceiver module RFM98 differentiation advantages: ● Adopting the latest LoRa spread spectrum modulation technology, the communication distance is long, and the anti-interference is very strong. ● Link budget is greater than 157dB, mainstream application, cost-effective ● Under the same application and transmission power, the distance is more than 3 times that of the ordinary FSK module. ● Small and highly integrated module design for easy implant product design ● 470MHz frequency band, suitable for domestic three-table collection application The main application of wireless transceiver module RFM98: Wireless meter reading system, industrial monitoring system, wireless remote control equipment, mining safety monitoring, extreme remote data communication, field data remote control, building community automation, security, garage, subway, tunnel monitoring equipment, etc. Wireless transceiver module RFM98 certification report: FCC, ETSI, ROHS Item Pictures ====================================================================
RFM98W Module *1PCS
