Hot Sale Desktop Color Haze Meter YS6002 High Precision Lab Lighting Equipment Free Shipping Color Haze Meter

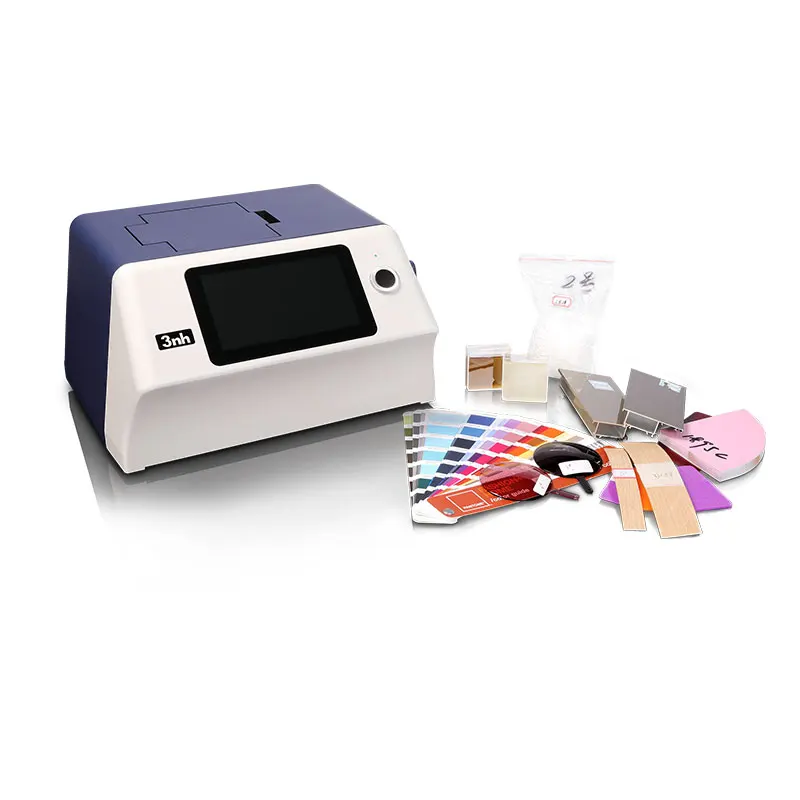

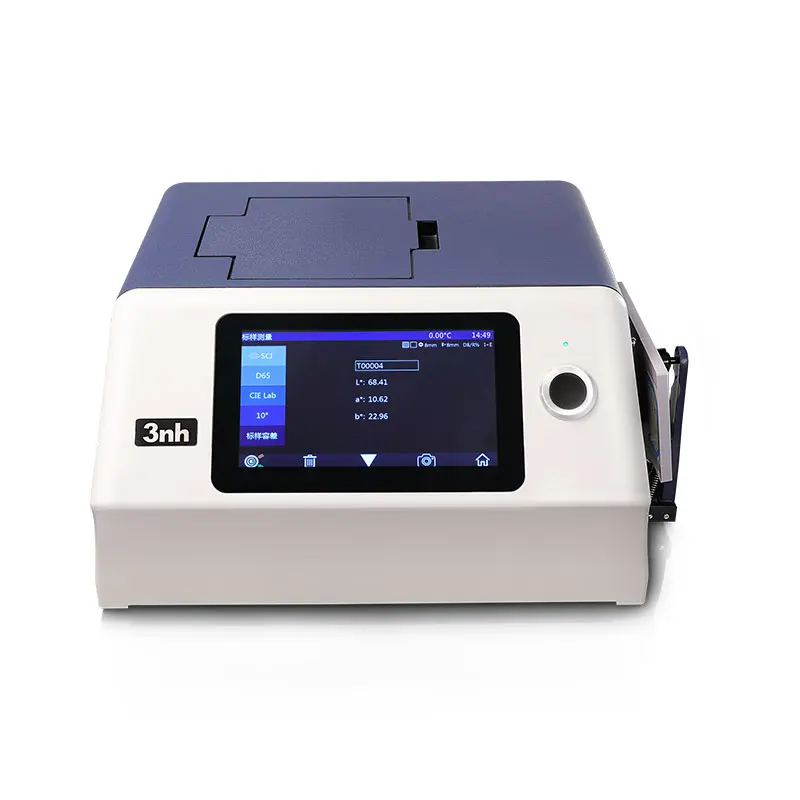

Introduction to YS6002 desktop color haze meter YS6002 desktop color haze meter is a domestically produced color haze meter independently developed by 3nh company with independent intellectual property rights. The instrument meets the transmission optical D/0 (diffuse illumination, 0° direction receiving) geometric optical structure specified by CIE 15 (also available) Achieves a near-transmission 0/0 (parallel light illumination / 0 degree reception) geometric optical structure). The instrument illumination source is a 360~780nm composite full-spectrum LED light source (D65), which achieves 10nm spectral acquisition through a precision concave grating and a 256-pixel CMOS detector. Accurate testing of various optical indicators (haze, transmittance, chromaticity, chromatic aberration, yellowness, whiteness, cobalt-platinum index, Gardner index, etc.) according to industry standards. It is widely used in glass processing, plastic processing, film manufacturing, display processing and packaging industry, liquid liquid analysis, laboratory and other industries.     YS6002 desktop color haze meter features a. High hardware configuration: 7吋TFT pure color capacitive touch screen; 25,000 storage spaces; USB/Bluetooth 4.0 dual communication mode; concave grating; b. Higher optical configuration and optical resolution, 154mm integrating sphere, concave grating, 256-pixel CMOS detector, dual optical path; c. Adopt high-life and low-power 360~780 full-spectrum combined LED light source (close to D65 source spectrum); d. Easily achieve accurate measurement of C/A/D65 source haze (ASTM D1003/1044), transmittance, cobalt-platinum index, Gardner index; e. Multiple measurement modes: quality mode, sample mode, to meet more customer needs; f. Independent light source detector and temperature sensor, monitor the light source and environmental changes at all times to ensure reliable test data; g. Two standard observer angles of 2/10, a variety of light source modes, a variety of color systems, in line with a variety of standard color indicators, to meet the needs of various customers for color testing; h. Good human-computer interaction and test accuracy and stability; i. PC software has powerful function extensions;       Desktop color haze meter technical parameters Model YS6002 Lighting mode Transmission: D/0 (diffuse illumination, 0° direction reception); Approximate CIE15 specifies 0/0 (parallel light illumination / 0 degree reception); Meet the standards: ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7 Features Glass processing, plastic processing, film, display processing, packaging industry, liquid chemical analysis and other industries are widely used in haze analysis and transmittance testing. Integrating sphere size Φ154mm Lighting source 360~780nm combined LED light source Splitting method concave grating Sensor 256-pixel dual array CMOS image sensor Measuring wavelength range 360~780nm Wavelength interval 10nm Half bandwidth 10nm Transmittance measurement range 0~200% Measuring aperture Transmission: Φ25.4mm Color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, Musell, s-RGB, HunterLab, βxy, DIN Lab99 Color difference formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter) Other Chroma Index Haze (ASTM D1003/1044), Transmittance T, WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), TI (ASTM E313, CIE/ISO), Metamerism index Mt, Color fastness, color fastness, strength, coverage Cobalt platinum index, Gardner index Observer angle 2°/10° Observation source D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 Display Spectrogram/Data, Sample Chroma Value, Color Difference/Graph, Color Chart, Color Simulation, Pass/Fail Results, Color Bias Measuring time about 1.5s Repeatability Spectral transmittance: Test transmission reference white standard deviation within 0.05% (400~700nm: within 0.04%): Chromaticity value: Φ25.4mm, ΔE*ab 0.03 or less (after the instrument is preheated, the transmission reference white is measured at intervals of 5s. The difference between the stages is Φ25.4mm, ΔE*ab is less than 0.15 (the average value of the original 5 standard transmission swatches) Size Length X Width X Height = 370X300X200mm Weight about 9.6kg Power supply mode DC 24V, 3A power adapter power supply Illumination source life 5 years more than 3 million measurements Display TFT True Color 7inch, capacitive touch screen Interface USB, print serial port Store data standard 5000, sample 20000 Language Simplified Chinese, Traditional Chinese, English Operating temperature range 0~40°C (32~104°F) Storage temperature range -20~50°C (-4~122°F) Standard accessories Power adapter, manual, quality management software (official website download), data cable, reflective whiteboard, reflective black tube, transmission blackboard, 25.4 caliber, transmission test fixture assembly Optional accessory micro printer
