Arduino Compatible Dissolved Oxygen Sensor Probe Water Quality DO Tester O2 Electrode with Transmitter Board without electrolyte |

Arduino Compatible Dissolved Oxygen Sensor Probe Water Quality DO Tester O2 Electrode with Transmitter Board without electrolyte |

Transportation does not include liquids, (because liquids cannot pass the security check)

Introduction

This is an arduino compatible dissolved oxygen sensor, which is used to measure the dissolved oxygen content in water and reflect the water quality. It can be applied to water quality testing in aquaculture, environmental testing, natural science and other fields.

As the saying goes, "Fish culture first raises water, and good water raises good fish." Good water quality is very important to aquatic life. Dissolved Oxygen is one of the important parameters for reflecting the quality of water. Once the dissolved oxygen value in the water is too low, it will cause aquatic organisms to breathe hard and threaten their survival.

We have introduced an arduino-compatible dissolved oxygen sensor for measuring the dissolved oxygen content in water and reflecting the water quality. It can be used for water quality testing in aquaculture, environmental testing, natural science and other fields. This product is simple and easy to use, so DIY a set of dissolved oxygen detector is no longer a difficult threshold.

The dissolved oxygen electrode of this product is a galvanic electrode, and no polarization time is required. The filling fluid and the induction membrane can be replaced, and the maintenance cost is low; the signal transfer board has the characteristics of wide working voltage, convenient wiring, plug and play, etc., and can be easily connected to an existing control system.

This product is easy to use, has strong compatibility, open source code, and detailed supporting materials. It can be quickly applied to the required scenes and keep the "source of life" for your aquatic life!

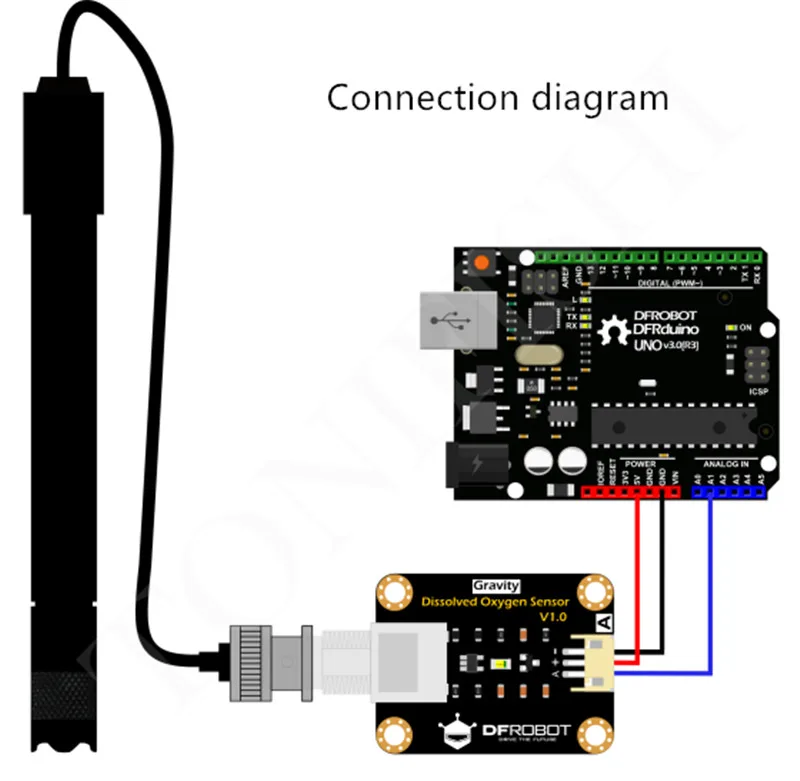

Arduino Dissolved Oxygen Sensor connection diagram

Precautions:

1. Before using a new dissolved oxygen electrode, the membrane cap located on the electrode head needs to add 0.5mol / L sodium hydroxide solution as the electrode filling liquid (domestic customers, default delivery, if you need to configure it yourself, please see the VKU FAQ- Q4). This solution is highly alkaline, please wear waterproof gloves before operation. If accidentally dripped onto the skin, please rinse with plenty of water.

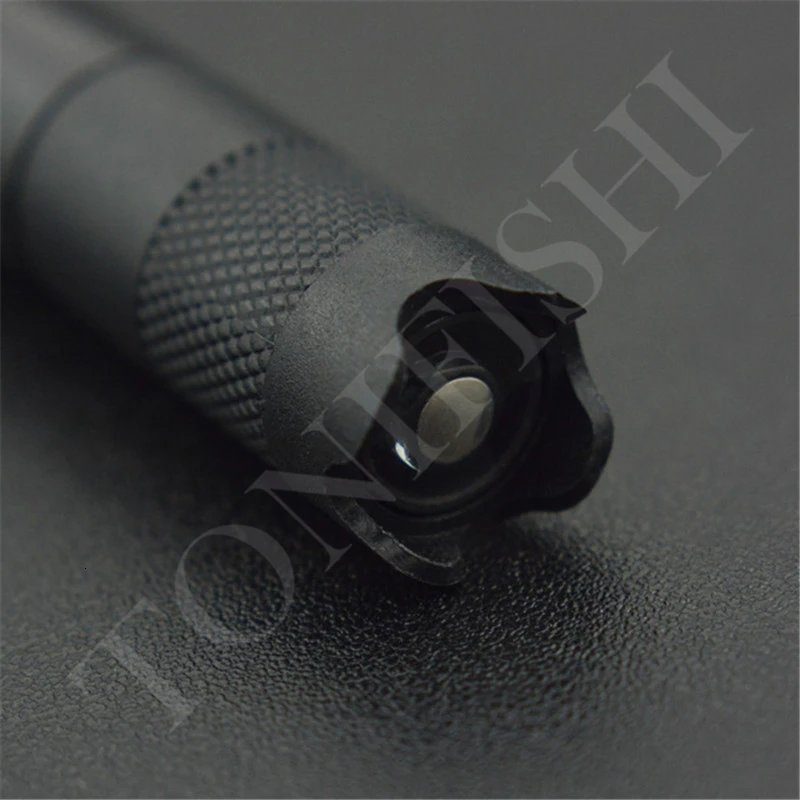

2. The transparent oxygen permeable membrane on the membrane cap is a sensitive element. Please take care to protect it from touching with nails or other sharp objects.

3. The dissolved oxygen electrode needs oxygen during the measurement process, so when measuring, you need to stir the liquid gently so that the dissolved oxygen is evenly distributed in the liquid. But do not stir vigorously to prevent the oxygen in the air from quickly dissolving into the liquid!

characteristic

Dissolved oxygen electrode:

Adopting galvanic electrode, no polarization time required

Replaceable electrode filling liquid and membrane cap, low maintenance cost

Signal transfer board:

Power supply voltage is 3.3 ~ 5.5V, wide voltage range

Output signal is 0 ~ 3.0V, good compatibility

Gravity interface, simple wiring, plug and play, no soldering required

Technical specifications

Dissolved oxygen electrode:

Electrode type: primary battery

Detection range: 0 ~ 20mg / L

Temperature range: 0 ~ 40 ℃

Response time: 90% to 98% full response (25 ° C)

Pressure range: 0 ~ 50PSI

Flow conditions: 0.3 mL / s

Electrode core life: 1 year (under normal use)

Maintenance time: Depending on the water quality, the membrane caps usually need to be replaced for 1-2 months for muddy water; the membrane caps are usually replaced for 4 to 5 months for clean water. The electrode filling solution is recommended to be replaced every month.

Cable length: 2 meters

Connection interface: BNC

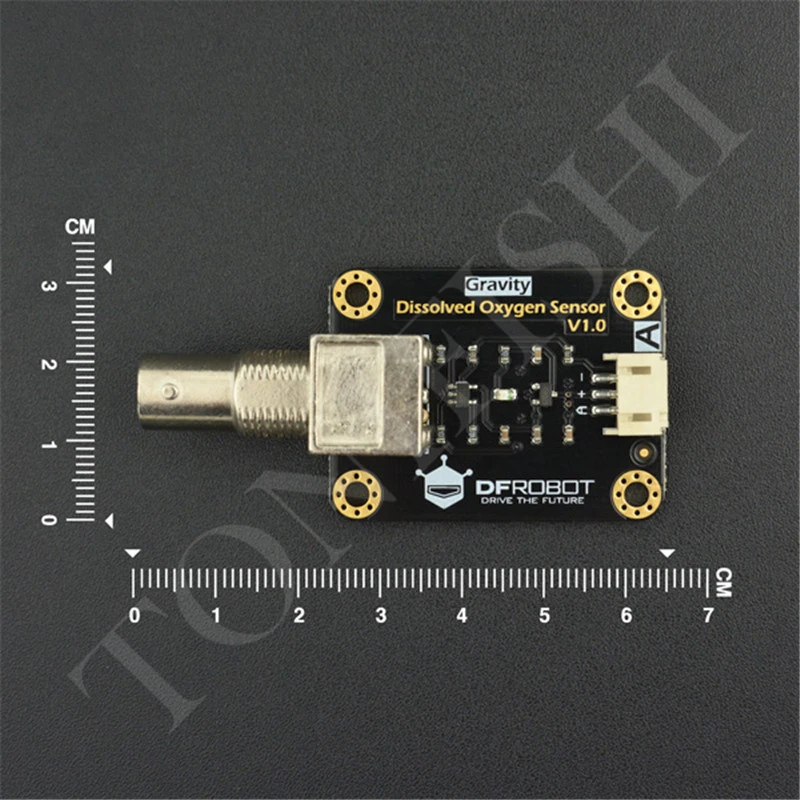

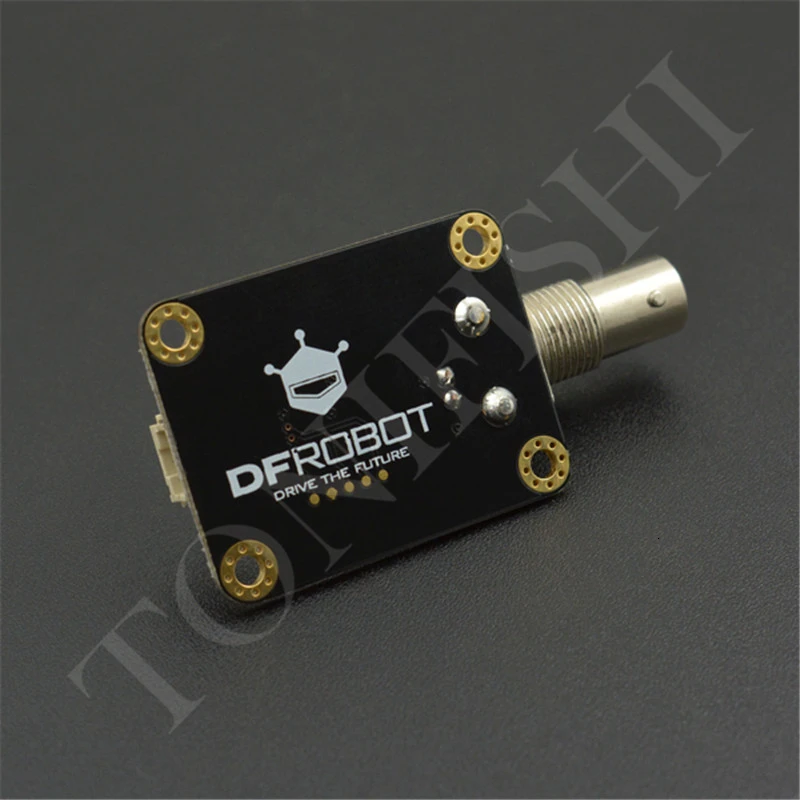

Signal transfer board:

Power supply voltage: 3.3 ~ 5.5V

Output voltage: 0 ~ 3.0V

Electrode interface: BNC

Signal interface: Gravity interface (PH2.0-3P)

Product size: 42 * 32 mm

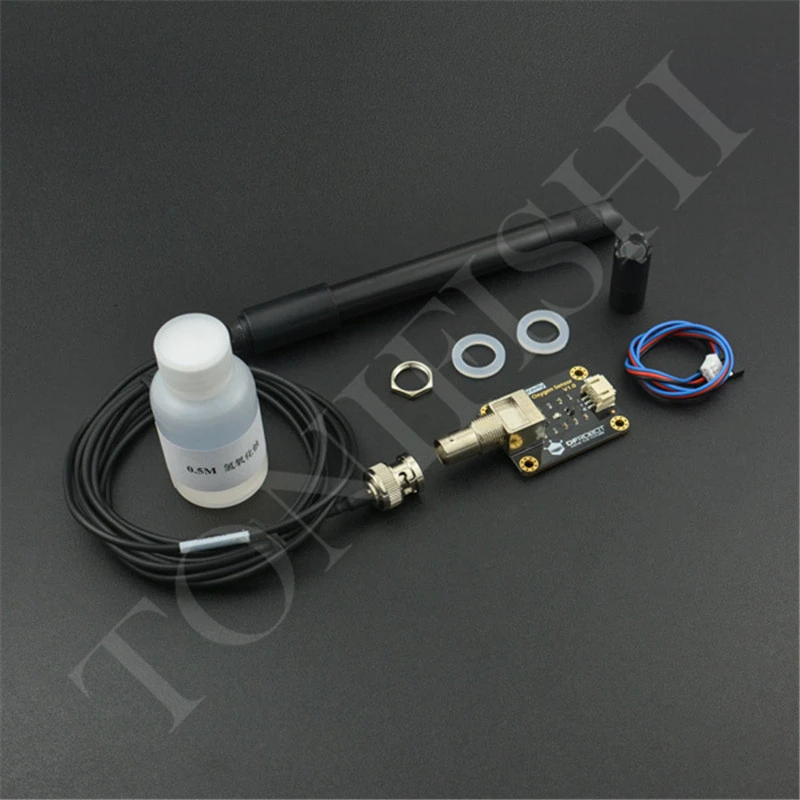

Shipping list

Primary battery type dissolved oxygen electrode (with membrane cap) x1

Spare film cap x1

Signal transfer board (transmission board) x1

Analog sensor cable x1

Waterproof gasket x2

BNC hexagon metal nut x1

Plastic dropper x2
