Diese 433MHz Universal Wireless Remote Control AC 220V 10Amp 1CH RF Relay Switch and Transmitter for Remote Lighting Controller

  Product Application Area

Remote control garage door \  Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

  Package include

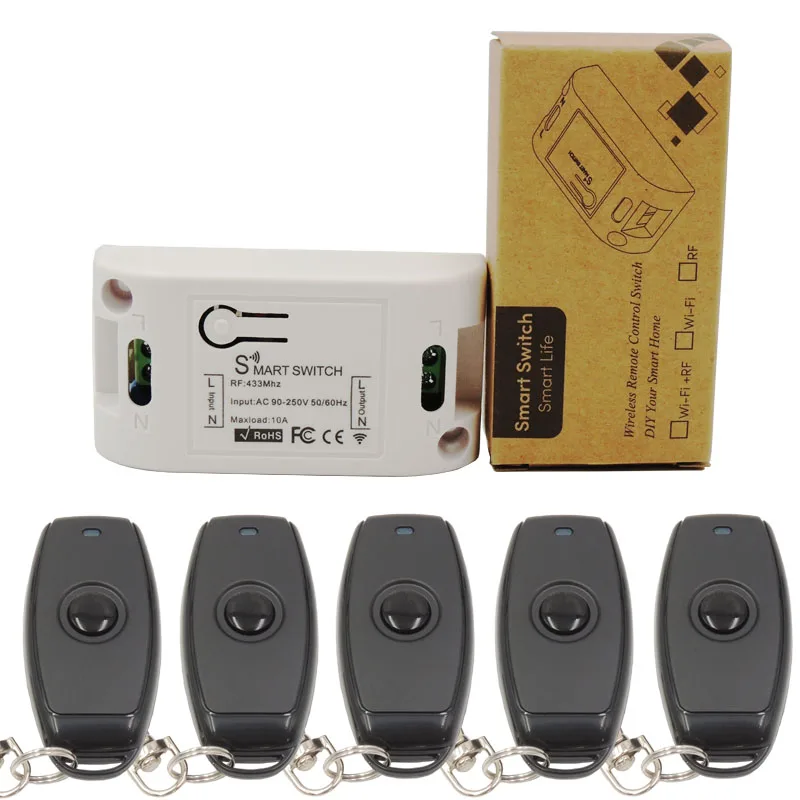

Order Package Include:(5 order model can be chosen)

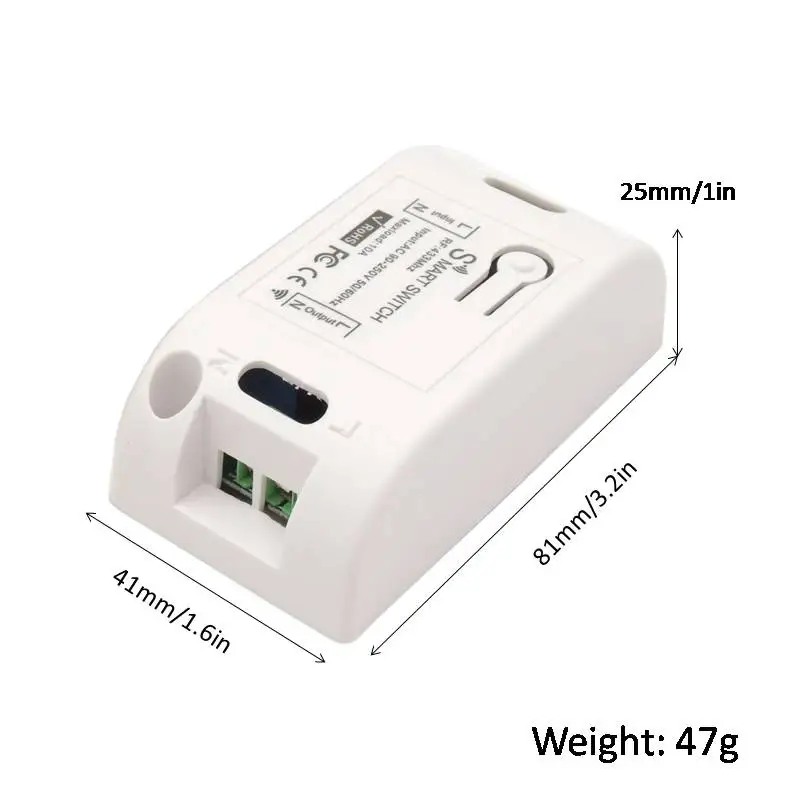

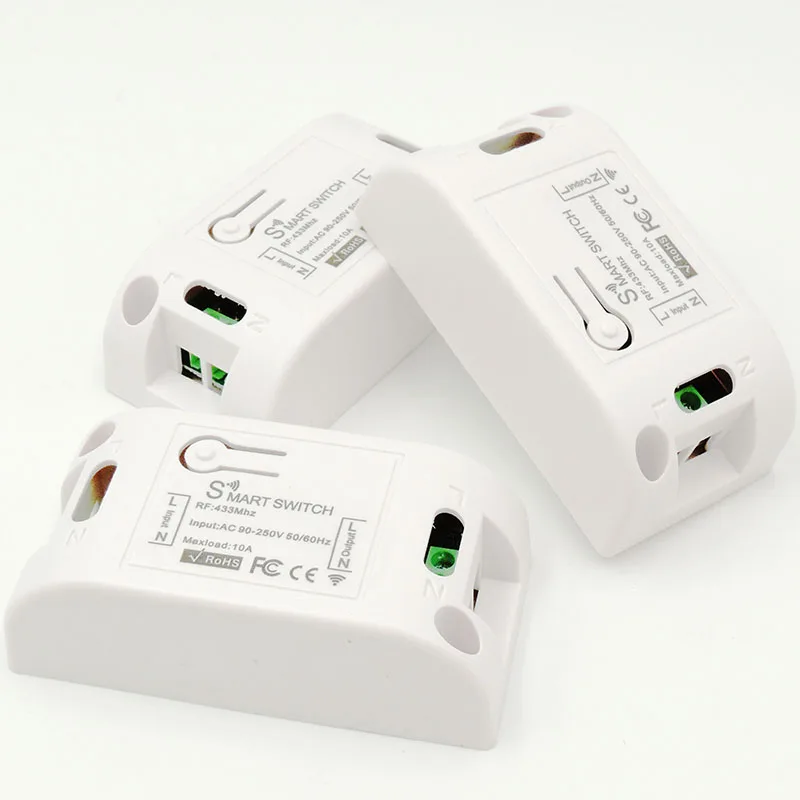

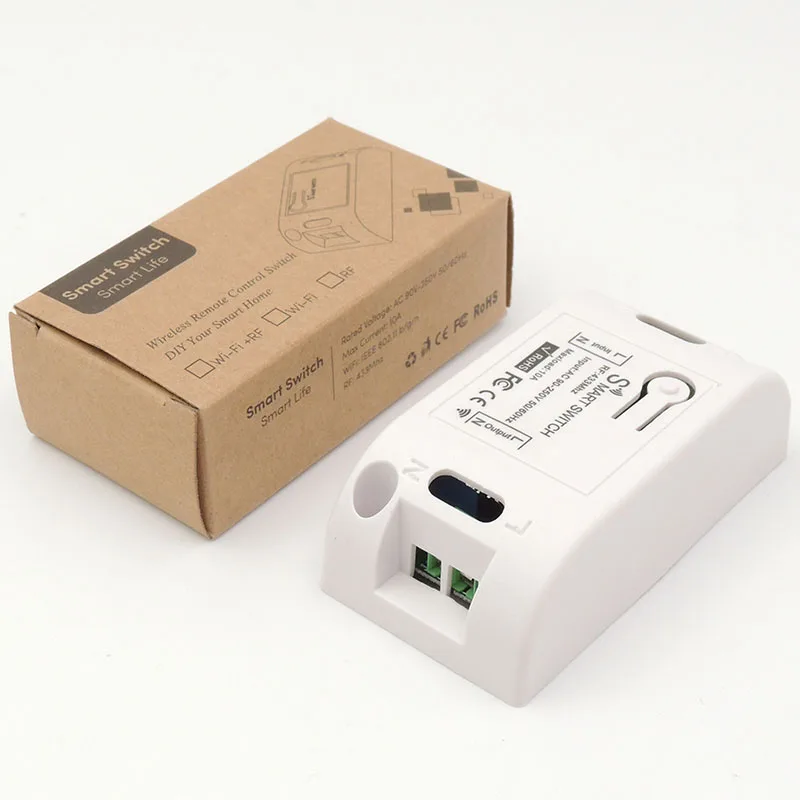

Receiver module   ( include Shell )

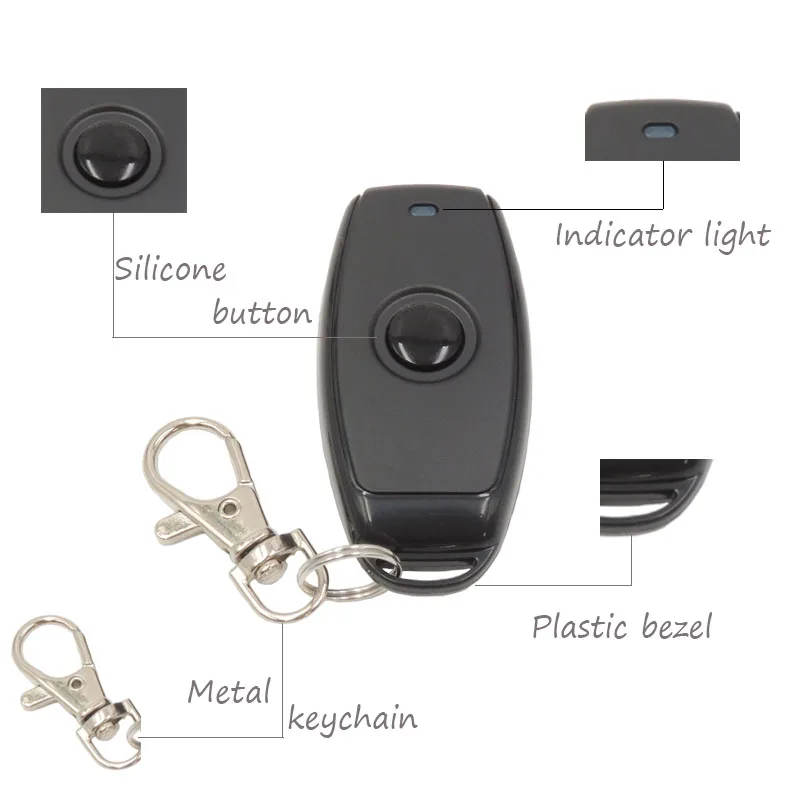

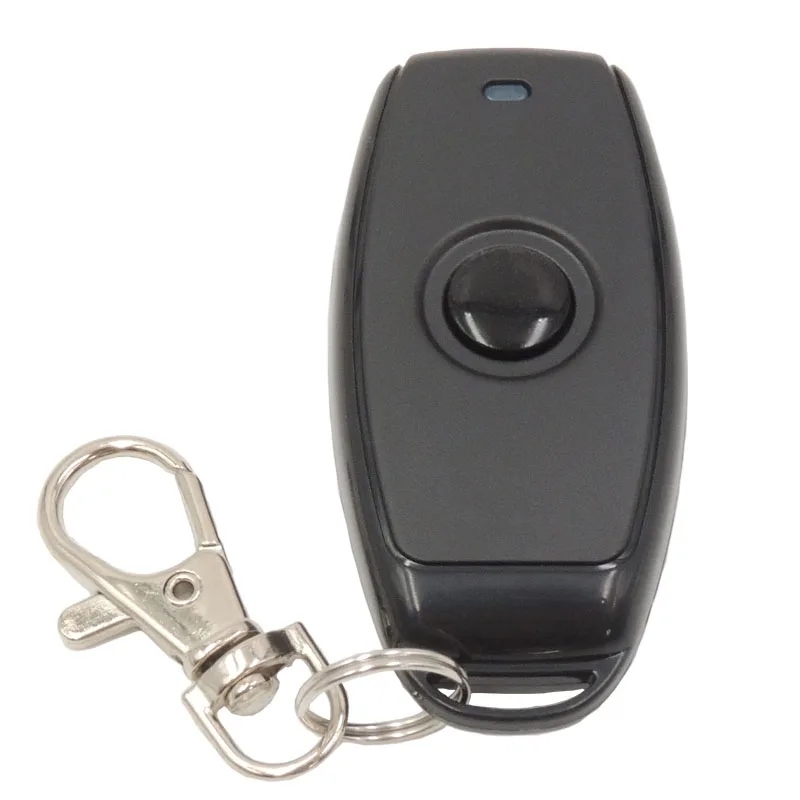

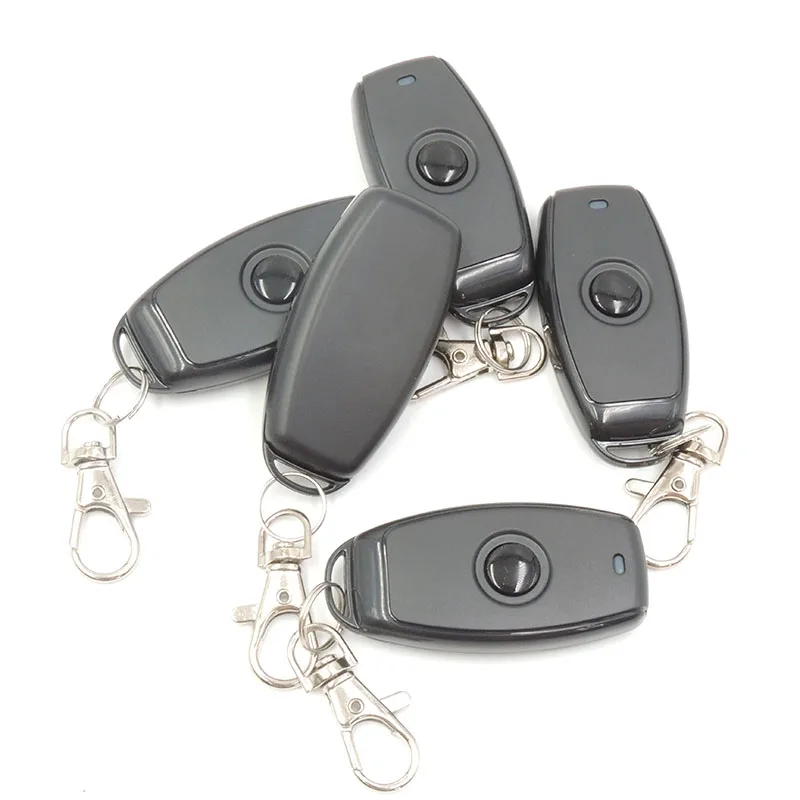

Remote Control   (include battery )

  Technical Data     Product Type: Single Channel Remote Control Switch Encoding Type: Intelligent Learning Code 1527 RF Working Mode: Superheterodyne Reception Modulation Mode:ASK RF Frequency: 433MHz Working Mode:Momentary, Toggle and Latched Input Voltage: AC 85V~250V  Quiescent Current: 5mA  Receiving Sensitivity: >97dbm  Remote Control Range: >50m (Free Space) Wired Connection Way: Fixed Wiring Pillar Output Terminal: L /N L :  Living line N : Neutral line Color: Green(PCB Board), White (Outside Shell)       Products Display



Tips: All of our products are of high quality! If you have other needs, please feel free to purchase them in our store.

Click here to search more



  Circuit Connection modes

    Operating Mode   You can match the Remote Control with the Receiver Switch Module in 3 modes.

• Remote mode 1:  Momentary Mode

Press and hold on one button -> ON; Release the button -> OFF



• Remote mode 2:  Toggle Mode

Press one button -> ON; Press the same button again -> OFF



• Remote mode 3:  Latched Mode

Press one button "A"-> ON; Press another button "B" -> OFF

      Set Up

-  Part 1:  Delete the existing data about remote mode

 Note:     When you receive our products, it maybe set in one remote mode randomly, that because each product got test when it can be arranged to shipment.So, please delete the existing data about    remote mode    for the first application.   Press the learning button on the Receiver Switch Module board 8 times , the existing data are deleted successfully.

  -  Part 2:  Set up the Remote Mode

Remote mode 1: Momentary Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board once. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button on the    Remote Control    , the LED on the receiver board will flash on then off indicating the button was learned.   Wait 3 seconds, the LED will turn on again, indicating system is ready for use.



Remote mode 2 :     Toggle Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board twice. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button on the Remote Control, the LED on the receiver board will flash on then turn off ,    indicating the button was learned.   Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use



Remote mode 3 : Latched Mode

• STEP 1

Press and release the learning button on the Receiver Switch Module board triple. Wait for a moment , the LED will turn off , indicating you entered the learning state.

• STEP 2

Press and release one button "A"   on the Remote Control, then press another button "B" , the on-board LED indicator will flash 5 times to inform that the setting of latched mode successful .    The first pressed button "A" stands for ON , and the second pressed button "B" stands for OFF.      Wait 3 seconds, the LED indicator will turn on again , indicating system is ready for use
