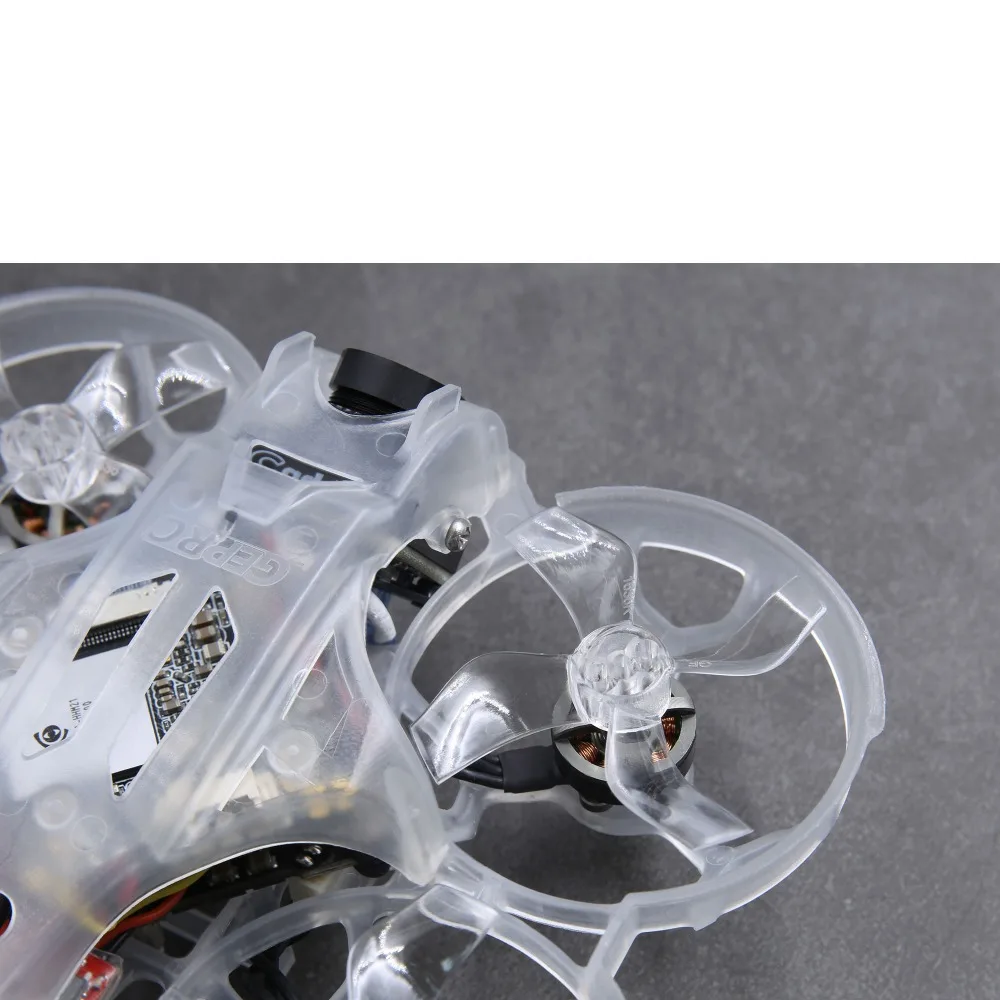

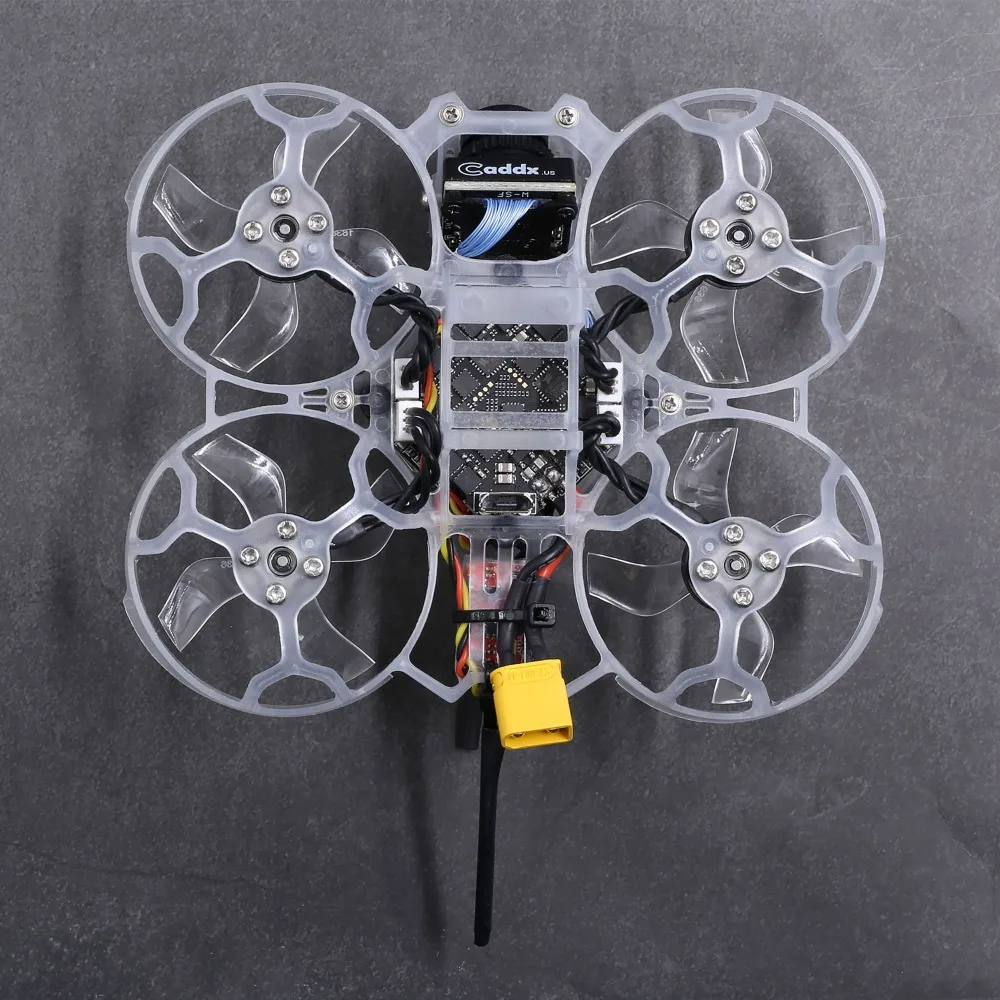

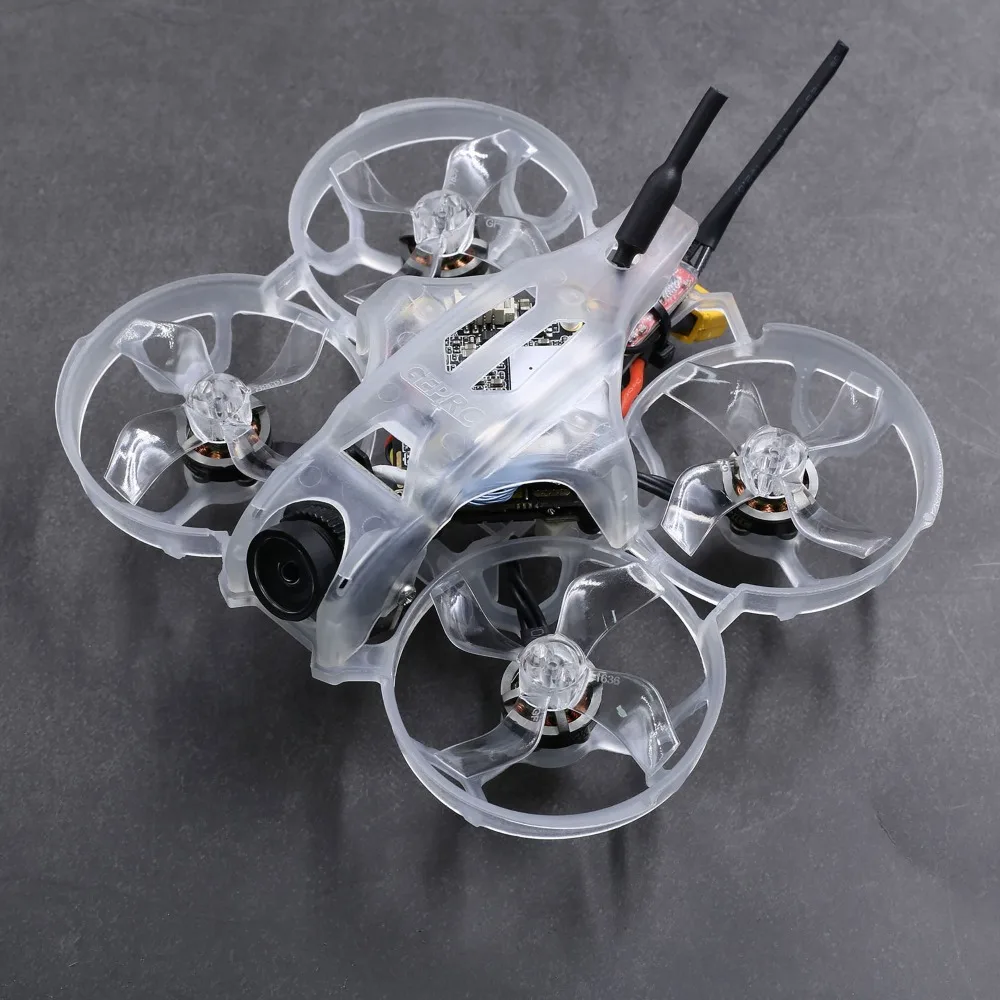

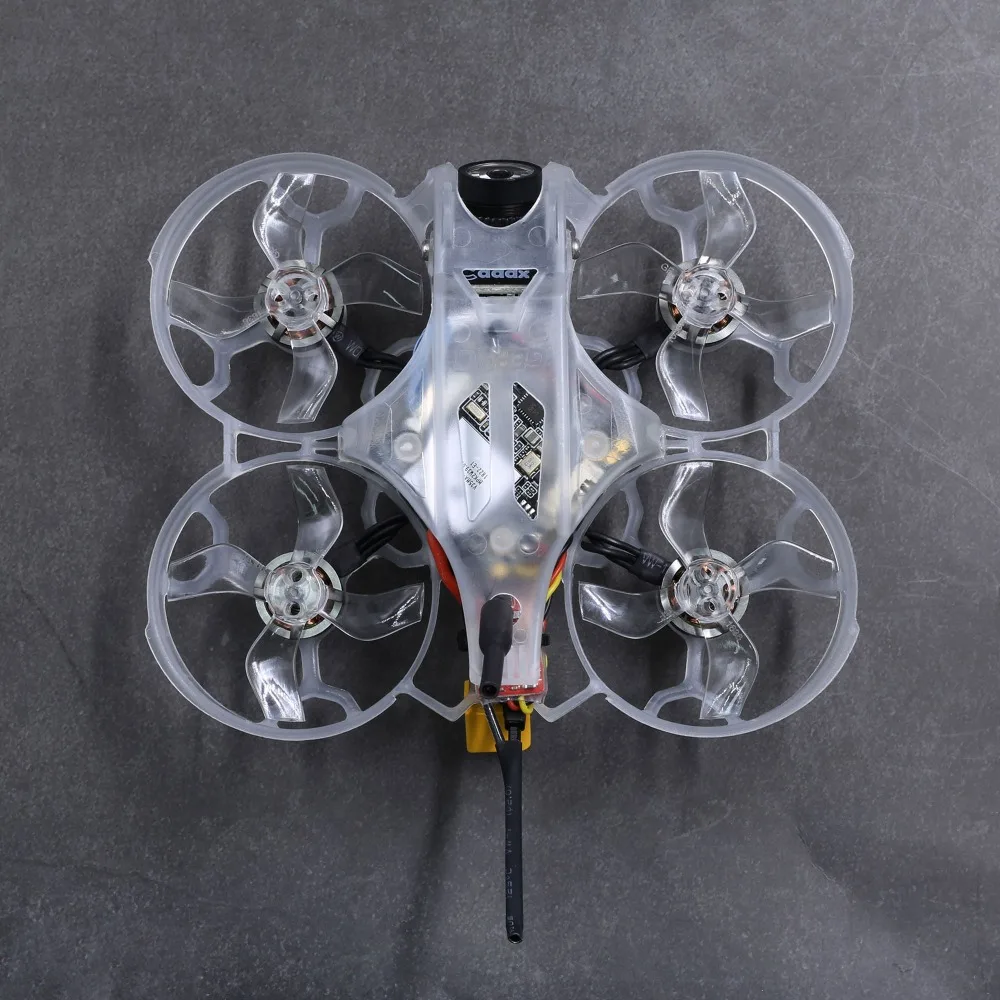

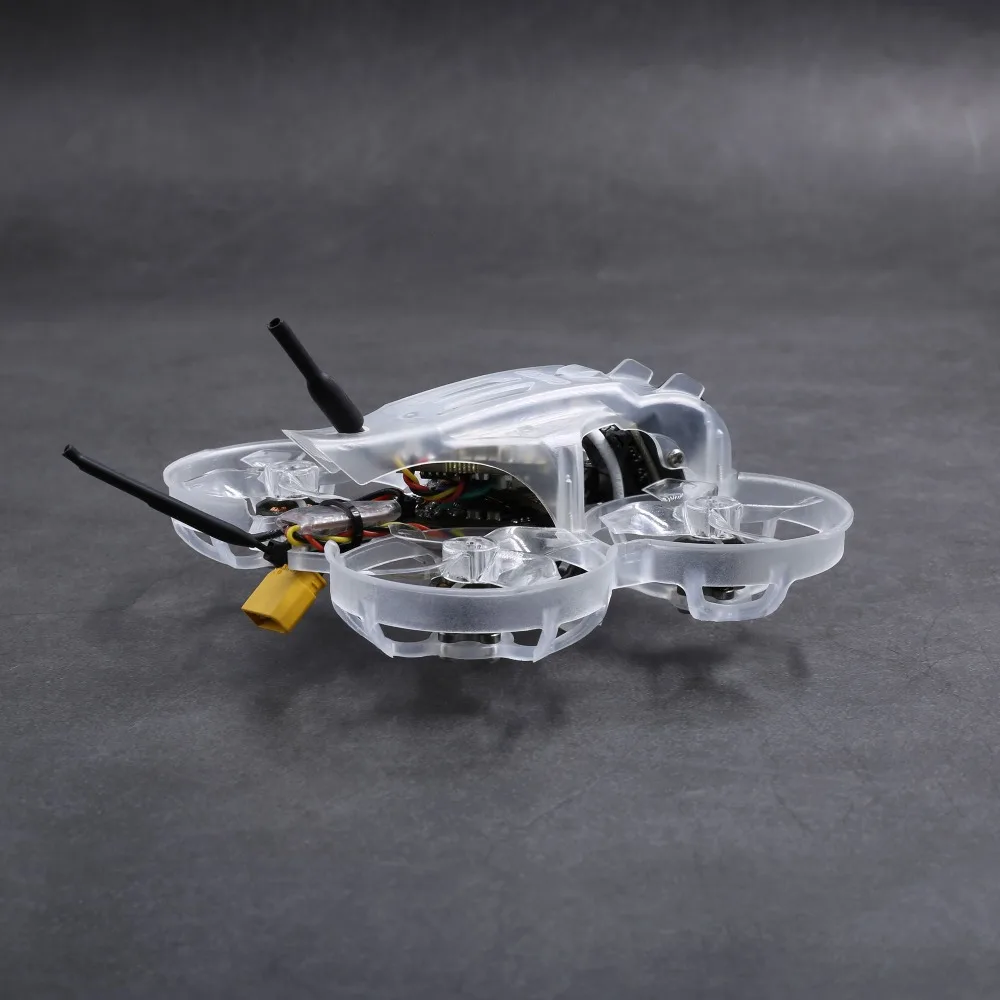

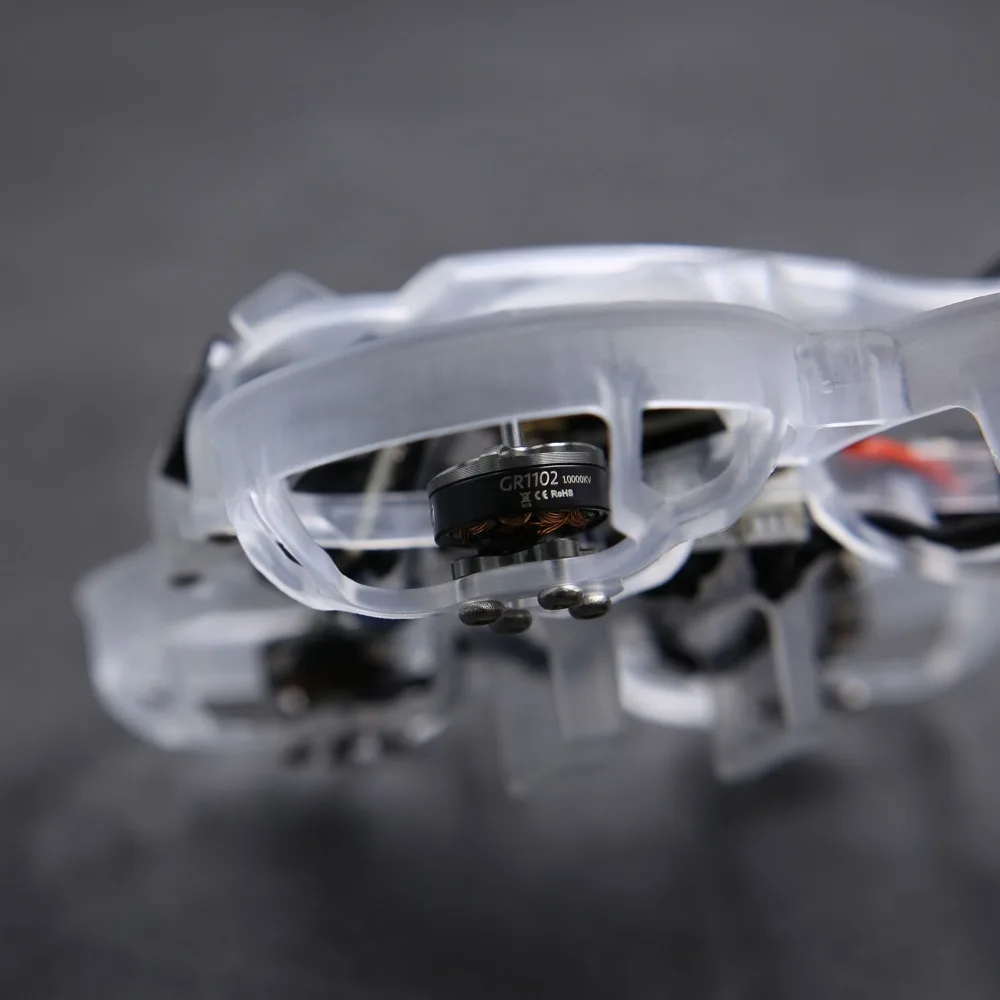

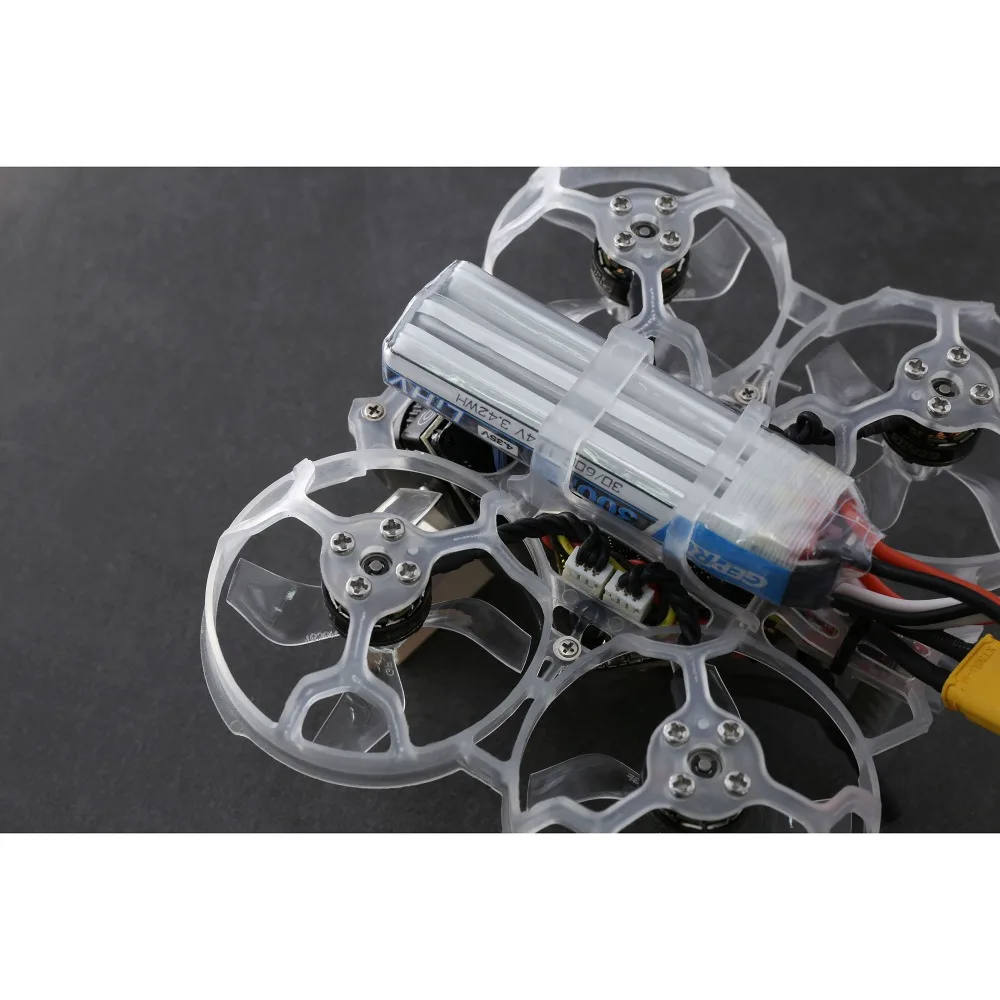

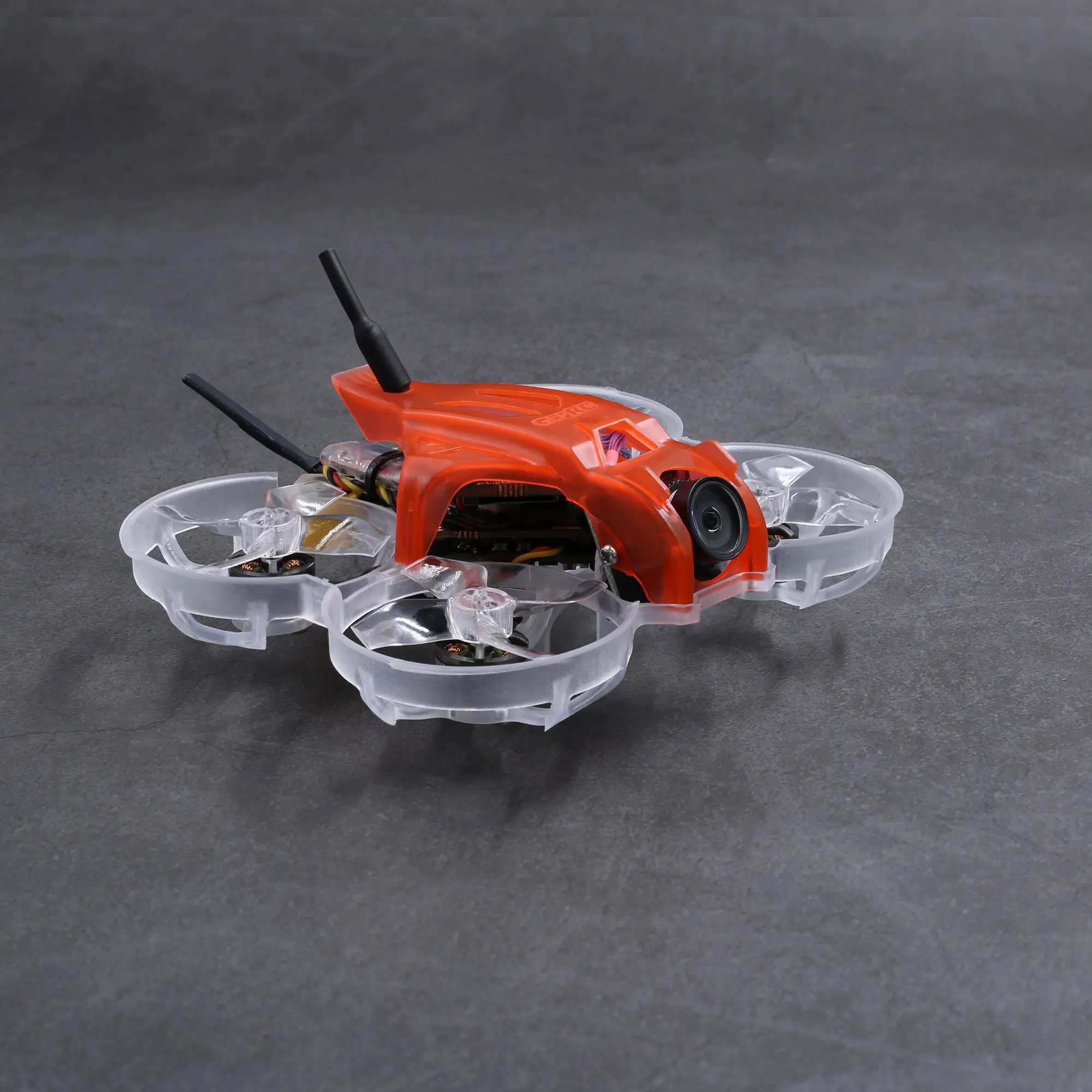

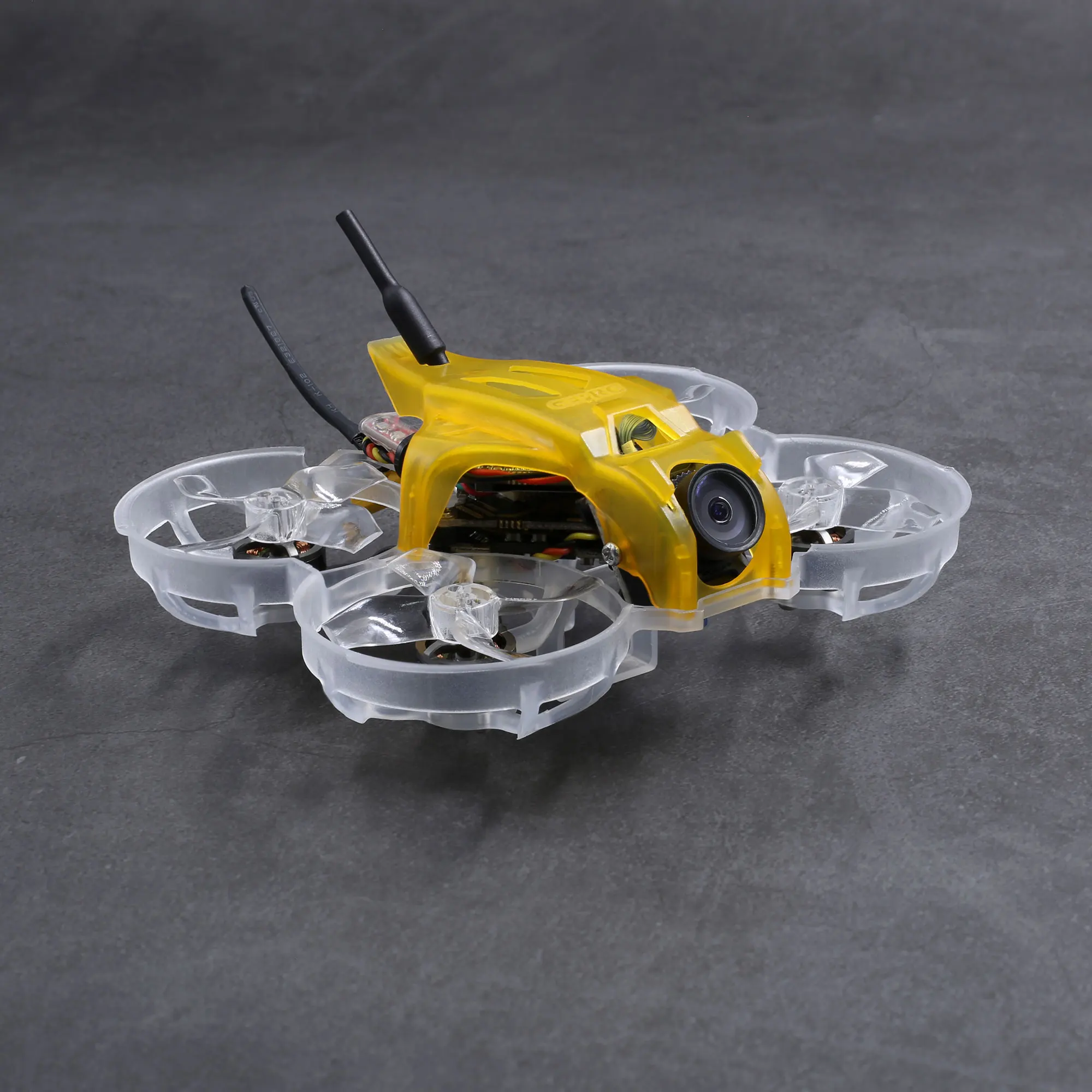

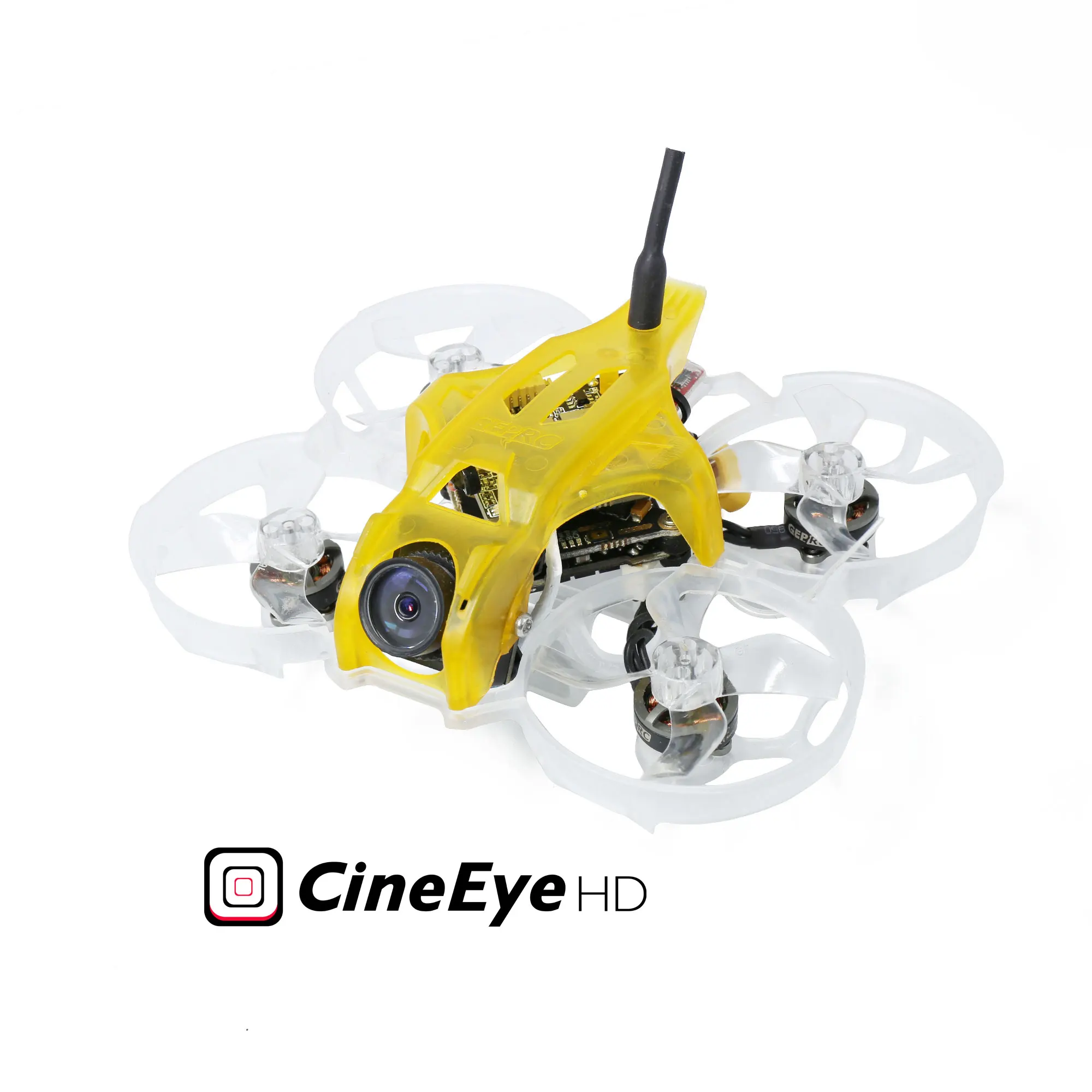

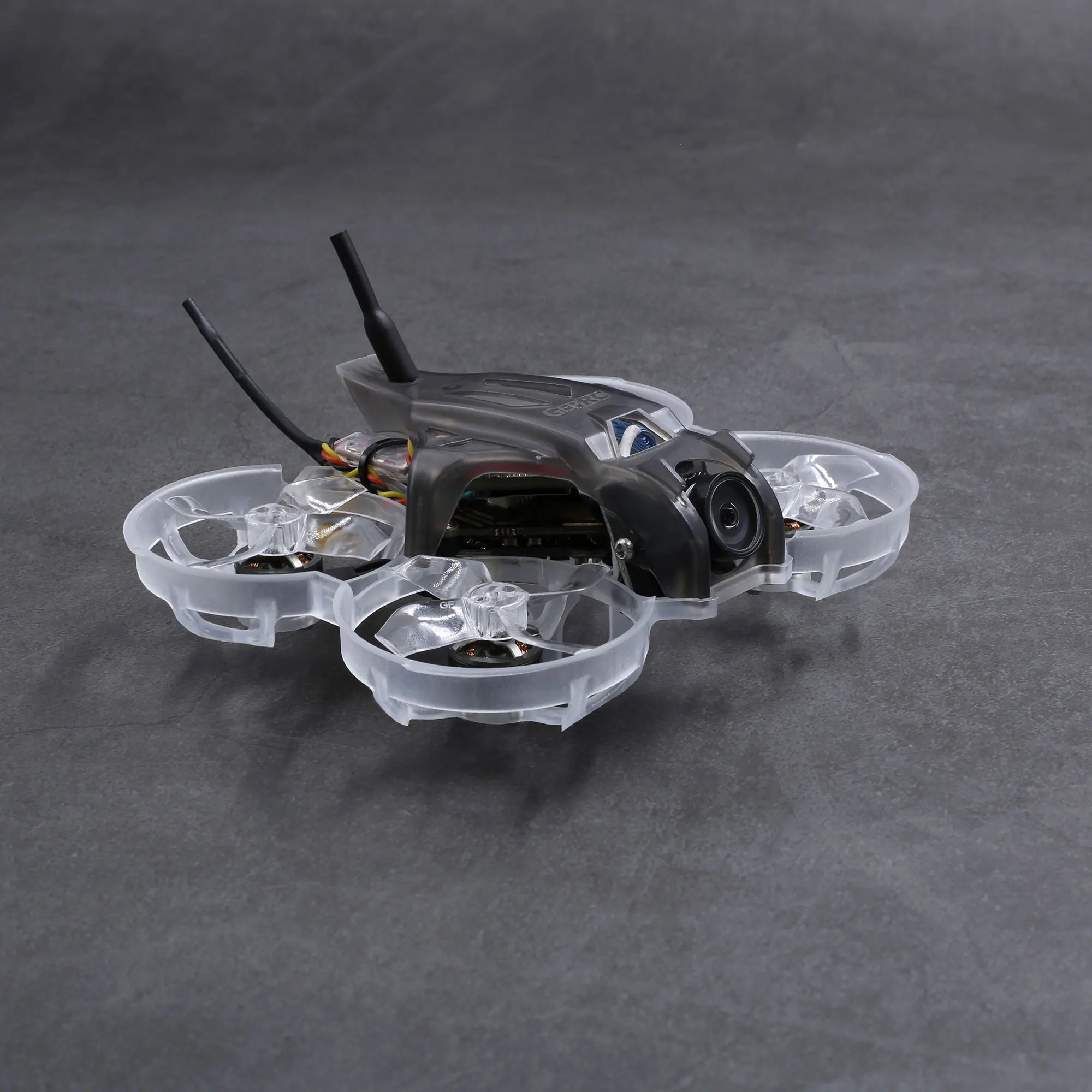

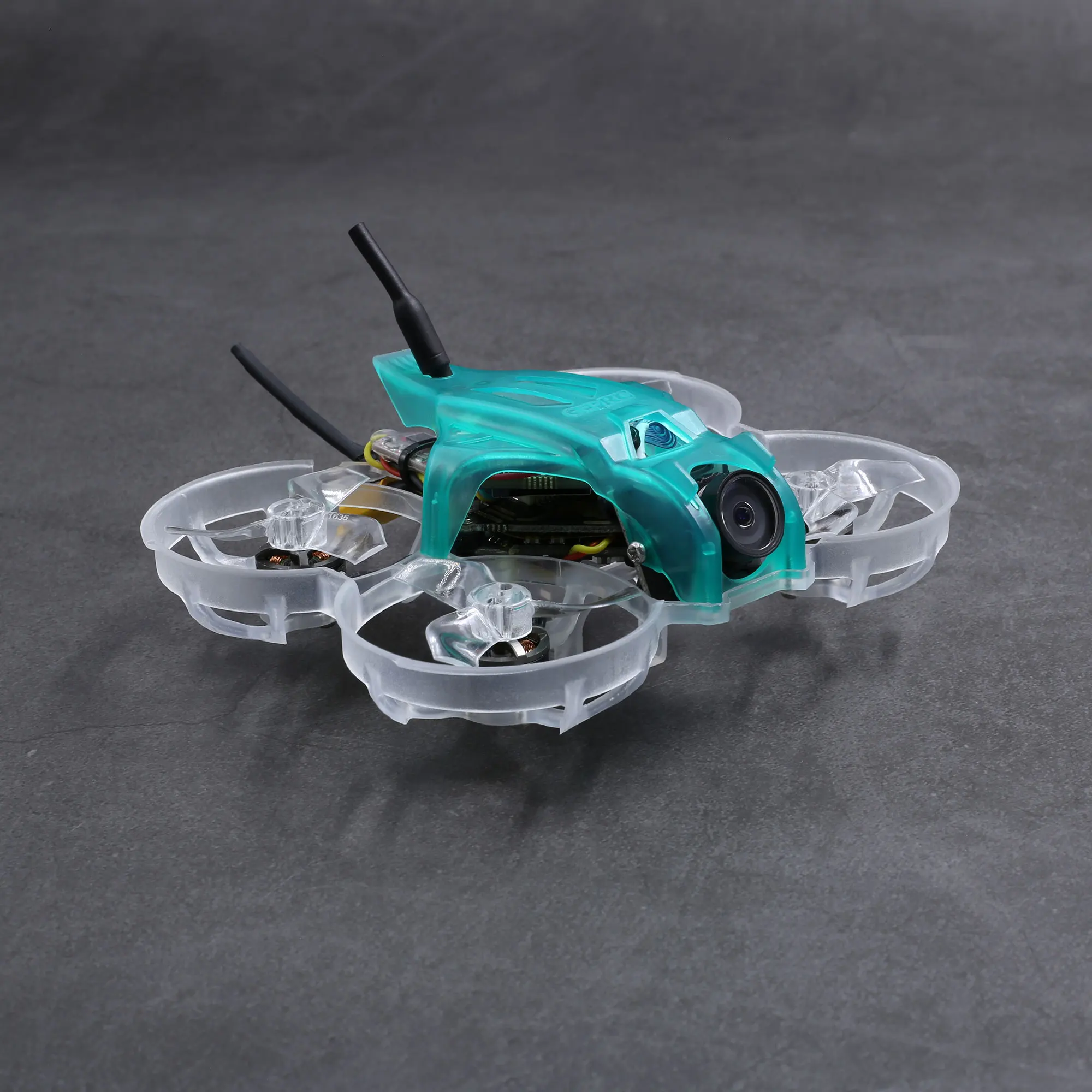

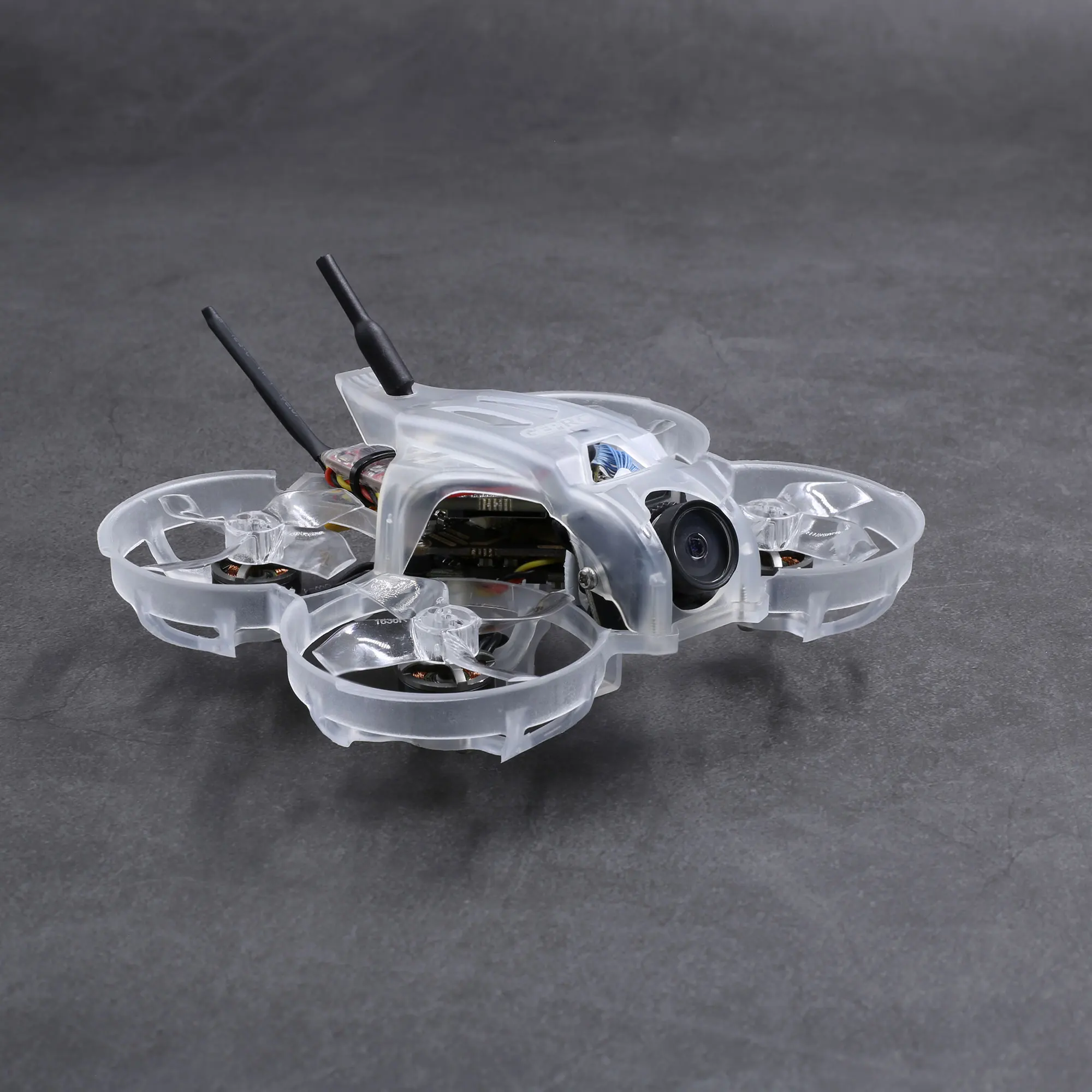

  Summary:   CineEye’s frame uses a simple structure and high-quality materials as its foundation to build a frame with excellent toughness and strength. The aircraft as a whole has comprehensive protection electronics, excellent flight performance and Smooth handling feel. CineEye is designed for indoor Micro FPV Quad. Because of its light weight, it has weak wind resistance. With the Turtle V2 high-definition video lens and stable 5.8g 200mW video transmission, whether you are at a family gathering, recording freely or having an exciting indoor FPV race with friends, you can record every exciting moment while flying . Powerful flight control module “ GEP-12A-F4 “ which is stable and high-performance computing STM32F411 chip combined with MPU6000 gyroscope to ensure flight stability and comfortable feel. Firmware target: MATEKF411 (MK41), built-in Betaflight OSD, integrated LC filter. The flight controller has a silicone shock-absorbing structure, and the adjusted PID has a significant noise reduction effect. This micro quad is using the GR1102 10000Kv motors, light weight and sufficient power. Using a 300mAh 4.35V high-voltage lithium battery, paired with GEMFAN 1636-4 40mm propeller, this set of power mix brings the strong lift to the Air.     Features:   No Props and guard in the view Ultra-light weight HD 1080@60fps Caddx baby turtle V2 1080P 5 colors canopy included Reliable electronic equipment, reducing weight     Specifications:   Name: CineEye HD FC & ESC:GEP-12A-F4 ESC:12A(BLheli_S) Frame:GEP-CE1.6 Motor: GEPRC GEP-GR 8000KV(3S 450mAh) Wheelbase: 79mm Motors:GR1102 10000KV Propeller: 1.6 inch VTX:5.8g 200mW Camera: Caddx baby turtle V2 Weight: 50g (without battery) Battery 300mAh 3S battery (No inclueded) Flight time: Almost 4mins in a smooth flight Receiver: Frsky XM+ / Frsky R9mm / TBS Nano RX / Flysky A8SV2     Specifications(Caddx baby turtle V2):   Image sensor: 1/2.7″ CMOS sensor Horizontal: 800TVL TV system: NTSC/PAL changeable Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps Power Input: DC 4.5-20V FPV FOV: 155° Recording FOV: 170° Mini Illumination: 0.01lux Image Resolution: 2 Megapixels Lens: 1.8mm Turbo Eye Lens Working Current: 380mA@5V/160mA@12V (low consumption) OSD Menu: Yes (Support Voltage Display) Video Files: MP4 Audio: Support Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100 S/N Ratio: >60dB (AGC OFF) Video Output: CVBS Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)     GEP-12A-F4 System:   MCU: STM32F411 IMU: MPU6000 gyro/accelerometer (SPI) OSD: BetaFlight OSD w/ AT7456E chip BEC Output: 5V@2A Mounting holes: 25.5mm*25.5mm Input voltage 2-4S LIPO FC Firmware target: MATEKF411 Continuous current: 12A ESC protocol: pwm, oneshot125, multishot, dshot150, 300, 600, etc. ESC Firmware target: Blheli_S G_H_30 Current meter: 210 VTX 5.8G 200mW Power : PIT/25/100/200mW Antenna interface : IPEX (UFL) Telemetry: IRC Tramp Integrated LC Filter     Include：   -1 x CineEye HD CineWhoop Drone -4 x 1636 3-Blade Propellers ( 4 CW & 4 CCW) -4 x Spare Part Canopy(4 colors)
