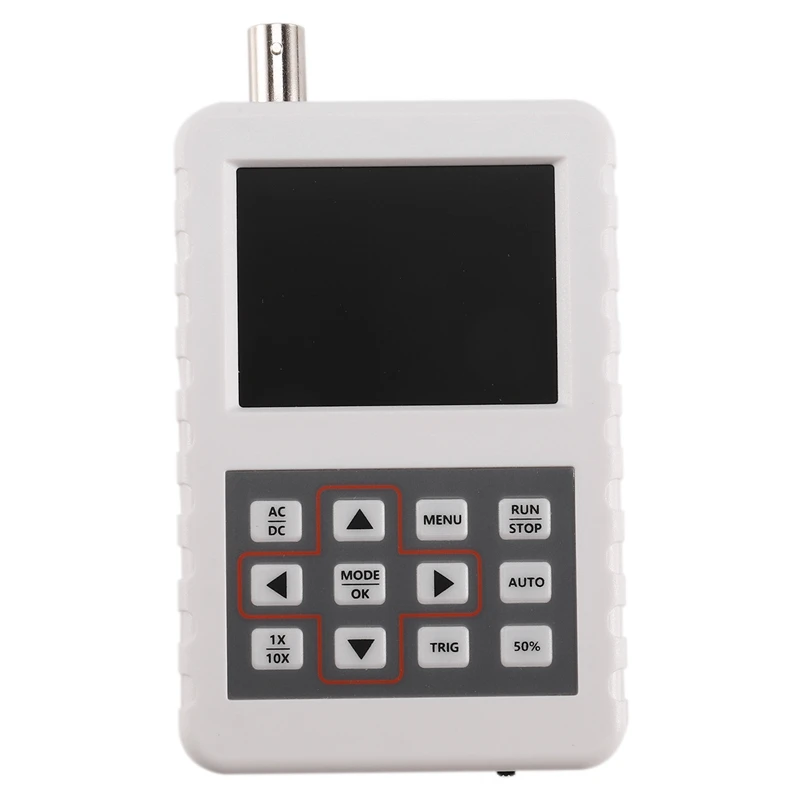

1 Set Digital Handheld Oscilloscope 5M Bandwidth 20MSps Sampling Rate Mini Size DSO PRO with P6100 Pro | Инструменты

---



Support Dropshipping and Wholesaling.

100% Original and Good Quality with Free After-sale Warranty.





The oscilloscope has up to 20 ms / s real-time sampling rate and an analog bandwidth of 5 MHz. Equipped with the high efficiency an automatic knob, the measured waveform can be displayed without complicated adjustment. 2.4 inch color screen, 320 * 240 resolution, displays data clearly for easy reading.
Day mode and night mode can be changed according to your own preferences. Built in 1500mAh rechargeable lithium battery can be continuously charged for 3 hours at a time. Memory compression technology, waveform refresh screen not flicker.
Extremely convenient and fast waveform storage function. Built-in storage space of 16m, maximum storage of 500 waveform images.
Powerful waveform file manager, support for thumbnail browsing, visualization, detail viewing, flip, delete and other functions.
High measurement voltage range, 1x can measure 0 40 40 v, 10x can measure 40 800 v. Up to 11 measurement parameters: vpp, vmax, vmin, vavg, vrms, frequent, must +, must-, time +, time-, time. At any time, the waveform display (pause function) is frozen. Full shooting function (single, normal, auto).
The oscilloscope is a complete function, high utility, high performance and cost effective handheld oscilloscope for the maintenance industry and the R&D industry. With full trigger function (single, normal, auto), both periodic analog signal and dic odic digital signal can be used freely. Large time base scan mode can monitor slow level changes.
Specifications:
Analog Bandwidth: 5 mhz
Maximum Real Time Sampling Rate: 20 ms / s
Vertical Sensitivity: 50mV / div ~ 200 V / div
horizontal time base range: 50 s / div 250250ns / div
Maximum Input Voltage: 40 V (probe 1x), 800 V (probe 10x)
storing depth: 40KB
Resistance input: 1 m
Adc accuracy: 8 bits
Coupling mode: ac / dc
Trigger mode: single, normal, automatic
Trigger edge: rising / falling edge Trigger
external voltage: 0-40 v
Display: 2.4 inch @ 320 * 240
Source power supply: 3.7 v, 1500 mAh lithium battery
Oscilloscope bandwidth: 80 mhz
Oscillosprobe max. input voltage: 600 v (dc + acp-p)
Oscilloscope input resistance: 10mΩ
Oscilloscope Attenuation Ratio: x1 x10 2%
Oscilloscope host size: 107 * 70 * 24mm
Color: White
Material: metal
Size: 16*10*9.5cm

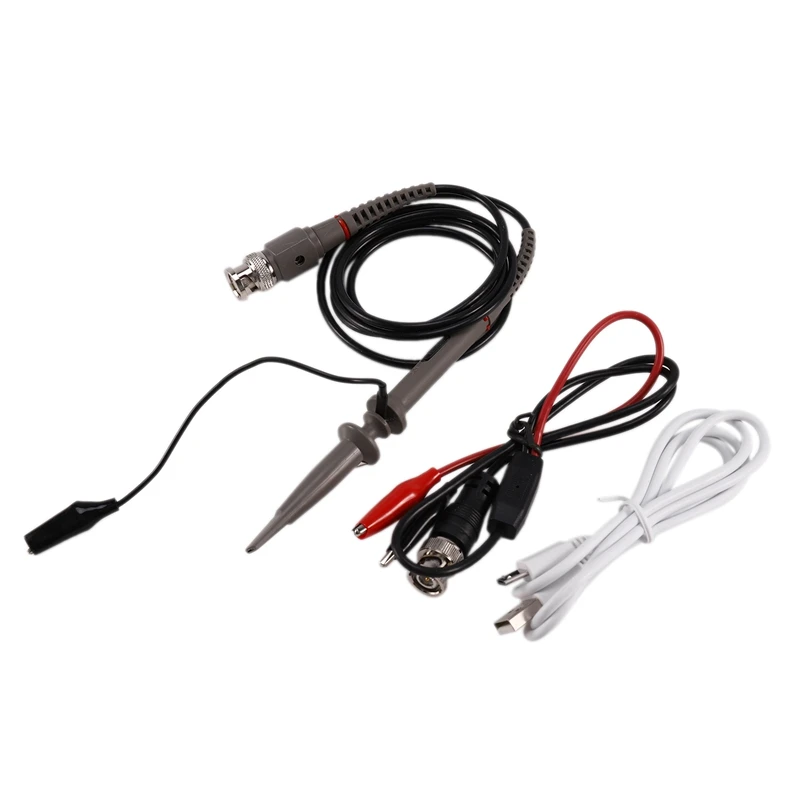

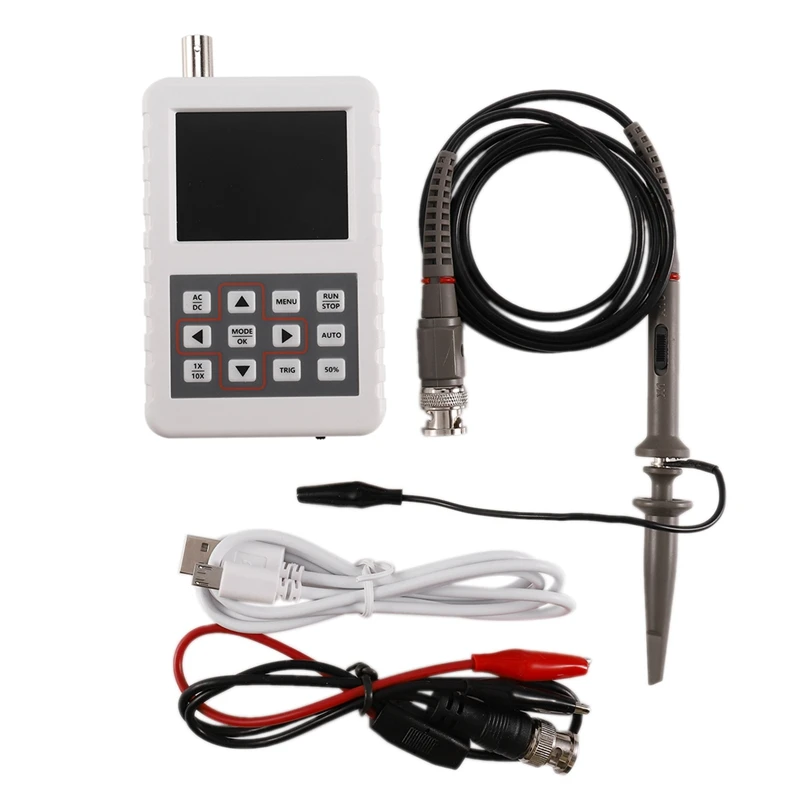

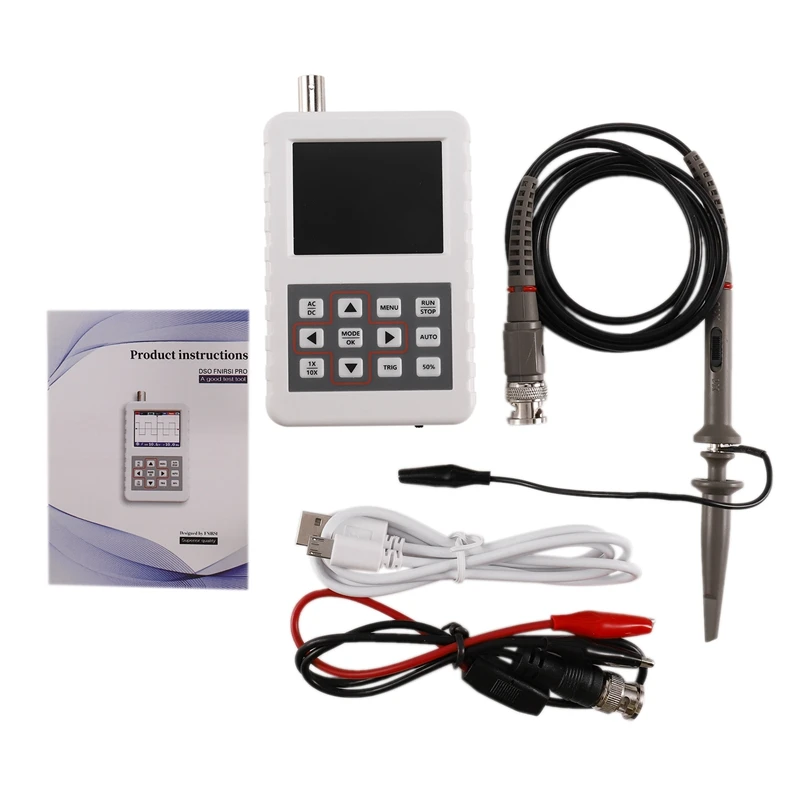

Package Contents:
1 * ADS2050H Oscilloscope Host
1 * Crocodile Clip Probe
1 * Micro-USB Data Line

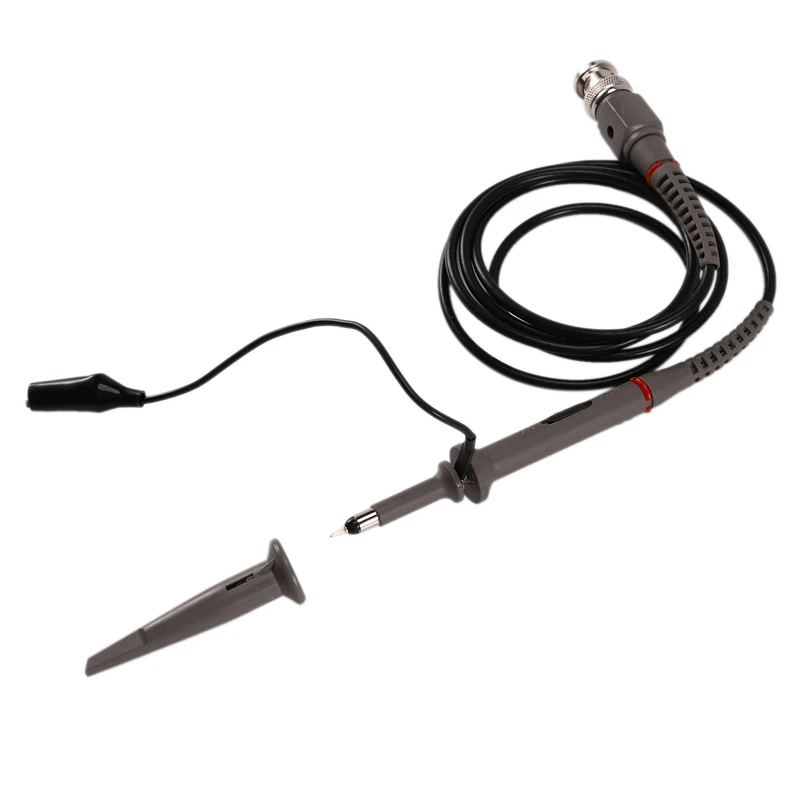

1 * P6100 Oscilloscope Probe
1 * User Manual (English)
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
