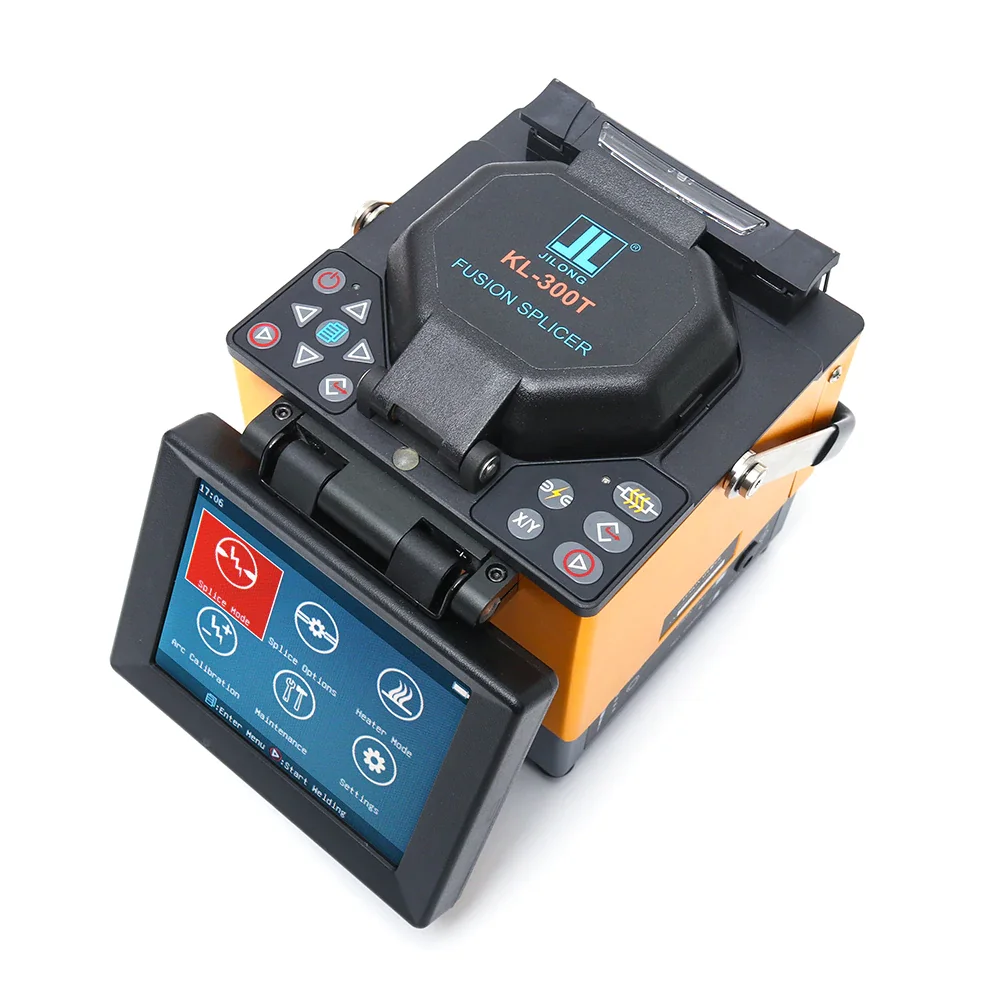

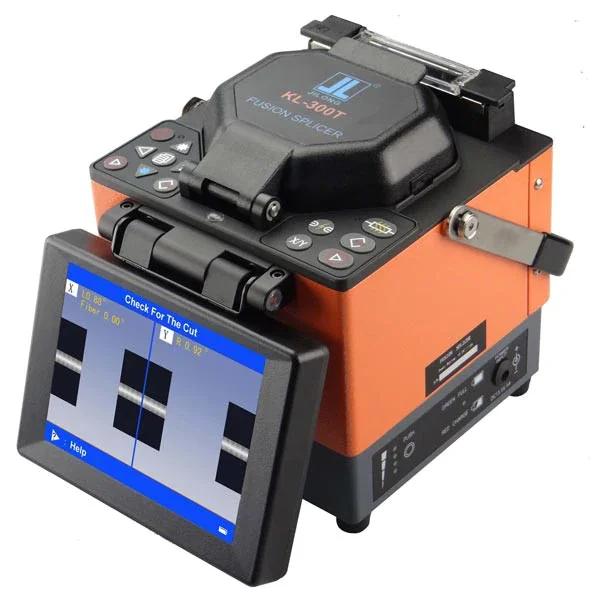

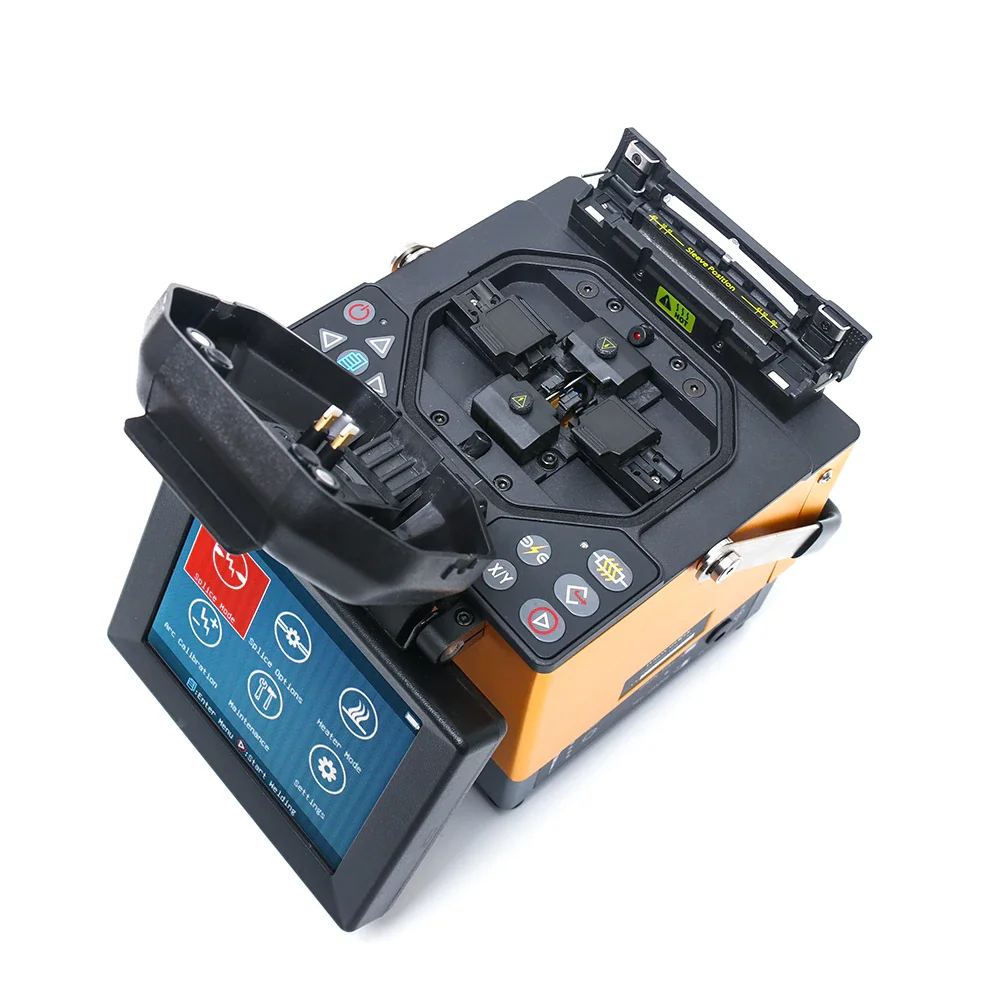

JILONG KL-300T FTTx Fusion Splicer fusion splicing machine with Fiber Cleaver Core Aliginment | Мобильные телефоны и
История изменения цены
*Текущая стоимость 109 059,59 уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"
| Месяц | Минимальная цена | Макс. стоимость | Цена |
|---|---|---|---|
| Feb-19-2026 | 138505.38 руб. | 141275.92 руб. | 139890 руб. |
| Jan-19-2026 | 112331.19 руб. | 114578.67 руб. | 113454.5 руб. |
| Dec-19-2025 | 136324.31 руб. | 139050.67 руб. | 137687 руб. |
| Nov-19-2025 | 135233.68 руб. | 137938.48 руб. | 136585.5 руб. |
| Oct-19-2025 | 107968.13 руб. | 110127.87 руб. | 109047.5 руб. |
| Sep-19-2025 | 133052.34 руб. | 135713.62 руб. | 134382.5 руб. |
| Aug-19-2025 | 131961.80 руб. | 134600.94 руб. | 133280.5 руб. |
| Jul-19-2025 | 130871.99 руб. | 133488.96 руб. | 132179.5 руб. |
Описание товара
Features:
-Core to core alignment by PAS technology ( PAS:Profile Alignment System)
-Digital fusion splicer with automatic focus function
-Fiber core can be display clearly
-Single X or Y view and X & Y view simultaneously
-Auto detect cleaved endface fault
-Display fiber cleaved and offset angle
-Display core and clad offset

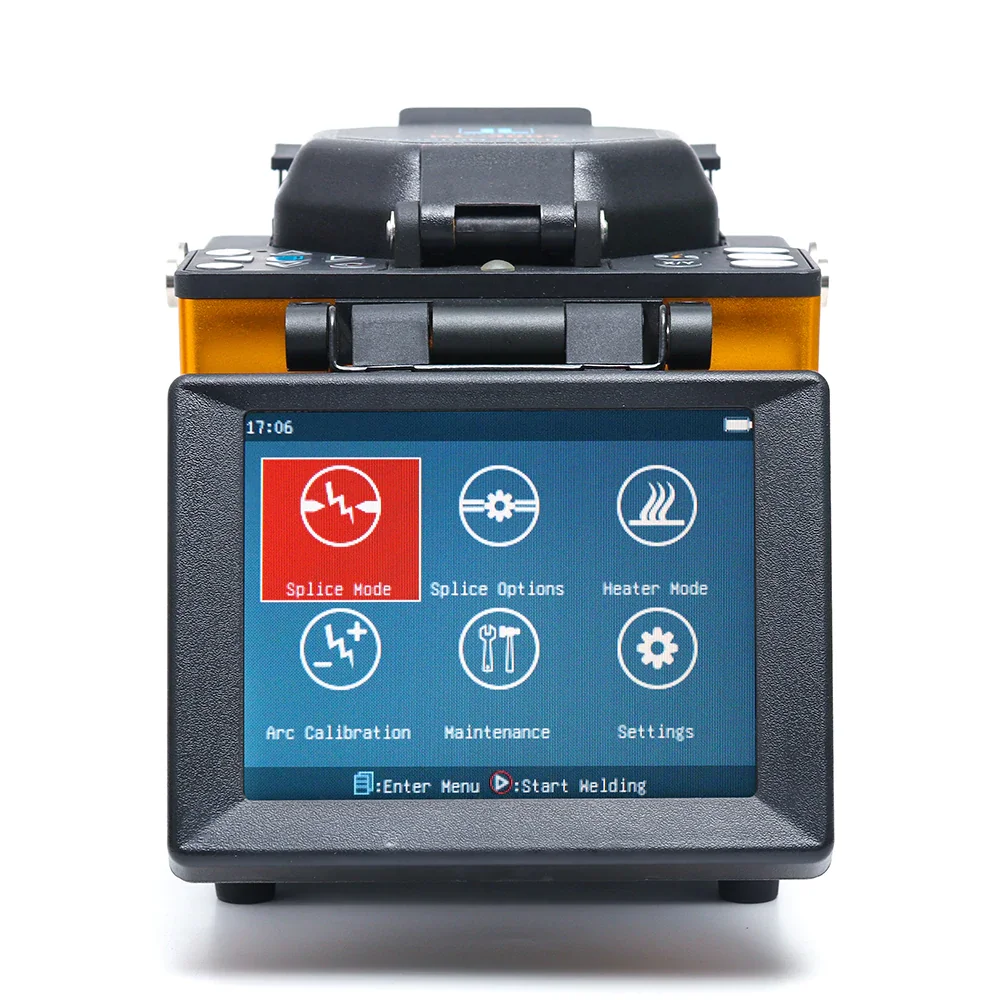

-5.6 inch TFT color LCD monitor with clear digital image display
-USB & VGA interface
-Software upgrade via USB interface
|
Model |
KL-300T |
|
Applicable fibers |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
|
Fiber cleaved length |
8~16mm(Coating diameter:250µm) 16mm(Coating diameter: 250 ~ 1000µm) |
|
Fiber diameter |
Cladding diameter:80 ~150µm Coating diameter:100~ 1000μm |
|
Fiber Count |
Single |
|
Fiber aligning method |
Core or clad aligning |
|
Image processing method |
Digital |
|
Actual average splice loss |
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) |
|
Splicing time |
Typical 9 sec,with standard SM fiber |
|
Splicing mode |
53(templet), 40(user) |
|
Splice loss estimate |
More accurate |
|
Return loss |
up to 60dB |
|
Storage of splice result |
4000 results,20 parameter per result |
|
Fiber display and magnification |
300X(X or Y view),150X(X and Y view) |
|
Tube heating time |
Typical 30 sec |
|
Tube heating mode |
9(templet), 24(user) |
|
Tube heating temperature |
Can be adjusted |
|
Applicable Protection sleeve length |
60mm, 40mm and a series of micro sleeves |
|
Tension test |
2N |
|
Electrode life |
2500 |
|
No.of splice/heating with battery |
Typical 150 cycles (splice/tube heat) with inner Li-battery |
|
Display screen |
5.0 TFT inch color LCD monitor |
|
Image change over |
The fiber image is turned upside down |
|
Terminals |
USB 1.1 and VGA |
|
Operating condition |
0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50, respectively, Max. wind velocity of 15m/s |
|
Power supply |
AC 100-240V with AC adapter; inner Li-battery(6600mAH) |
|
Dimensions |
150mm(L) x150mm (W) x150mm (H) |
|
Weight |
2.7 Kg excluding battery,3.2 Kg including battery |
|
Model |
KL-300 |
KL-300T |
KL-280 |
|
Splicing mode |
Auto \Calibrate Normal \Special |
Auto \Calibrate Normal \Special |
Auto |
|
Fiber cleaved angle threshold set |
0.1 - 10.0 ° 0.1°step |
0.1 - 10.0 ° 0.1°step |
0.5 - 8°, 0.5°step |
|
Display fiber cleaved angle |
o |
o |
- |
|
Display fiber offset angle |
o |
o |
- |
|
Auto focusing |
o |
- |
- |
|
Auto aligning |
o |
o |
o |
|
Auto detect cleaved endface fault |
o |
o |
- |
|
Display battery voltage |
o |
o |
- |
|
Taper Splice |
o |
o |
- |
|
Sleep |
o |
o |
- |
|
Auto Shut down |
o |
o |
- |
|
Software upgrade |
o |
o |
- |
