Описание товара
Wired Zones Security Alarm System LAN+GSM for big house anti-theft with motion detectors and alarming sirens
More Accessories Are Available
USD 14.25-23.75/piece
USD 30.36/piece
USD 14.16/piece
USD 11.40/piece
USD 8.36-151.05/piece
USD 30.82/piece
USD 16.56/piece
USD 36.71/piece
FC-7688/plus Wired Alarm System Features
· *TCP/IP+GSM+PSTN 3 in 1 Network.
· *Support WebIE+Mobile APP remote control.
· *8 Wired, 32 Wireless, 88 Bus Zone. Total 128 Zones.
· *Support 8 pcs LCD keypad and 8 pcs remotes.
· *1 Installer code, 1 admin user code, 32 users code.
· *4 user voice phone No.
· *4 Dual way Wireless Siren
· *800 alarm logs for inquiry.
· * 4 Partitions can be armed and disarmed separately.
· * Zone name can be edited by the user
· * 2 network alarm CMS platform, 2 telephone alarm CMS platform.
· With P2P server.
· * Mobile APP andriod/IOS remote control. WebIE programmable
· ◎ Support SD card update application software.
◎ Support GSM,TCP/IP, networking alarm setting.
· Can extend GPRS wireless communication module, support GPRS data transmission.
◎ Can extend programmable Relay module,serial module
Support SIA2013 and CID protocol
FC-7688 user manual link
FC-7688 Plus user manual link
Videos on Youtube
//www.youtube.com/channel/UCiVCW0vuqGk11Scauj6xT4A
The metal box version
The ABS Anti-fire Plastic Box
The inside PCB board
The wired zones connection port

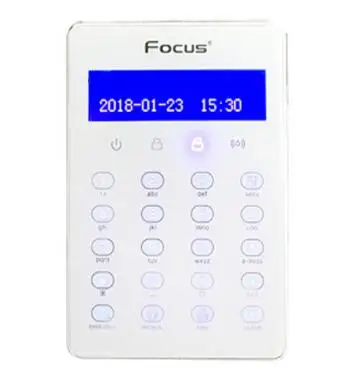

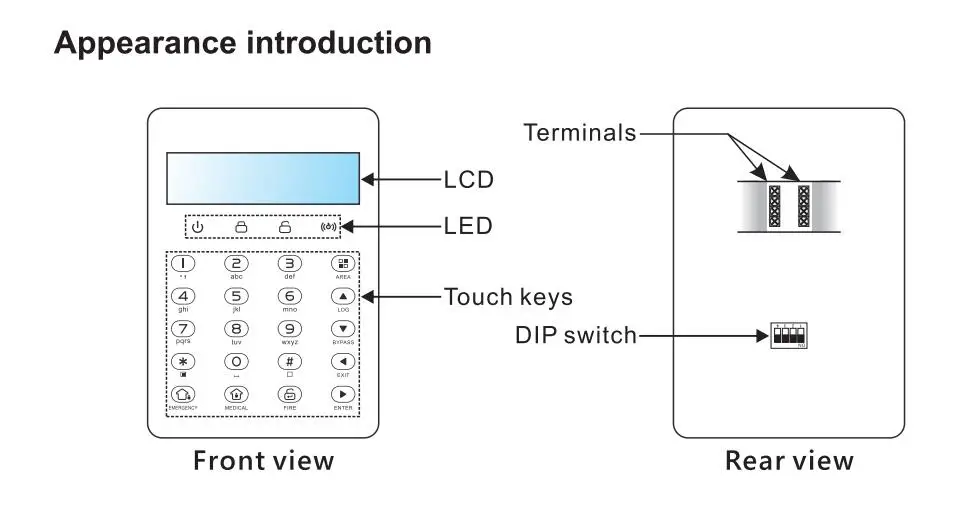

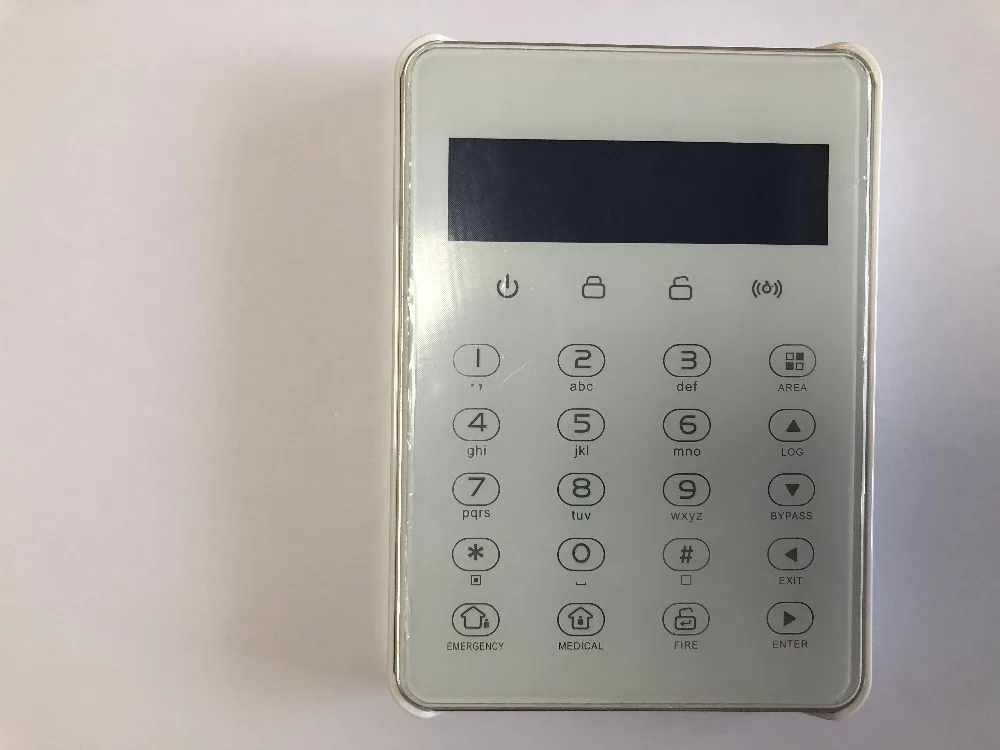

English language keypad
Wired Pet-immune PIR motion detector MC-8250
wired alarm strobe siren MD-325
◎ ABS fireproof case；
◎ Working current：≤500mA
◎ Sound pressure：≤110dB
Power supply：15V/1A (Power supply or cable is not included)
Static current：500μA
Working current：500mA

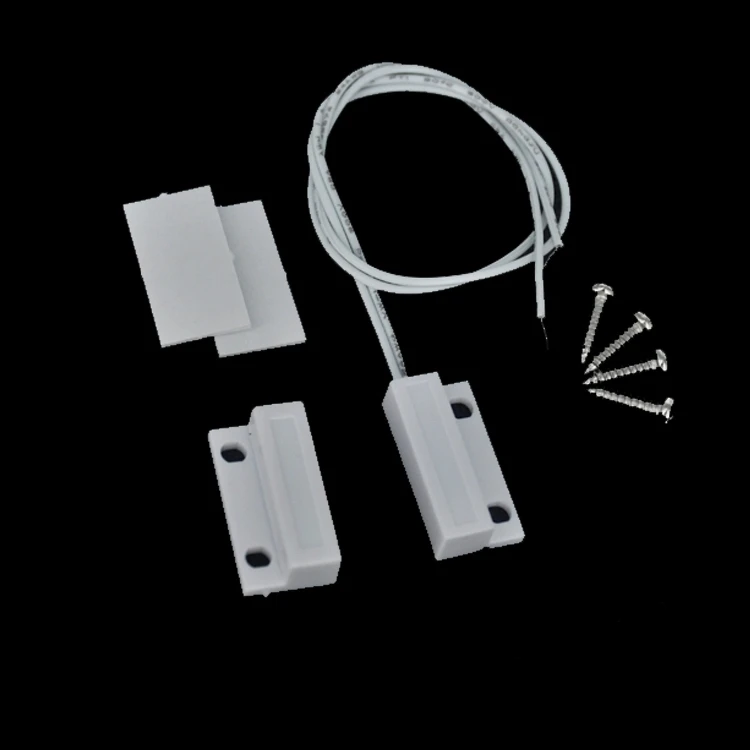

Wired Door/Window detector
Wireless Detectors
|
Model |
MC-335R |
MC-335R/DMT |
|
Sensor |
Low-noise high sensitivity quad Pyroelectric infrared sensor |
|
|
Detection distance |
12m@25℃ |
|
|
Detection angle |
110° |
|
|
Pet-immunity |
25KG |
25kg |
|
Wireless power supply |
voltage：3(V) current：9μA(standby) 20mA(alarm) |
|
|
Installation |
Height：2.4m～4.8m(Ceiling mount) |
|
|
Working temperature |
-10℃～+50℃ |
|
|
Anti-white light |
>9000LUX |
|
|
Anti-EMI |
>30V/m (30MHz～1GHz) |
|
|
Emitting frequency |
433MHz/868MHz |
|
|
Emitting power |
≤10dB |
|
|
Built-in battery |
3(V)×1(CR123) |
|
Using 1pc CR123A 3V battery, battery life 2 years

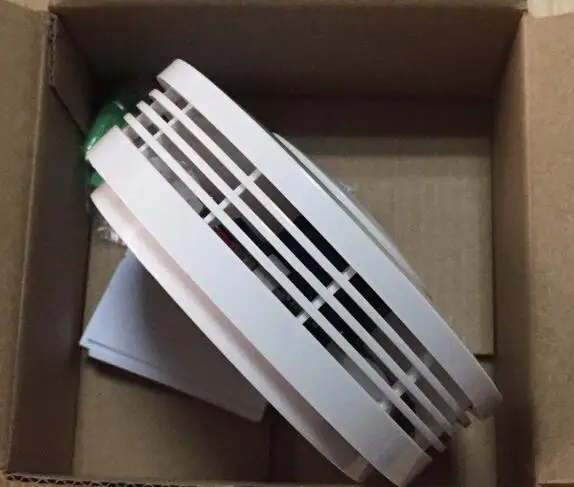

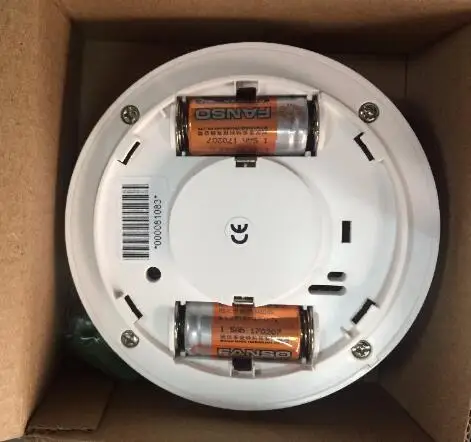

MD-2105R wireless smoke detector

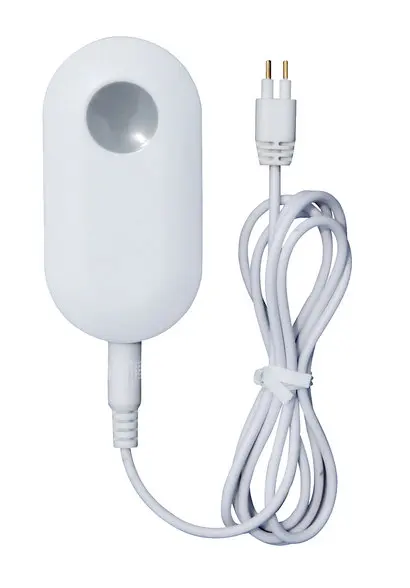

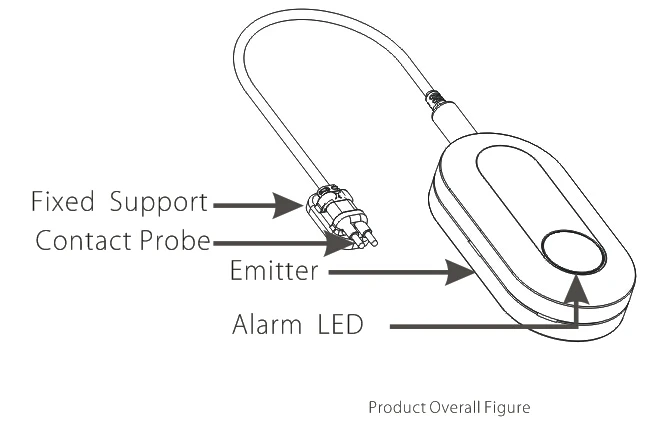

Wireless Water Leakage Alarm Detector MD-230R Water Flooding Alarm Sensor

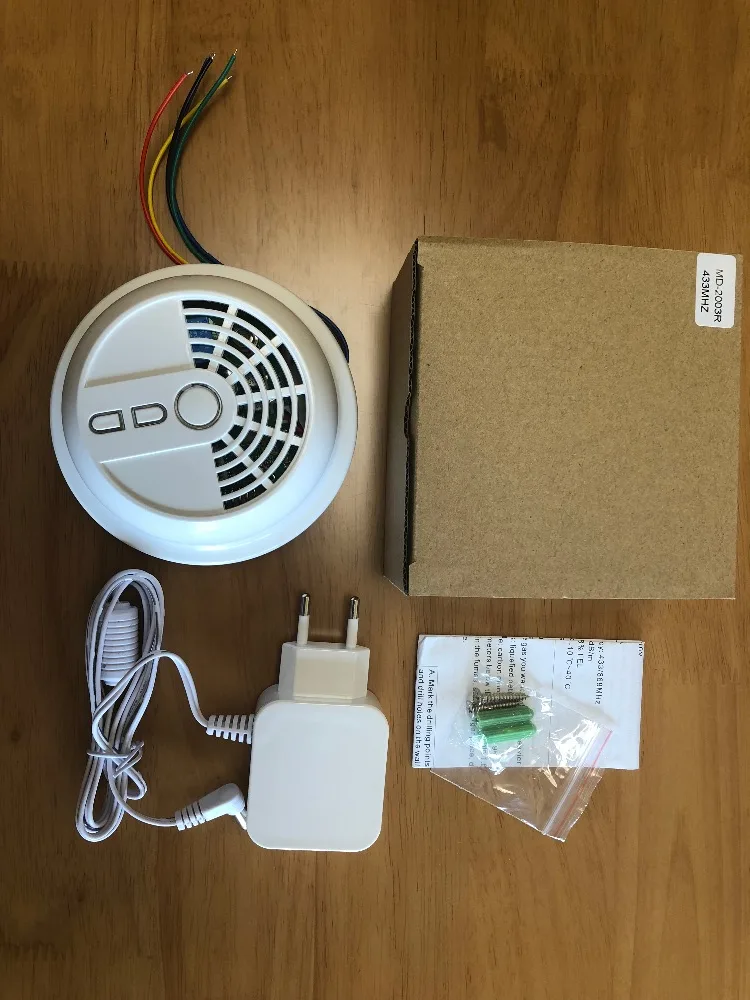

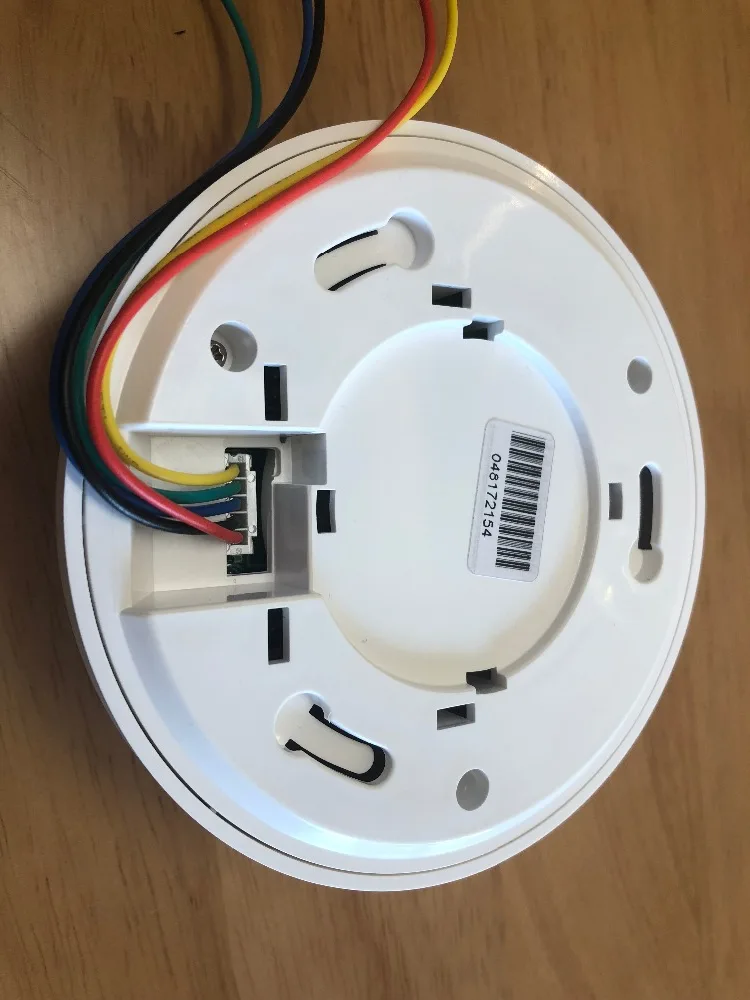

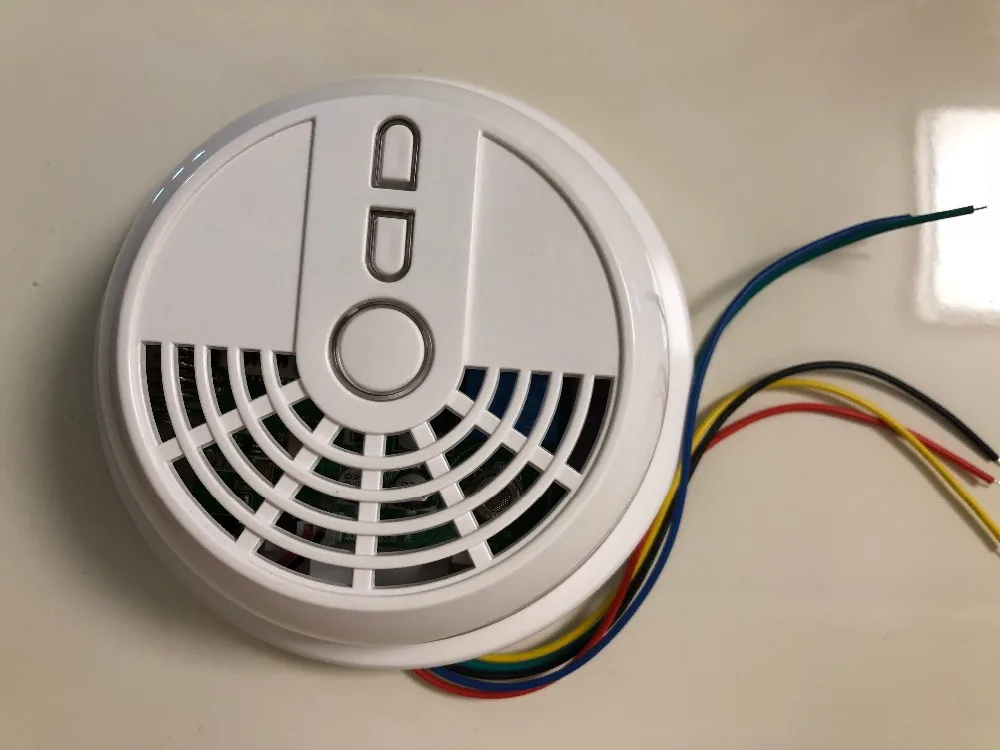

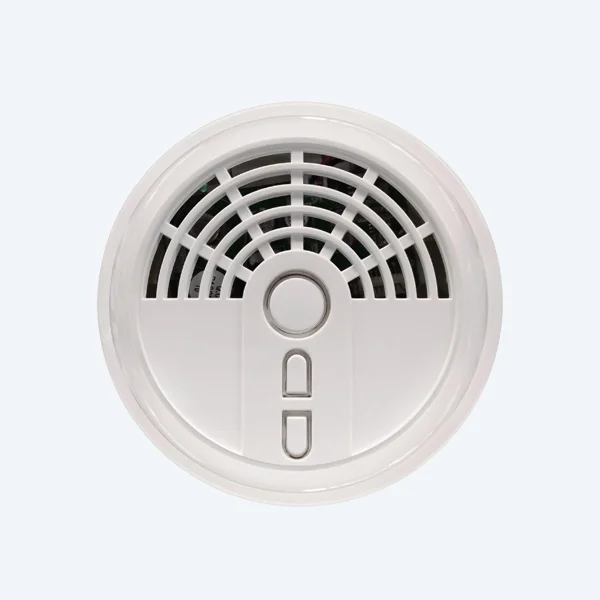

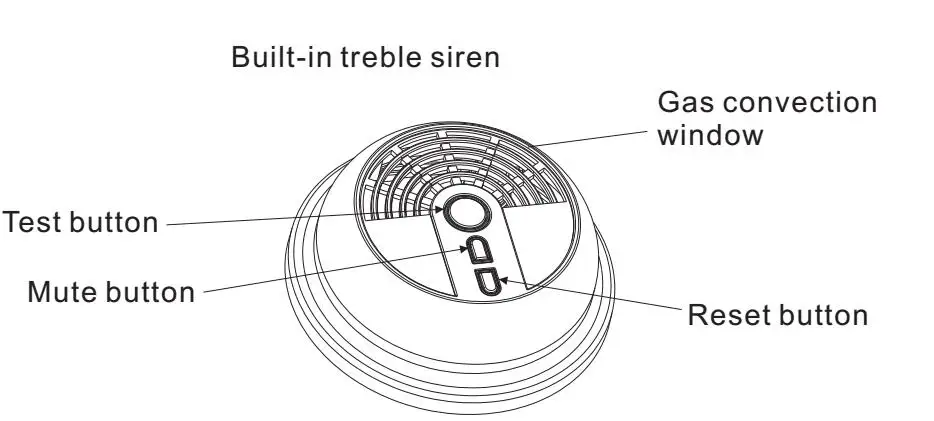

Combustible Gas Detector MD-2003R LPG Gas Alarm Sensor/Detector
◎ New Nanotechnology sensor;
◎ Automatic reset, it will disconnect automatically, when obviate alarm;
◎ Gas detected: coal gas 、natural gas 、LPG(liquefied petroleum gas);
◎ Automatic fault detection;
◎ With solenoid valve drive functions, automatic or manual on / off solenoid valve.
| Gas detected | coal gas 、natural gas 、LPG(liquefied petroleum gas) |
| Power input | AC16.5V/DC12V-15V |
| Alarm volume | ≥85dB |
| Alarm density | 15%LEL |
| Reset density | 8%LEL |
| Emitting power | 12±1 dB |
| Operating Environment | -10℃～40℃ |
| Relative humidity | ≤90% |
| Gas density deviation | ±5%LEL |
| Types of alarm | visual/audible alarm, output network signal |
| Static current | ≤35mA |

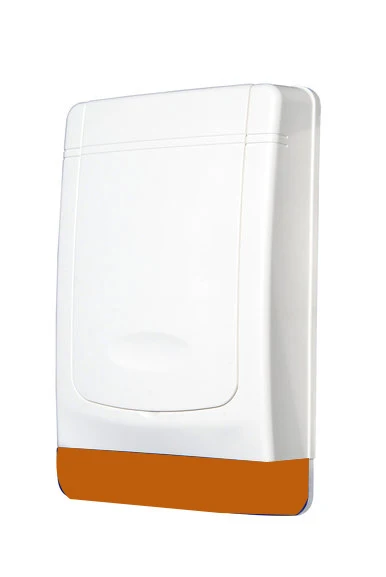

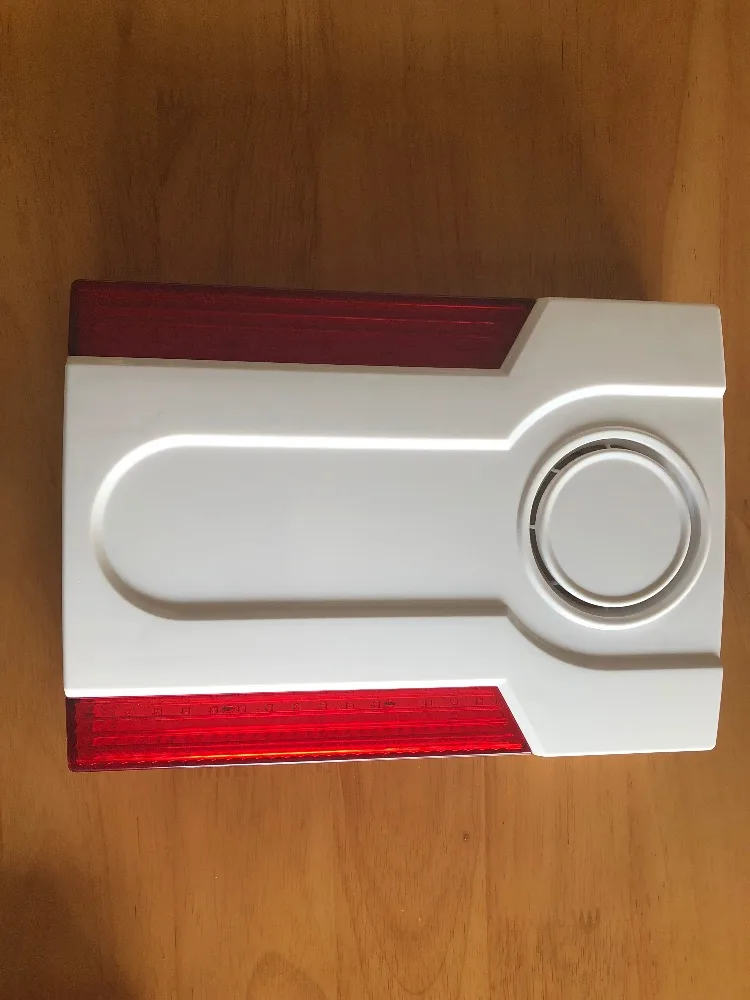

Wireless outdoor external alarm siren MD-334R 110db
Introduction
◎ Double flashing light.◎ Built-in tweeter.
◎ 2-way communication with alarm control panel.
◎ Can arm/disarm by remote controller.
◎ with tamper alarm.
◎ Can enroll 16wireless devices.
| Model | MD-334R |
| Built-in rechargeable battery | 7.4V / 1000mA |
| Working current | 12V |
| Receiving/emitting distance | Static state＜220μA；Working status＜1.2A |
| Receiving/emitting frequency | 433MHz/868MHz |
| Alarm loudness | 100dB |
| Emitting power | 14±1dB |
| Receiving sensitivity | ≥104 dB |
| Dimension | 229×164×54mm |
Remote Control 5 key-button PB-403R
|
Art No.: |
FC-7688 /plus |
|
Dimensions |
360*265*80MM |
|
Housing Materials |
Metal Box/ ABS Anti-fire plastic box |
|
Installation Location |
Indoor Use Wall Mounted |
|
LCD Size |
NO |
|
Menu Voice Guidance |
YES |
|
Kit Weight |
4.30KG(Without Keypad) |
|
Kit Accessories Included |
|
|
|
FC-7688 Panel*1 |
|
|
F-7688 LCD *1 |
|
System Network |
TCP/IP GSM & PSTN Triple Network |
|
Number Of Users |
32 |
|
Number Of Wired Zones |
8 |
|
Number Of Bus Zones |
88 |
|
Number Of Wireless Remotes Or Wireless Keypad Controls |
8 |
|
Number Of Wired Keypad |
8 |
|
Number Of Wireless Zones |
32 |
|
Number Of Voice Phones |
4 |
|
Number Of Wireless Doorbell |
NO |
|
Number Of Areas |
4 |
|
Number Of Wireless Switch |
NO |
|
Number Of Wireless Siren |
Dual Way Siren *1 One Way Siren No Limited |
|
Outputs |
1 / 4 PGM Port |
|
GSM Antenna |
External GSM Antenna |
|
Event Log Inquiry |
800 |
|
Radio Frequency |
433MHz or 868MHz |
|
Intergrated Siren |
NO, External Siren Added |
|
Backup Battery Type |
12V DC, 7AH Lead Acid Battery |
|
Max Receiving Range |
100M |
|
Max Sending Range |
100M |
|
Power Supply Unit |
15V/3A |
|
Protocols |
Ademco Contact ID |
|
Tamper Monitoring |
YES |
|
Mobile Client |
ST-Panel http://www.meiantech.com/en/Support/download/
|
|
WebIE |
192.168.1.200 (Default Setting) |
|
Meian CMS |
Server: wode110.com |
|
Tel-Line CMS |
2 CMS |
|
Certifications |
CE/FCC/ROHS |
APP name : ST-panel on Apple and Google Store
APP introduction
Sorry, email function doesn't work so far !!
How to expand the wired zones .
1. first, you need to buy our FC-7601, each FC7601 support 1 zone, each zone supports 2 to 3 detectors
2. Connect it to the bus zones ( FC-7688 has 88 bus zones).
3. Connect the wired sensors to FC-7601
More sensors contact us before order

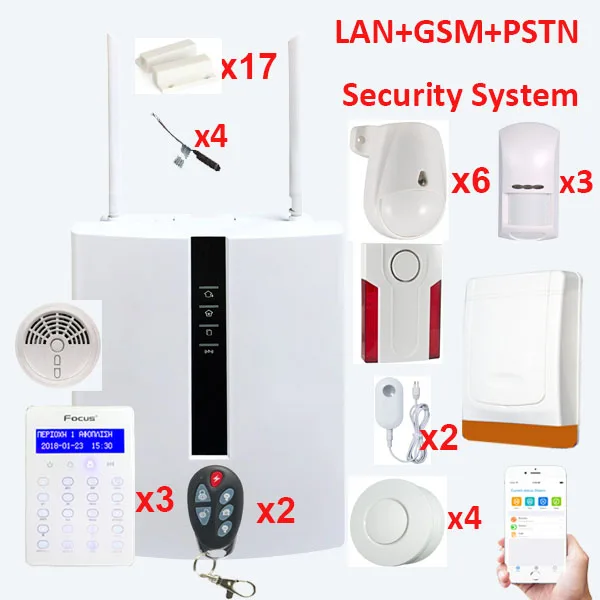

Package include
Control Panel main board with Cabinet 1 pc Wired Touch LCD Control Keypad 3pc AC/AC Transformer 1 pc Wireless remote 2pcs Wired Alarm Strobe Siren 1pc Wireless Alarm Siren 1pc Wired PIR motion detector 3pcs Wireless PIR motion detector 6pcs Wired Door Contact 17pcs Wireless Water Detector 2pcs Wireless Smoke Detector 4pcs Wireless Gas Leakage Detector 1pc Wired Door Contact 17pcs Wired Zone Expander FC7601 4pcs Accessories: Antenna 1 pc, EOL Resistors 1 bag. (please note that backup battery is not included)
