Универсальный беспроводной пульт дистанционного управления 433 МГц ZKRLLF для переключения AC 220V 10Amp 1CH с реле-приёмником и передатчиком RF для светодиодных ламп/освещения/вентиляторов.

Универсальный беспроводной пульт дистанционного управления 433 МГц ZKRLLF для переключения AC 220V 10Amp 1CH с реле-приёмником и передатчиком RF светодиодных ламп/освещения/вентиляторов.

Description

Note :

This remote control only support the learning code (1527) of the receiver
Compatible with remote control using these chips:

 PT1527,EV1527, SCT527, HS1527, SCL1527, FP1527,EV152

Do not use this remote control to clone other remote controls,you will lose the built-in 1527 encoding.

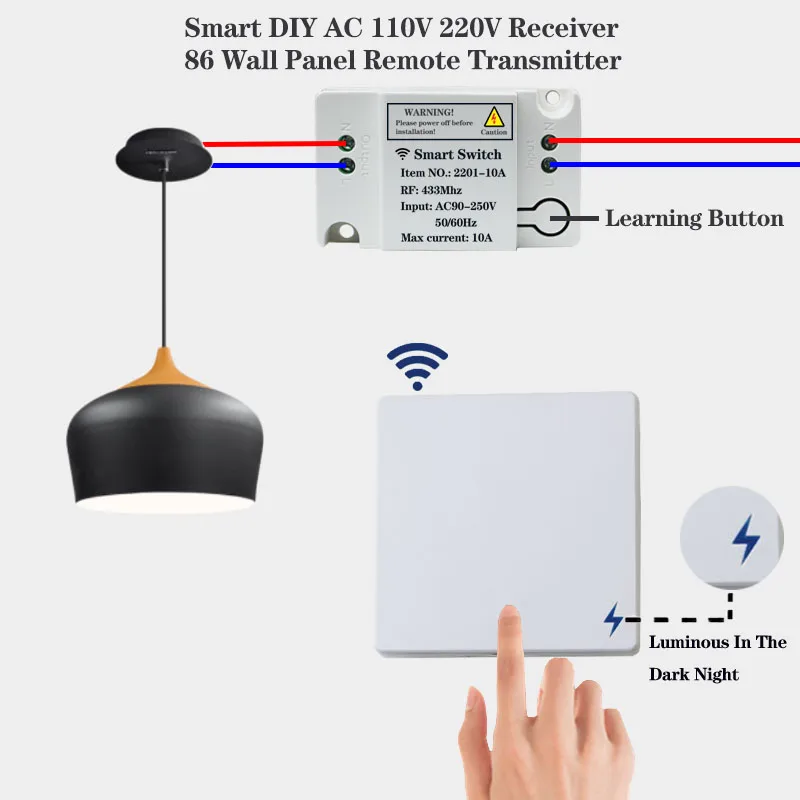

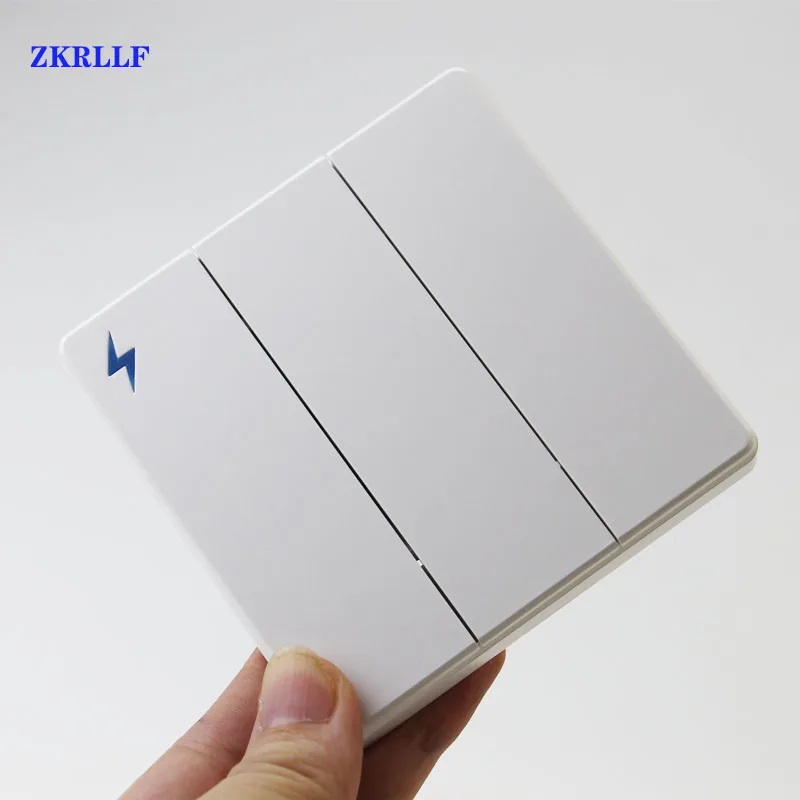

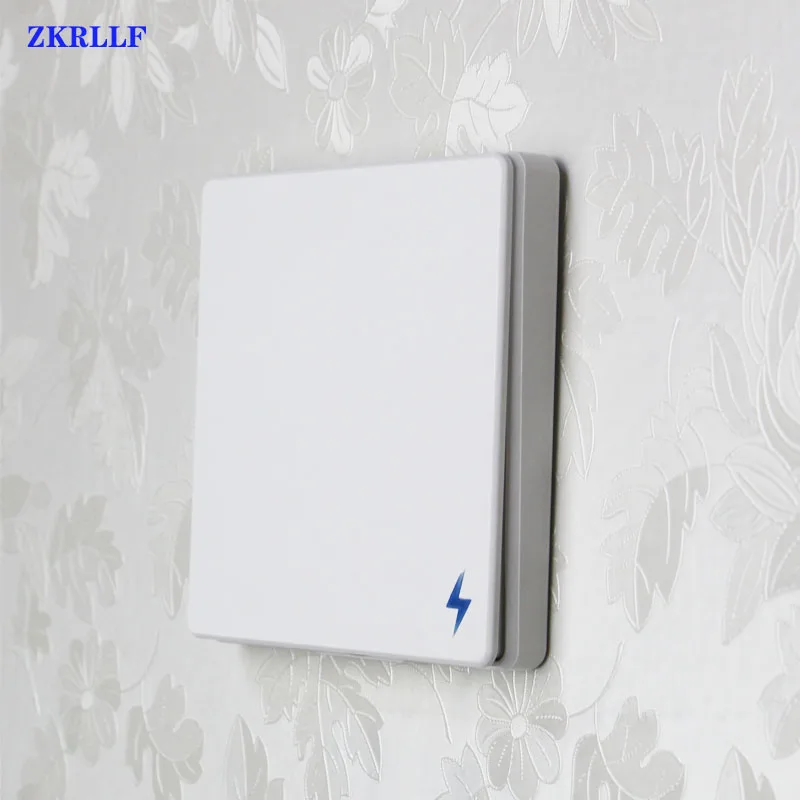

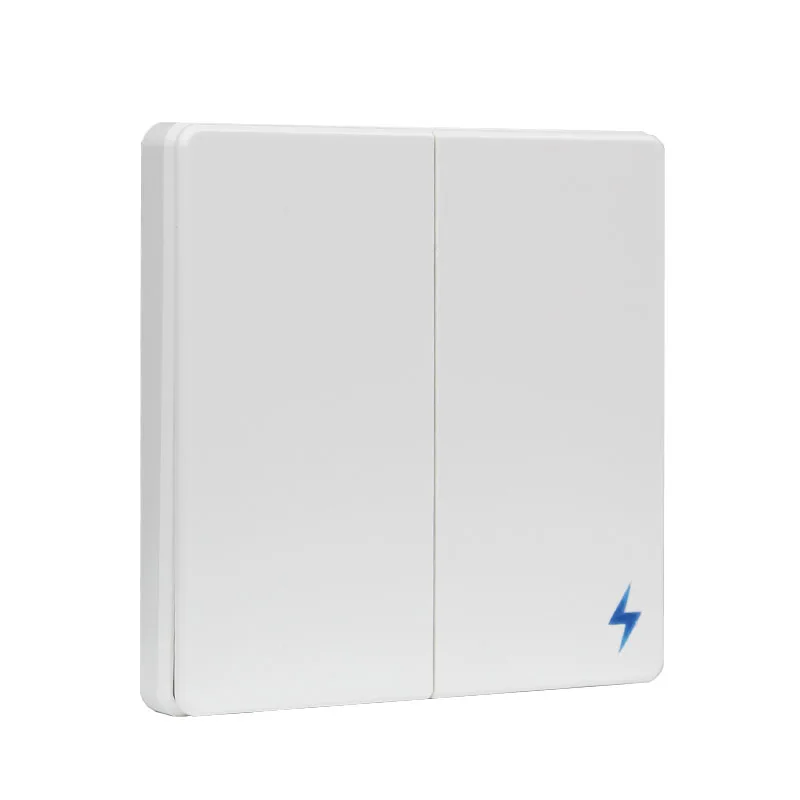

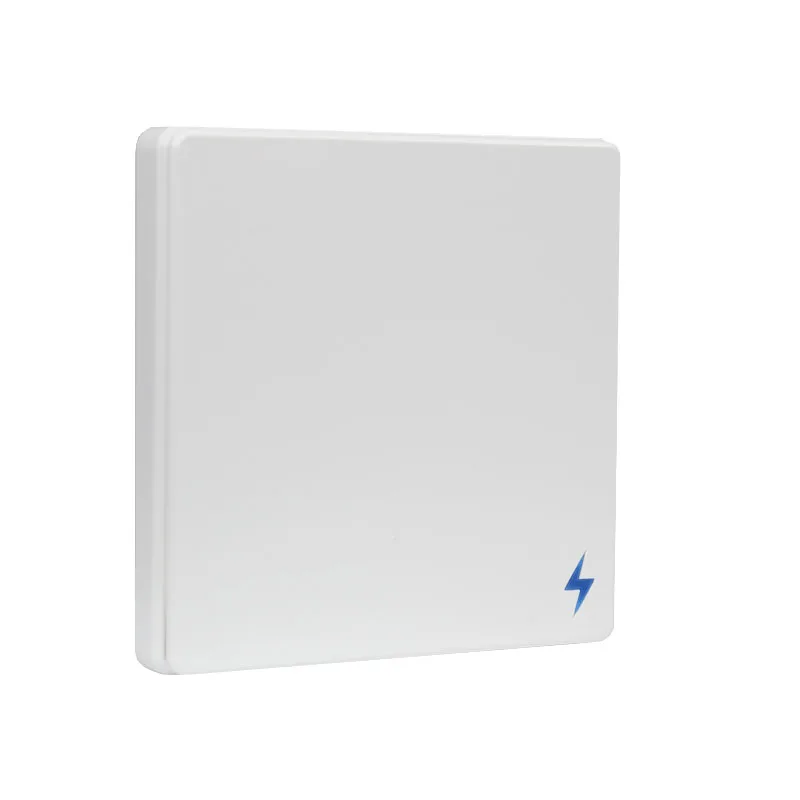

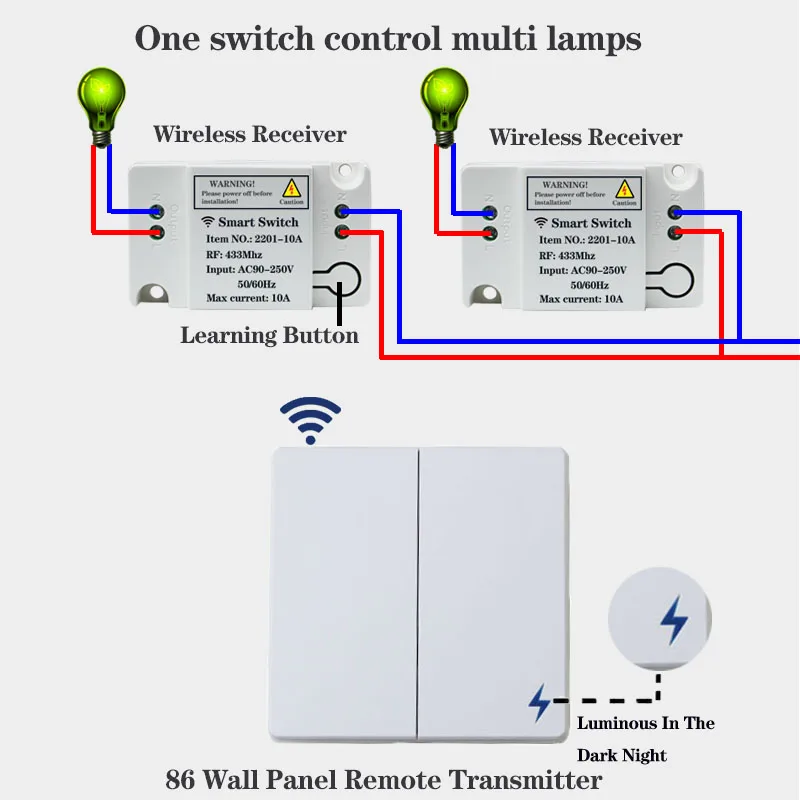

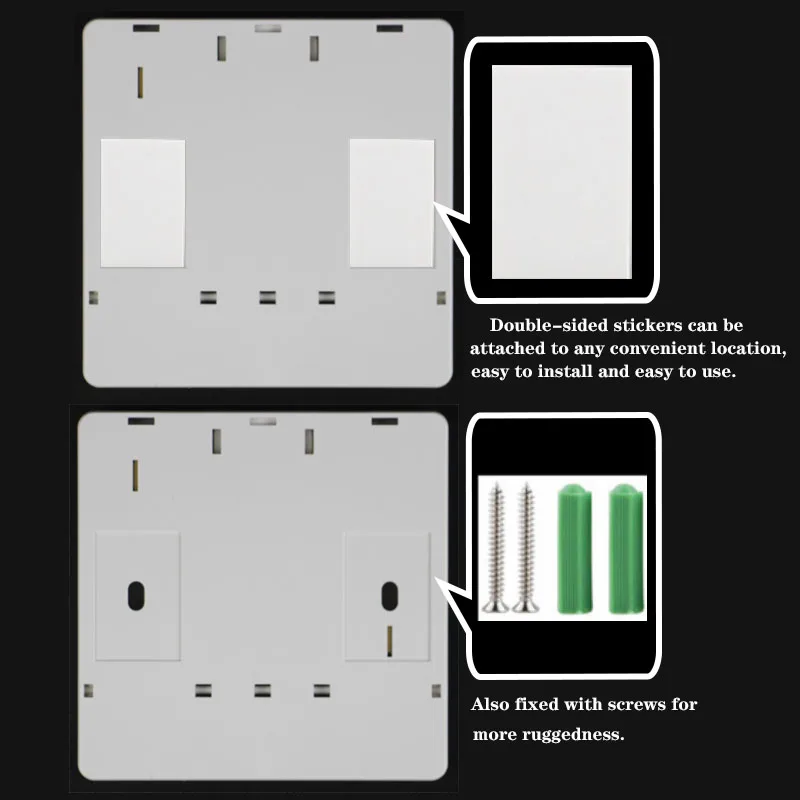

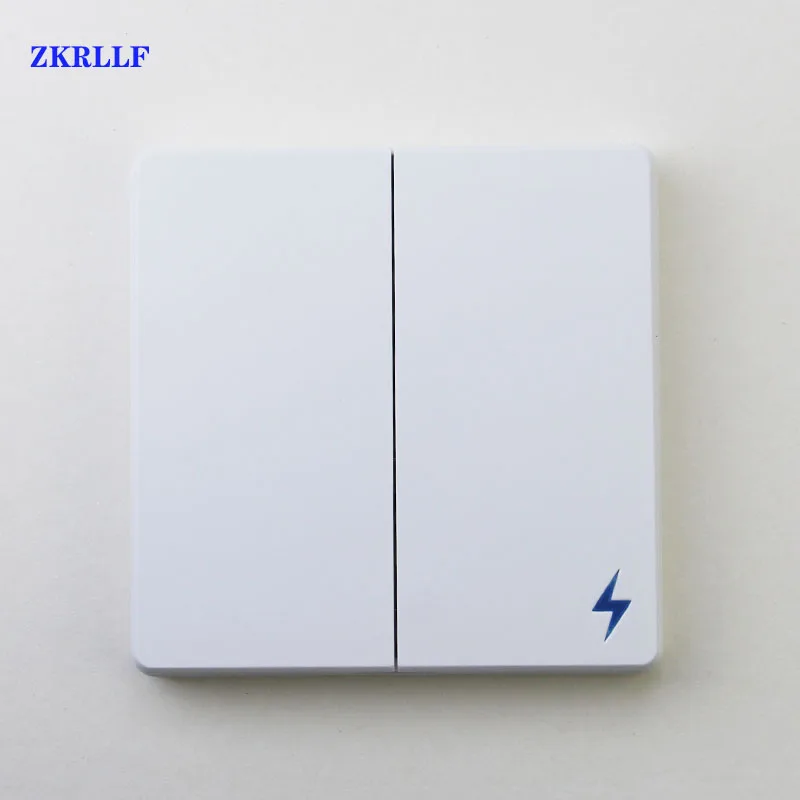

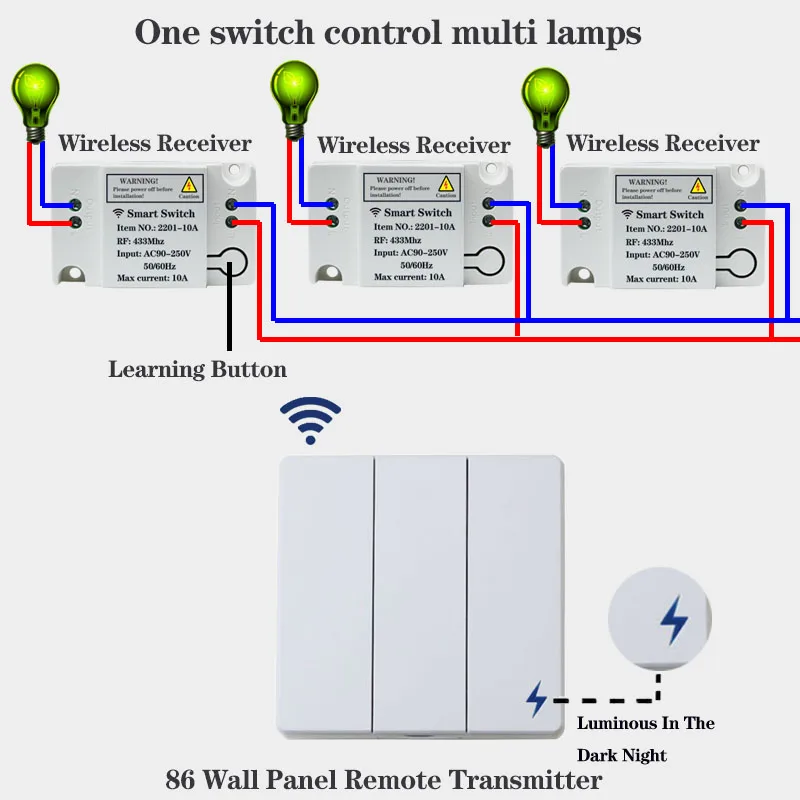

It is a panel 86 wall transmitter that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the trouble brought by routing is avoided successfully.

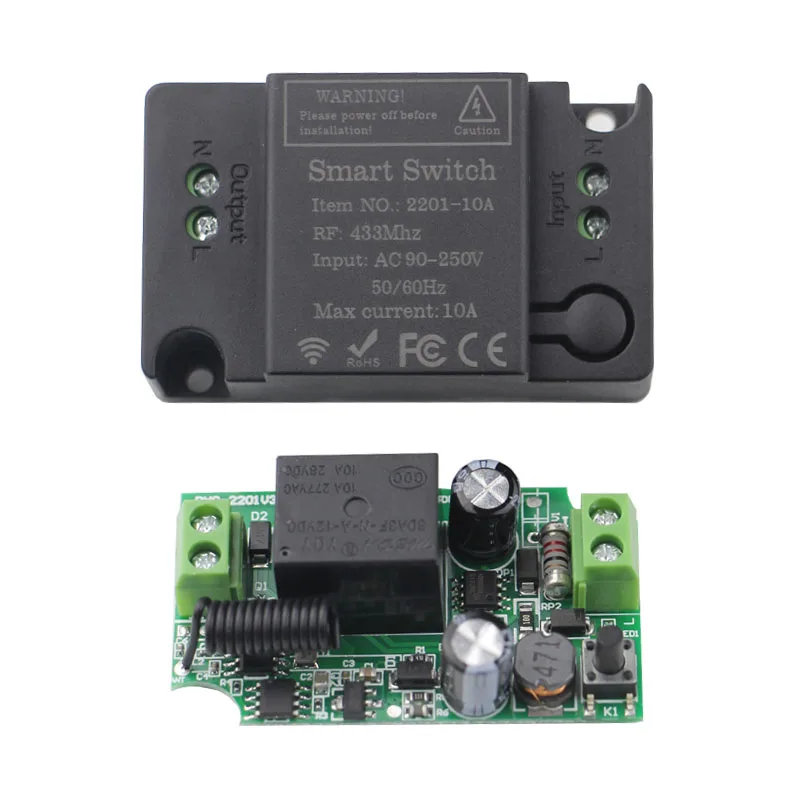

Technical Data Of  Receiver:

Input Power:AC90-250V
Standby Current:<5MA
RF Frequency: 433M
RF working mode:superheterodyne
Receive sensitivity: >-108dbm
Transmitting distance:>50m ( open space)
Decoding mode:MCU software decoding
Remote storage:20pcs
Support remote type:EV1527 Learning code, Fixed code
 Working mode:Momentary, Toggle, Latching，Automatic energize when power on mode

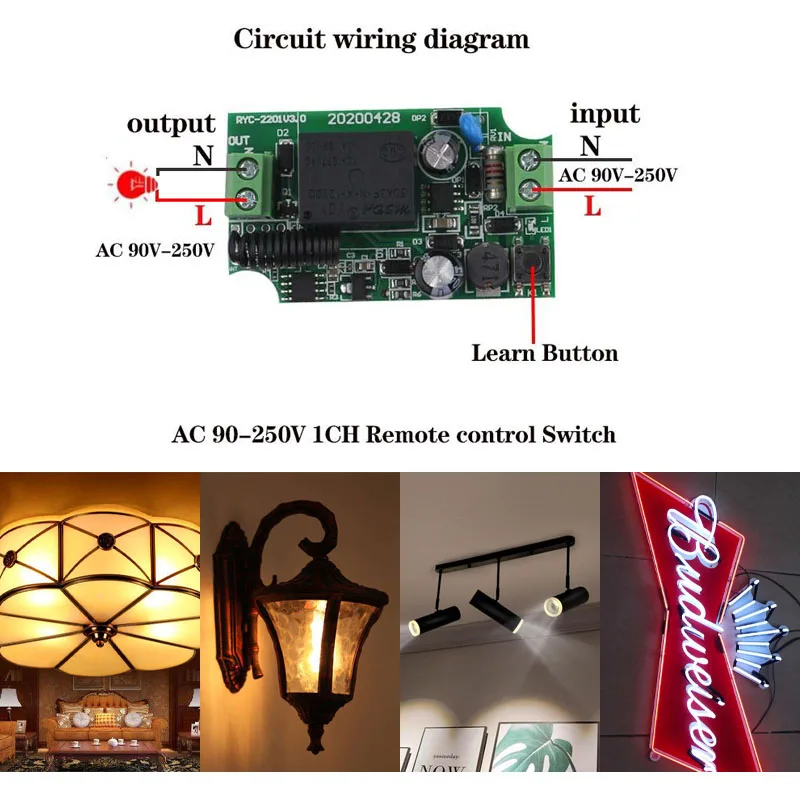

Wiring type:fixed terminal
Output Te Wiring type rminal :NO , NC , COM

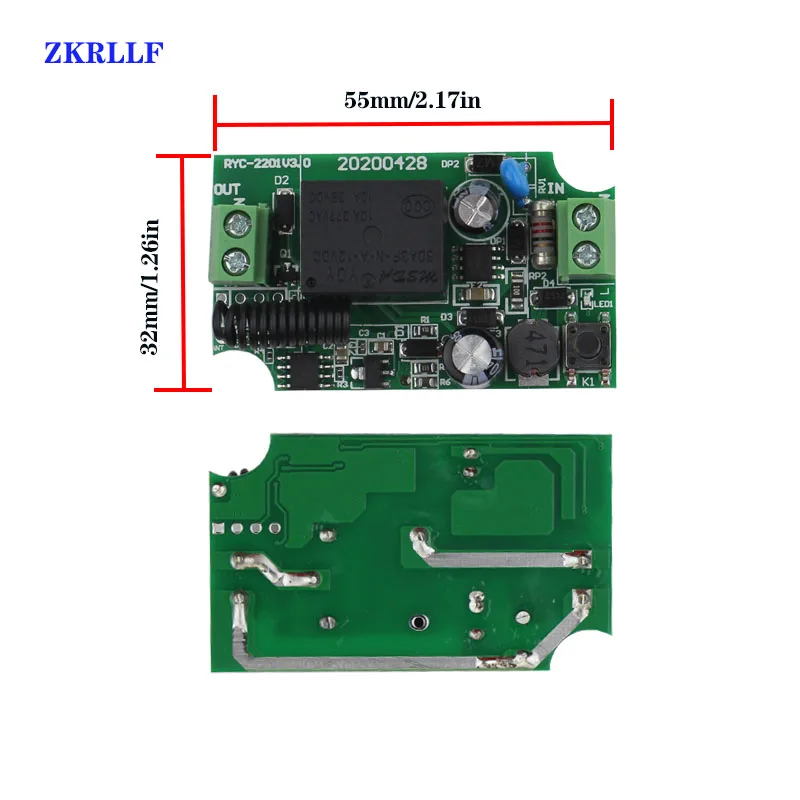

Dimension of PCB:55*32mm  (L,W)

Specifications Of The Remote Control:
Operating Frequency: 433MHz.

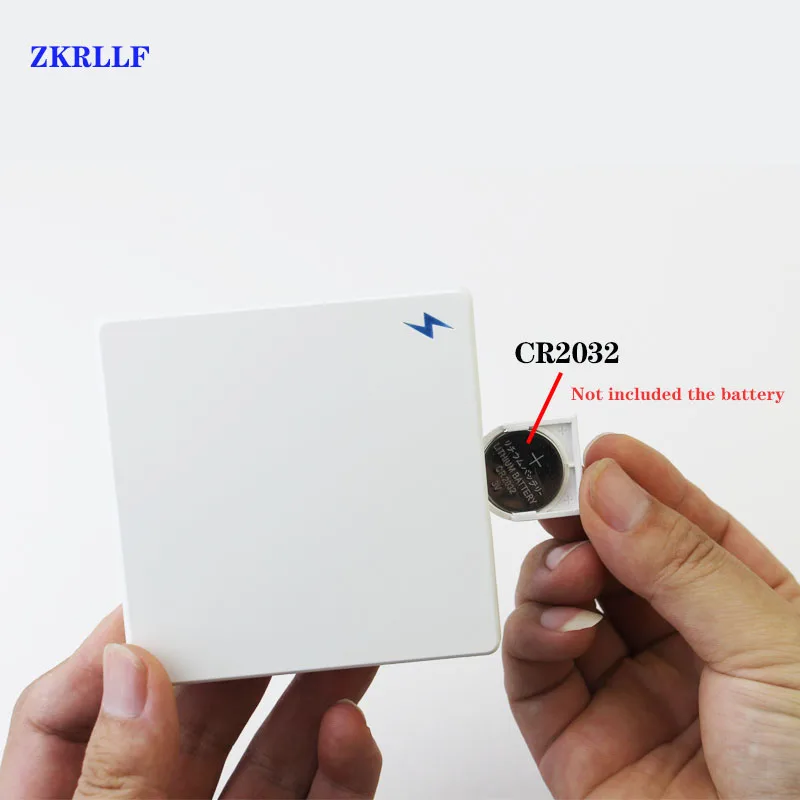

Battery Model: CR2032 Alkaline Battery (Package Not Included Battery).
Material: HDPE(Type2) Plastic.
Coding Specification: 1527.
Distance: Indoor (20 Meters/65 Feets) , Outdoor (80 Meters/262 Feets).

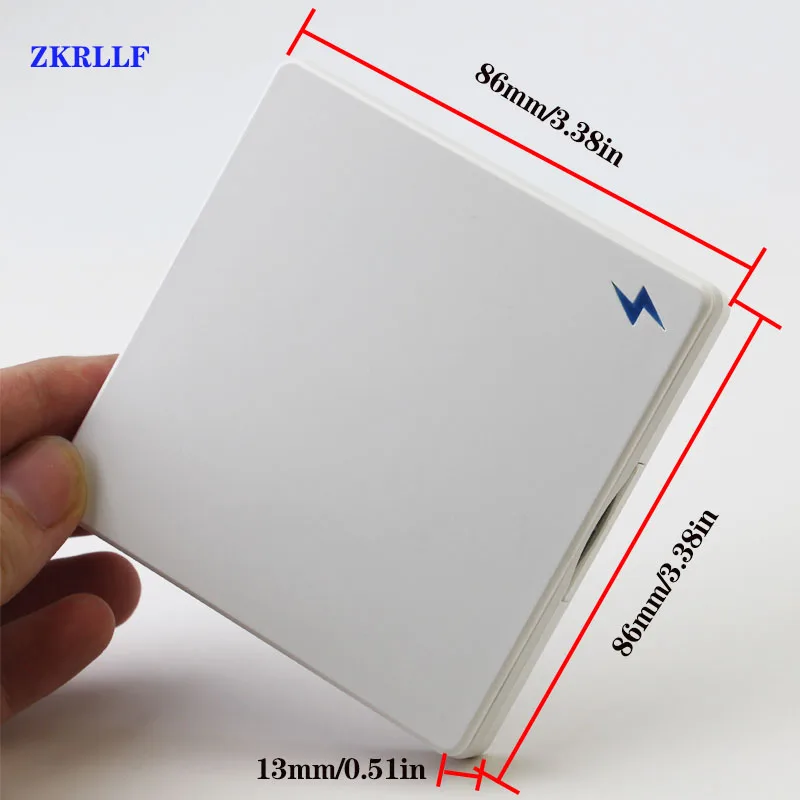

Size(L/W/H): 86mm x 86mm x 13mm.
Weight: 60g/2.1ounces.

Dear Sir and Madam : if you don't know it .please inquiry it .
the receiver and transmitter can work together ,their frequency ,IC chip and Shock resistance must be taken in to consideration.
If you need it to work with your own receiver, you must make sure 100% that your receiver is 433mhz Frequency,does your receiver have a learning button to learn the transmitter code? and does your receiver can be compatible with 1527 ic chip transmitter.

Package 1

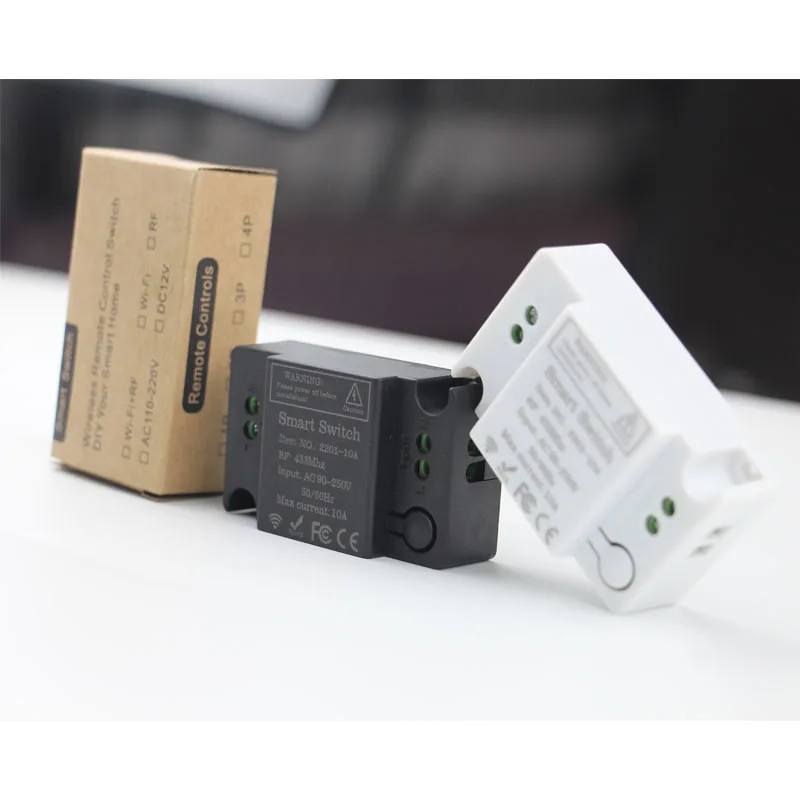

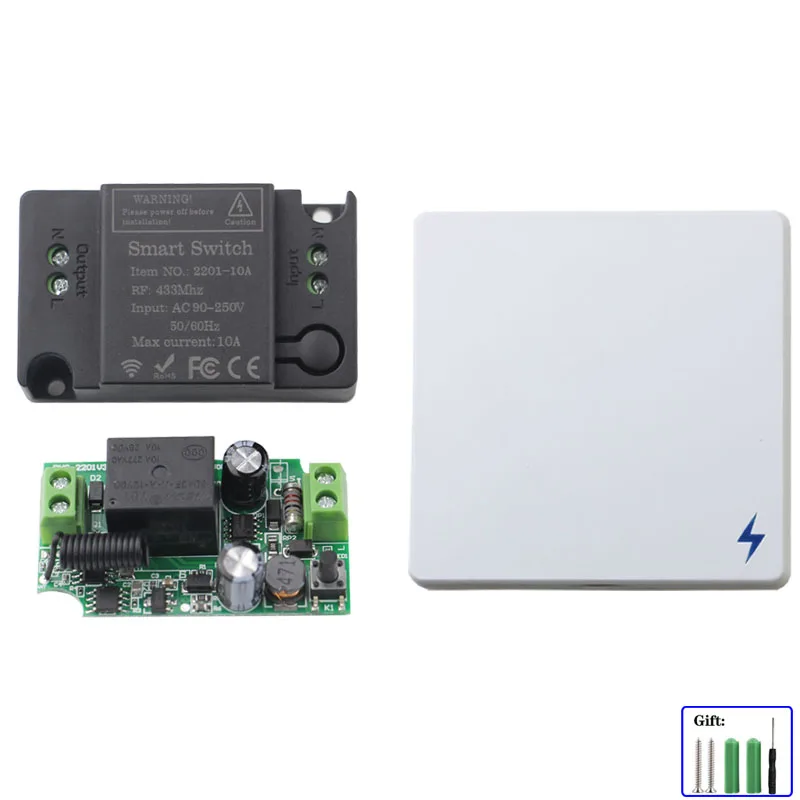

Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      1 Pcs *1 key Remote Controls        (Package Not Included Battery )

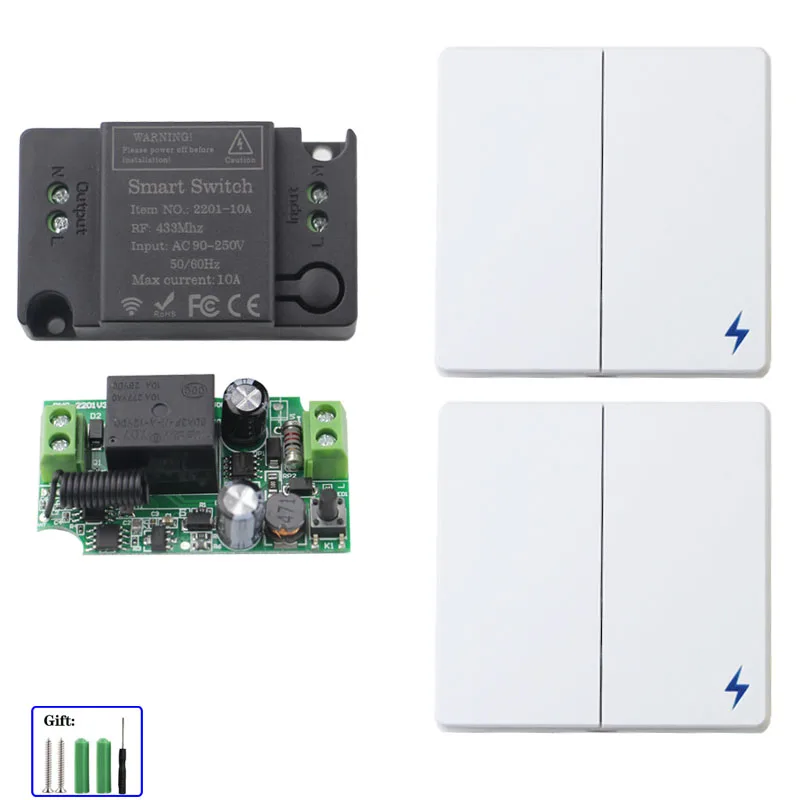

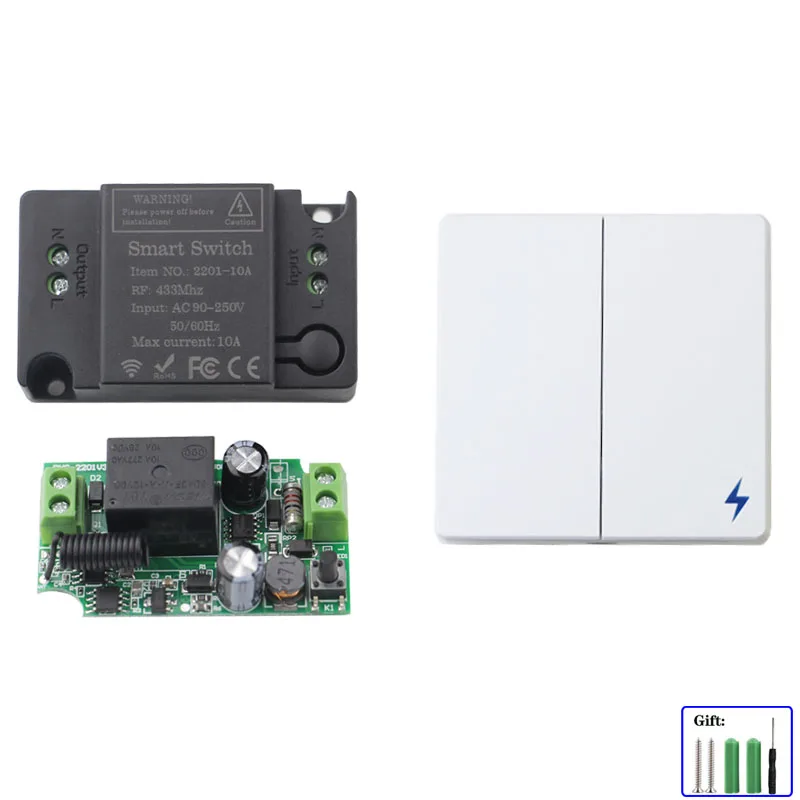

Package 2 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      1 Pcs *2 key Remote Controls        (Package Not Included Battery )

Package 3 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      2 Pcs *2 key Remote Controls        (Package Not Included Battery )

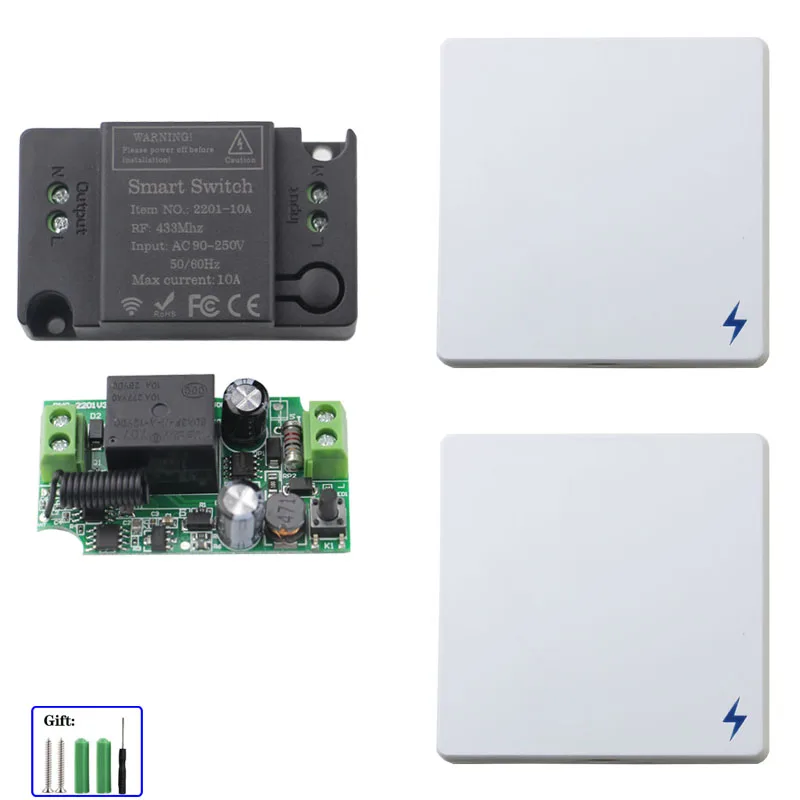

Package 4 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      2 Pcs *1 key Remote Controls        (Package Not Included Battery )

Package 5 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      3 Pcs *2 key Remote Controls        (Package Not Included Battery )

Package 6 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      4 Pcs *2 key Remote Controls        (Package Not Included Battery )

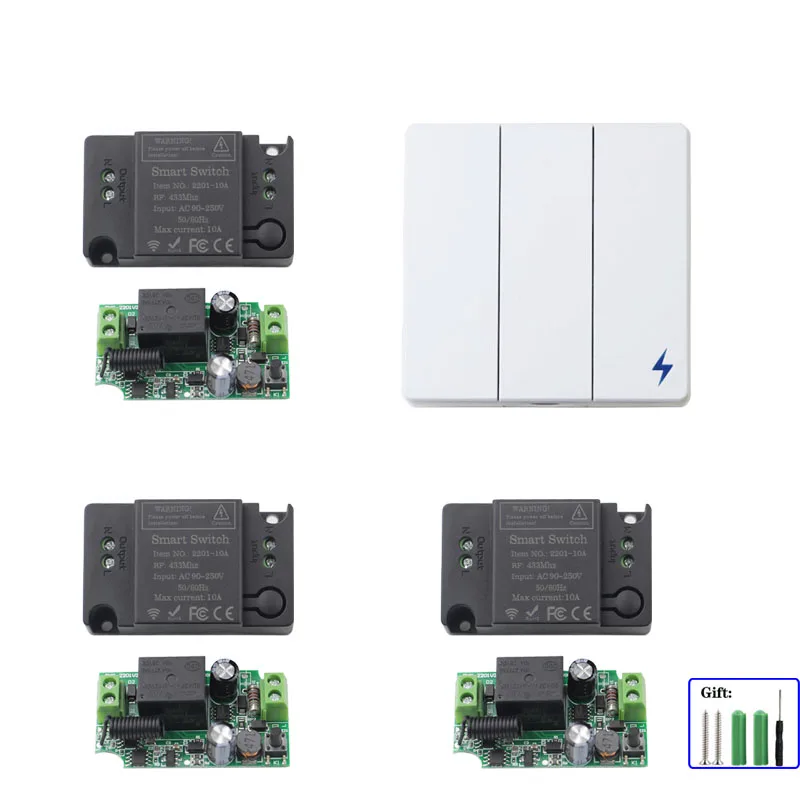

Package 7 Included:    3 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      1 Pcs *3 key Remote Controls        (Package Not Included Battery )

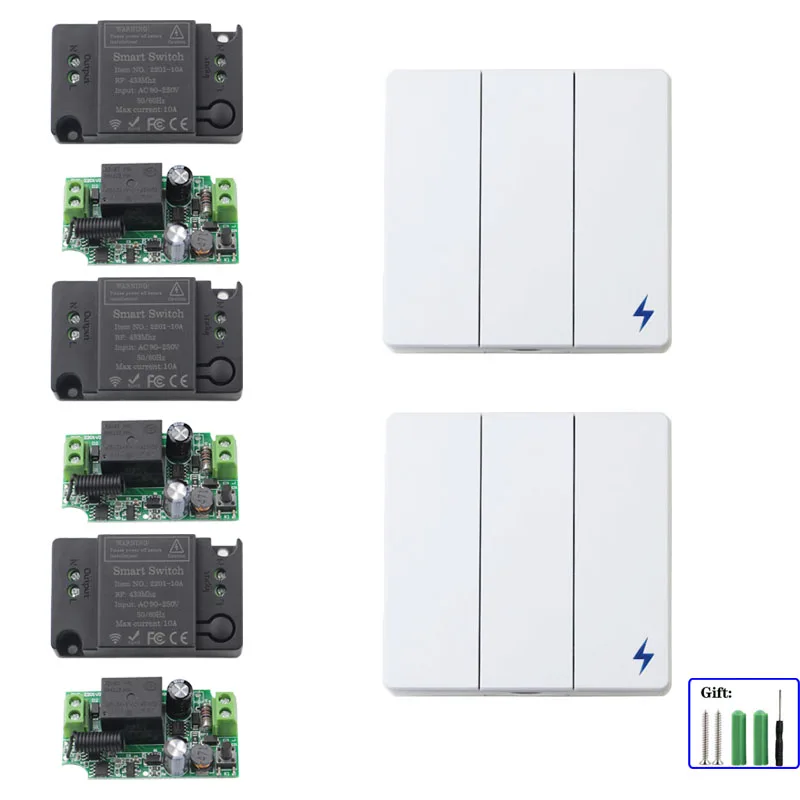

Package 8 Included:    3 Pcs * Receiver module (RYC-2201)  ( include Shell ),
                                      2 Pcs *3 key Remote Controls        (Package Not Included Battery )

Package 9 Included:    1 Pcs *1 key Remote Controls        (Package Not Included Battery )

Package 10 Included:    1 Pcs *2 key Remote Controls        (Package Not Included Battery )

Package 11 Included:    1 Pcs *3 key Remote Controls        (Package Not Included Battery )

Package 12 Included:    1 Pcs * Receiver module (RYC-2201)  ( include Shell )

About receiver's Working mode
1.Momentary mode:
Push the remote button , the relay connects, release theremote button , the relay dis-connects.
2.Toggle mode:
Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects .
3.Latching mode:
Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.
4.Automatic energize when power on mode:
 when power supply, the relay connects.

Receiver operating mode Settings
1.Learning the code :(momentary)
Push the learning key on the receiver once time ,it comes into momentary setting mode .Wait for a moment ,the LED will be on, it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off ,learning successfully.
2.Learning the code : ( Toggle )
Push the learning key on the receiver twice time , it comes into toggle setting mode Wait for a moment ,the LED will beon , it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off, learning successfully .
3.Learning the code :( Latching )
Note: When you choose for latching mode ,in order to learnmore remote control ,you need to learn two different button,the first time learnt is for “ON”, the second time learnt for “OFF”.For example : button A = ON , button B = OFF ,Push the learning key on the receiver triple time , it comes into
latching mode .Wait for a moment , the LED indicator on thereceiver board will be on,Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for 3 times and then come off, learning successfully .
4.Learning the code : (Automatic energize whenpower)
Push the learning key on the receiver eight times , it comes into setting mode Wait for a moment , the LED will be on , it comes into learning state .Push the remotebutton,LED indicator on the receiver board will flash 3 times and then come off, learning successfully .

NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost .
Clearing the code :
Push the learning button on the receivers for 9 times , the codes will be cleaned;After clearing the code, all the remote control cannot work any more.
