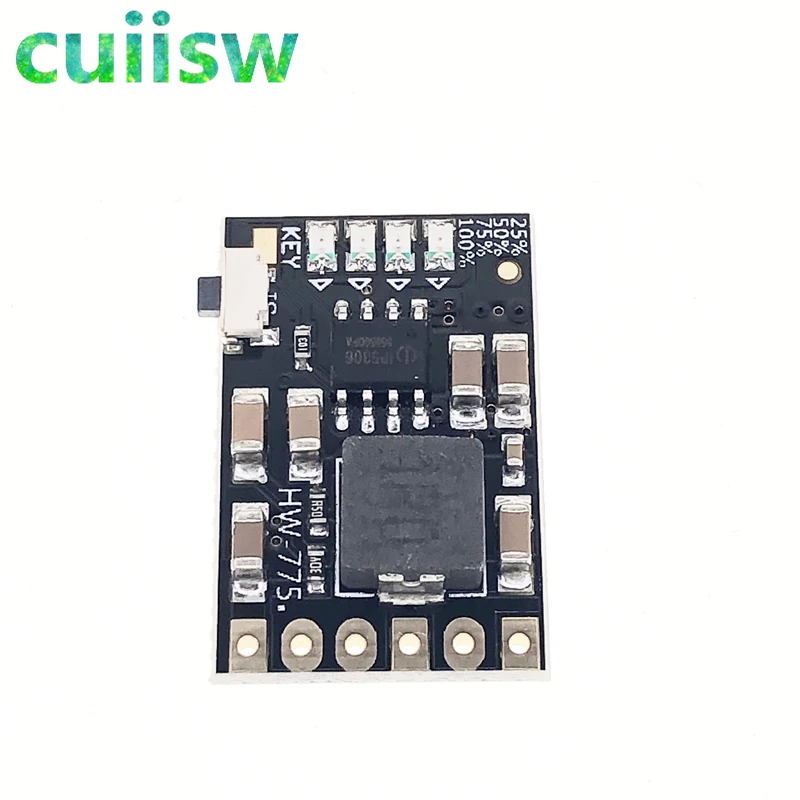

10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные



Сохраните в закладки:

Цена:980,11 / lotRUB
*Стоимость могла изменится

Количество:


Новое поступление

cuiisw module Store

cuiisw module Store

Магазина cuiisw module Store работает с 28.03.2013. его рейтинг составлет 95.69 баллов из 100. В избранное добавили 17640 покупателя. Средний рейтинг торваров продавца 4.8 в продаже представленно 2055 наименований товаров, успешно доставлено 228310 заказов. 32615 покупателей оставили отзывы о продавце.

Характеристики

10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные

История изменения цены

*Текущая стоимость 980,11 / lot уже могла изменится. Что бы узнать актуальную цену и проверить наличие товара, нажмите "Добавить в корзину"

Месяц Минимальная цена Макс. стоимость Цена
Mar-28-2026 1166.53 руб. 1224.36 руб. 1195 руб.
Feb-28-2026 1156.44 руб. 1214.9 руб. 1185 руб.
Jan-28-2026 970.75 руб. 1019.77 руб. 994.5 руб.
Dec-28-2025 1137.20 руб. 1194.89 руб. 1165.5 руб.
Nov-28-2025 990.51 руб. 1040.30 руб. 1015 руб.
Oct-28-2025 1117.45 руб. 1173.72 руб. 1145 руб.
Sep-28-2025 1107.74 руб. 1162.70 руб. 1134.5 руб.
Aug-28-2025 1098.9 руб. 1153.79 руб. 1125.5 руб.
Jul-28-2025 1088.48 руб. 1142.17 руб. 1115 руб.

Описание товара

10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные10PCS DC 5V 2.1A Mobile Power Diy Board 4.2V Charge/Discharge(boost)/battery protection/indicator module 3.7V lithium 18650 | Электронные



Product Features


Charging voltage: DC 4.5V-5.5V (recommended DC 5V)
Charging current : 0-2.1A
Charging quiescent current: 100uA
Full voltage: 4.2V+-1%.
Discharge current: 0-3.5A;
Discharge quiescent current: 50uA
Discharge efficiency: 96% maximum
Output voltage: 5V
Output current: 0-2.1A;
Ambient temperature: -20° to +85°
Module with lithium battery protection function (for lithium battery without
protection, with protection board)
Overcurrent protection (OCP)
Overvoltage protection (OVP)
Short circuit protection (SCP)
Over temperature protection (OTP)
Charge and discharge power level 4 interval indication

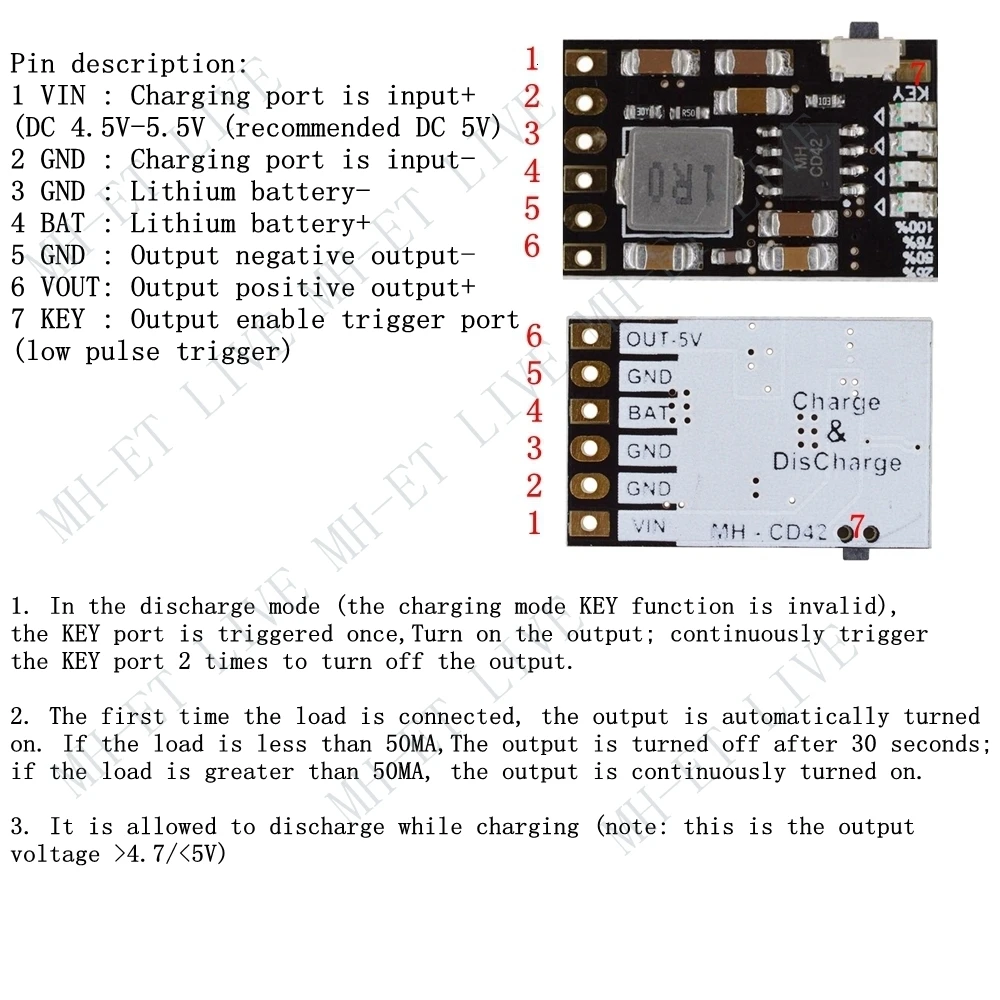

Pin definition

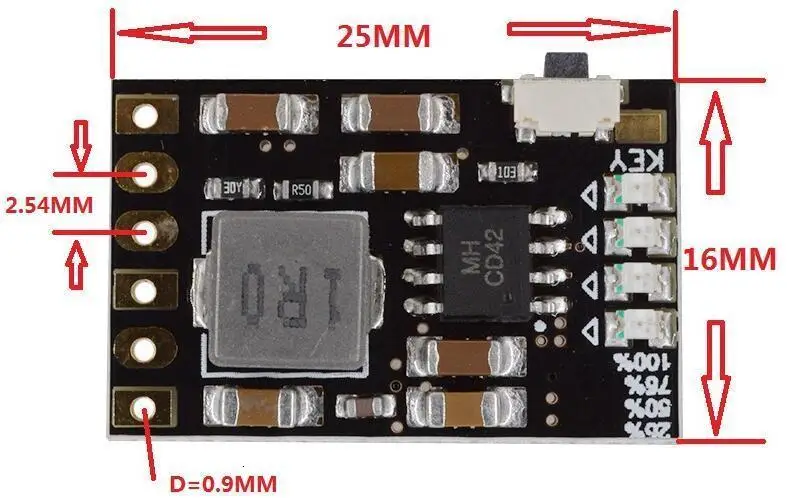

Size

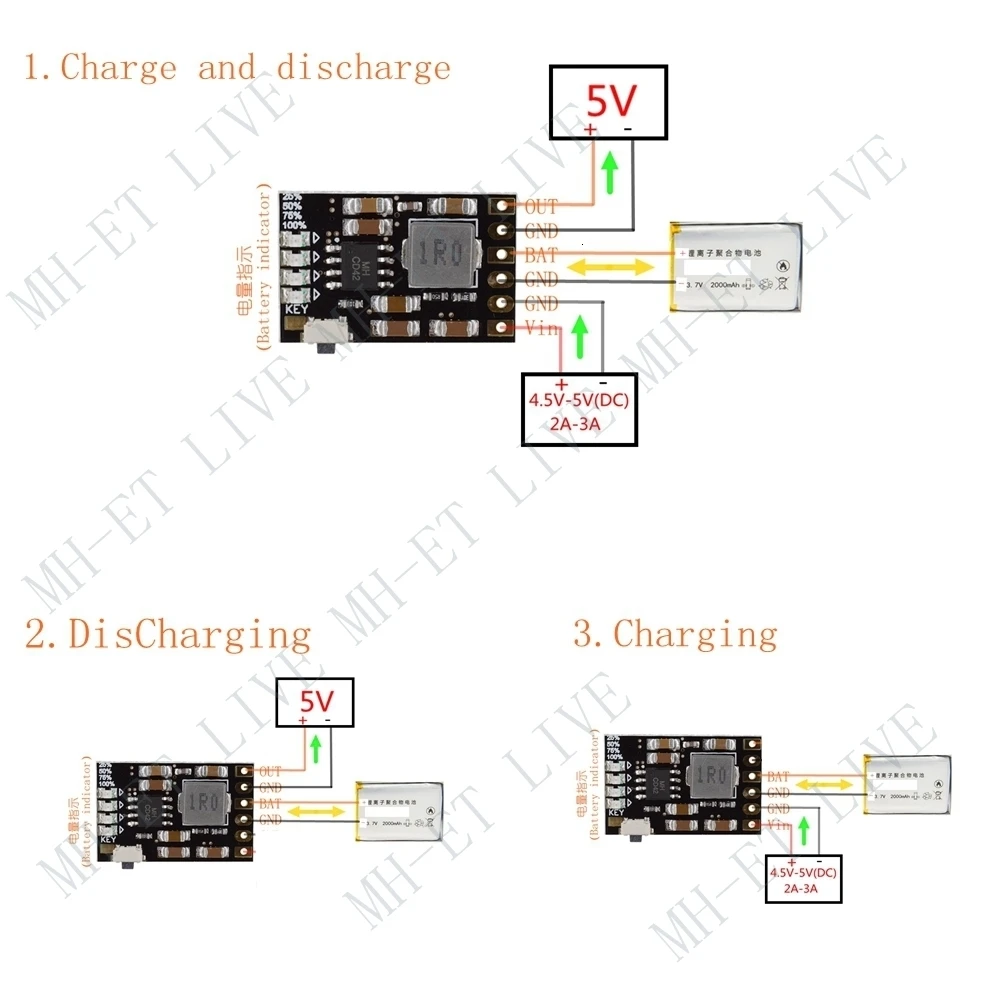

Use tutorial




When the module is charging, the output will switch the external power supply (it


will be powered off for 0.3s). The charging output voltage will be less than >4.7/<5V,


depending on the charger load capacity!


Trigger mode: low level trigger (ground)


Connect the user of the single-chip microcomputer, if the small load KEY can be


connected to the single-chip 20S to give a low level, the module can continue to work

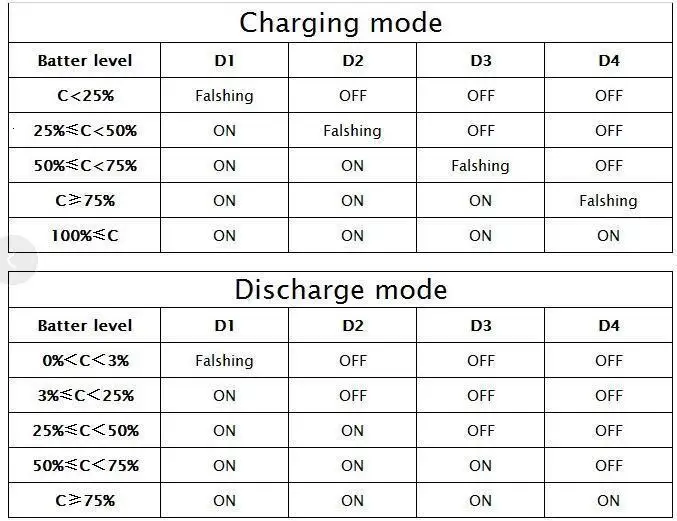

Indicator light





Applications


Car charging retrofit
 Driving recorder power supply
 Mobile power / charging treasure
Portable devices such as mobile phones and tablets


Note


The use of this electronic product requires a certain knowledge base. If you do not
understand, please be careful to buy it. Otherwise, it may be damaged due to
improper use or over-range use. Thank you for your understanding and support.
