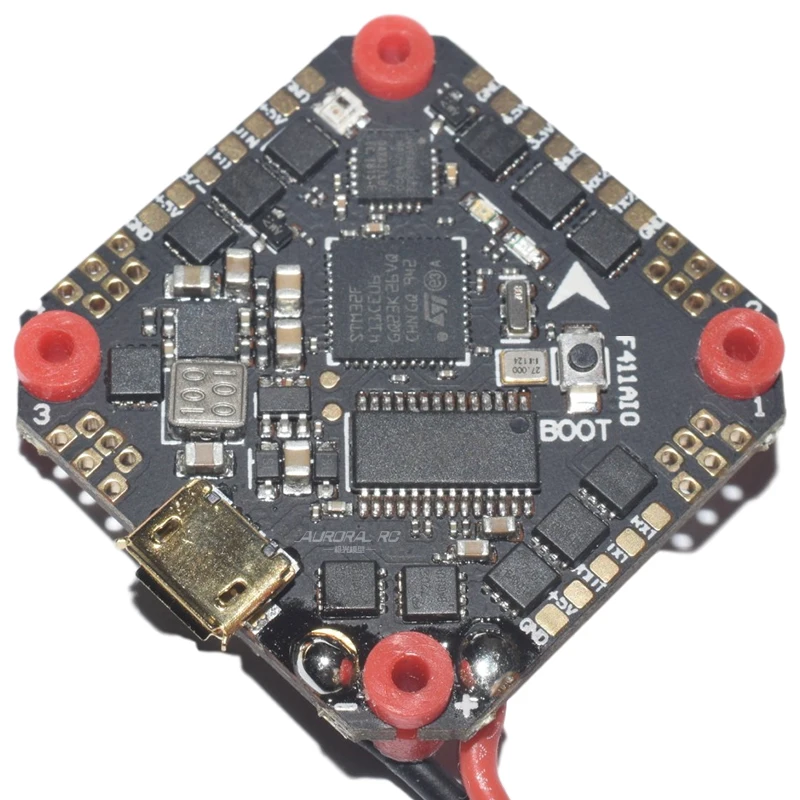

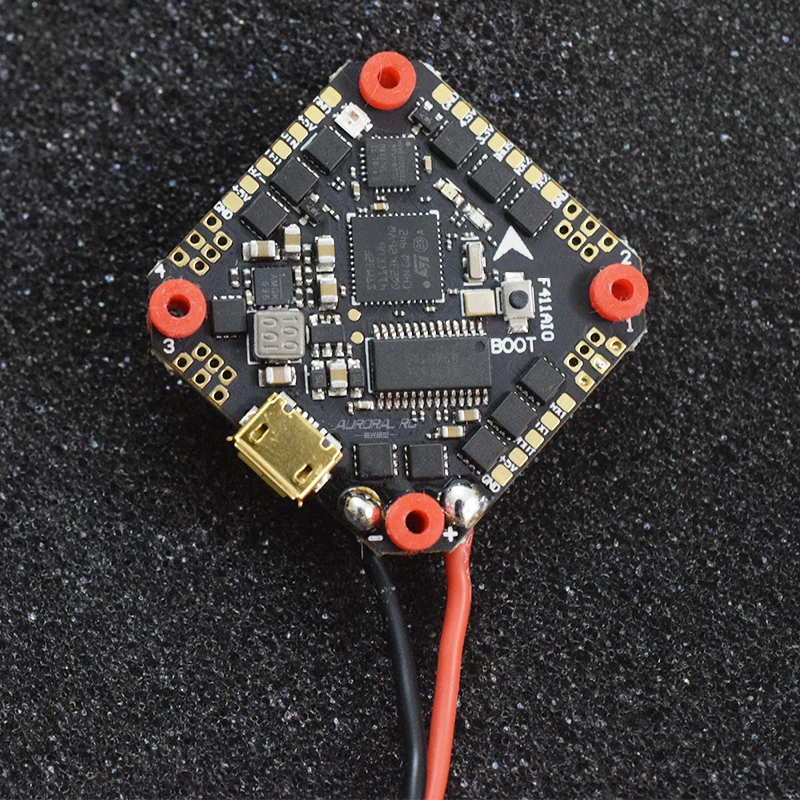

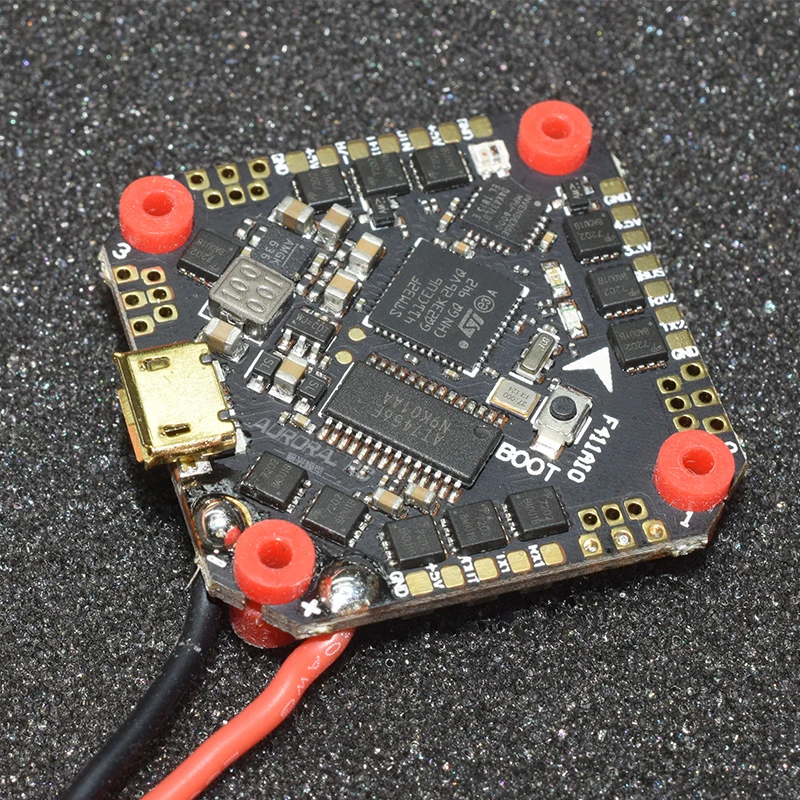

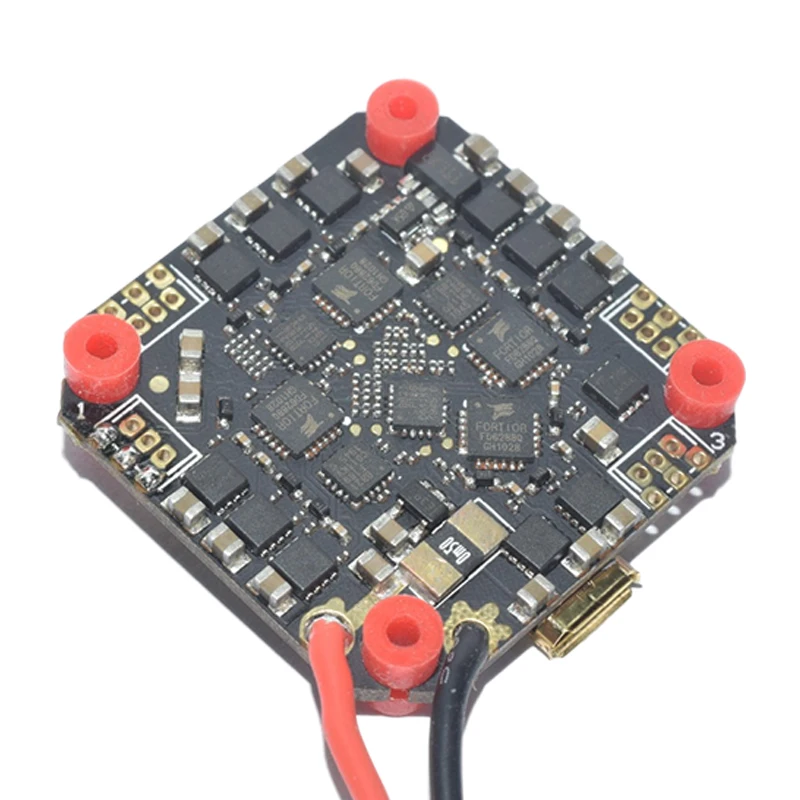

F411 AIO F4 MPU6000 Flight Controller OSD 20A 30A Blheli S 2-4S brushless ESC for RC FPV Racing Drone

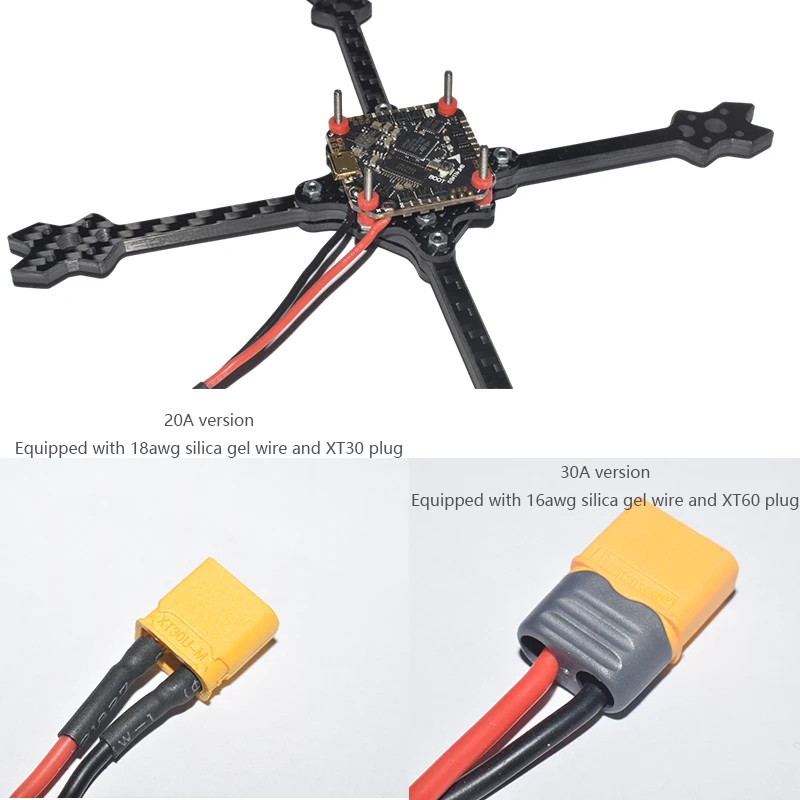

Compared with the previous 12A version, the new F411 AIO can achieve a continuous current of 20A/30A and a burst current of 30A/35A.Maximum 4S battery support, recommended to use 12xx-15xx motor, with 3″-5″ size blade.ThisF411 AIO has strong flight performance, OSD input, extremely light weight, let your new toothpick to build a higher flight performance through the aircraft.



Specifications:

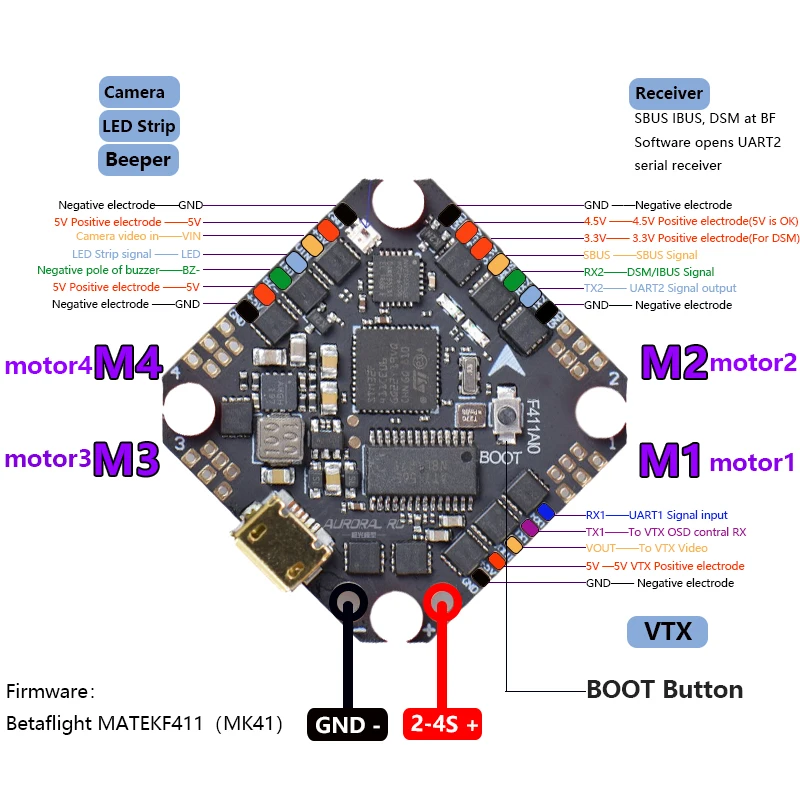

· Model Name:F411 AIO

· MCU: STM32F411

· IMU: MPU6000 gyro/accelerometer (SPI)

· FC Firmware target:MATEKF411

· OSD: BetaFlight OSD w/ AT7456E chip

· Baro:NO

· Current Monitoring : Support

· Betaflight OSD : Support

· External Buzzer : Support

· LED : Support

· USB Port: MicroUSB

· BEC Output: 5V@1A

· Integrated LC Filter

· Continuous current: 20A/30A

· Peak current: 30A/35A

· Input:2-4s lipo

· Supports Dshot600 ,Oneshot,Multishot

· Current meter: 210

· Target: G_H_30

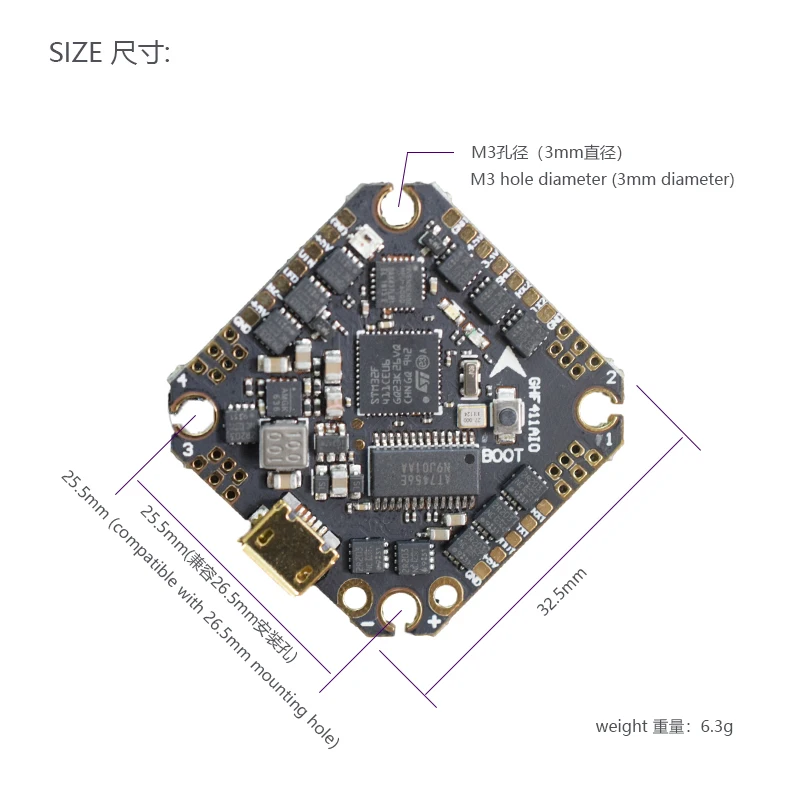

· Size: 32.5x32.5mm board,25.5mm mounting holes (M3)

· Installing Hole: 25.5×25.5mm, M3(Compatible with 26.5mm installation hole     distance)

Receiver Support:

1. Frsky XM/XM+/R-XSR

2. Futaba Receiver

3. DSM/DSMX

4. FlySky Receive

5. TBS Crossfire Receiver

6. AC900

7. Most receivers that support SBUS

Feature:

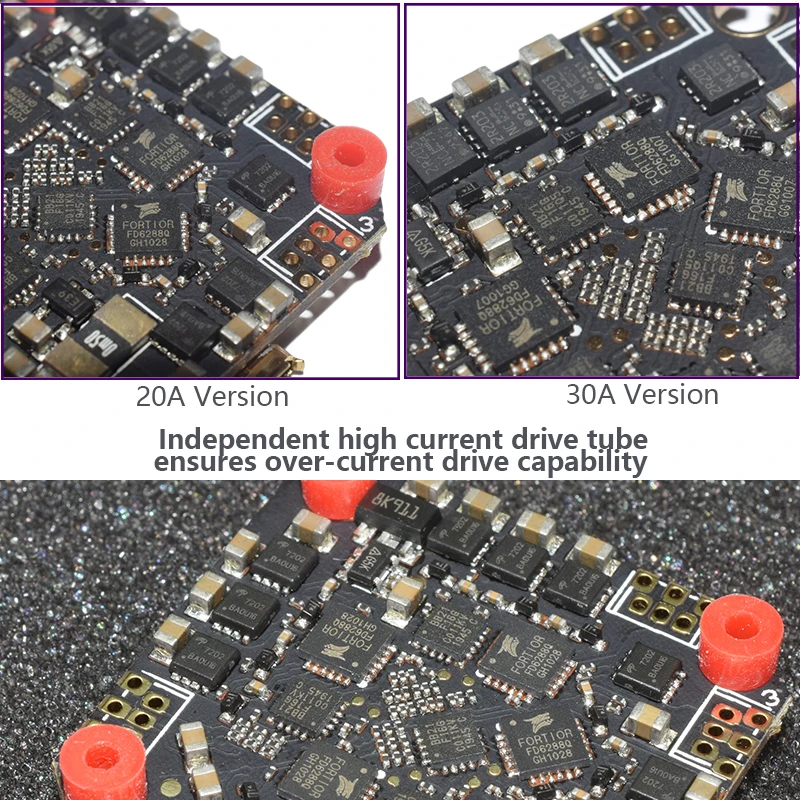

· Strong performance, cont.current 20A/30A, burst current 30A/35A

· BLhelis_S 20A/30A, maximum support 4S battery,Built-in current sensor

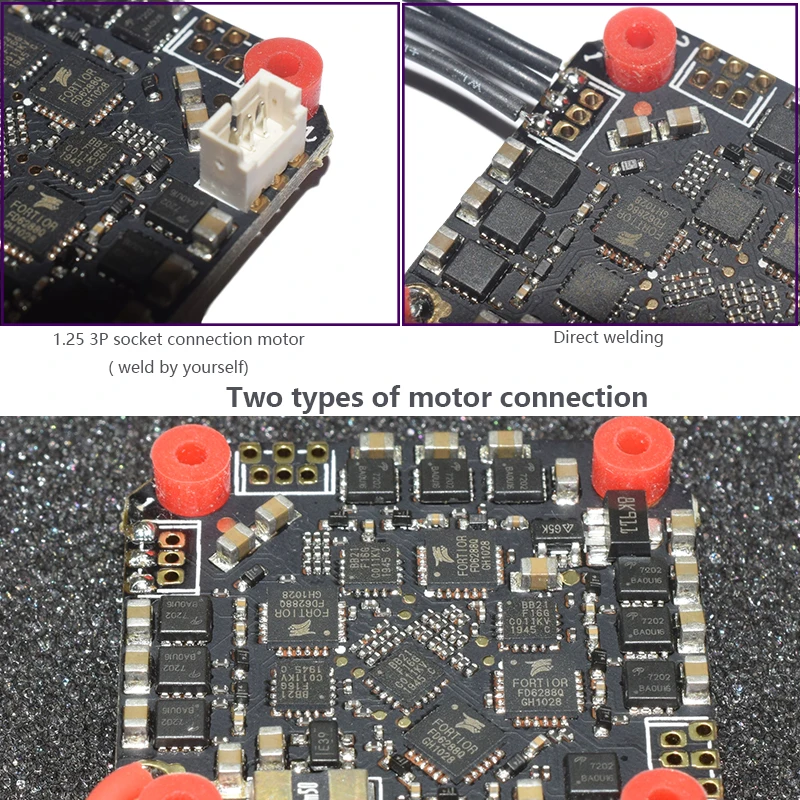

· Compatible with 12xx-15xx motor installation, with 3″-5″ size propeller

· STM32F411 flight control, Super-high Running Frequency

· MPU6000 gyroscope

· External Buzzer : Support

· LED Control : Support

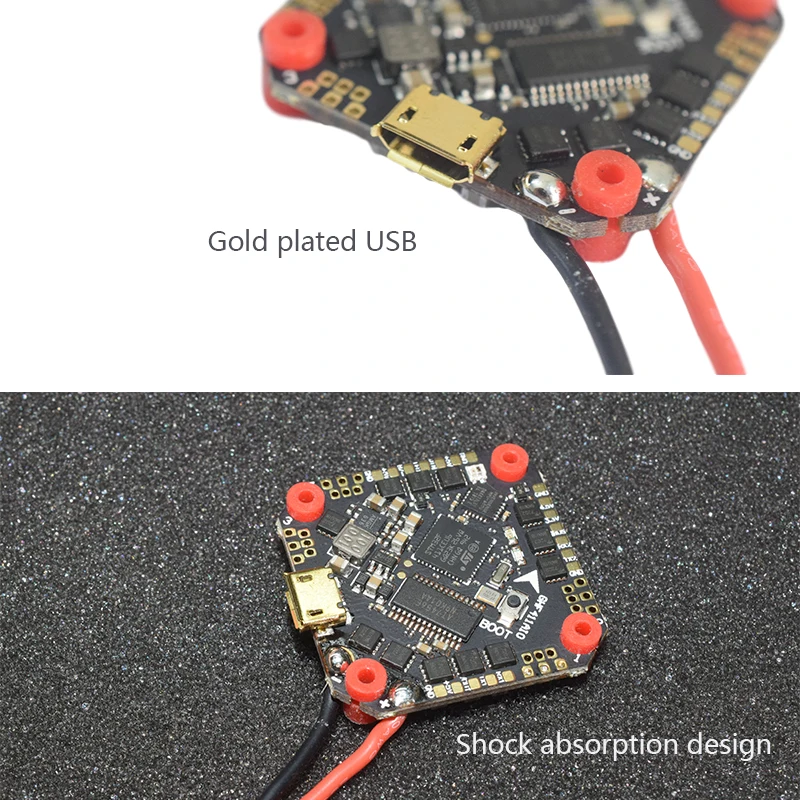

· Designed with silica gel shock absorbing column, it can reduce the high frequency vibration caused by frame and motor, allowing the flight control to operate in a noiseless environment

· The overall weight is about 6.3g.
