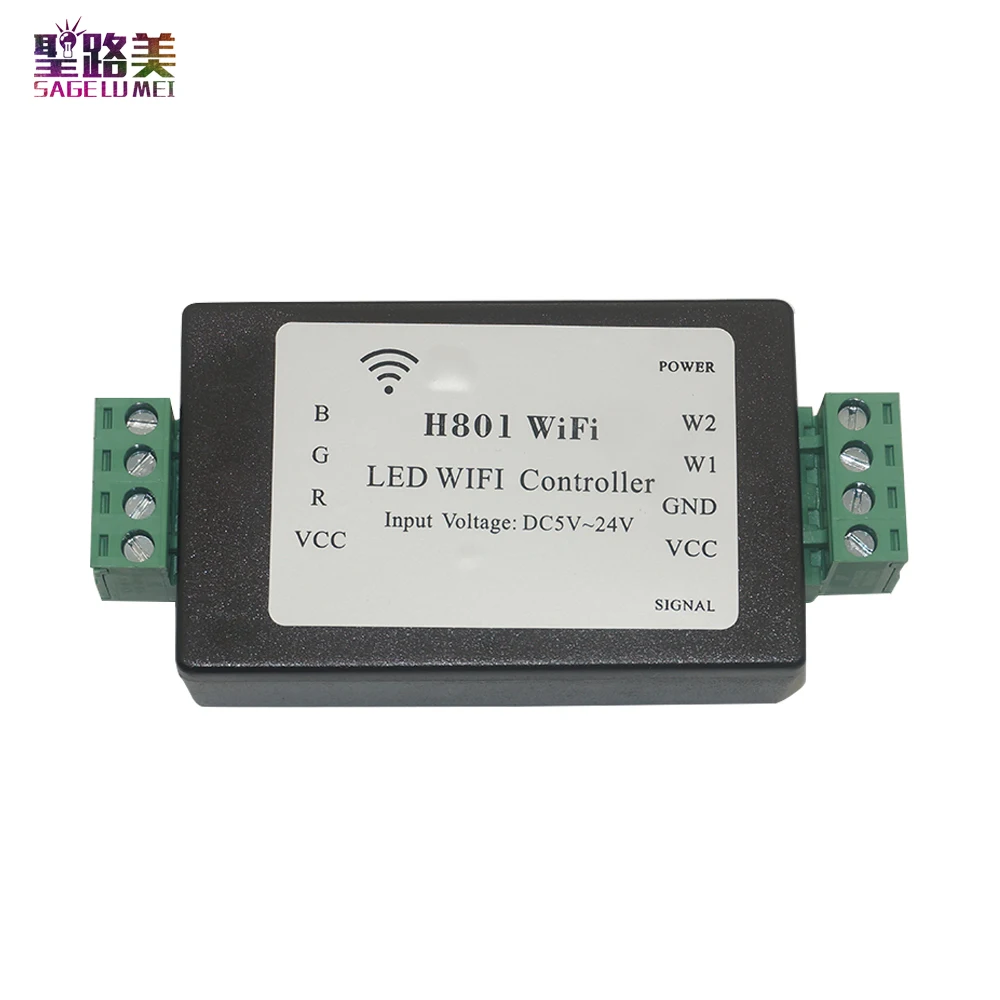

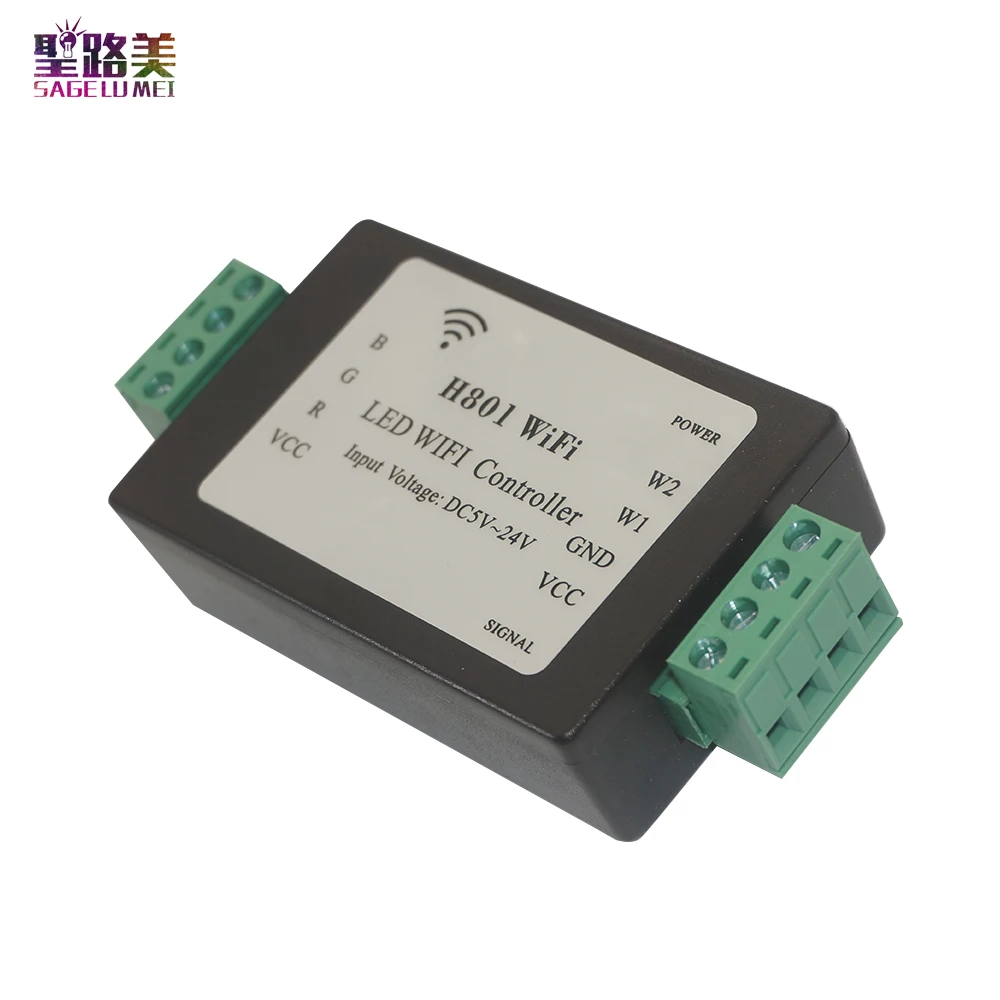

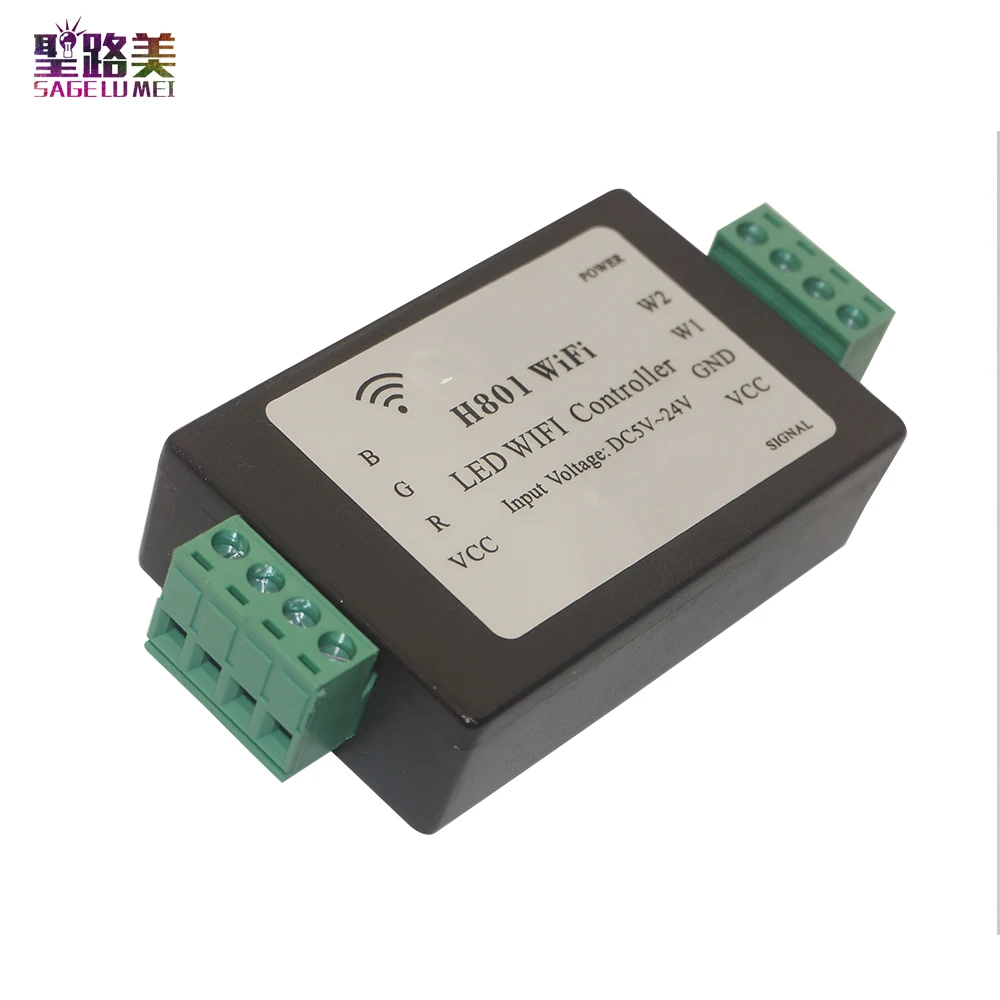

1pcs H801 WiFi;RGBW LED WIFI controller;RGBW WiFi LED H801 Controller;DC5-24V input;5CH*4A output

  Main Material: Plastic
  Power Supply: DC
  Connecting Model: WLAN
  Oscillation Frequency: 500Hz
  Controlled Method: WIFI Control, Android Smart Phone
  Input Voltage: DC 5V~24V
  Load Power: 96W
  Channel Power: 0.5W
  Frequency: 500Hz
  Remote Distance (approx.): 10m
  Output: 5 routes PWM, each route 4A
  Dimension (approx.): 93 x 46 x 20mm / 3.66 x 1.81 x 0.79inch
  Package Weight (approx.): 65g

Features:
  Connect and control lamps easily.
  Output RGBWW, 5 routes PWM data.
  Refresh frequency is 500HZ, support 802.11 b/g/n.
  Support for non-encrypted networks and WPA, WPA2 encryption network
  Fast transmission, response sensitive.
  H801WiFi can be controlled separately.
  Multiple phones can control H801WiFi simultaneously.
  Built-in dozens of effects.
  Automatic connection function.
  In addition to driving RGB lamps, you can also control the following LED Driver IC:      LPD6803, LPD1882, LPD1889, DMX512, APA102, UCS6909, UCS6912, UCS1903,  UCS1909, UCS1912, WS2811, INK1003, TM1812, TM1809,TM1804

Usage( Connect phone to H801WiFi )
    Step 1:  Power on H801WiFi, install "LED Dimmer" and create shortcut.
  Duplicate LEDDimmer.apk to phone and click to install, long press the icon and drag it to home screen.
  Step 2:  Turn on WiFi
  Power on H801WiFi, click phone pull-down menu, click settings, turn on WLAN, then    choose and click "HCX_******", password is "88888888", enter password and click connect.  The pop-up icon indicates WiFi is connected.

Step 3: Run LED Dimmer:
  Click LED Dimmer, pops up the following operation interface, slide on color wheel, the light    will change with the color accordingly.
  Click the button in the middle, the lights will be off.
  Click the effect selection dialog, there are many effects to choose.
  Click menu--Color Rod to set the brightness of each color and playing speed.

Step 4: Connect to router
  If you want your phone can both surf the internet and control lights, you must connect  H801WIFI to router,  the following is the procedure.
  (1) Install LEDDimmer.apk, and turn on WIFI.
  (2) Click menu-- "Router", click "WLAN AP", choose the right router, and enter password,  then click "link". All H801WIWI that can communicate with phone has been connected to  router. Connect your phone to router too, after connected, your phone can both surf the  internet and control H801WIFI.

Package:

1x LED WiFi Controller
